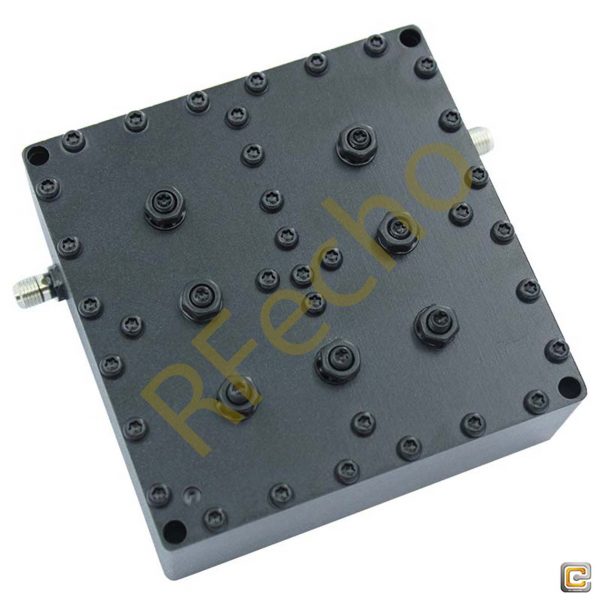

Cavity Band Pass OBP-1200-20
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.

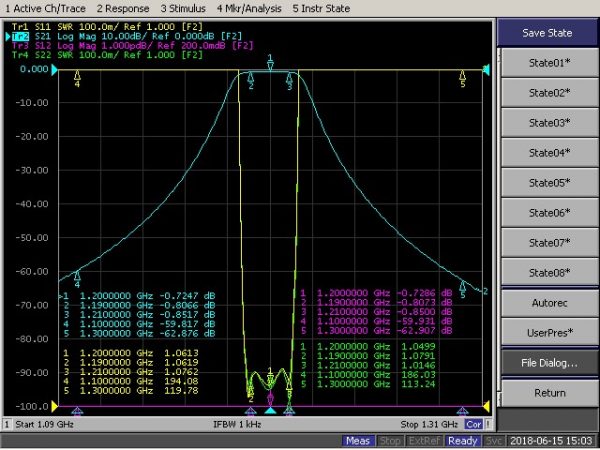

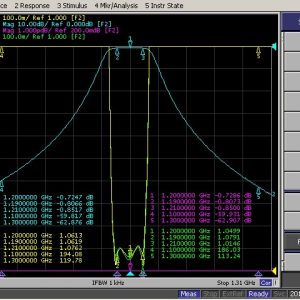

The product name of this Ocean band-pass filter (OBP) is OBP-1200-20, its Center Frequency(F0) is 1200MHz, its Pass Band Bandwidth is 1190～1210MHz, its Pass Band Insertion Loss is ≤1.0dB, and its Pass Band VSWR is ≤1.3:1. Its Stop Band frequency is DC～1100MHz & 1300～3000MHz. The Stop Band Rejection is: ≥50dB
