Cavity Band Pass OBP-39300-1400

Cavity Band Pass OBP-39300-1400

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:OBP) is a filter that allows waves of specific frequency
band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-39300-1400, its Center Frequency(F0) is 39300MHz, its Pass Band Bandwidth is 38600~40000MHz, its Pass Band Insertion Loss is ≤1.8dB, and its PassBand VSWR is≤1.5:1. Its Stop Band frequency is F0±2000MHz. The Stop Band Rejection is:≥40dB

SKU: OBP-39300-1400 Categories: ,

Description

PDF

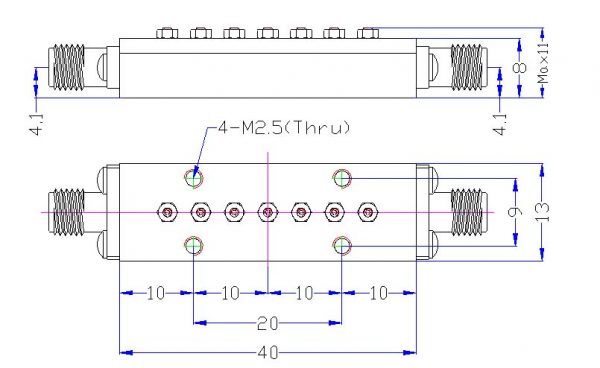

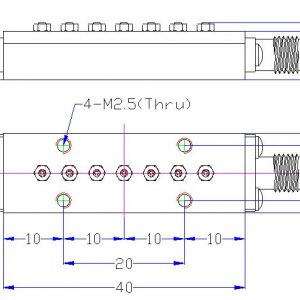

Outline

OBP 39300 1400 outline Cavity Band Pass OBP-39300-1400

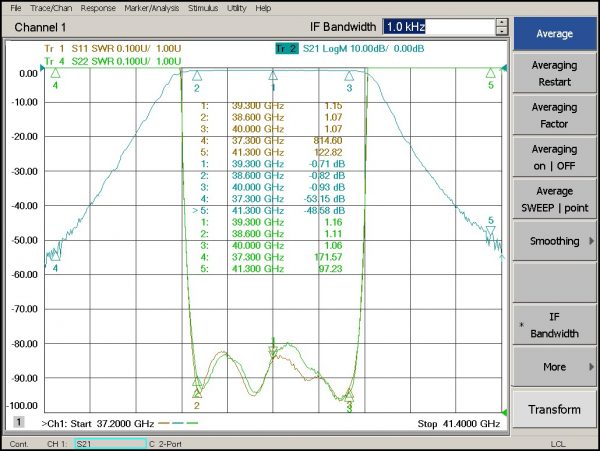

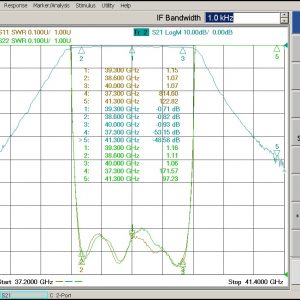

Plot

OBP 39300 1400 plot1 Cavity Band Pass OBP-39300-1400

Additional information

Center Frequency (F0) (MHz)

Min. Pass Band Frequency (MHz)

Max. Pass Band Frequency (MHz)

Pass Band Insertion Loss (dB)

Stop Band Rejection

Impedance (Ω)

Power Handling (W)

Connection Type
