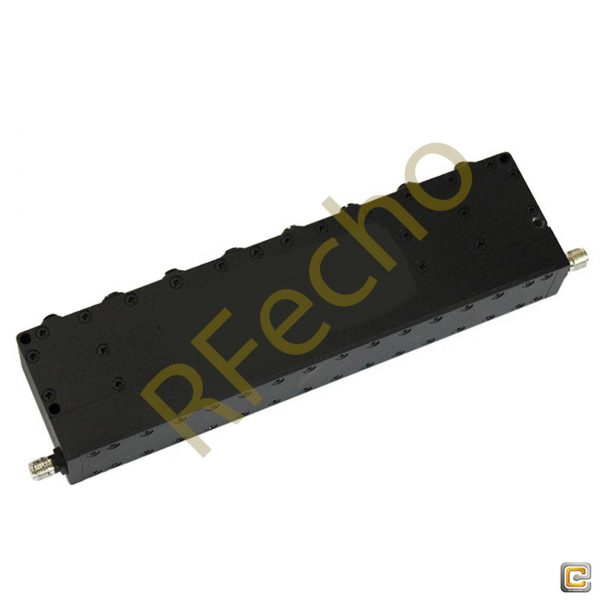

Cavity Band Rejection Filter OBR-2410-20

Cavity Band Rejection Filter OBR-2410-20

Ocean Microwave Bandstop Filters (Ocean Bandstop Filters,abbreviation:OBR) refer to filters that can pass through most frequency but attenuate some range of frequency to extremely low levels, which is opposite to the concept of band-pass filters. Among them, the notch filter is a special band-stop filter witha very small stop band range and a very high Q Factor.
The product name of this Ocean Band stop Filters (OBR) is OBR-2410-20 ,its Stop Band Frequency is 2400~2420MHz,Stop Band attenuation is 40dB ,its Pass Band Frequency is DC~2360MHz2460~6000MHz ,and its Pass Band Insertion Loss is 1.5dB . Its Pass Band VSWR is 1.5:1.

SKU: OBR-2410-20 Categories: ,

Description

PDF

Outline

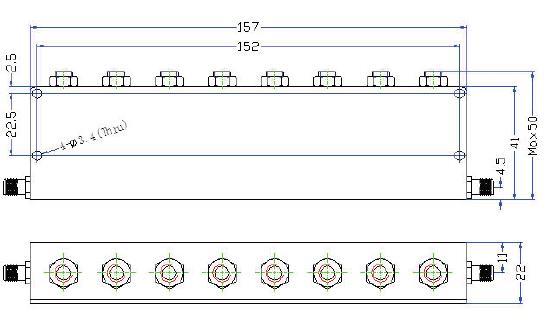

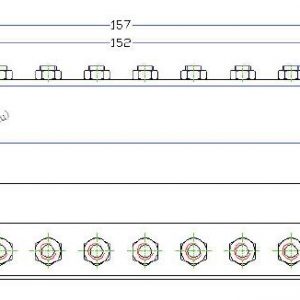

OBR 2410 20 outline Cavity Band Rejection Filter OBR-2410-20

Plot

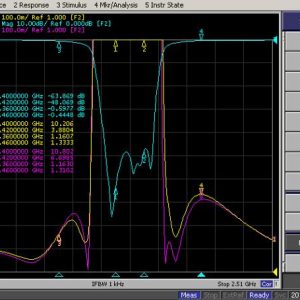

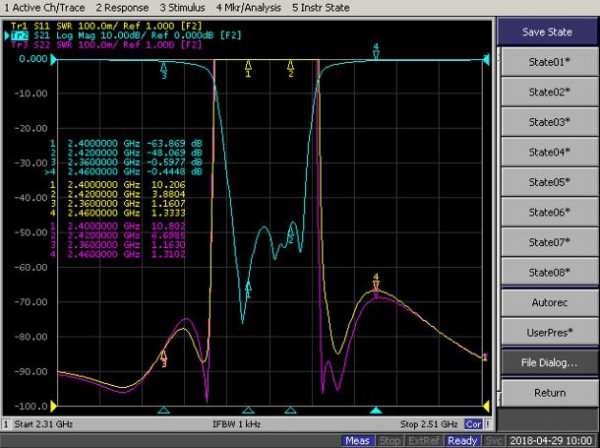

OBR 2410 20 plot1 Cavity Band Rejection Filter OBR-2410-20

Additional information

Center Frequency (F0) (MHz)

Stop Band Min. Frequency (MHz)

Stop Band Max. Frequency (MHz)

Stop Band Attenuation (dB)

Band Min. Frequency (MHz) A

Band Max. Frequency (MHz) A

Band Min. Frequency (MHz) B

Band Max. Frequency (MHz) B

Pass Band Insertion Loss (dB)

Impedance (Ω)

Power Handling (W)

Connection Type
