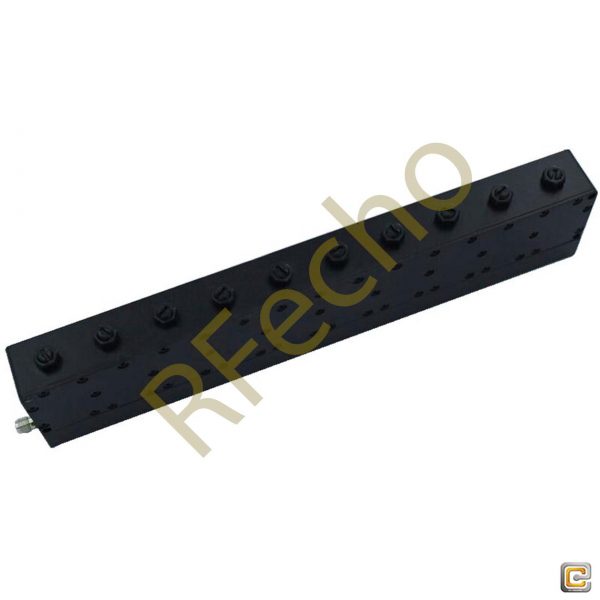

Cavity Band Rejection Filter OBR-1880-60

Cavity Band Rejection Filter OBR-1880-60

Ocean Microwave Bandstop Filters (Ocean Bandstop Filters, abbreviation:OBR) refer to filters that can pass through most frequency but attenuate some range of frequency to extremely low levels, which is opposite to the concept of band-pass filters. Among them, the notch filter is a special band-stop filter with a very small stop band range and a very high Q Factor.
The product name of this Ocean Bandstop Filters (OBR) is OBR-1880-60, its Stop Band Frequency is 1850~1910MHz,Stop Ba nd attenuation is 40dB, its Pass Band Frequency is DC~1825MHz & 1940~4500MHz, and its Pass Band Insertion Loss is2.0dB. Its Pass BandVSW.R is 1.5:1

SKU: OBR-1880-60 Categories: ,

Description

PDF

Outline

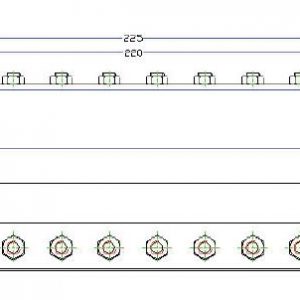

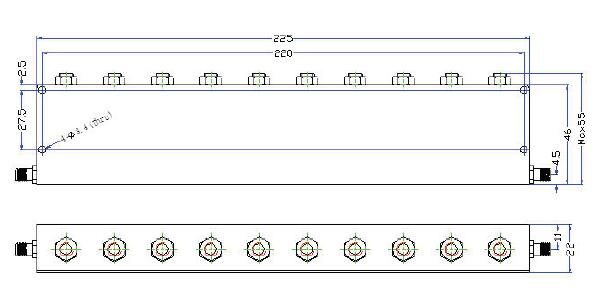

OBR 1880 60 outline Cavity Band Rejection Filter OBR-1880-60

Plot

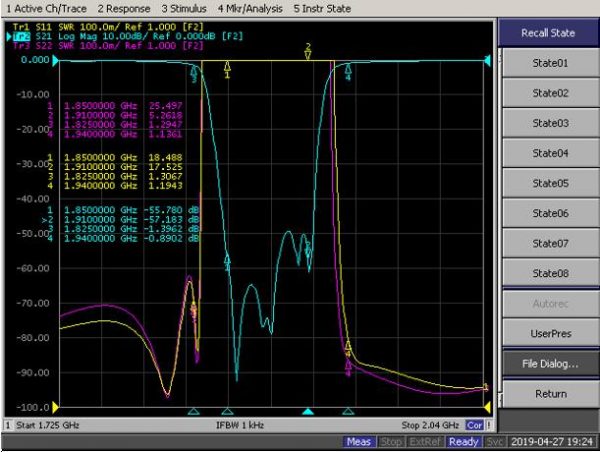

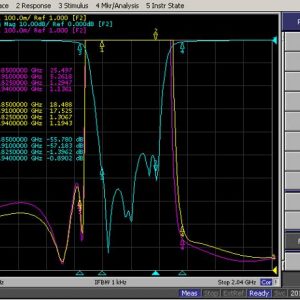

OBR 1880 60 plot1 Cavity Band Rejection Filter OBR-1880-60
