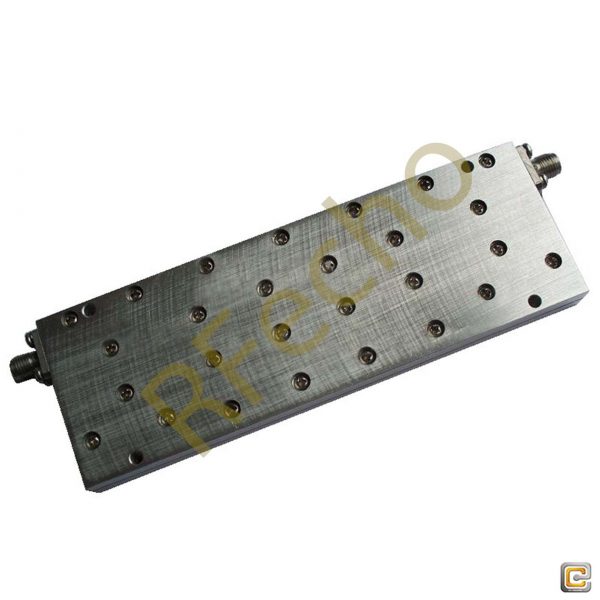

RF Low Pass Filter model OLP-960 also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This RF Low Pass Filter Manufactured with a passband frequency from DC to 0.96GHz and a rejection frequency 1.4GHz to 4GHz. Our Low Pass Cavity Filter provides a nominal insertion loss of ≤1.0dB across its passband and a typical rejection of ≥ 70dB. Since the high end cutoff frequency of RF Low Pass Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Low Pass Filter has passband VSWR 1.5:1 and power handling of 10W. Low Pass Cavity Filter is manufactured with SMA Female Connector and Net weight of 0.13 Kg.
DC to 0.96GHz Ocean Low Pass Cavilty filter from RFecho is just one part in a large selection of our RF Components. Our DC to 0.96GHz RF Low Pass Filter is ready for shipping worldwide after purchase. Additional specs of this Low Pass Cavity Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OLP-960 Categories: Low Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.

Low Pass Cavity Filter – OLP-960 Electrical Specifications

Pass Band Frequency DC~0.96GHz
Insertion Loss ≤1.0dB
VSWR ≤1.5:1
Rejection ≥70dB @ 1.4~4GHz
Power Handlin 10W
Surface Finish GuideOxygenor Black paint
Port Connectors SMA-Female
Net Weight 0.13KG

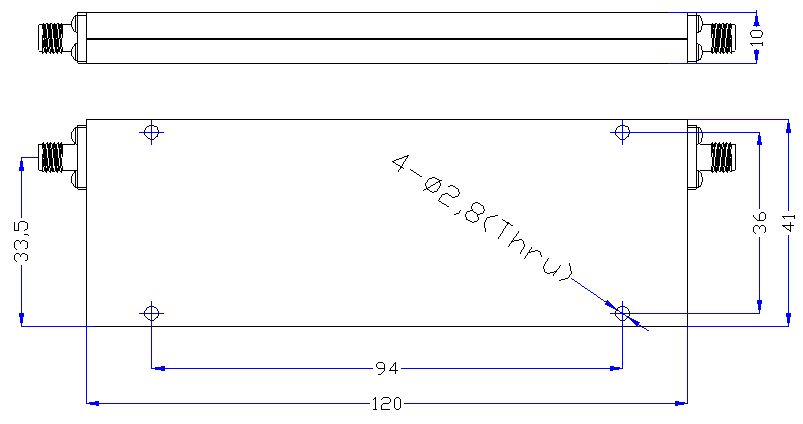

Product Dimensions

DC-0.96GHz, Rejection ≥70dB @ 1.4-4GHz, Low Pass Cavity Filter OLP-960 01

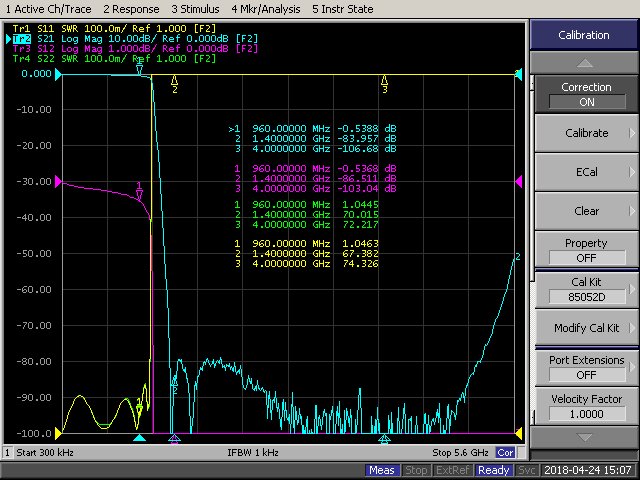

Test Data

DC-0.96GHz, Rejection ≥70dB @ 1.4-4GHz, Low Pass Cavity Filter OLP-960 02

[wpfd_single_file id=”46735″ catid=”6426″ name=”OLP-960″]

Additional information

Min. Pass Band Frequency (GHz)

DC

Max. Pass Band Frequency (GHz)

0.96

Cut Off Frequency (GHz)

NA

Pass Band Insertion Loss (dB)

≤1.0dB

Min. 1.0 dB Insertion Loss

NA

Max. 1.0 dB Insertion Loss

NA

Min. 1.5 dB Insertion Loss

NA

Max. 1.5 dB Insertion Loss

NA

Pass Band Return Loss (dB)

NA

Pass Band VSWR (Max.)

1.5:1

Stop Band Attenuation (GHz)

≥70dB @ 1.400 – 4.0

Impedance (Ω)

NA

Power Handling (W)

10

Connection Type

SMA-Female

Surface Finish

Guided Oxygen or Black Paint
