RF Microwave Low Pass Cavity Filter DC-2.0GHz RF Low Pass Passive Filter Rejection ≥50dB @ 2.5-13GHz with SMA Female Connector
RF Microwave Low Pass Cavity Filter model OLP-2000-B also known as low cut-off filter that allows signals below the cut-off frequency to pass through. This RF Microwave Low Pass Cavity Filter Manufactured with a passband frequency from DC to 2.0GHz and a rejection frequency 2.5GHz to 13GHz. Our RF Low Pass Passive Filter provides a nominal insertion loss of ≤1.5dB across its passband and a typical rejection of ≥50dB @ 2.5-13GHz. Since the high end cutoff frequency of RF Microwave Low Pass Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Microwave Low Pass Cavity Filter has passband VSWR ≤1.5:1 and power handling of ≤15W. RF low pass Passive Filter is manufactured with SMA Female Connector and Customized Net weight. DC to 2.0GHz Ocean Low Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our DC to 2.0GHz RF Microwave Low Pass Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this RF Low Pass passive Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
- Description
- Additional information
Description
RFecho Low Pass Cavity Filter (abbreviation: OLP) is a filter that allows signals below the cut-off frequency to pass through, but signals above the cut-off frequency cannot pass through.
Low Pass Cavity Filter – OLP-2000-B:
- Cut Off Frequency: 2GHz,
- Pass Band Frequency: DC 0.9-2.0GHz,
- Pass Band Insertion Loss: ≤1.5dB,
- Pass Band VSWR: ≤1.5:1,

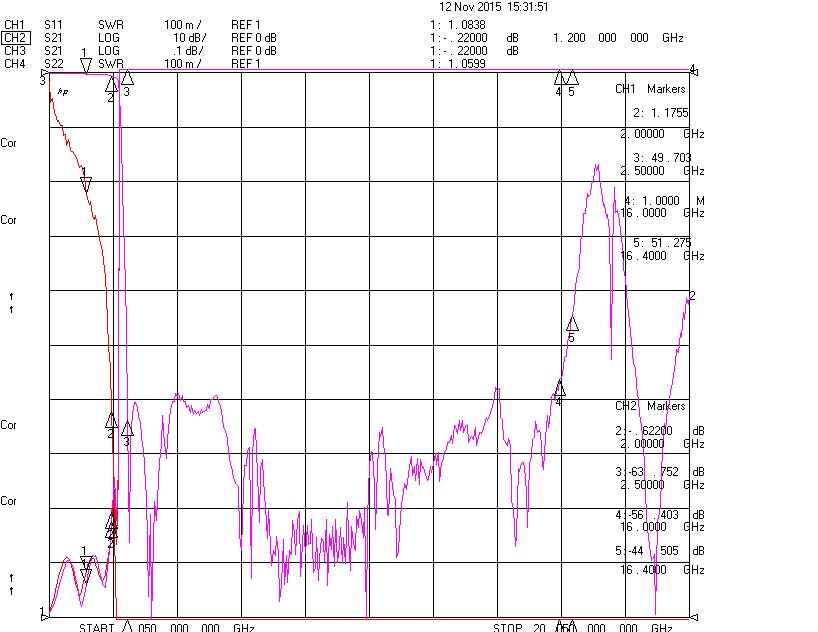

- Rejection: ≥50dB @ 2.5-13GHz.
Additional information
Min. Pass Band Frequency (GHz) | |
---|---|
Max. Pass Band Frequency (GHz) | |
Cut Off Frequency (GHz) | |
Pass Band Insertion Loss (dB) | |
Min. 1.0 dB Insertion Loss | |
Max. 1.0 dB Insertion Loss | |
Min. 1.5 dB Insertion Loss | |
Max. 1.5 dB Insertion Loss | |
Pass Band Return Loss (dB) | |
Pass Band VSWR (Max.) | |
Stop Band Attenuation (GHz) | |
Impedance (Ω) | |
Power Handling (W) | |
Connection Type | |
Surface Finish |
