Ferrite Devices OISC-540560-07-18-15

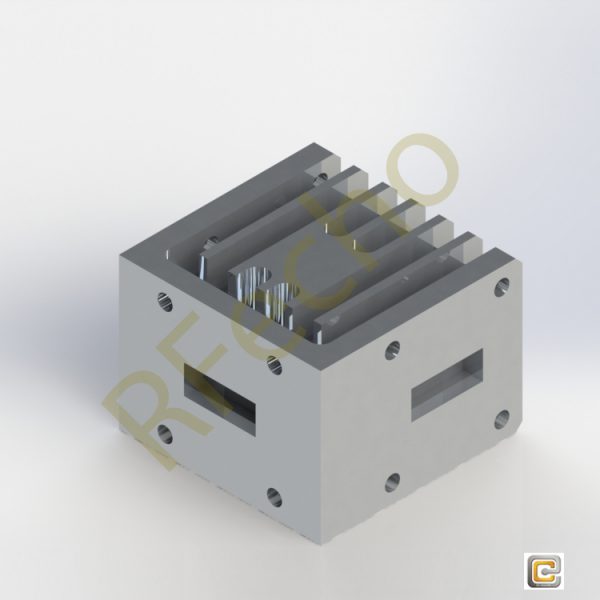

Model OISC-540560-07-18-15 is a V band waveguide junction circulator that covers the frequency range of 54 to 56 GHz.
The waveguide junction circulator is designed and manufactured toprovide a low insertion loss of 0.7 dB nominal, a typical isolation of18 dB, and a much shorter insertion length for system integration.

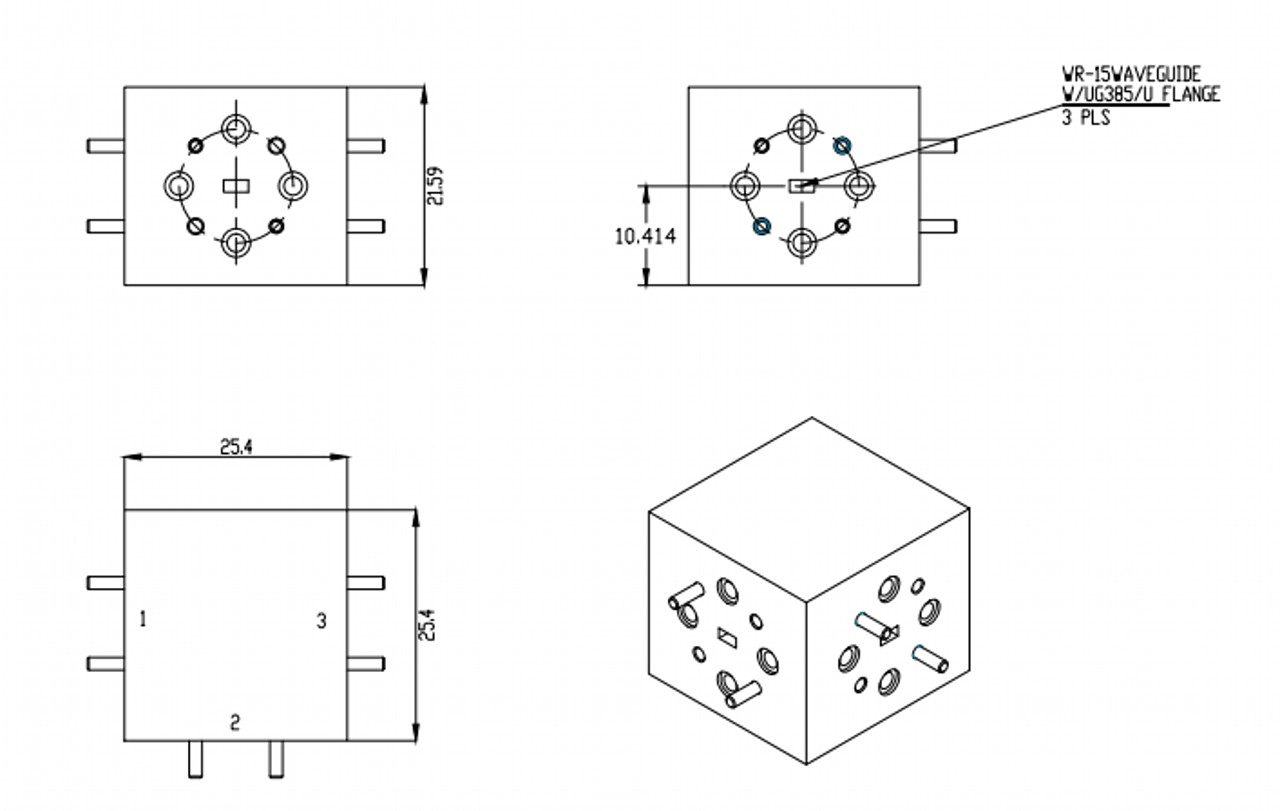

The input and output ports are WR-15 waveguides with UG-385/Uflanges.
- Description
Description
| Ferrite Devices | |||
|
| |||
| Model OISC-540560-07-18-15 is a V band waveguide junction circulator that covers the frequency range of 54 to 56 GHz. The waveguide junction circulator is designed and manufactured to provide a low insertion loss of 0.7 dB nominal, a typical isolation of 18 dB, and a much shorter insertion length for system integration. The input and output ports are WR-15 waveguides with UG-385/U flanges.
Features Low Insertion Loss Moderate Isolation Compact Configuration
|
Applications Port Isolation Module Integration | ||
| Part No. | OISC-540560-07-18-15 | ||
| RF Frequency Range(GHz) | 54-56 | ||
| Insertion Loss(dB) | 0.7 | ||
| Isolation(dB) | 18 | ||
| VSWR | 1.3:1 | ||
| Forward Power Handling(W) Reverse Power Handling(W)
| 3(CW) 1(CW)
| ||
|
|
| ||
