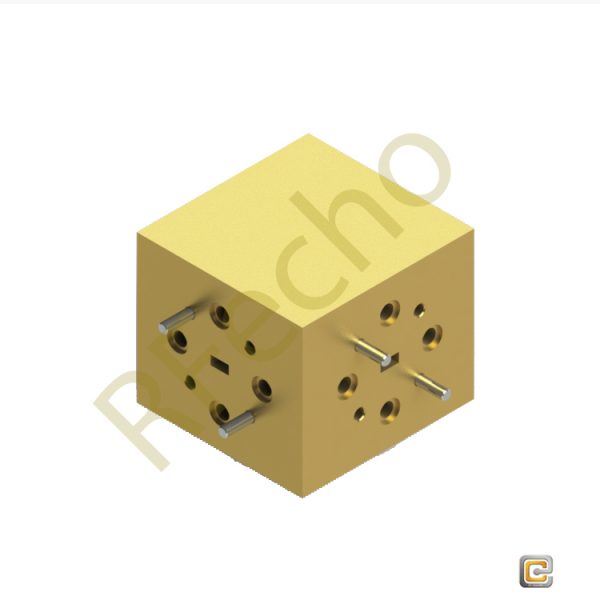

Model OIS-400440-07-18-2224F-S is a Q band Iso-adapter that covers the
frequencyrange of40to44GHz.The iso-adapter offers nominal 0.7 dB insertion loss
and an18dB typical isolation.The iso-adapter is designed and fabricated to
bridge thewaveguide to coax interface directly, yet exhibits the port isolation
to improvethe system performance.
The input port of the model isWR-22waveguide withstandardUG-383/U
flange and 2.4 mm (F) connector as output port.Themodel number with the
reversed input and output ports is SNA-4034430718-2F22-S1

Description

SPEC

     Ferrite Devices

Model OIS-400440-07-18-2224F-S is a Q band iso-adapter that covers the frequency range of 40 to 44GHz.The iso-adapter offers nominal 0.7 dB insertion loss and an 18dB typical isolation. The iso-adapter is designed and fabricated to bridge the waveguide to coax interface directly, yet exhibits the port isolation to improve the system performance.

The input port of the model isWR-22waveguide withstandardUG-383/U flange and 2.4 mm (F) connector as output port. The model number with the reversed input and output ports is SNA-4034430718-2F22-S1

Features

Low Insertion Loss

Moderate Isolation

Compact Configuration



Applications

Port Isolation

Module Integration

Part No.

OIS-400440-07-18-2224F-S

RF Frequency Range(GHz)

40-44

Insertion Loss(dB)

    0.7

Isolation(dB)

    18

VSWR

   1.3:1

Power Handling(W) Specification Temperature

Operating Temperature

5

+25 °C

-40°C~+85 °C



PDF

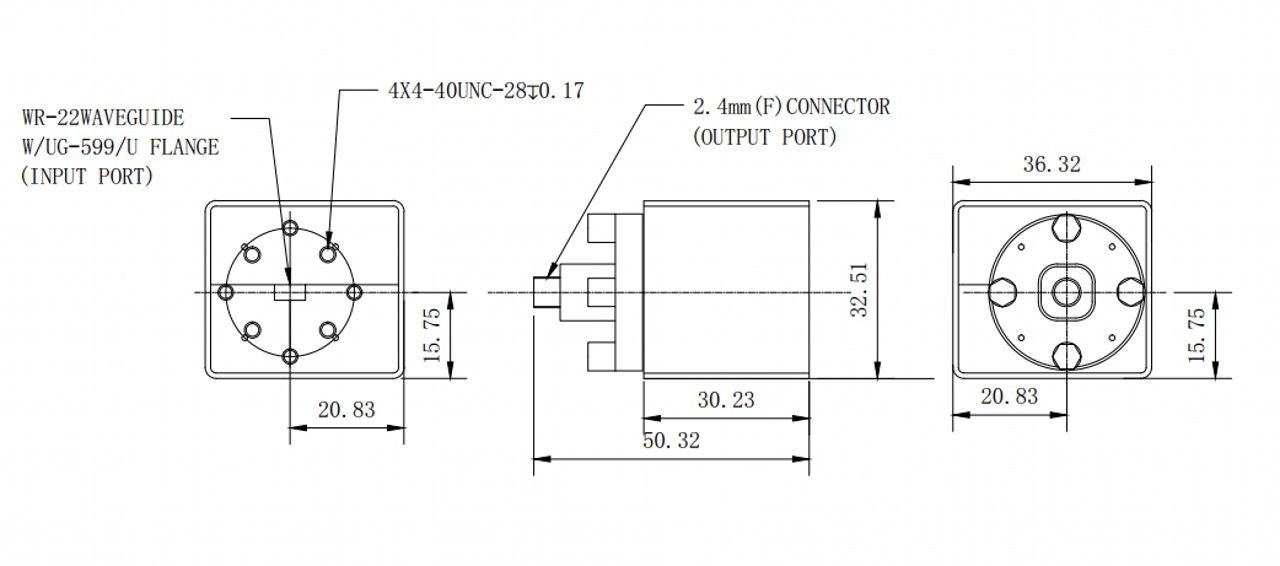

Outline

OIS 400440 07 18 2224F S outline Ferrite Devices OIS-400440-07-18-2224F-S

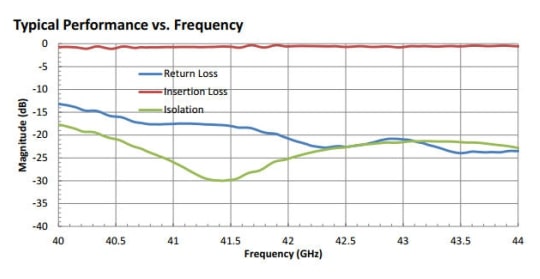

Plot

OIS 400440 07 18 2224F S plot1 Ferrite Devices OIS-400440-07-18-2224F-S

Additional information

Min. Frequency (GHz)

40

Max. Frequency (GHz)

44

Insertion Loss (dB)

Isolation (dB)

VSWR

1.3:1
