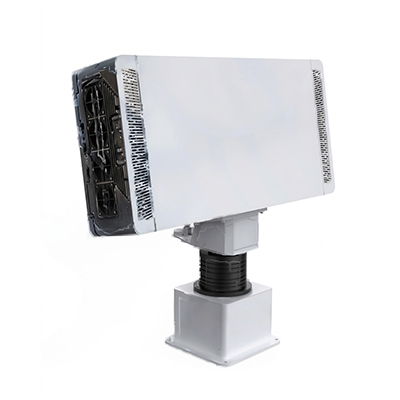

Multi-function Ku-band Dual-polarization Array Radar

ODKFA0204

Multi-function Ku-band Dual-polarization Array Radar

Property

Value

Radar Architectur

Pulse Doppler

Antenna Typ

Dual Polarization

Detection Rang

>= 5 km (0.01 m² RCS flight and meteorological targets)

Operating Frequency Rang

15.7~17.2GHz

Scanning Elevation Angl

0~40°

Horizontal Detection Angl

0~360°

Multi-target capability

>= 400

Detection Speed Rang

<= 60m/s

Velocity Detection Accuracy

<= 0.5m/s

Refresh Rat

<= 8s (Optional)

Angular Accuracy

<= 0.3°

Range Accuracy

<=5m

Features

Dual-polarized Active Phased Array Antenna

High-speed scanning

Precise Target Identification and Positioning

Multi-Object Tracking

Supports networked radar surveillanc

Applications

It supports high-speed scanning, precision multi-target identification and tracking, and networked radar surveillance, and is widely applied in fields such as UAVs, airports, coastal monitoring, and meteorological detection.
