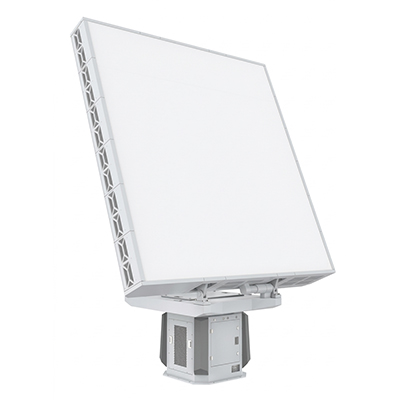

Model ODCPA0152 C-Band Dual-Polarization Active Phased Array Weather Radar
Dual-polarized active phased array antenna
Supports multi-beam scanning
All-solid-state transmitter unit
Low Sidelobe
High Polarization Isolation
Automatic Calibration
Long detection range
Balancing precision and cost-effectiveness
- Description
- Datasheet
- Reviews (0)
Description
Model ODCPA0152 isa high-performance C-band dual-polarization active phased array weather radar. Featuringa dual-polarization active phased array antenna, it supports multi-beam scanning and all-solid-state transmission. The radar is characterized by low sidelobes, high polarization isolation, and automatic calibration capabilities, balancing high detection precision with cost-effectiveness. It is widely utilized in fields such as severe weather early warning, wind field detection, precision weather observation, and aviation meteorology.
ODCPA0152 | |
| Model ODCPA0152 C-Band Dual-Polarization Active Phased Array Weather Radar | |
Property | Value |
| Radar Architectur | Active Phased Array |
| Operating Frequency Rang | 5.3~5.7GHz |
| Peak Transmit Power | >= 15000W |
| Maximum Number Of Beams | >= 16 |
| Operating Mod | Dual-polarized 1D Electronic Scanning |
| Quantitative Detection Distanc | >= 200km |
| Scanning Elevation Angl | -2~60° |
| First Sidelobe Level | <= -35dB |
| Antenna Gain | >= 44dB |
| Minimum Beamwidth | <= 1° |
| Fastest scan tim | <= 90s |
| Cross-Polarization Isolation | >= 35dB |
| Range Resolution | <= 50m |
| Fastest Scan Tim | <= 90s |
Features | |
| Dual-polarized active phased array antenna | |
| Supports multi-beam scanning | |
| All-solid-state transmitter unit | |
| Low Sidelobe | |
| High Polarization Isolation | |
| Automatic Calibration | |
| Long detection range | |
| Balancing precision and cost-effectiveness | |
Applications | |
| It is widely utilized in fields such as severe weather early warning, wind field detection, precision weather observation, and aviation meteorology. | |
