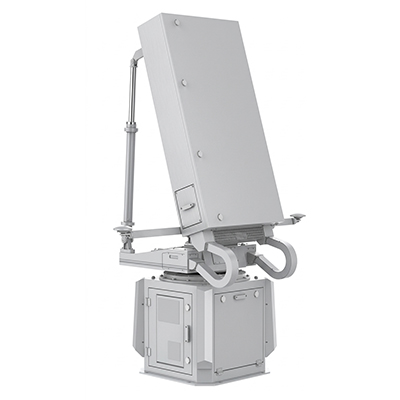

Model OAXPA0164 X-band Dual-polarization Active Phased Array Rain Radar
Dual-Polarized Active Phased Array Antenna
Supports multi-beam scanning
Compact modular design for easy deployment
All-Solid-State Transmitter Unit
No spherical radome required
Pulse compression
Automatic Calibration
FPGA-based Signal Processing
Precise Quantitative Precipitation Estimation
- Description
- Datasheet
- Reviews (0)
Description
The OAXPA0164 is an X-band dual-polarized active phased array precipitation radar featuringa compact modular design. Integrating advanced technologies such as dual-polarization, multi-beam scanning, pulse compression, and automatic calibration, it is ideal for diverse applications including watershed rainfall monitoring and flood early warning.
OAXPA0164 | |
| Model OAXPA0164 X-band Dual-polarization Active Phased Array Rain Radar | |
Property | Value |
| Radar Architectur | Dual-polarization, all-solid-state, fully coherent system |
| Number Of Elevation Layers | 43-Layer |
| Antenna Typ | Microstrip patch antenna |
| Detection Rang | >= 45km @35dBZ |
| Operating Frequency Rang | 9.1~9.5GHz |
| Near-Ground Coverage Capability | Continuous elevation step-scanning mode with no blind spots is utilized within a vertical altitude of 2km above ground level (AGL). |
| Peak Transmit Power | >= 200W |
| Operating Ambient Temperatur | -40 degC ~ +50 degC |
| Service lif | >= 20 years |
| Mission Reliability Tim | >= 4000 hours |
| Minimum scan tim | <= 40s |
| Range resolution | <= 30m |
Features | |
| Dual-Polarized Active Phased Array Antenna | |
| Supports multi-beam scanning | |
| Compact modular design for easy deployment | |
| All-Solid-State Transmitter Unit | |
| No spherical radome required | |
| Pulse compression | |
| Automatic Calibration | |
| FPGA-based Signal Processing | |
| Precise Quantitative Precipitation Estimation | |
Applications | |
| It is ideal for diverse applications including watershed rainfall monitoring and flood early warning. | |
