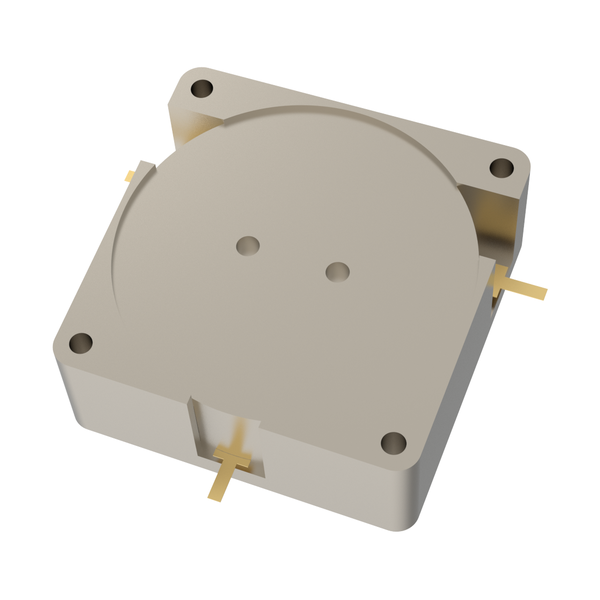

OH542-859-960
Stripline Embedded Circulator
High Isolation
Low Insertion Loss
Stable Performance over Temperature
High Power Handling Capability
- Description
- Datasheet

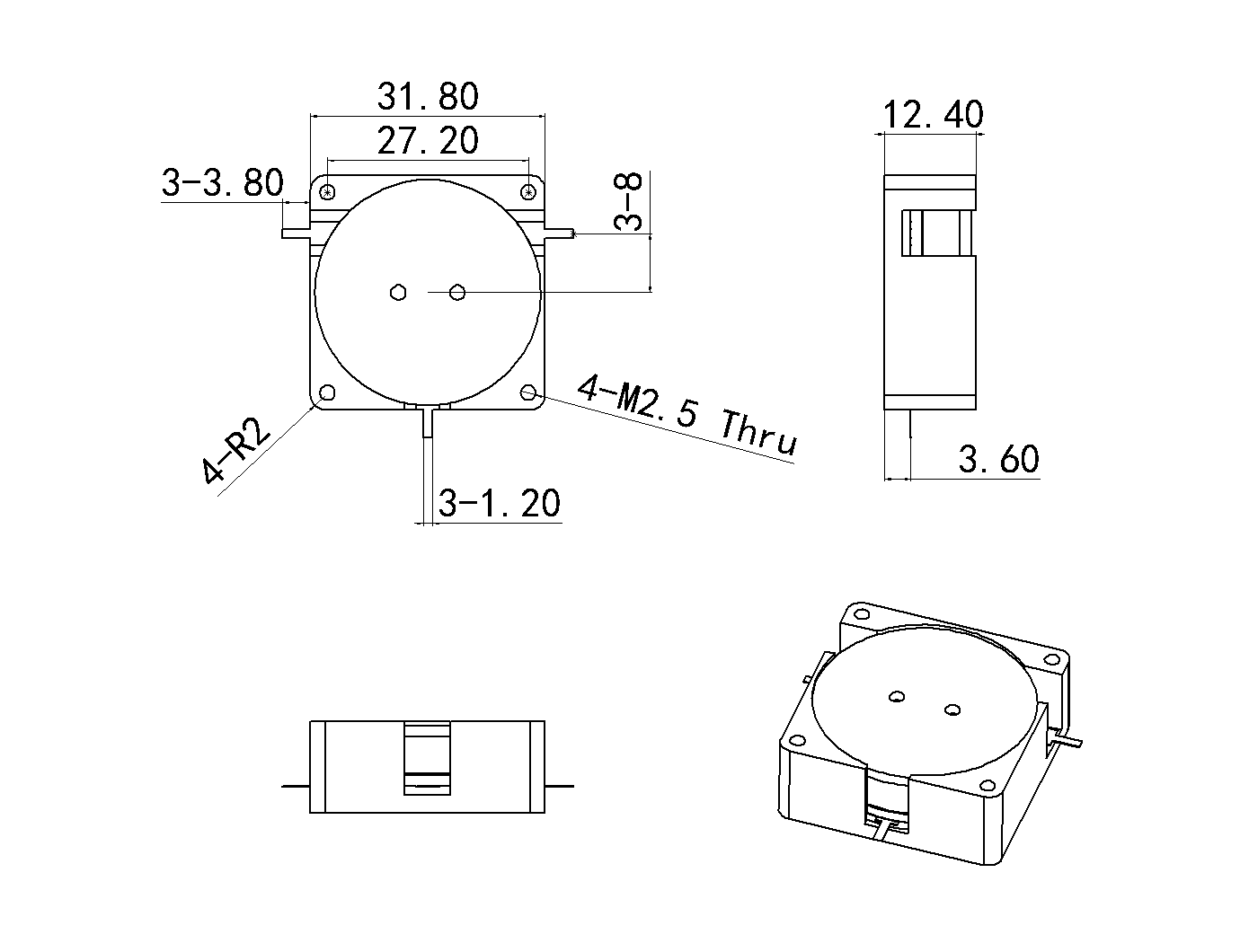

- Outline
- Reviews (0)
Description
The product named OH542-859-960 is high-performance stripline embedded circulator designed for telecommunications applications,offering excellent isolation and low insertion lossacross its operating frequency range.
OH542-859-960 |
|
|
OH542-859-960 |
|
Property |
Value |
|
Frequency (MHz) |
859-960 |
|
Bandwidth |
– |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
VSWR |
– |
|
IMD3 (dBc) |
-65 2*50W |
|
Power (W) |
300 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
2*50W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
1.25inch |
|
Operating Temp (degC) |
-40 to 105 |
|
Structure |
stripline |
Features |
|
|
Stripline Embedded Circulator |
|
|
High Isolation |
|
|
Low Insertion Loss |
|
|
Stable Performance over Temperature |
|
|
High Power Handling Capability |
|
Applications |
|
|
designed for telecommunications applications |
|
