OHYG105H-2496-2690
Surface-mount package for automated PCB assembly
Isolation of 20 dB
Insertion loss of 0.30 dB
Stable performance across -40 to +120 degC
Integrated IMD3 suppression
- Description
- Datasheet

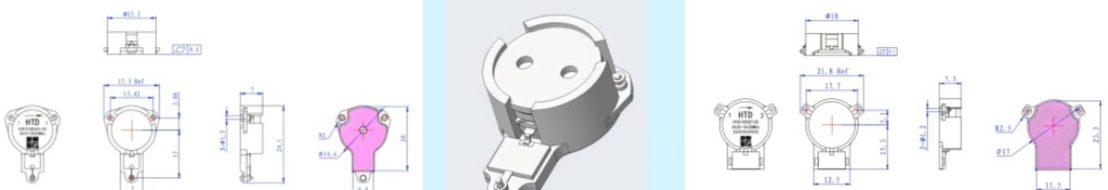

- Outline
- Reviews (0)
Description

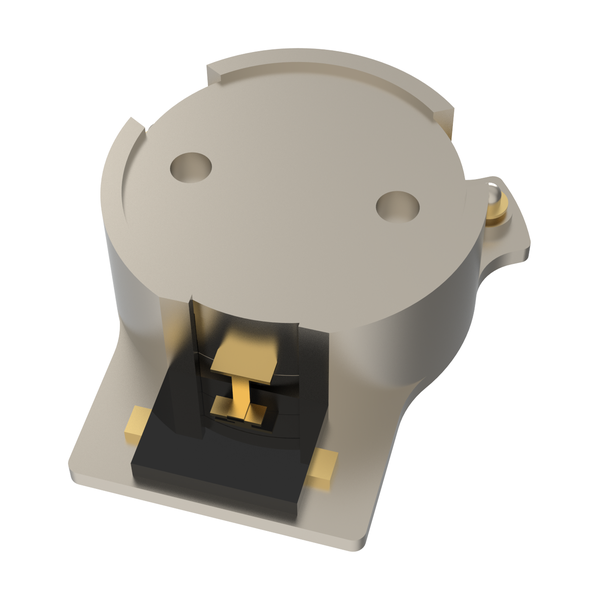

The product named OHYG105H-2496-2690 is high-performance stripline isolator for widebandapplications between 2496-2690 MHz, featuringrobust power handling and high thermal stability.
OHYG105H-2496-2690 |
|
|
OHYG105H-2496-2690 |
|
Property |
Value |
|
Frequency (MHz) |
2496-2690 |
|
Bandwidth |
– |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
VSWR |
– |
|
IMD3 (dBc) |
-69 2*40W |
|
Power (W) |
160 |
|
Reverse Power (W) |
80 |
|
Peak Power |
– |
|
Power note |
2*40W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
18mm |
|
Operating Temp (degC) |
-40 to 120 |
|
Structure |
stripline |
Features |
|
|
Surface-mount package for automated PCB assembly |
|
|
Isolation of 20 dB |
|
|
Insertion loss of 0.30 dB |
|
|
Stable performance across -40 to +120 degC |
|
|
Integrated IMD3 suppression |
|
Applications |
|
