OHYG105H-2620-2690
Surface-mount package for automated PCB assembly
High isolation of 23 dB
Low insertion loss of 0.25 dB
Stable performance across -40 to +120 degC
Integrated IMD3 suppression
- Description
- Datasheet

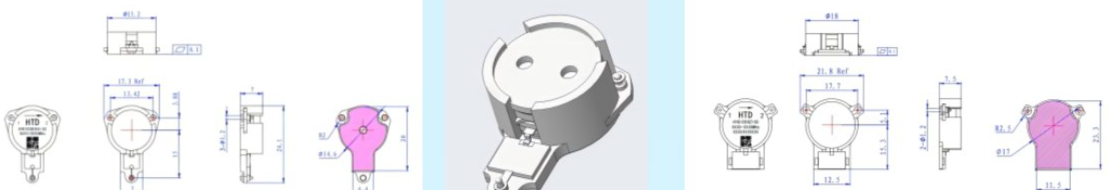

- Outline
- Reviews (0)
Description

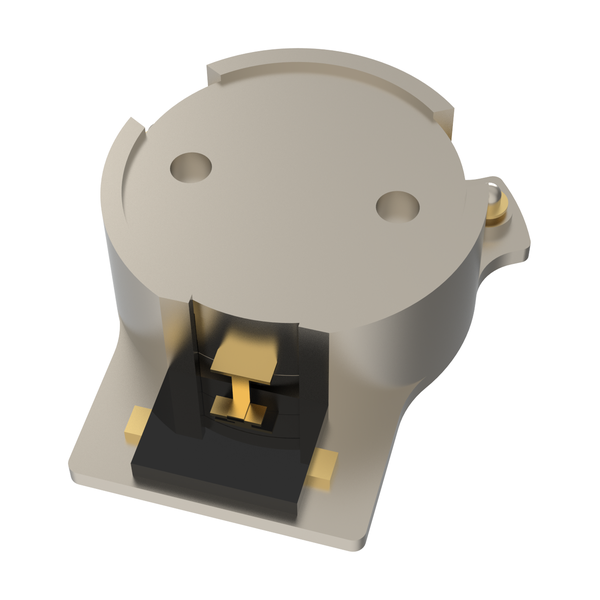

The product named OHYG105H-2620-2690 is high-performance surface-mounted isolatordesigned for the 2.6 GHz frequency band, ensuringlow signal distortion and high reverse powerprotection.
OHYG105H-2620-2690 |
|
|
OHYG105H-2620-2690 |
|
Property |
Value |
|
Frequency (MHz) |
2620-2690 |
|
Bandwidth |
– |
|
Return Loss (dB) |
23 |
|
Isolation (dB) |
23 |
|
Insertion Loss (dB) |
0.25 |
|
VSWR |
– |
|
IMD3 (dBc) |
-69 2*40W |
|
Power (W) |
160 |
|
Reverse Power (W) |
80 |
|
Peak Power |
– |
|
Power note |
2*40W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
18mm |
|
Operating Temp (degC) |
-40 to 120 |
|
Structure |
surface-mount |
Features |
|
|
Surface-mount package for automated PCB assembly |
|
|
High isolation of 23 dB |
|
|
Low insertion loss of 0.25 dB |
|
|
Stable performance across -40 to +120 degC |
|
|
Integrated IMD3 suppression |
|
Applications |
|
