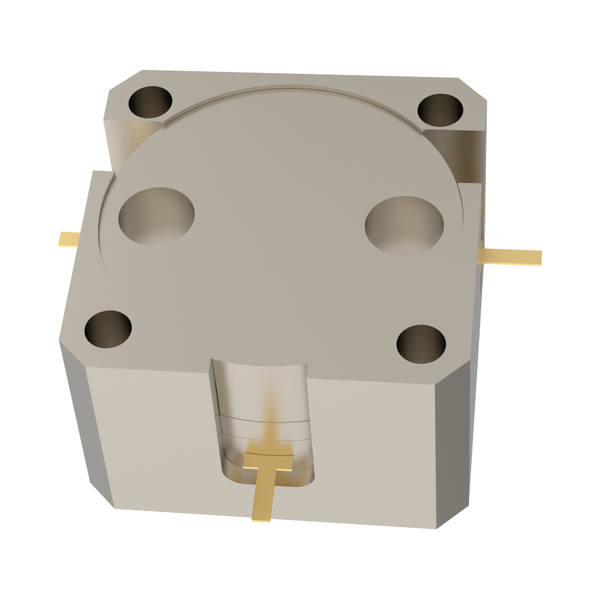

OHYH531A-4500-5000
Embedded stripline design
High isolation up to 18dB
Low insertion loss of 0.40dB
Broad operating temperature range from -40 to +85degC
High power handling capability up to 100W
- Description
- Datasheet
- Outline
- Reviews (0)
Description
The product named OHYH531A-4500-5000 is high-performance Stripline Products: EmbeddedCirculator designed for telecommunicationsapplications, featuring robust performance andreliable signal isolation.
OHYH531A-4500-5000 |
|
|
OHYH531A-4500-5000 |
|
Property |
Value |
|
Frequency (MHz) |
4500-5000 |
|
Bandwidth |
– |
|
Return Loss (dB) |
18 |
|
Isolation (dB) |
18 |
|
Insertion Loss (dB) |
0.4 |
|
VSWR |
– |
|
IMD3 (dBc) |
-60 2*10W |
|
Power (W) |
100 |
|
Reverse Power (W) |
– |
|
Peak Power |
– |
|
Power note |
2*10W |
|
Connector |
– |
|
Impedance |
– |
|
Size |
0.5inch |
|
Operating Temp (degC) |
-40 to 85 |
|
Structure |
stripline |
Features |
|
|
Embedded stripline design |
|
|
High isolation up to 18dB |
|
|
Low insertion loss of 0.40dB |
|
|
Broad operating temperature range from -40 to +85degC |
|
|
High power handling capability up to 100W |
|
Applications |
|
|
designed for telecommunications applications, featuring robust performance and reliable signal isolation |
|
