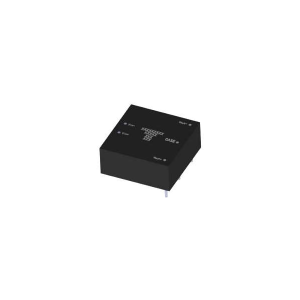

Other Filter Modules
The Other Filter Modules power-line filter family is described by the configuration-specific ratings in the following tables. Suppresses differential-mode and common-mode noise on power lines. Operating temperature (Tc): -55°C to 100°C. Storage temperature: -55°C to 125°C. Refer to the selection table, pin assignments and application guidance for the selected configuration.
mechanical size code
Operating current (A)
Ratings apply to the selected configuration. See the datasheet for test conditions and model designation notes.
Request a Quote
- Description
- Technical Data
- Datasheet
- OUTLINE
- Reviews (0)
Other Filter Modules
The Other Filter Modules power-line filter family is described by the configuration-specific ratings in the following tables. Suppresses differential-mode and common-mode noise on power lines. Operating temperature (Tc): -55°C to 100°C. Storage temperature: -55°C to 125°C. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- Reduces noise-source signal amplitude
- Suppresses differential-mode and common-mode noise on power lines
- Operating temperature (Tc): -55°C to 100°C
- Storage temperature: -55°C to 125°C
Product Selection
| Model | Mechanical size code | Operating current (A) | Operating voltage (V) | DC resistance (mΩ) | Common-mode insertion loss (dB) — 500 kHz | Common-mode insertion loss (dB) — 1 MHz | Differential-mode insertion loss (dB) — 500 kHz | Differential-mode insertion loss (dB) — 1 MHz |
|---|---|---|---|---|---|---|---|---|
| JDLC-2801BSM | 1 | 1 | -80 to 80 | ≤150 | 32 | 32 | 44 | 70 |
| JDLC-2805BSM | 2 | 5 | -80 to 80 | ≤50 | 30 | 23 | 52 | 47 |
| JDLC-2810BSM | 3 | 10 | -80 to 80 | ≤60 | 31 | 35 | 62 | 59 |
| JDLC-2820BSM | 3 | 20 | -80 to 80 | ≤30 | 26 | 35 | 66 | 64 |
Technical Data — Other Filters
| Model | Mechanical size code | Operating current (A) | Operating voltage (V) | DC resistance (mΩ) | Common-mode insertion loss (dB) | Differential-mode insertion loss (dB) | ||
|---|---|---|---|---|---|---|---|---|
| Model | mechanical size code | Operating current (A) | Operating voltage (V) | DC resistance (mΩ) | 500K | 1M | 500K | 1M |
| JDLC-2801BSM | 1 | 1 | -80 to 80 | ≤150 | 32 | 32 | 44 | 70 |
| JDLC-2805BSM | 2 | 5 | -80 to 80 | ≤50 | 30 | 23 | 52 | 47 |
| JDLC-2810BSM | 3 | 10 | -80 to 80 | ≤60 | 31 | 35 | 62 | 59 |
| JDLC-2820BSM | 3 | 20 | -80 to 80 | ≤30 | 26 | 35 | 66 | 64 |

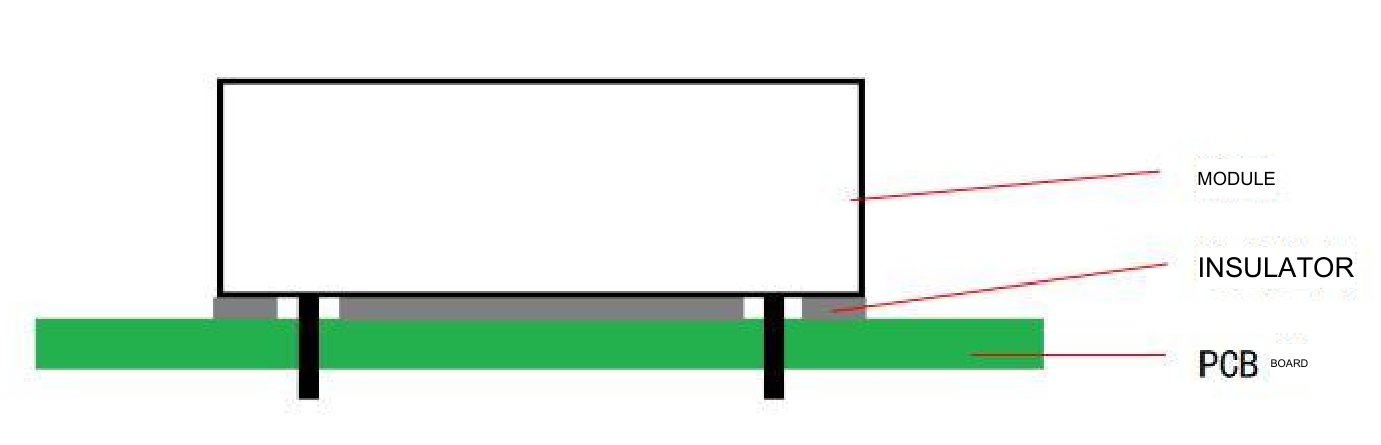

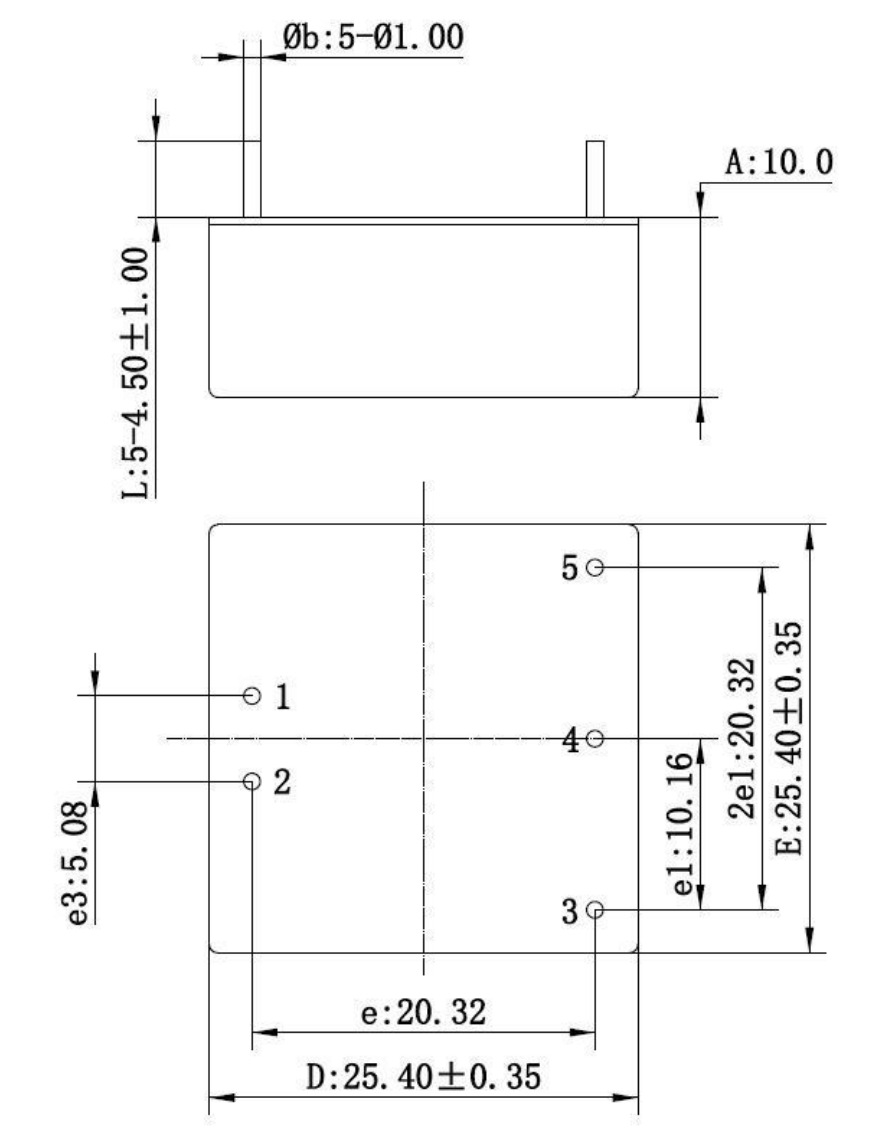

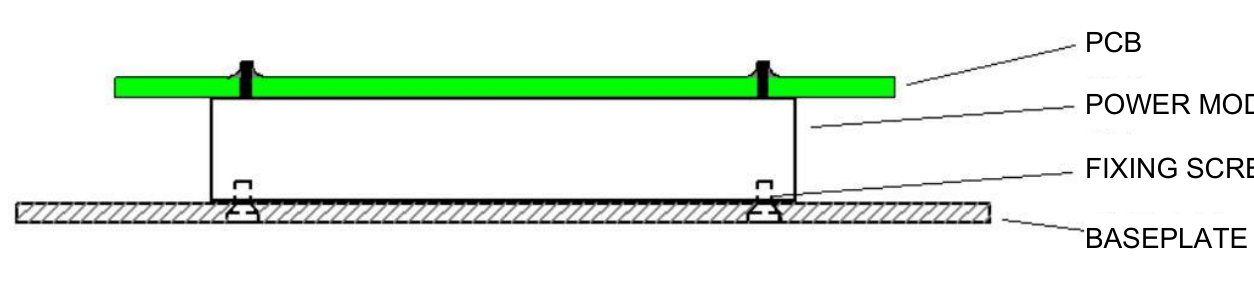

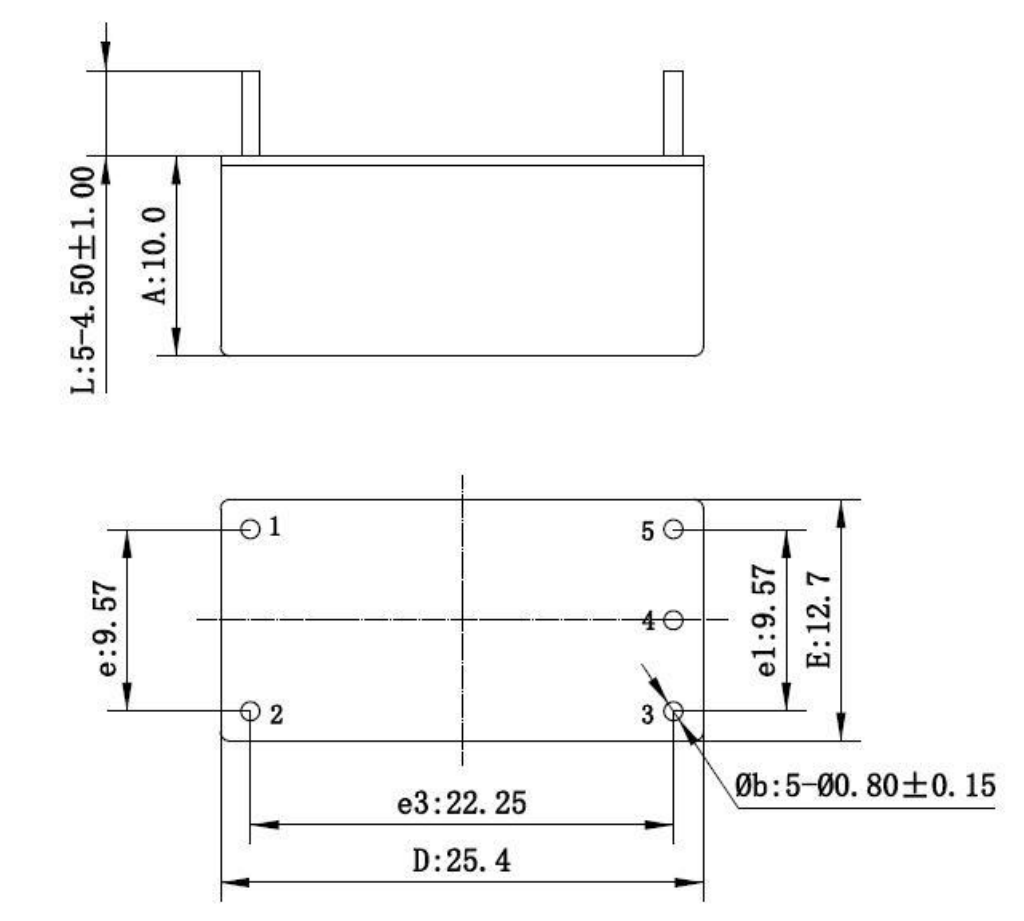

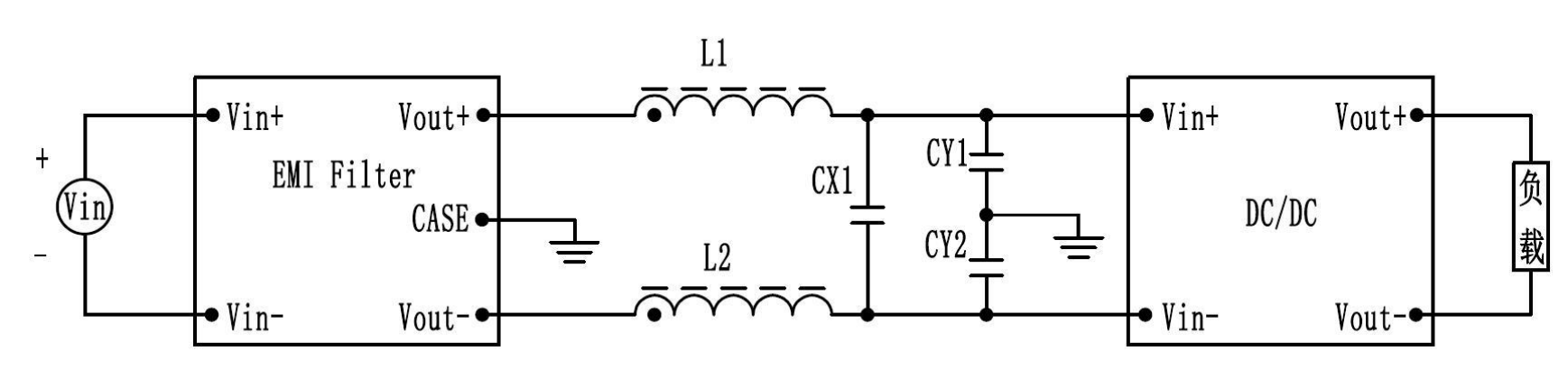

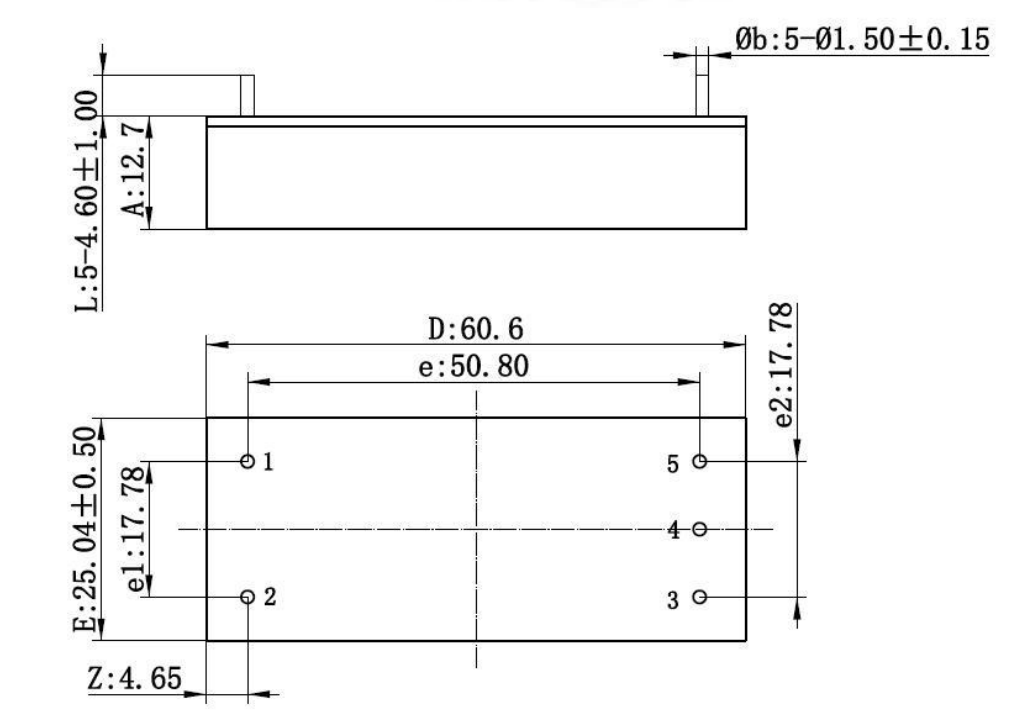

Outline & Mechanical Dimensions
