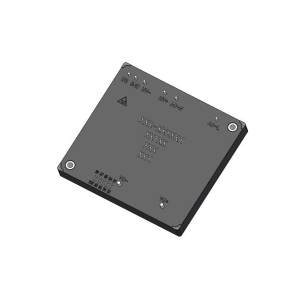

Wide-input AC/DC Power module (1/2 brick) - QACH-W220
The QACH-W220 power module family is described by the configuration-specific ratings in the following tables. AC/DC isolated conversion. Maximum output power: 600W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- AC/DC isolated conversion
- Maximum output power: 600W
- Input undervoltage protection
- Output overvoltage, overcurrent, short circuit, Overtemperature protection
- Operating temperature (Tc): -55°C to 105°C
- Storage temperature: -55°C to 125°C
Product Selection
| Model | Input voltage (Vac) | Output voltage (Vdc) | Output current (A) | Efficiency (%) half load / full load | Capacitive load (µF) max. | Ripple (mV) Typical |
|---|---|---|---|---|---|---|
| QACH600D-W220S12NNM* | 85 to 265 | 12 | 50.0 | 93/92 | 20000 | 100 |
| QACH600D-W220S24NNM* | 85 to 265 | 24 | 25.0 | 94/93 | 10000 | 240 |
| QACH600D-W220S28NNM* | 85 to 265 | 28 | 21.4 | 94.5/93.5 | 5000 | 280 |
Technical Data — QACH-W220
| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|

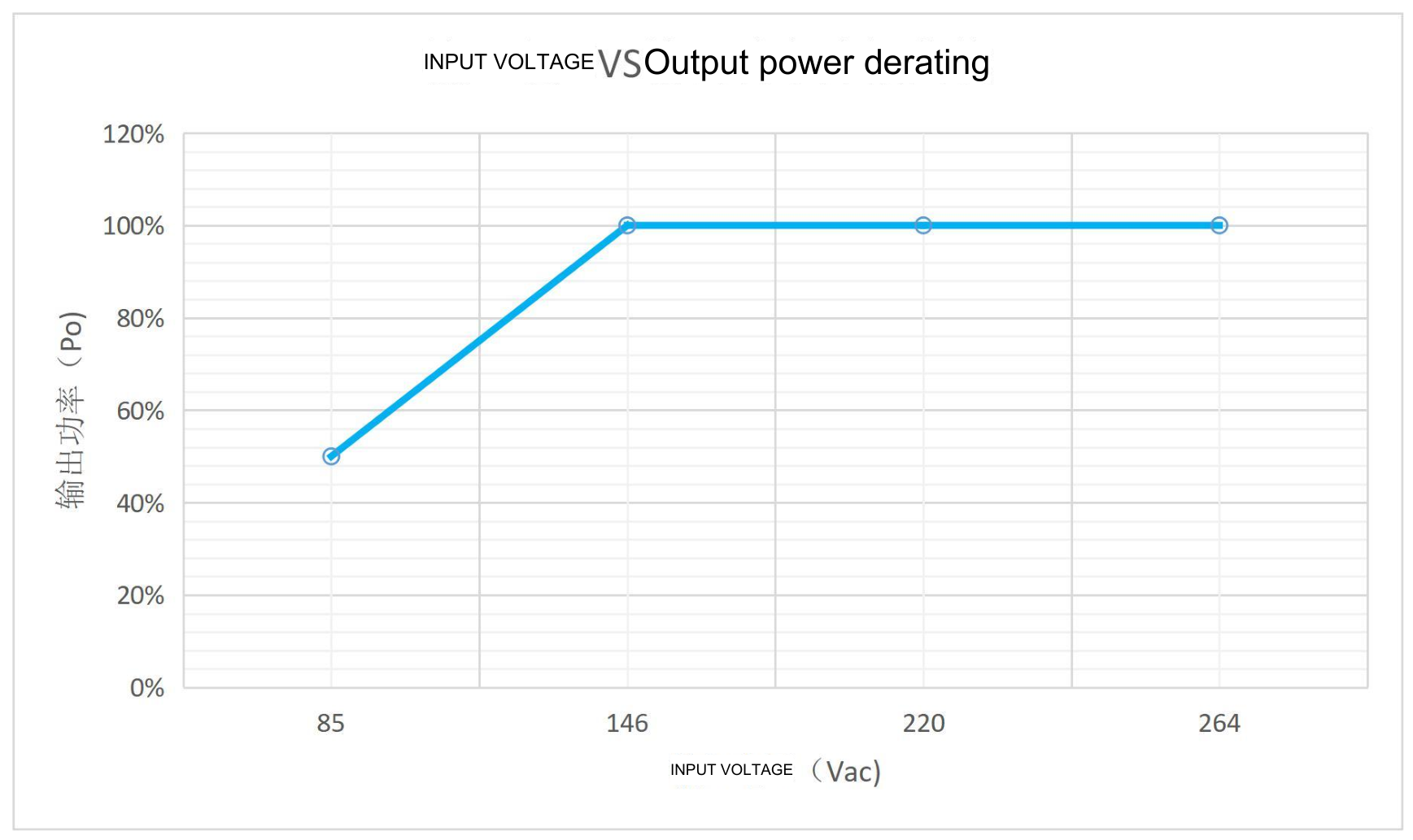

| Input voltage range | Room, High, Low | 85 | 220 | 265 | Vac | AC input, below 146Vac Input Derating |
| AC input frequency | Room | 47 | 50 | 63 | Hz | |
| Power factor | Room, High, Low | — | 0.99 | — | input 220Vac, rated output voltage, full load | |
| THD | Room, High, Low | — | — | 5 | % | rated input voltage, full load, Total harmonic distortion of input current |
| Output voltage adjustment range | Room, High, Low | 98 | — | 103 | %VO | IO≤ maximum value and PO≤VO×IOmax |
| Line regulation | Room, High, Low | -0.5 | — | +0.5 | %VO | full input-voltage range |
| Load regulation | Room, High, Low | -1 | — | +1 | %VO | full load range |
| external PFC capacitor | Room | 330 | 390 | 470 | µF | |
| Current-sharing imbalance | Room | — | — | 5 | % | greater than 30% load |
| Turn-on delay a | Room | — | — | 4 | s | time from power-on until output voltage reaches 10% time (PFC capacitance is 360µF) |
| Output voltage rise time a | Room | — | 80 | — | ms | output voltage from 10% rises to 90% time |
| Enable logic level (negative logic) | Room | 0 | — | 0.7 | V | output enabled, see the application guide for control methods |
| Enable logic level (negative logic) | Room | 3.5 | — | 12 | V | no output when open or high, see the application guide for control methods |
| Input undervoltage protection | Room | 65 | — | 75 | Vac | Undervoltage protection and recovery (no load) |
| Input undervoltage recovery | Room | 75 | — | 84 | Vac | Undervoltage protection and recovery (no load) |
| Input overvoltage protection | Room | 295 | 305 | Vac | Overvoltage protection and recovery (no load) | |
| Input overvoltage recovery | Room | 285 | 295 | Vac | Overvoltage protection and recovery (no load) | |
| Output constant-current protection | Room | 105 | — | — | %IO | in constant-current operation, output voltage is below rated voltage 75% then restart |
| Output overvoltage protection | Room | 115 | — | 140 | %VO | hiccup mode, automatic recovery |
| Isolation withstand voltage | Room | - | no breakdown, no flashover; input to output, 1500Vac/60s/<3.5mA | |||
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input, output, between each pair of terminals and case |
| Weight | / | — | 140 | — | g | N case type |

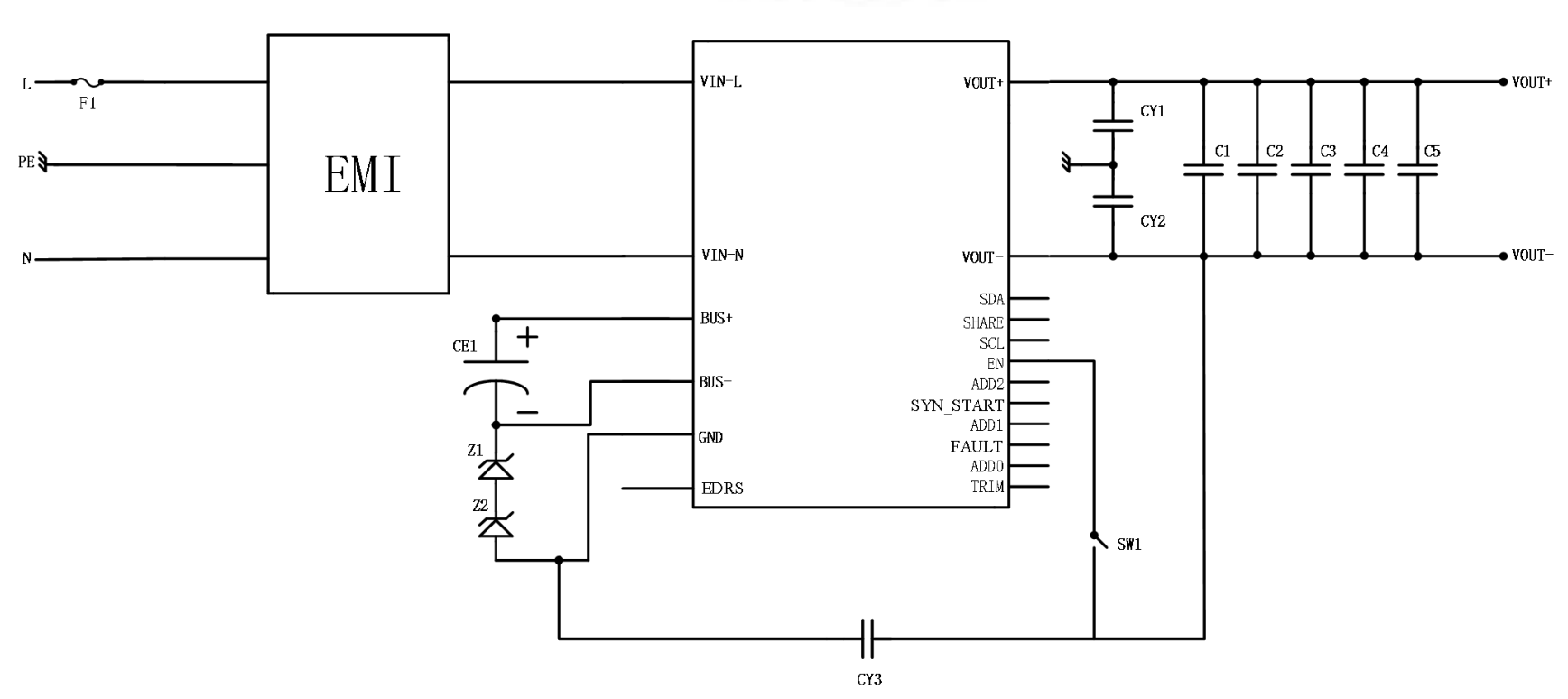

Note: 1, for other temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method; 4, "*" product under development, contact technical support for details.
a: typical model QACH600D-W220S28NNM time, values may differ for other models, contact technical support for details.

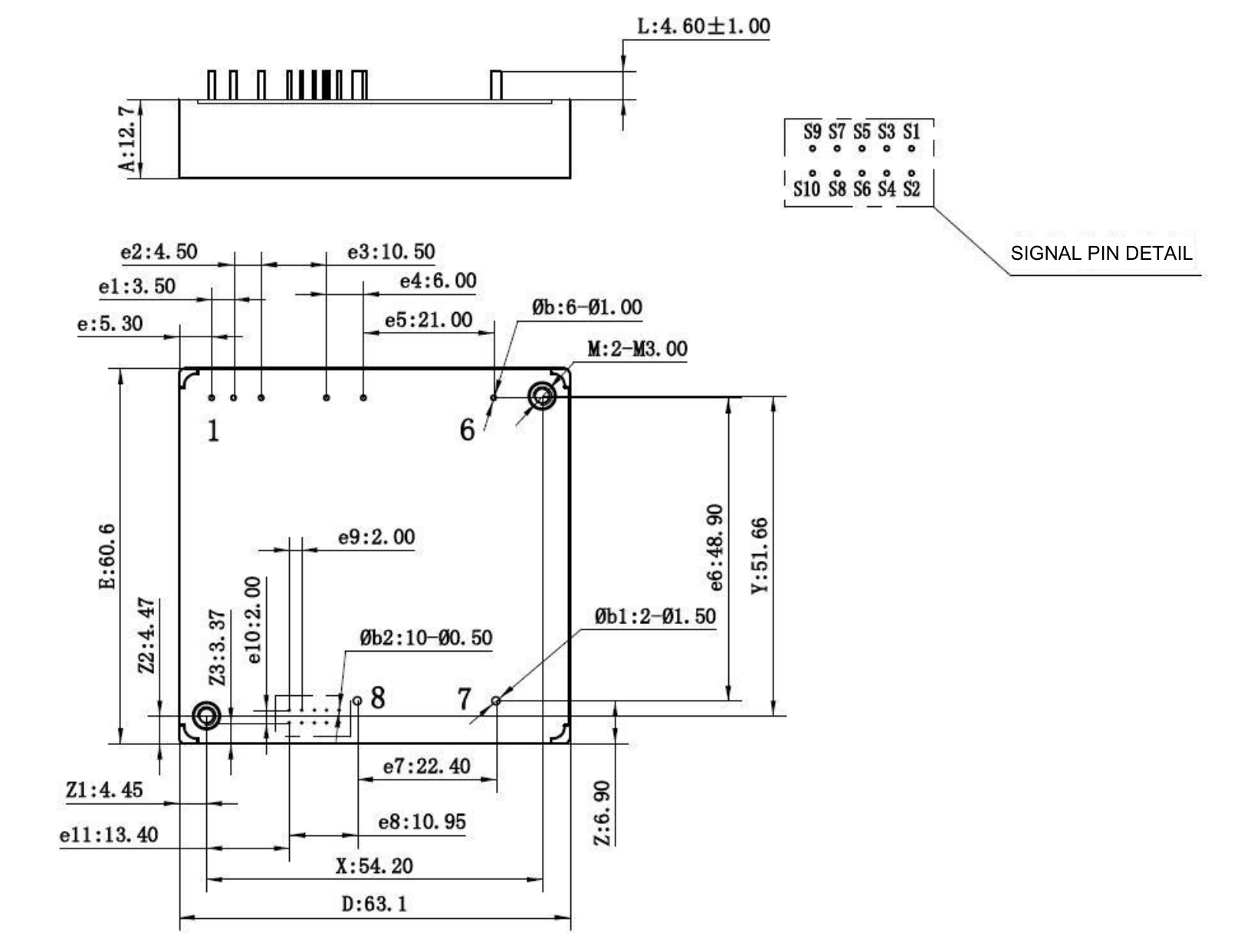

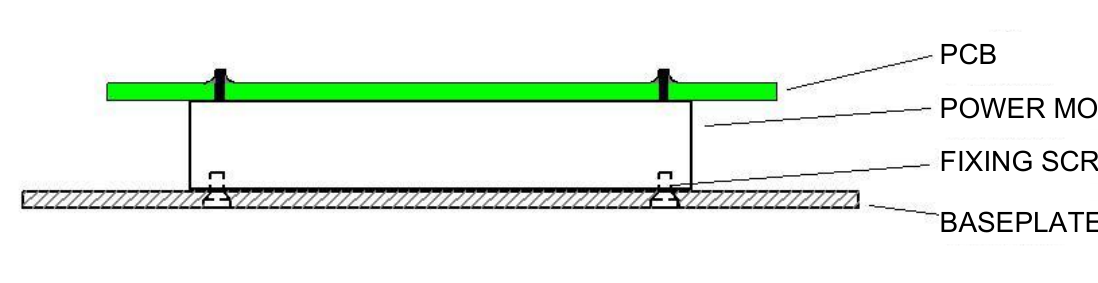

Outline & Mechanical Dimensions
