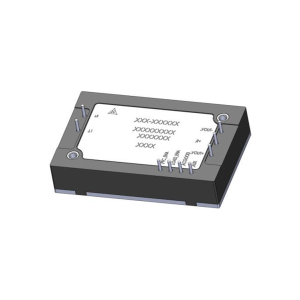

PFC Power module - QFCQ
The QFCQ power factor correction module family is described by the configuration-specific ratings in the following tables. Single-phase AC/DC power factor correction. Maximum output power: 700W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- Single-phase AC/DC power factor correction
- Maximum output power: 700W
- Input undervoltage protection
- Output overvoltage, overcurrent, Overtemperature protection
- Operating temperature (Tc): -55°C to 105°C
- Storage temperature: -55°C to 125°C
Product Selection

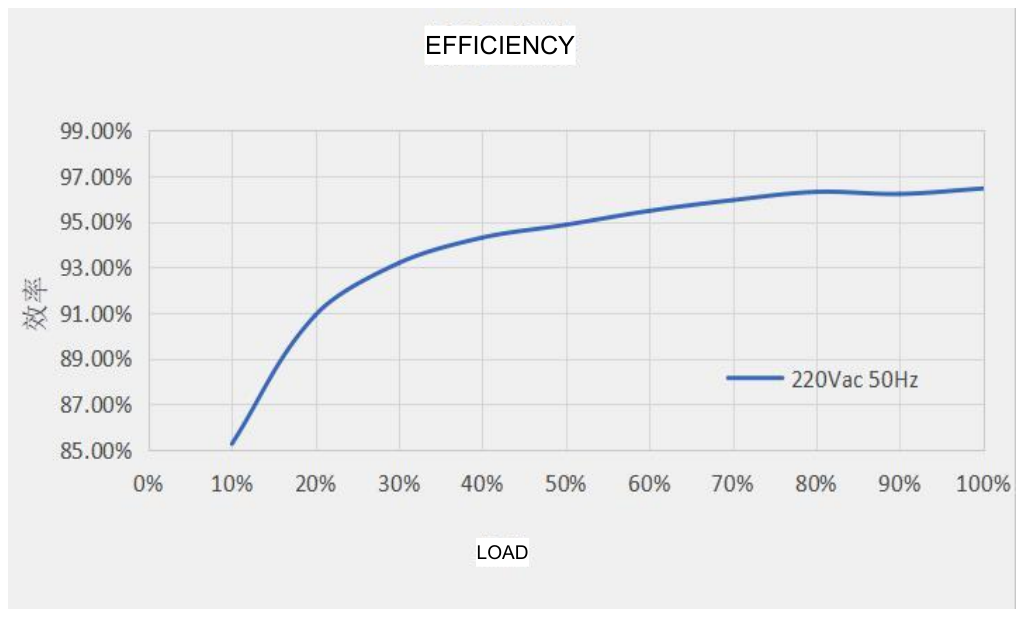

| Model | Input voltage (Vac) | Output voltage (Vdc) | Output power (W) | Efficiency (%) half load / full load | Ripple (V) Typical |
|---|---|---|---|---|---|
| QFCQ400-W220S390NNM | 85 to 176 | 390 | 200 | 92/94 | 15 |
| QFCQ400-W220S390NNM | 176 to 264 | 390 | 400 | 95/97 | 15 |
| QFCQ700-220S390NNM | 176 to 264 | 390 | 700 | 96/98 | 20 |
Technical Data — QFCQ
| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 85 | 220 | 264 | Vac | QFCQ400 series, full load range |
| Input voltage range | Room, High, Low | 176 | 220 | 264 | Vac | QFCQ700 series, full load range |
| Input surge voltage | Room | — | — | 290 | Vac | Vt<100ms, full load |
| Input frequency range | Room | 47 | 50 | 63 | Hz | full input-voltage range, full load range |

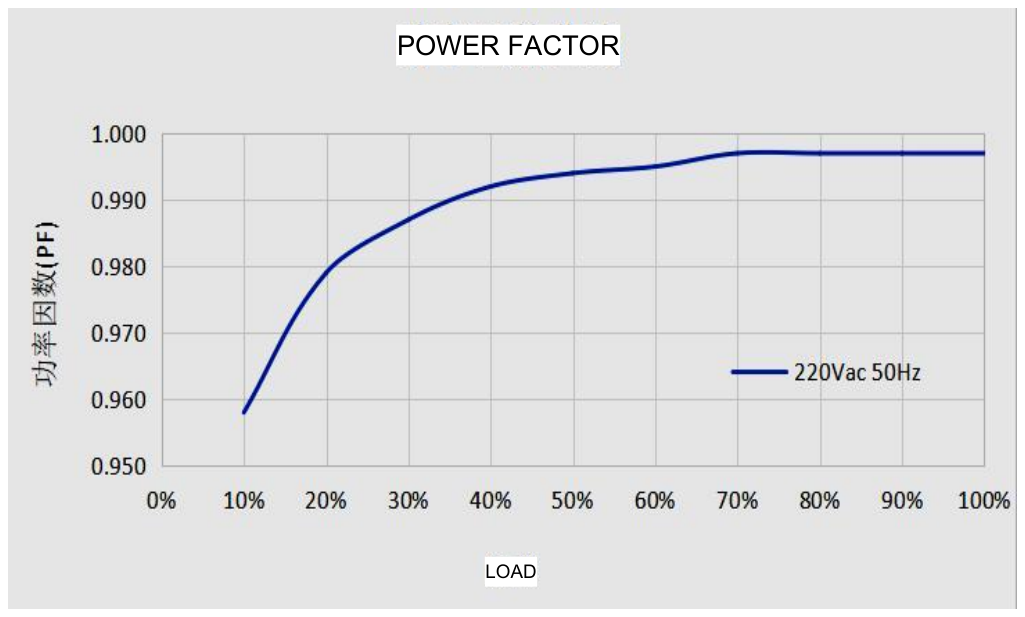

| Power factor | Room | 0.97 | 0.99 | — | — | full load |
| Input current total harmonic distortion | Room | — | 5.0 | — | % | full load |

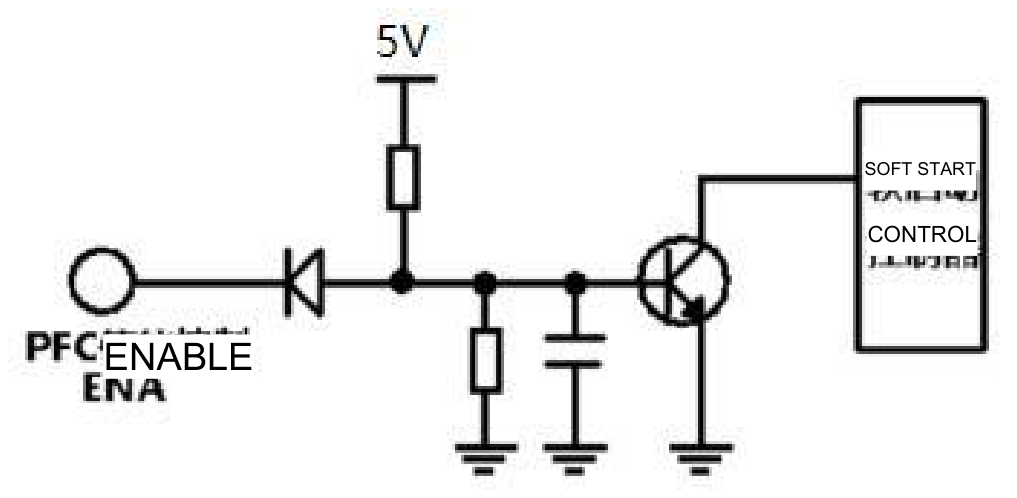

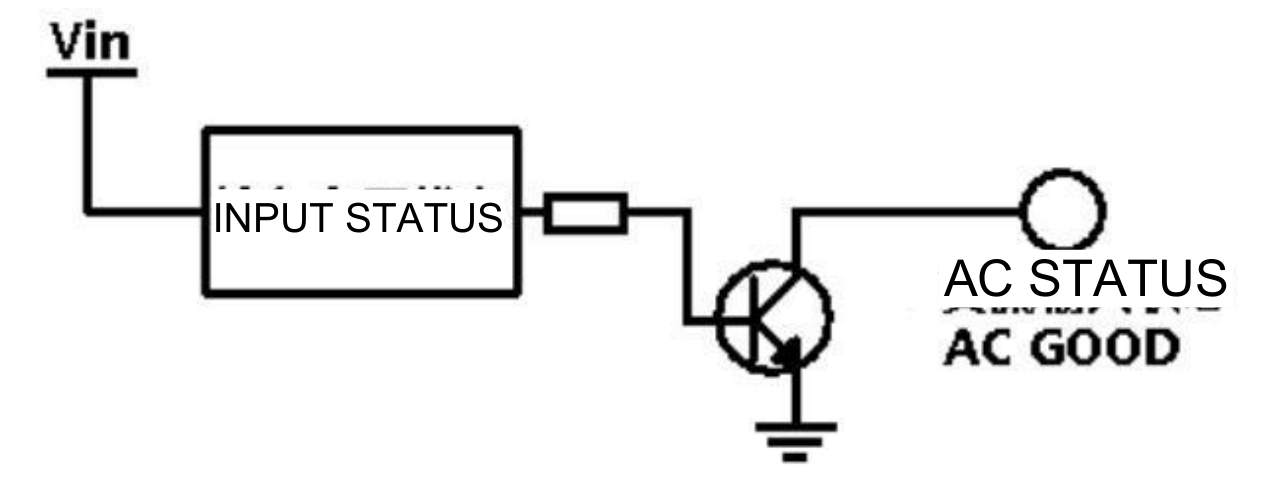

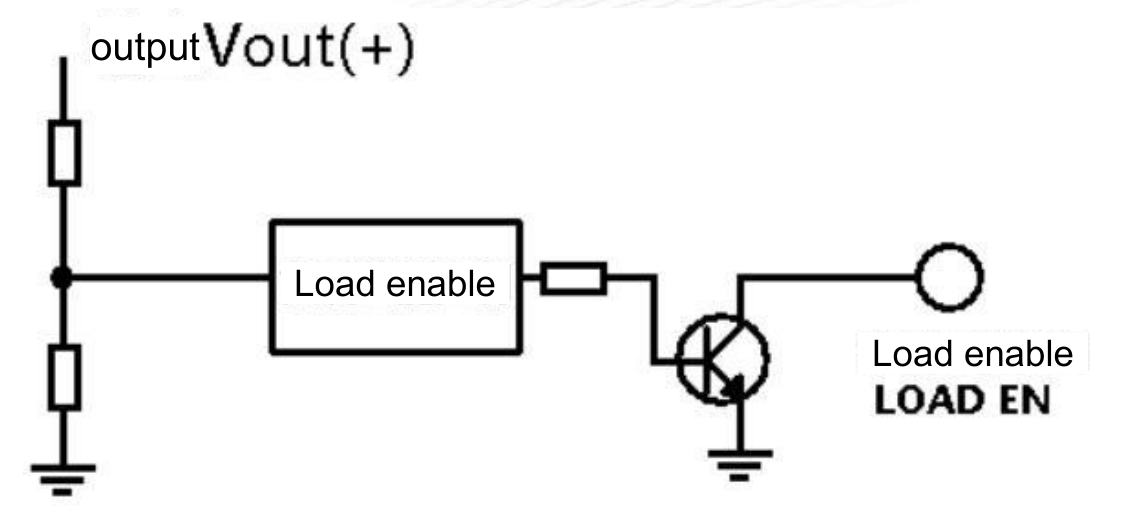

| No-load power consumption | Room | — | 3 | — | W | no load PFC / ENA turn-on |
| Standby power consumption | Room | — | 2 | — | W | no load PFC / ENA shutdown |
| Input undervoltage protection | Room | — | 65 | — | Vac | QFCQ400 series, half load |
| Input undervoltage protection | Room | — | 155 | — | Vac | QFCQ700 series, half load |
| Enable turn-on delay | Room | — | 0.5 | 1.5 | s | full input-voltage range |

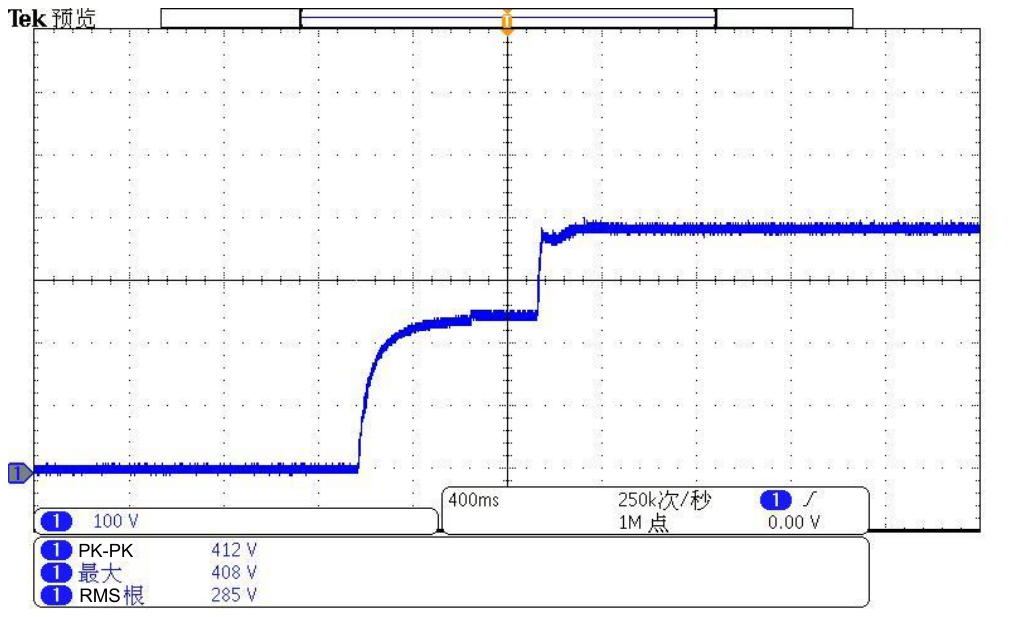

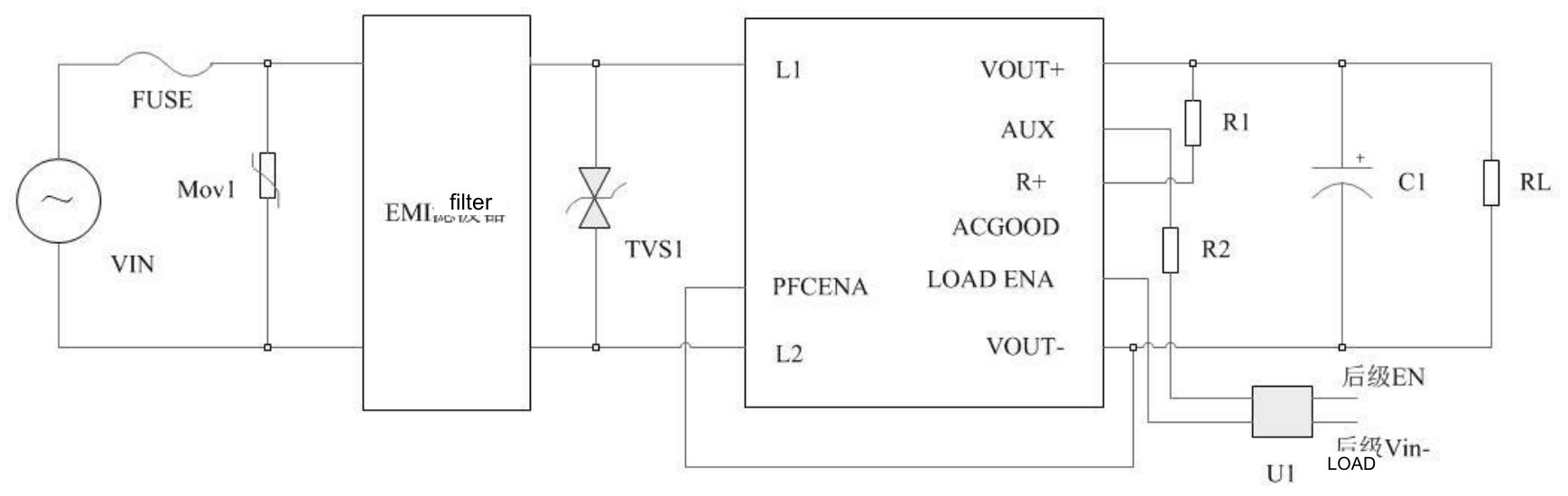

| Start-up delay | Room | — | 0.5 | 2.0 | s | full input-voltage range |
| Output voltage | Room | 380 | 390 | 400 | V | full input-voltage range, full load range |
| Output capacitance (see note below) | 390 | 440 | 680 | µF | QFCQ400 series | |
| Output capacitance (see note below) | - | 680 | 800 | 1000 | µF | QFCQ700 series |

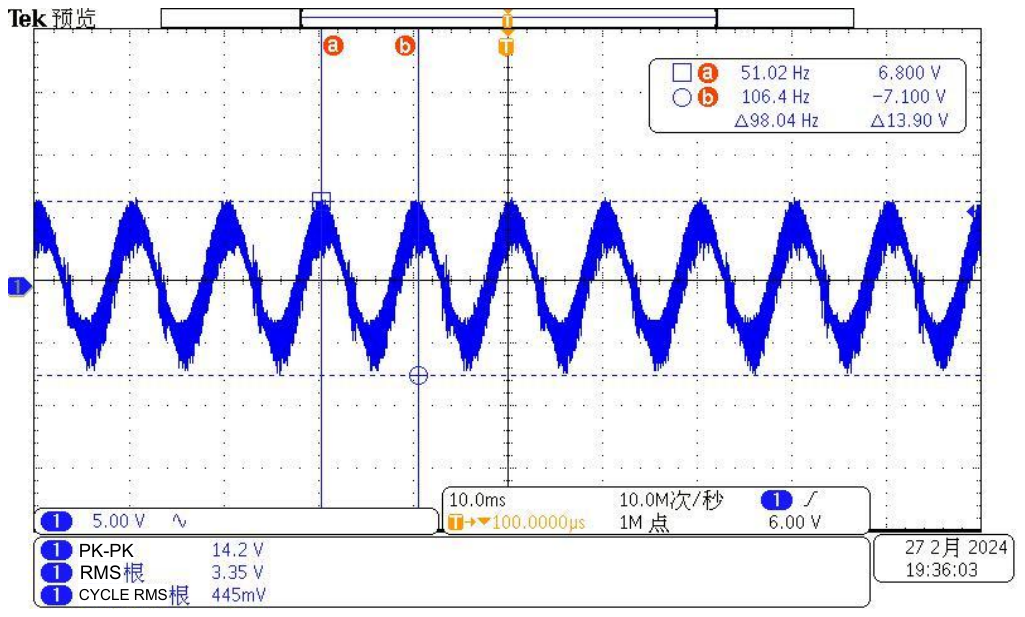

| Output ripple and noise (220V/50Hz, full load, C1=440µF) | Room | — | 15 | — | V | peak-to-peak |
| Output ripple and noise (220V/50Hz, full load, C1=440µF) | Room | — | 3 | — | V | RMS |
| Switching frequency | Room | — | 135 | — | kHz | |

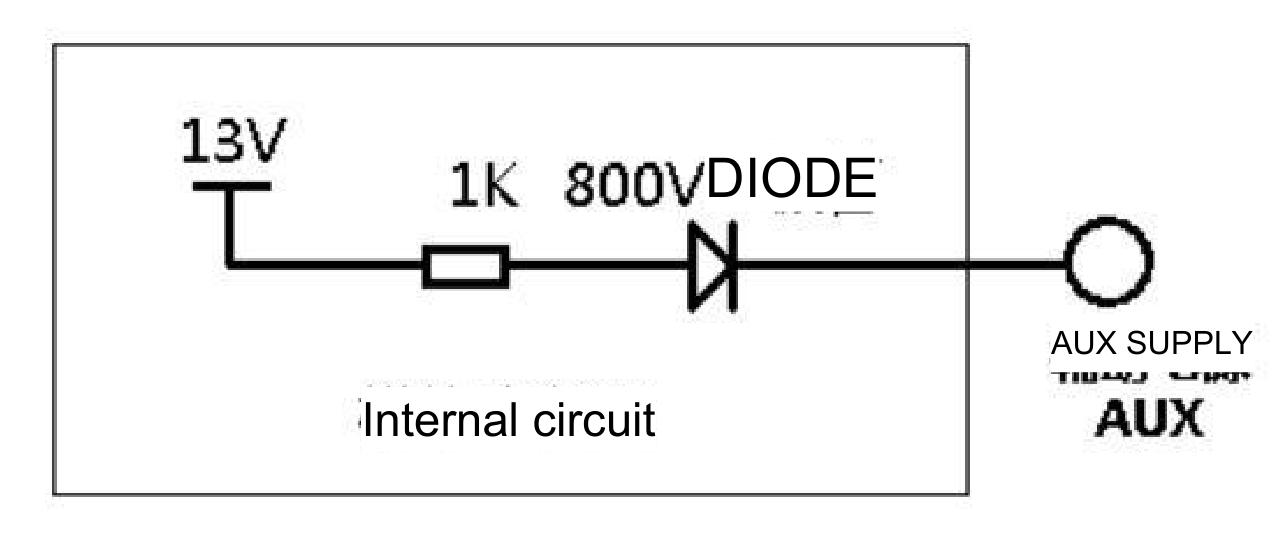

| auxiliary supply (AUX); Output voltage | Room | 10 | 12 | 18 | Vdc | refer to VOUT- |
| auxiliary supply (AUX); Output current | Room | 0 | — | 10 | mA | refer to VOUT- |
| Dielectric withstand voltage | Room | - | no breakdown, no flashover; input/output to case, 1500Vac, 1min, slew rate 500Vac/s, leakage current less than 3.5mA | |||
| Insulation resistance | Room | 100 | — | — | MΩ | input/output to case, 500Vdc |
| Weight | / | — | 95 | — | g | N case type |

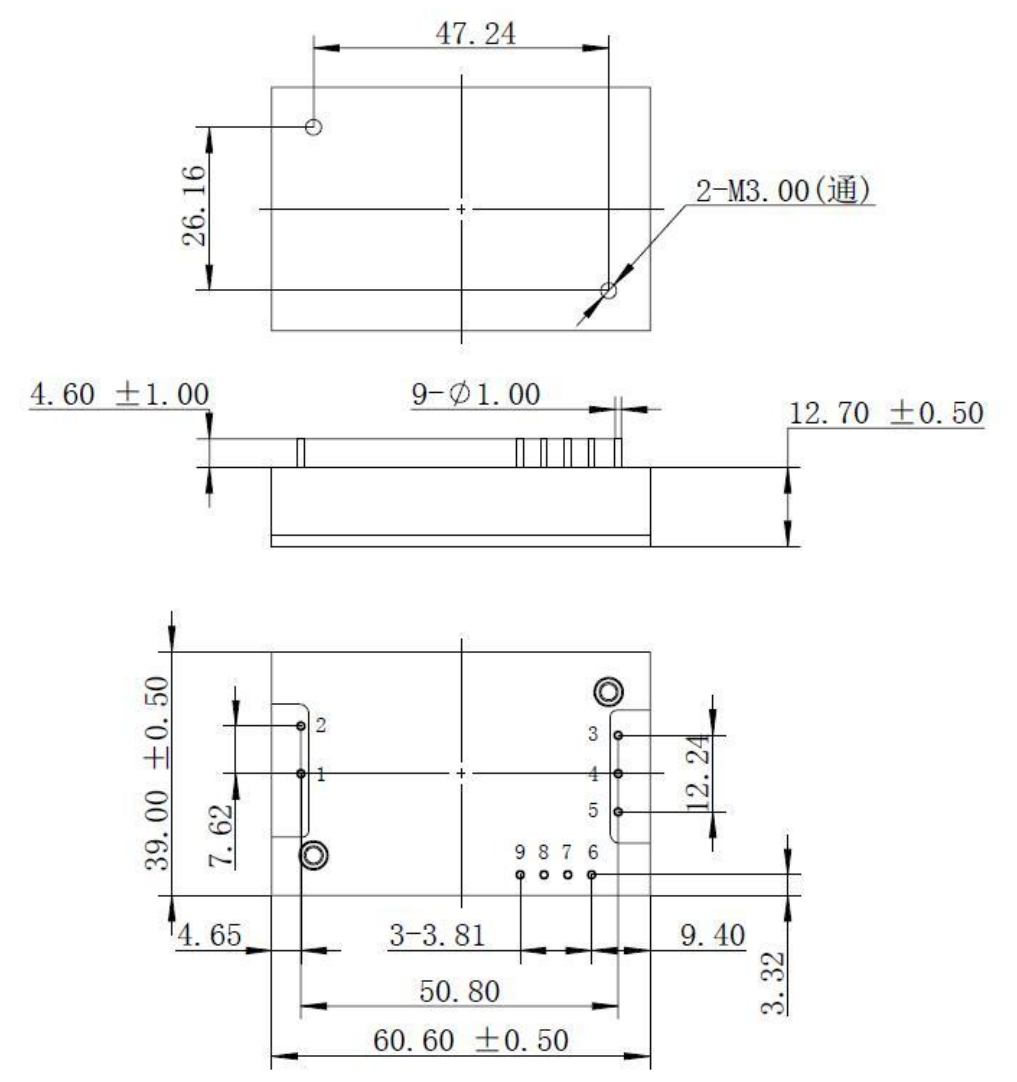

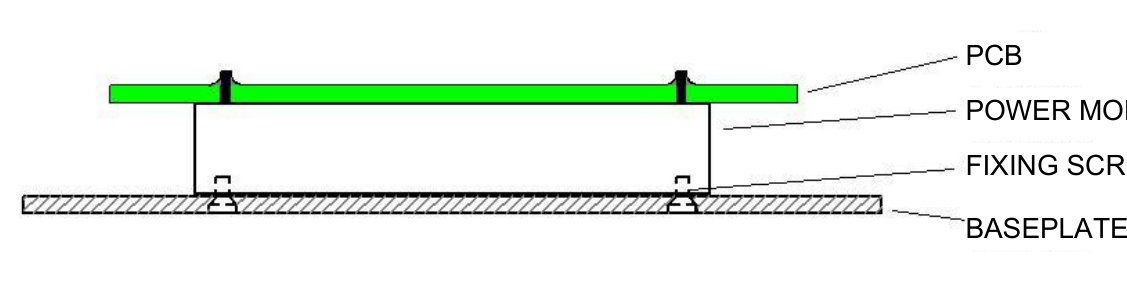

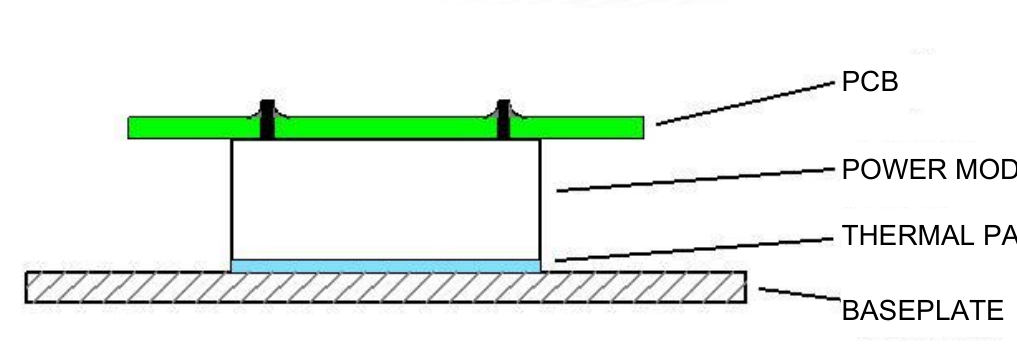

Outline & Mechanical Dimensions
