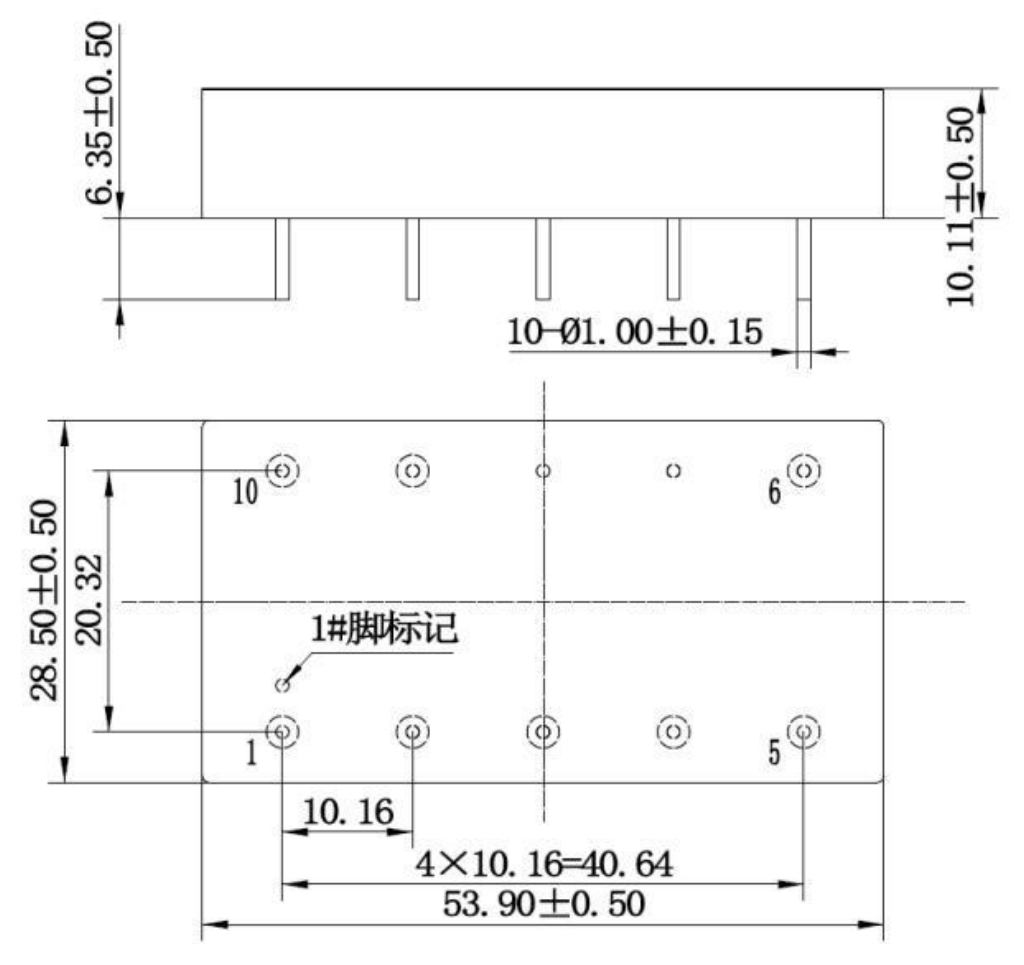

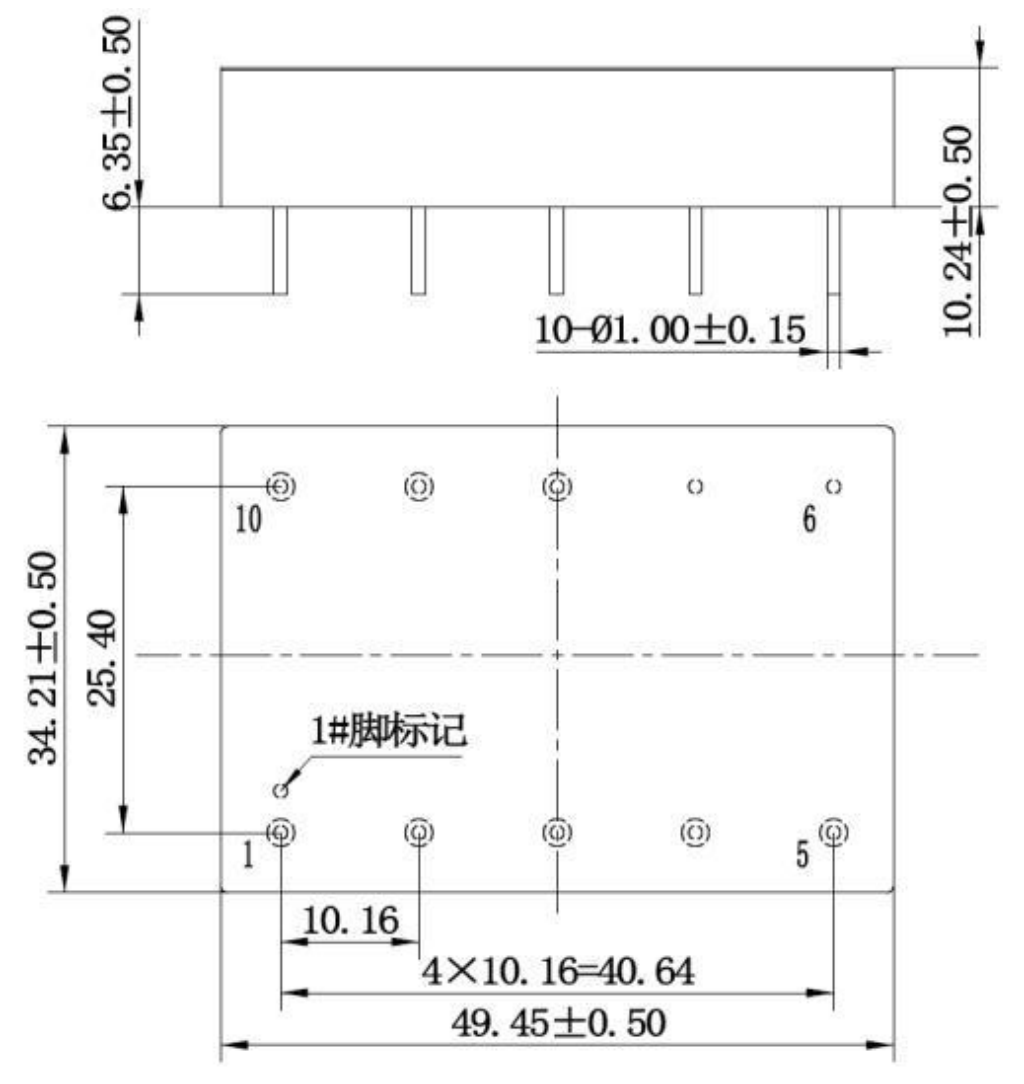

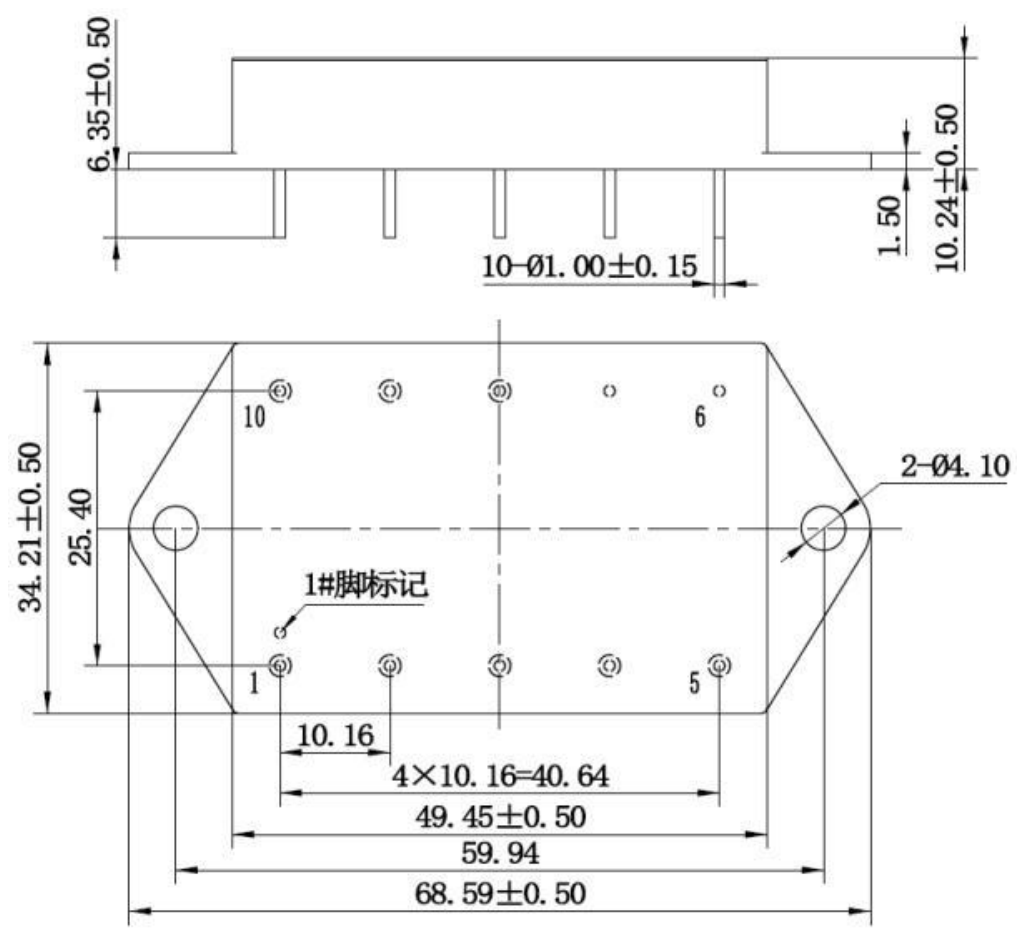

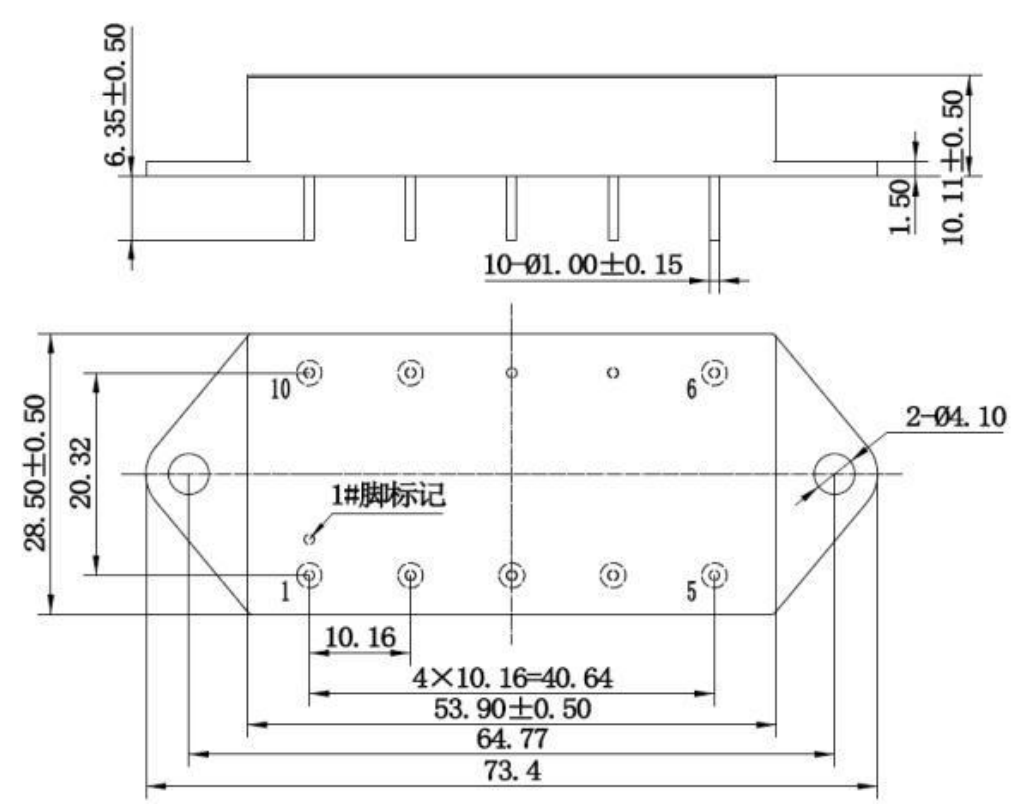

OUTLINE
Reviews (0)

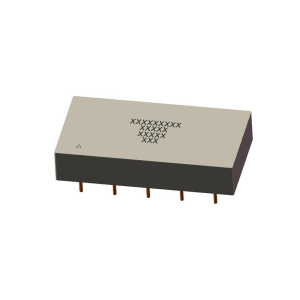

Power modules - QDTR

DC/DC isolated conversion
Hermetically sealed steel case
Maximum output power: 50W
Input undervoltage protection
Output overcurrent, short-circuit protection
Single output available, dual output, triple output
Operating temperature (Tc): -55°C to 125°C
Storage temperature: -55°C to 125°C

Product Selection

Model	Input voltage (V)	Output voltage (V)	Output current (A)	Efficiency (%) Typical	Capacitive load (µF) max.	Ripple (mV) Typical
QDTR30-28S05SG	15 to 50	5.0	6.00	87	1000	45
QDTR40-28S05FG	15 to 50	5.0	8.00	88	680	45
QDTR40-28S12SG	15 to 50	12.0	3.33	88	500	50
QDTR40-28S15SG	15 to 50	15.0	2.67	88	500	50
QDTR40-28S15FG	15 to 50	15.0	2.67	88	500	50
QDTR50-28S12FG	15 to 50	12.0	4.17	88	330	50
QDTR50-28S15FG	15 to 50	15.0	3.34	88	330	50
QDTR40-28D12SG	15 to 50	±12.0	1.67	84	500	50
QDTR40-28D15SG	15 to 50	±15.0	1.33	84	500	60
QDTR40-28T0515SG	15 to 50	5.0	4.00	81	150	45
QDTR40-28T0515SG	15 to 50	±15.0	0.66	81	220	85

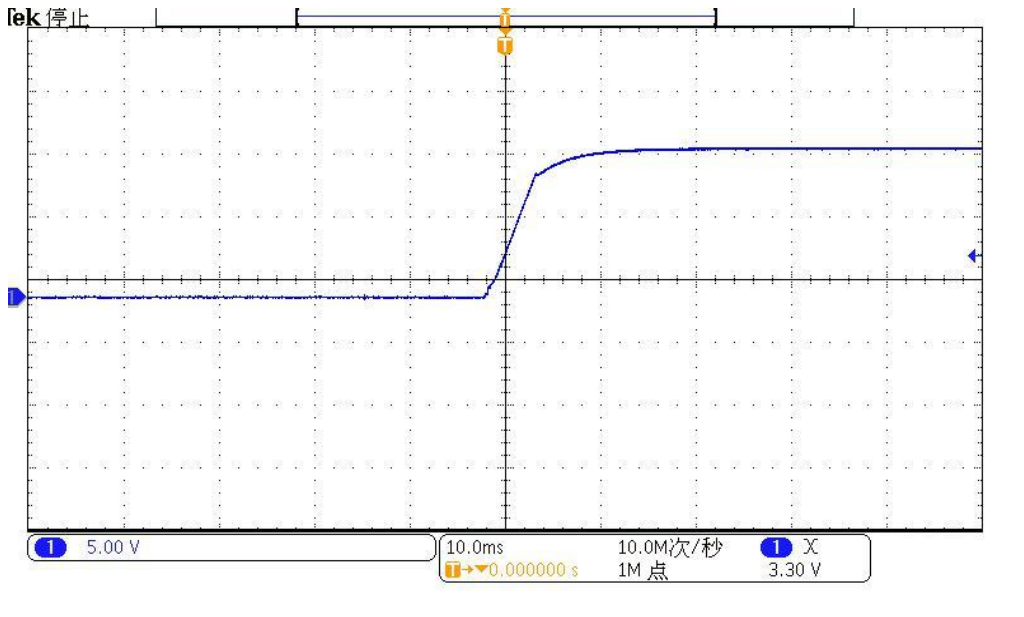

Technical figure: Tek Stop, 10.0 MS/s, 1Mpts, S, s, pts — Technical figure · Datasheet page 6

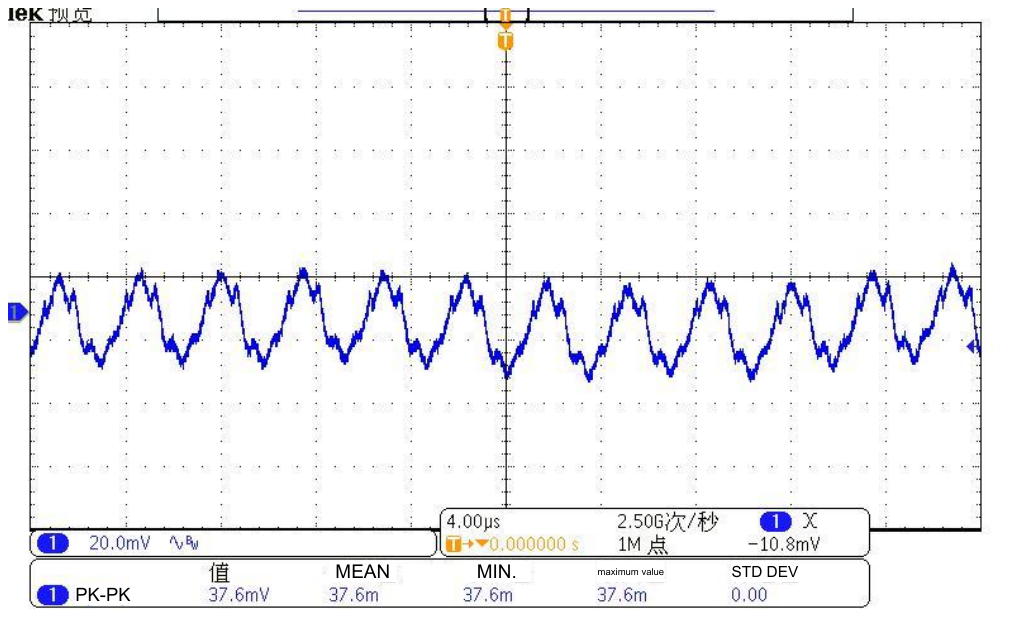

Technical figure: Tek Preview, 2.50 GS/s, 1Mpts, Value, pts — Technical figure · Datasheet page 6

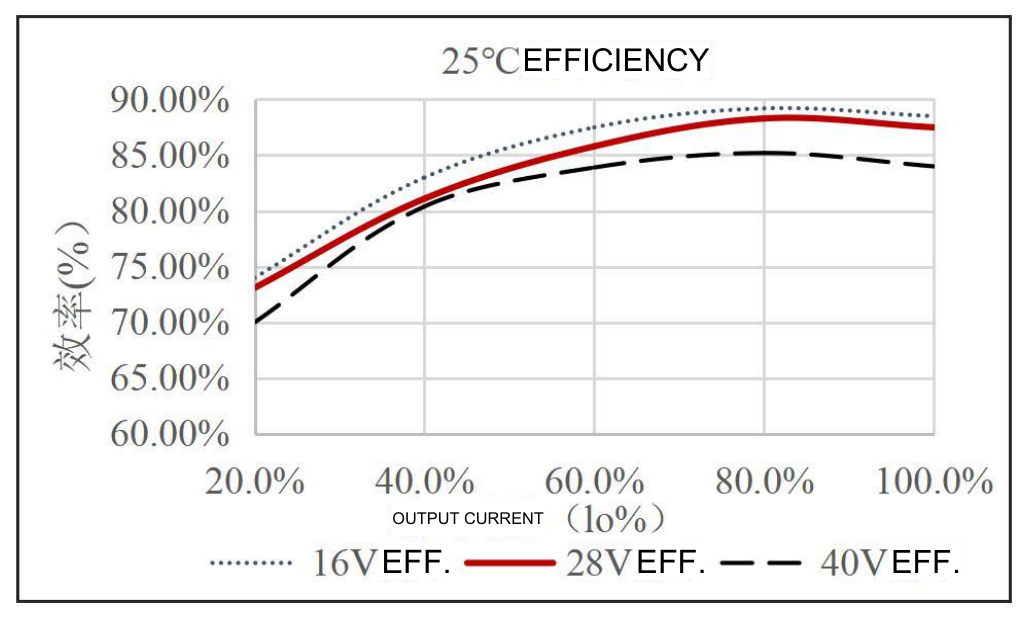

Technical figure: Efficiency (%) — Technical figure · Datasheet page 6

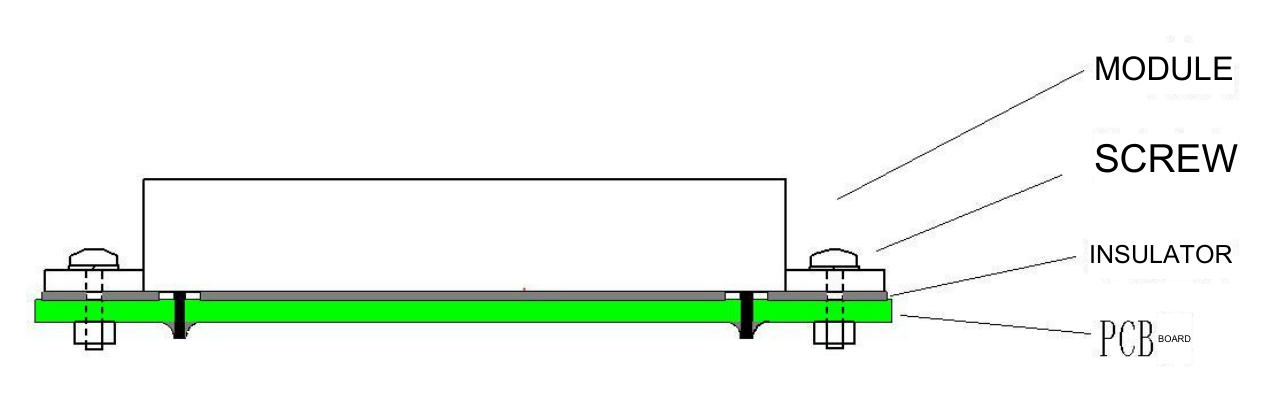

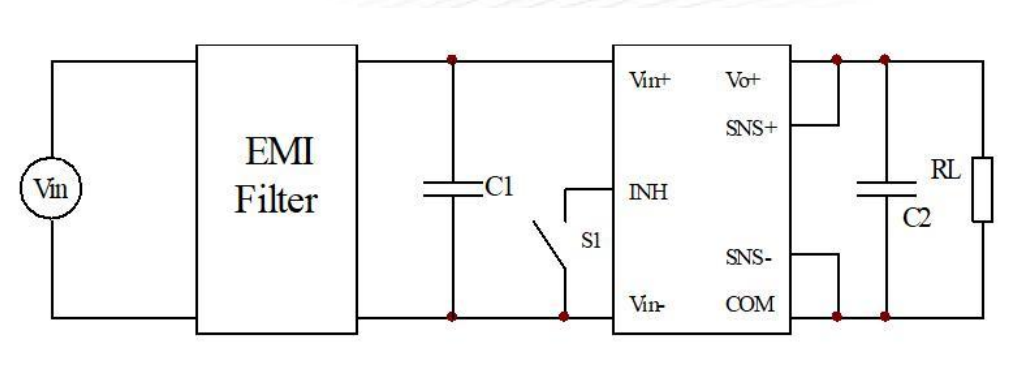

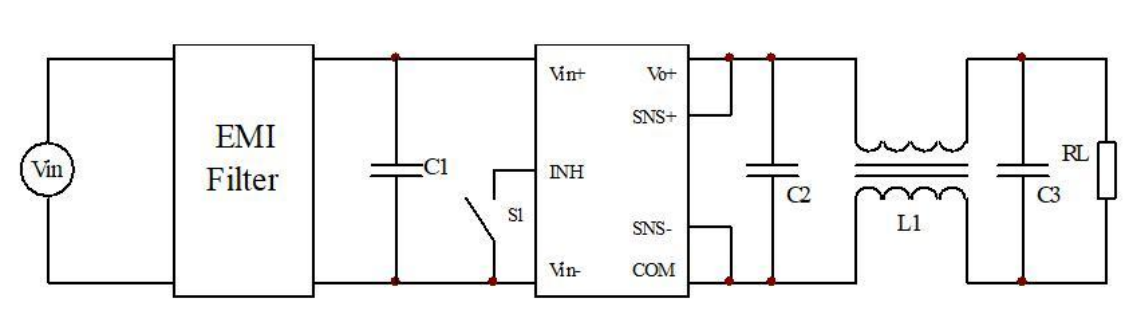

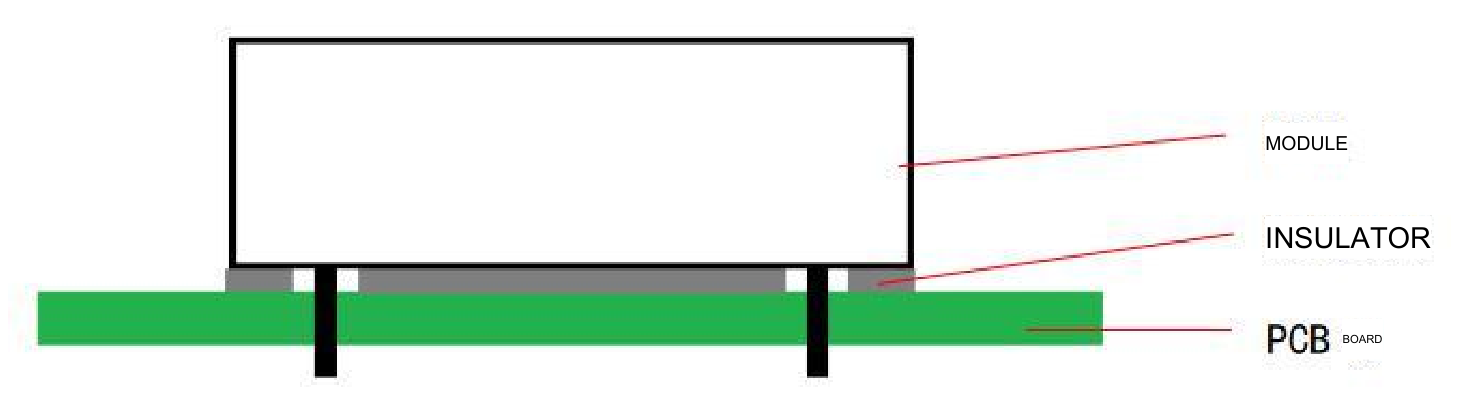

Application Guidelines — Technical figure · Datasheet page 7

Technical Data — QDTR

Characteristic	Test temperature	Min.	Typ.	Max.	Unit	Conditions
Input voltage range	Room, High, Low	15	28	50	V	15V to 50V input-voltage series, see the product selection table
Input voltage range	Room, High, Low	9	28	36	V	9V to 36V input-voltage series, see the product selection table
Input surge voltage	Room	—	—	80	V	15V to 50V input-voltage series, Vt=1s, full load
Input surge voltage	Room	—	—	50	V	9V to 36V input-voltage series, Vt=1s, full load
Line regulation	Room, High, Low	-1	—	+1	%VO	full input-voltage range, full load
Load regulation	Room, High, Low	-2.5	—	+2.5	%VO	full load range, balanced dual-output loading
Turn-on delay a	Room	—	8	—	ms	time from power-on until output voltage reaches 10% time
Output voltage rise time a	Room	—	10	—	ms	output voltage from 10% rises to 90% time
Enable turn-on delay a	Room	—	25	—	ms	time from enable assertion until output voltage reaches 10% time
Enable logic level (positive logic)	Room	0	—	1.2	V	no output, see the application guide for control methods
Enable logic level (positive logic)	Room	3.0	—	12.0	V	output enabled when open or high, see the application guide for control methods
Input undervoltage protection	Room	6.0	—	8.8	V	half load, 9V to 36V input-voltage series,
Input undervoltage protection	Room	12	—	14.8	V	half load, 15V to 50V input-voltage series
Output overcurrent protection	Room	110	—	—	%IO	hiccup mode, automatic recovery after overcurrent removal
Output short-circuit protection	Room	—				hiccup mode, automatic recovery after removal of the short circuit
Insulation resistance	Room	100	—	—	MΩ	500Vdc, input, output, between each pair of terminals and case
Switching frequency	Room	300	—	500	kHz
Weight	Room	46	50	54	g	without flange
Weight	Room	48.5	52.5	56.5	g	with flange

Note: 1, for other package types or temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method. a: typical model QDTR40-28S12SG parameter values, values may differ for other models, contact technical support for details.
