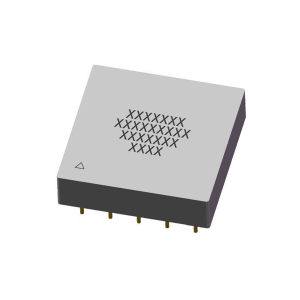

Power modules - QDSA
The QDSA power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 12W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- DC/DC isolated conversion
- Hermetically sealed steel case
- Maximum output power: 12W
- Input undervoltage protection
- Output overcurrent, short-circuit protection
- Single- and dual-output options
- Operating temperature (Tc): -55°C to 125°C
- Storage temperature: -55°C to 125°C
Product Selection

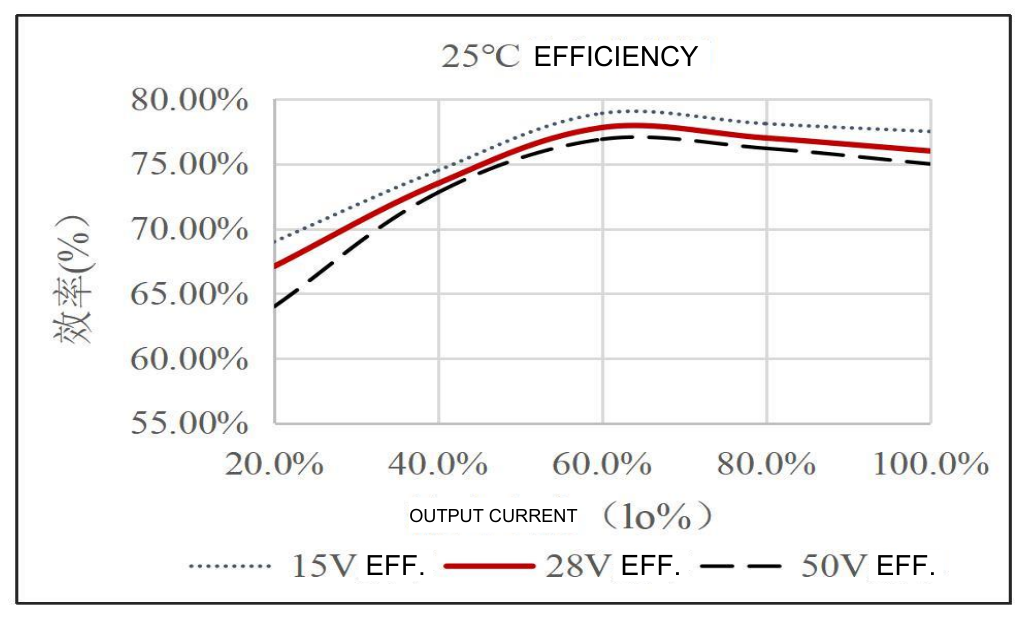

| Model | Input voltage (V) | Output voltage (V) | Output current (A) | Efficiency (%) Typical | Capacitive load (µF) max. | Ripple (mV) Typical |
|---|---|---|---|---|---|---|
| QDSA5-28S05SG | 15 to 50 | 5.0 | 1.00 | 79 | 470 | 35 |
| QDSA6-28S12SG | 15 to 50 | 12.0 | 0.50 | 83 | 330 | 40 |
| QDSA6-28S15SG | 15 to 50 | 15.0 | 0.40 | 85 | 330 | 40 |
| QDSA6-28D05SG | 15 to 50 | ±5.0 | 0.60 | 81 | 330 | 45 |
| QDSA6-28D12SG | 15 to 50 | ±12.0 | 0.25 | 82 | 220 | 40 |
| QDSA6-28D15SG | 15 to 50 | ±15.0 | 0.20 | 85 | 220 | 50 |
| QDSA7-18S3R3SG | 9 to 40 | 3.3 | 2.12 | 76 | 470 | 25 |
| QDSA10-28S05SG | 15 to 50 | 5.0 | 2.00 | 79 | 220 | 35 |
| QDSA12-28S15SG | 15 to 50 | 15.0 | 0.80 | 83 | 330 | 50 |
| QDSA12-28D15SG | 15 to 50 | ±15.0 | 0.40 | 84 | 220 | 50 |








Technical Data — QDSA

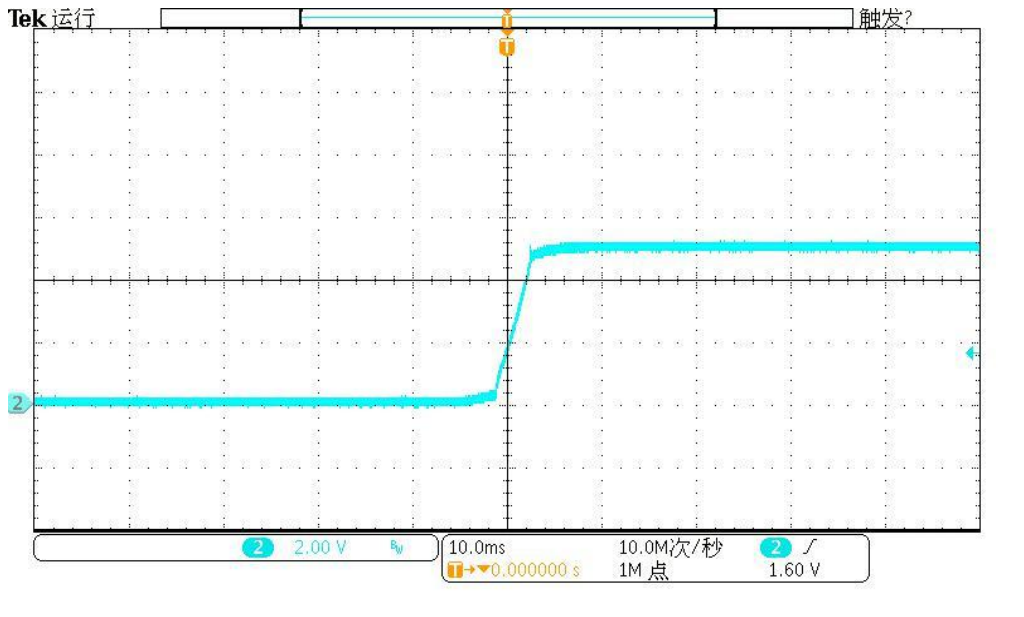

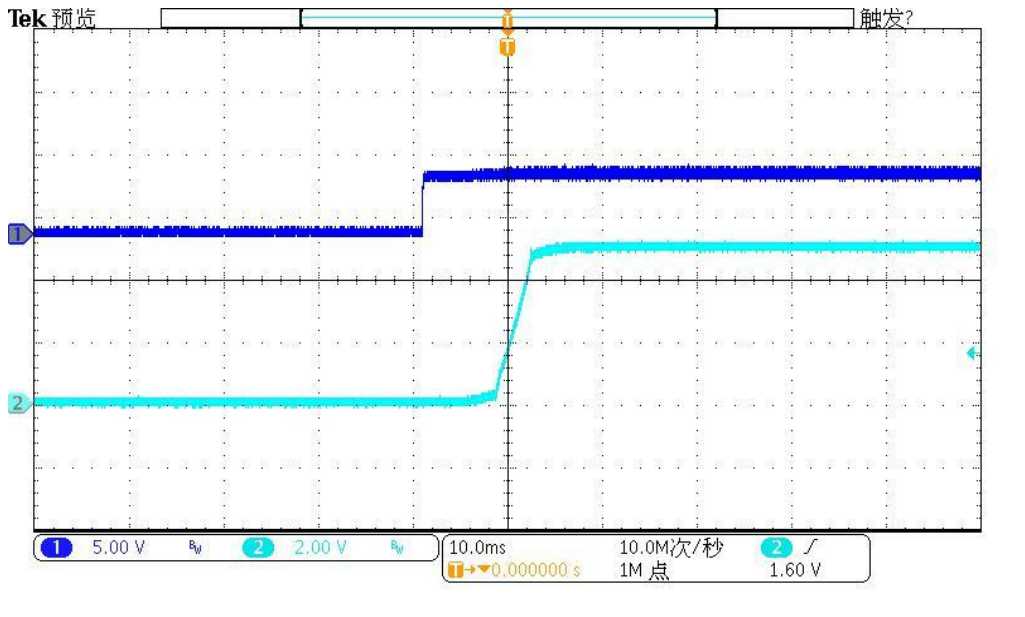

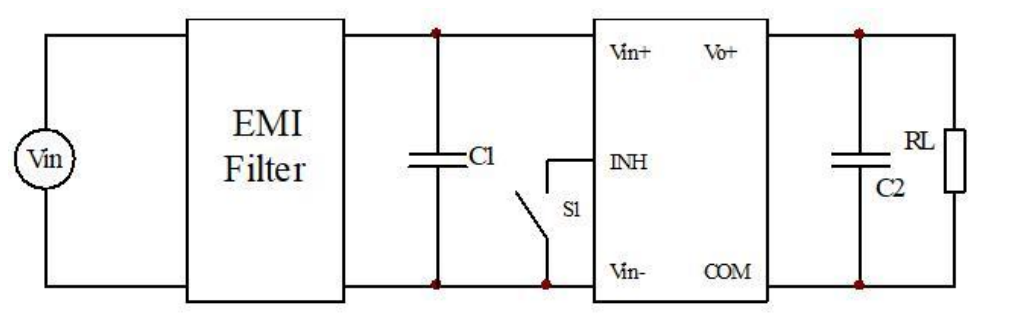

| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 9 | 28 | 40 | V | 9V to 40V input-voltage series, see the product selection table |
| Input voltage range | Room, High, Low | 15 | 28 | 50 | V | 15V to 50V input-voltage series, see the product selection table |
| Input surge voltage | Room | — | — | 50 | V | 9V to 40V input-voltage series, Vt=1s, full load |
| Input surge voltage | Room | — | — | 80 | V | 15V to 50V input-voltage series, Vt=1s, full load |
| Line regulation | Room, High, Low | -1 | — | +1 | %Vo | full input-voltage range, full load |
| Load regulation | Room, High, Low | -2 | — | +2 | %Vo | full load range, balanced dual-output loading |
| Turn-on delay a | Room | — | 10 | — | ms | time from power-on until output voltage reaches 10% time |
| Output voltage rise time a | Room | — | 5 | — | ms | output voltage from 10% rises to 90% time |
| Enable turn-on delay a | Room | — | 7 | — | ms | time from enable assertion until output voltage reaches 10% time |
| Enable logic level (positive logic) | Room | -0.3 | — | 0.7 | V | no output, see the application guide for control methods |
| Enable logic level (positive logic) | Room | 3.5 | — | 5.0 | V | output enabled when open or high, see the application guide for control methods |
| Input undervoltage protection | Room | 12.0 | — | 14.8 | V | half load, 15V to 50V input-voltage series |
| Input undervoltage protection | Room | 6.0 | — | 8.8 | V | half load, 9V to 40V input-voltage series |
| Output overcurrent protection | Room | 110 | — | — | %Io | hiccup mode, automatic recovery after overcurrent removal |
| Output short-circuit protection | Room | — | hiccup mode, automatic recovery after removal of the short circuit | |||
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input, output, between each pair of terminals and case |
| Switching frequency | Room | 300 | — | 500 | kHz | |
| Weight | Room | 15.5 | 18 | 20.5 | g | without flange |
| Weight | Room | 18 | 20.5 | 23 | g | with flange |

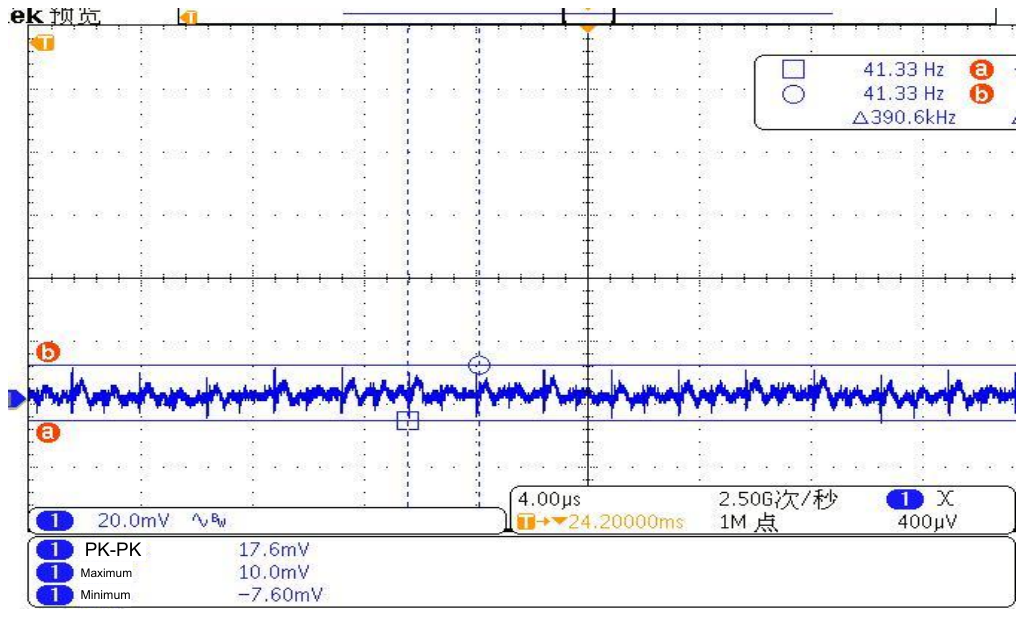

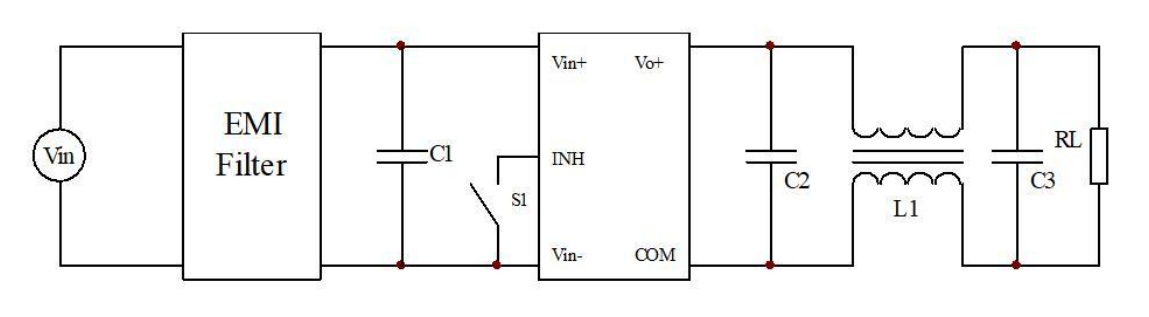

Note: 1, for other package types or temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method.
a: typical model QDSA5-28S05SG time, values may differ for other models, contact technical support for details.

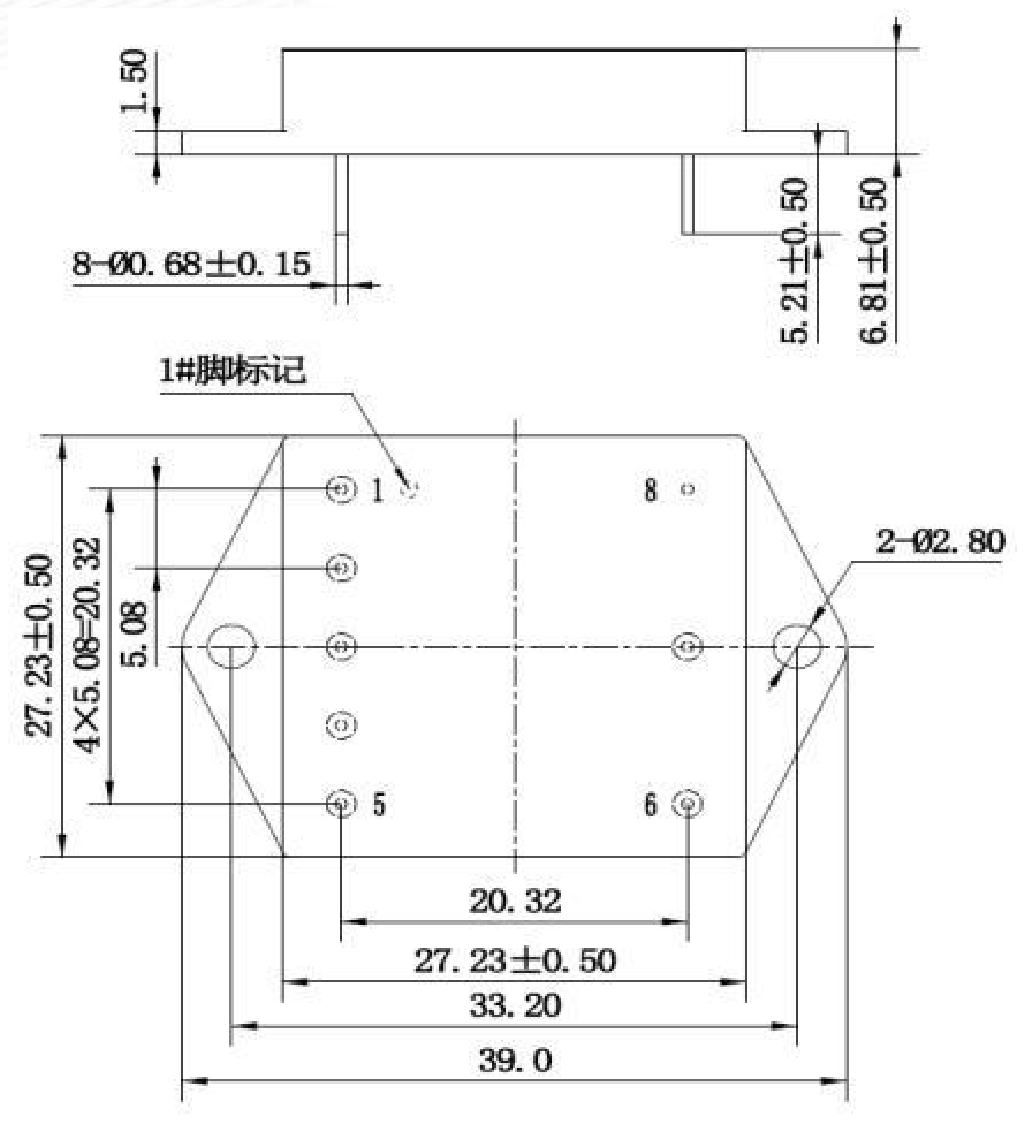

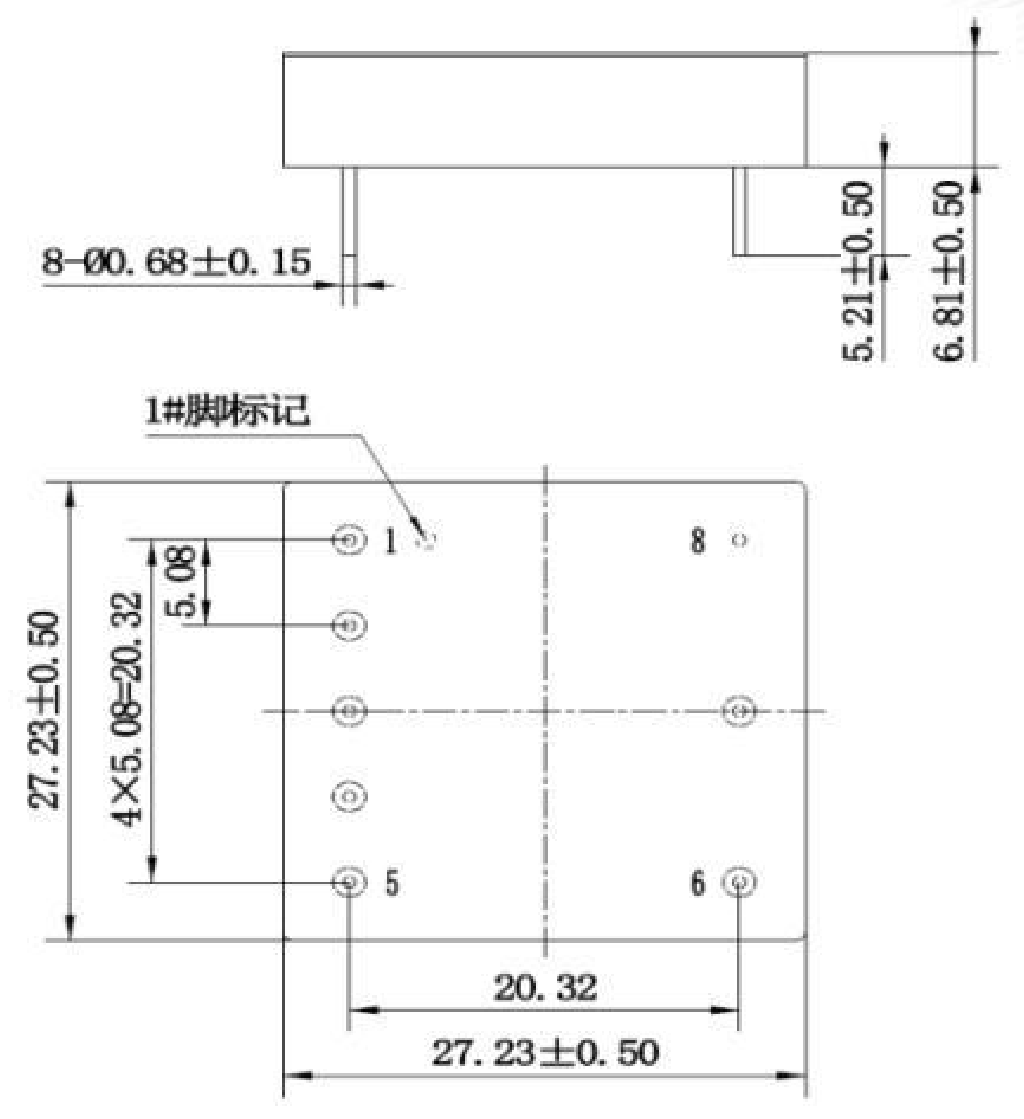

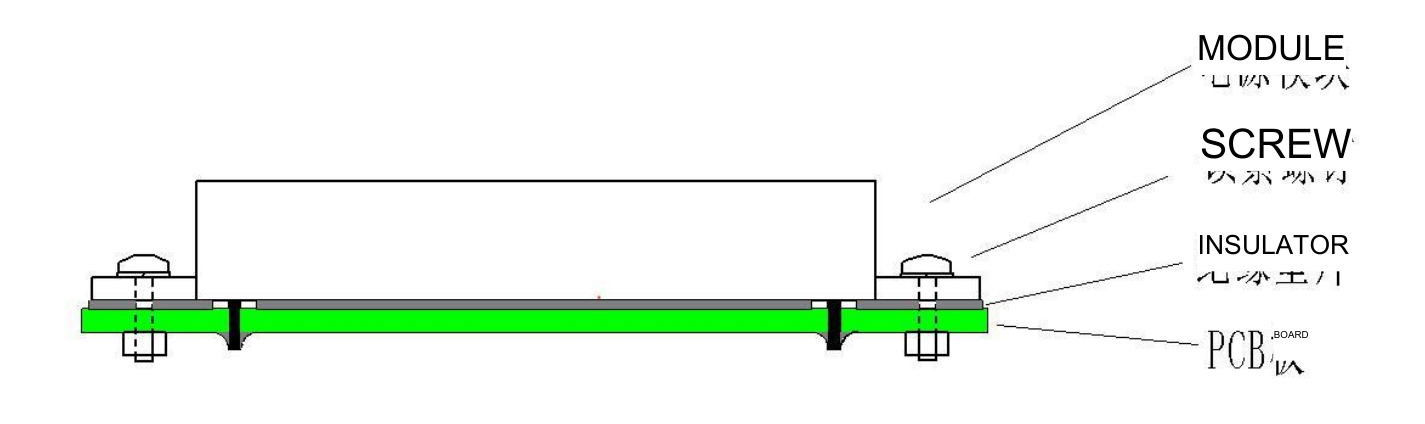

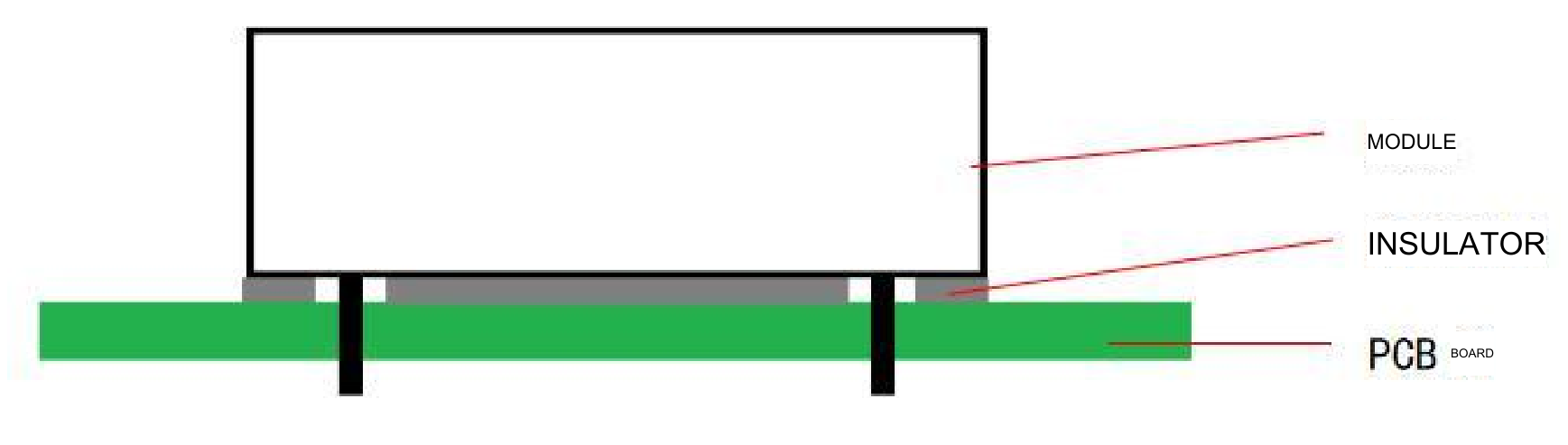

Module dimensions are shown below, for dimensions without an explicit tolerance, for dimensions specified in X.X format, the dimensional tolerance is ±0.5mm;
dimensions specified in X.XX format, the dimensional tolerance is ±0.25mm.
Outline & Mechanical Dimensions
