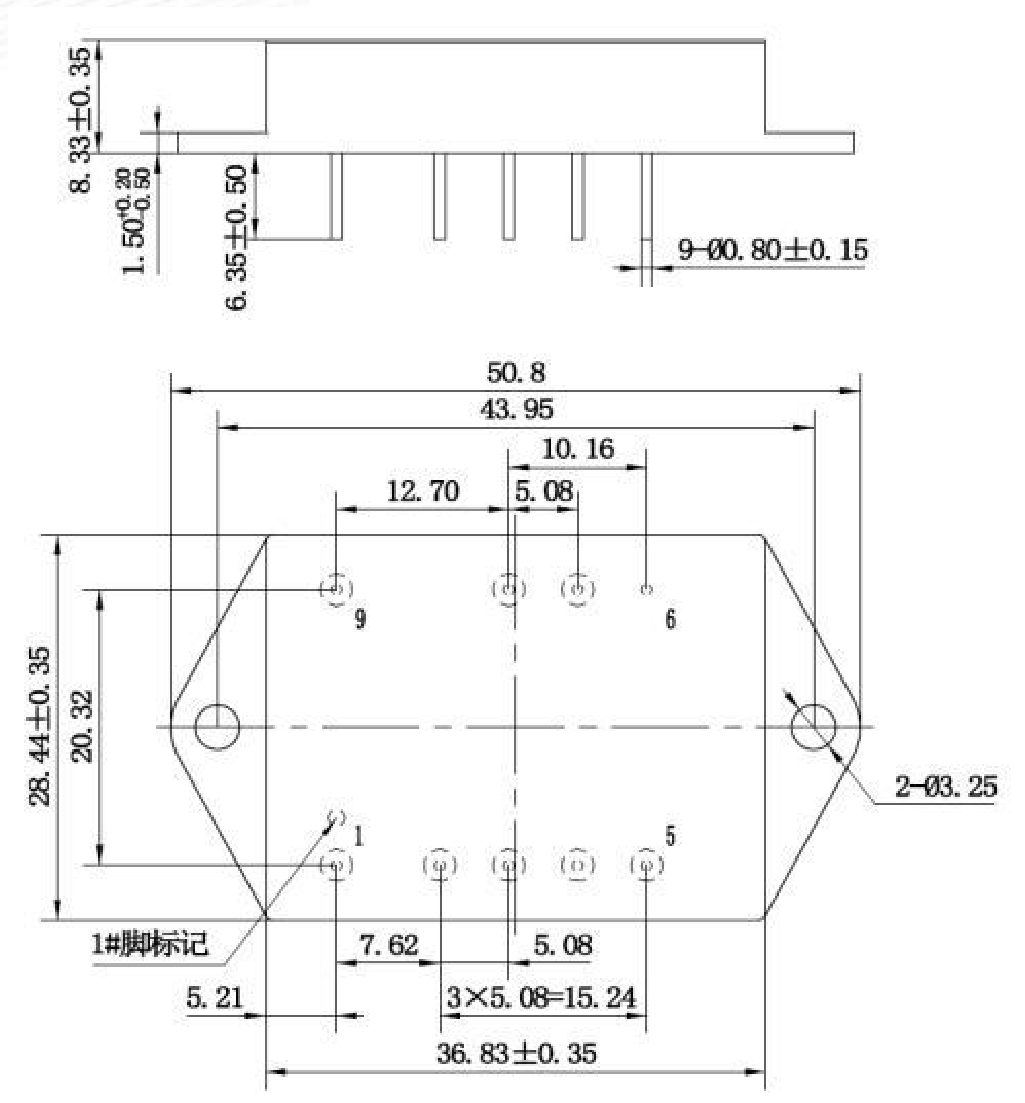

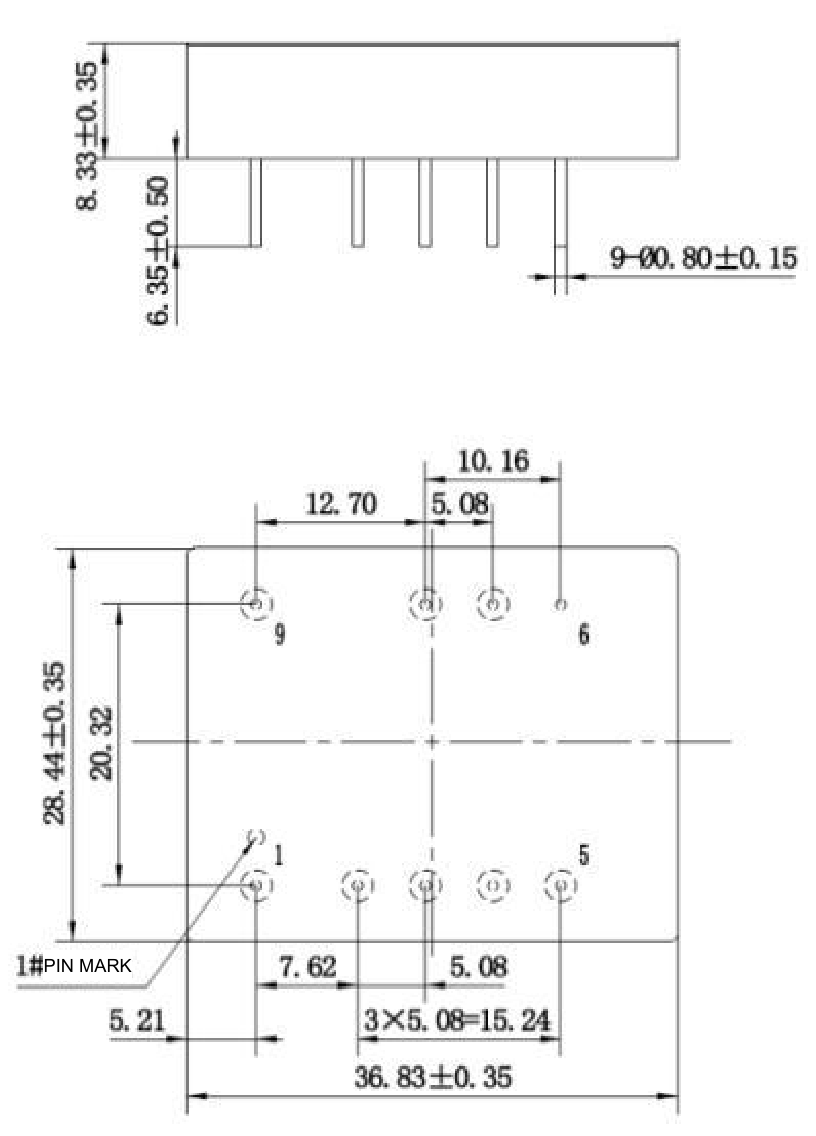

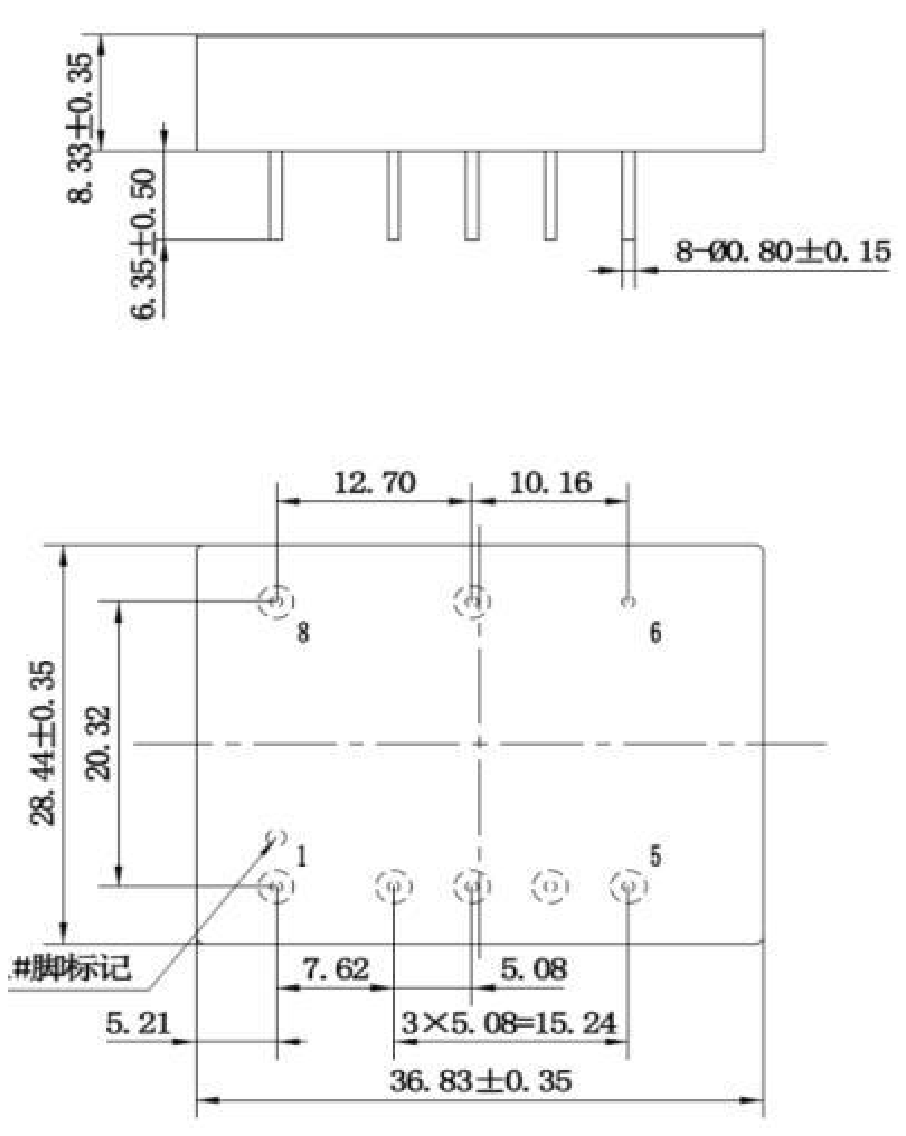

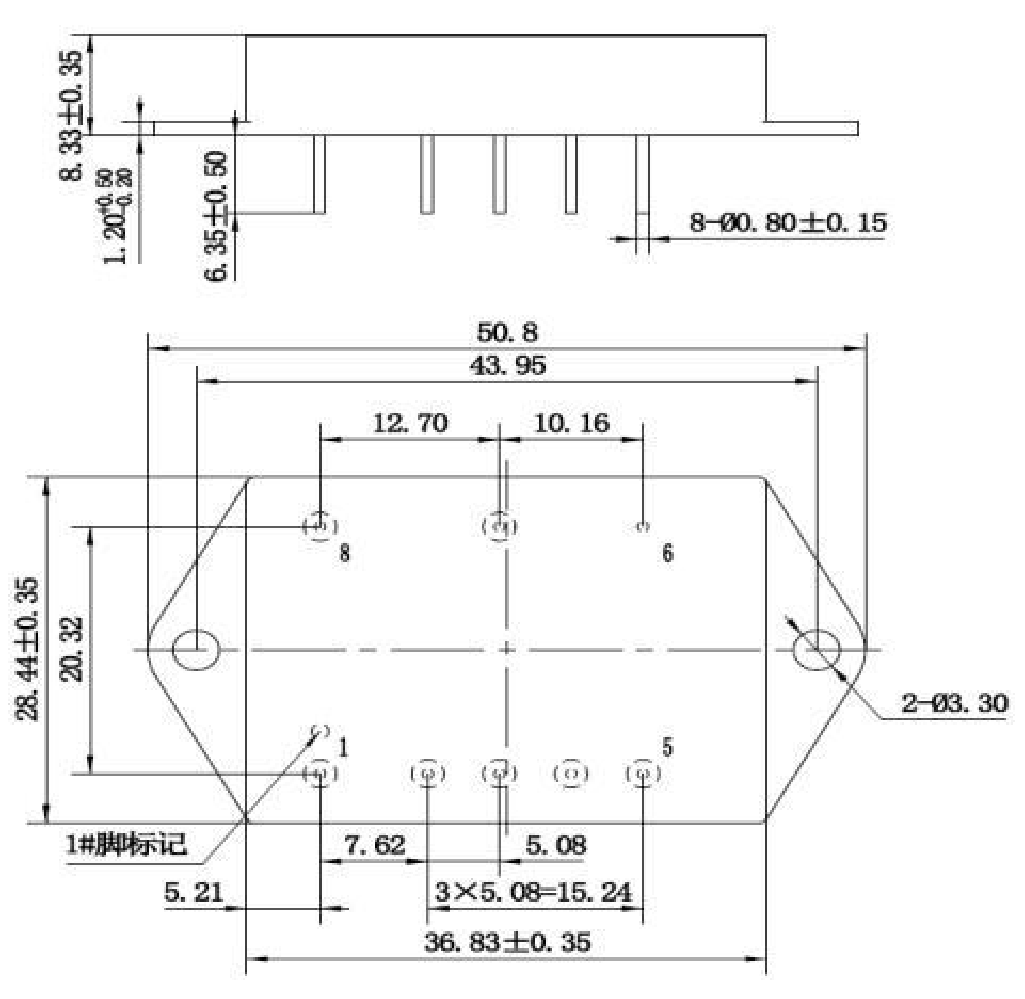

OUTLINE
Reviews (0)

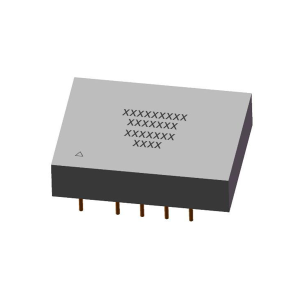

Power modules - QDHF

DC/DC isolated conversion
Hermetically sealed steel case
Maximum output power: 30W
Input undervoltage protection
Output overcurrent, short-circuit protection
Single output available, dual output, triple output
Operating temperature (Tc): -55°C to 125°C
Storage temperature: -55°C to 125°C

Product Selection

Model	Input voltage (V)	Output voltage (V)	Output current (A)	Efficiency (%) Typical	Capacitive load (µF) max.	Ripple (mV) Typical
QDHF15-18S05FG	9 to 36	5.0	3.00	82	680	30
QDHF15-28S05SG	15 to 50	5.0	3.00	80	1000	25
QDHF15-28S12SG	15 to 50	12.0	1.25	84	470	35
QDHF20-18S05SG	9 to 36	5.0	4.00	80	470	35
QDHF20-28S05SG	15 to 50	5.0	4.00	80	470	35
QDHF20-28S06SG	15 to 50	6.0	3.33	84	470	35
QDHF20-28S12SG	15 to 50	12.0	1.67	84	470	35
QDHF20-28S15SG	15 to 50	15.0	1.33	84	330	35
QDHF20-28S28SG	15 to 50	28.0	0.72	88	220	70
QDHF20-28S40SG	15 to 50	40.0	0.50	87	100	110
QDHF25-28S05FG	15 to 50	5.0	5.00	80	330	35
QDHF30-28S40SG	16 to 40	40.0	0.75	88	100	80
QDHF20-28D05SG	15 to 50	±5.0	2	84	470	40
QDHF20-28D12SG	15 to 50	±12.0	0.83	83	220	40
QDHF20-28D15SG	15 to 50	±15.0	0.66	84	330	35
QDHF25-28D12FG	15 to 50	±12.0	1.05	86	330	50
QDHF25-28D15FG	15 to 50	±15.0	0.83	88	330	50
QDHF15-18T0512SG	9 to 36	5.0	1.50	83	470	45
QDHF15-18T0512SG	9 to 36	±12.0	0.32	83	220	80
QDHF15-18T0515SG	9 to 36	5.0	1.50	77	470	45
QDHF15-18T0515SG	9 to 36	±15.0	0.25	77	220	70
QDHF15-28T0515SG	15 to 50	5.0	1.50	78	470	45
QDHF15-28T0515SG	15 to 50	±15.0	0.25	78	220	70
QDHF15-28T0512SG	15 to 50	5.0	1.50	78	470	45
QDHF15-28T0512SG	15 to 50	±12.0	0.32	78	220	70
QDHF20-28T0515SG	16 to 40	5.0	2.00	78	470	45
QDHF20-28T0515SG	16 to 40	±15.0	0.33	78	220	70

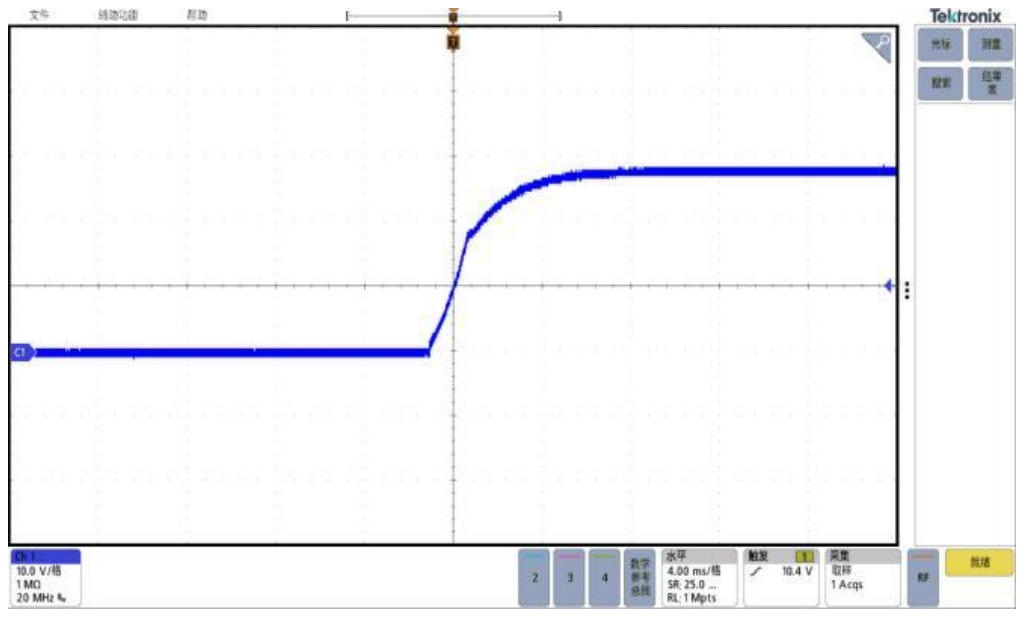

Technical figure: File Utility Help, 10.0 V/div, Digital bus, Horizontal, 4.00 ms/div, Trigger, Acquire, Sample, Cursor, Measure, Search, Results, Ready — Technical figure · Datasheet page 8

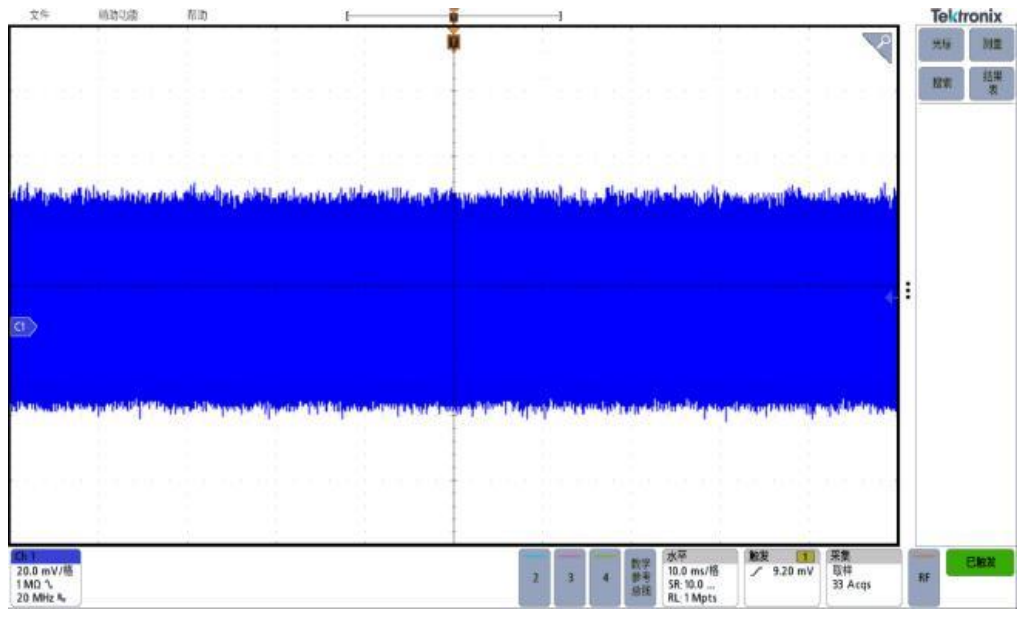

Technical figure: File Utility Help, 20.0 mV/div, Digital bus, Horizontal, 10.0 ms/div, Trigger, Acquire, Sample, Cursor, Measure, Search, Results, Triggered — Technical figure · Datasheet page 8

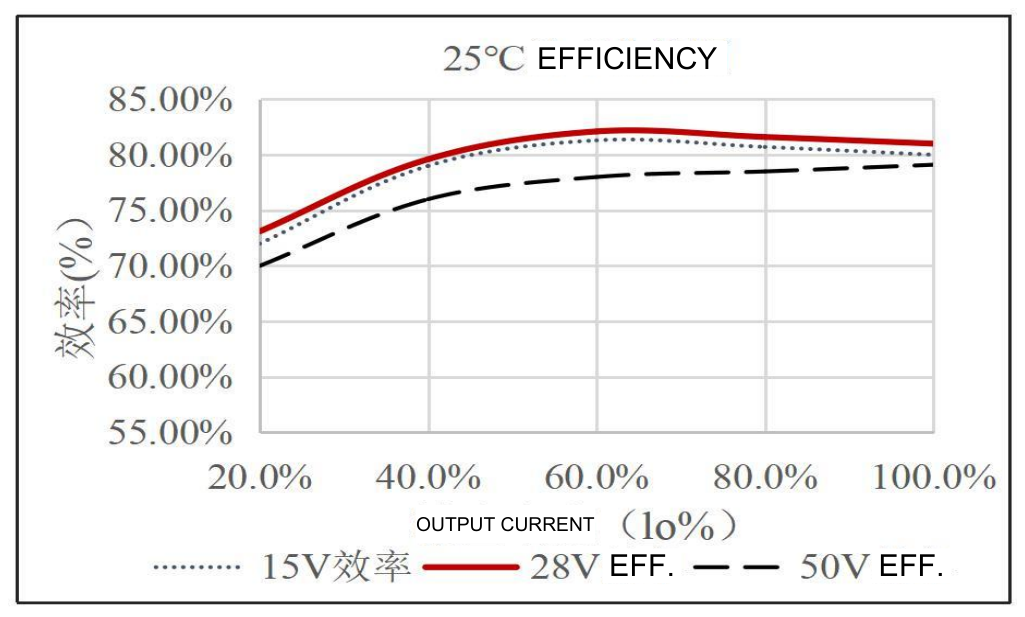

Technical figure: Efficiency (%), 15V EFF. — Technical figure · Datasheet page 8

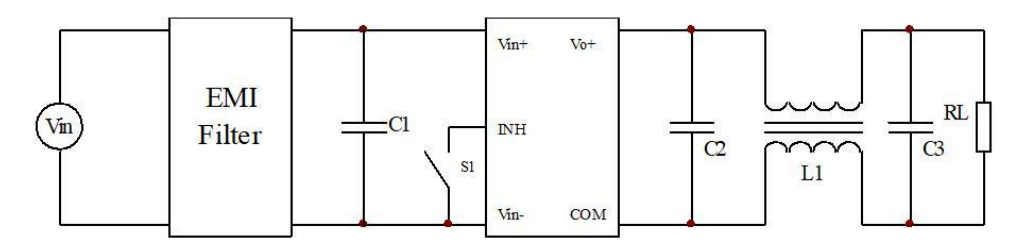

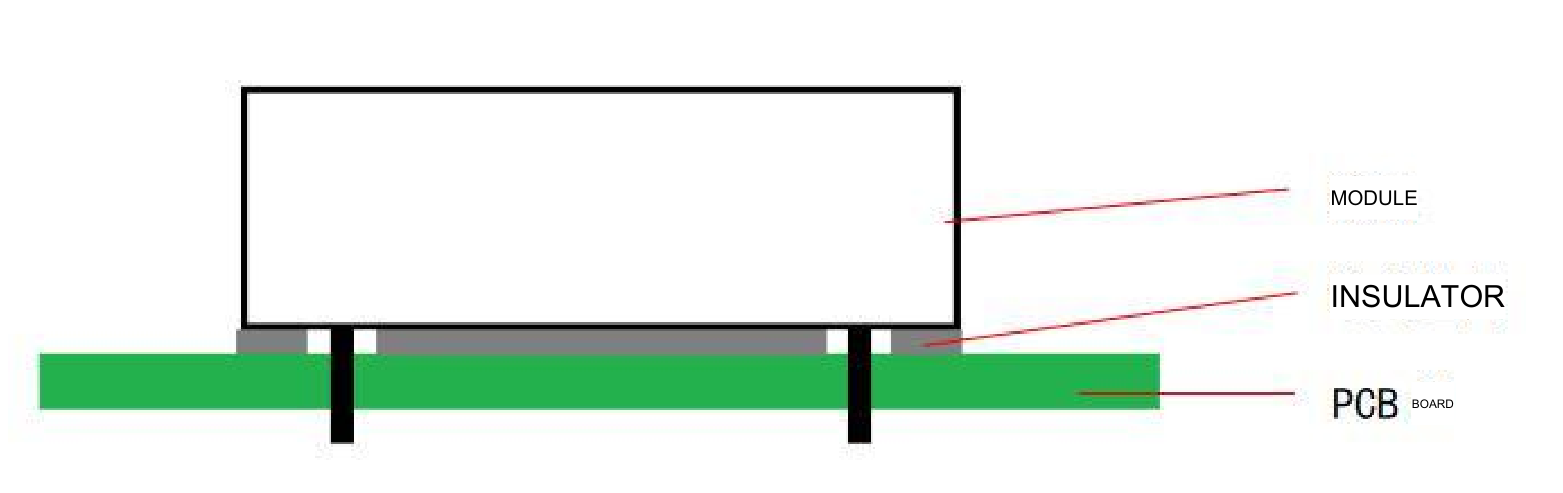

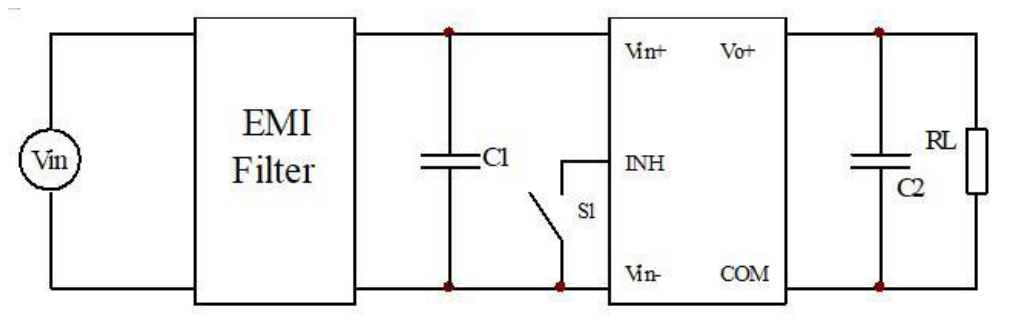

Application Guidelines — Technical figure · Datasheet page 8

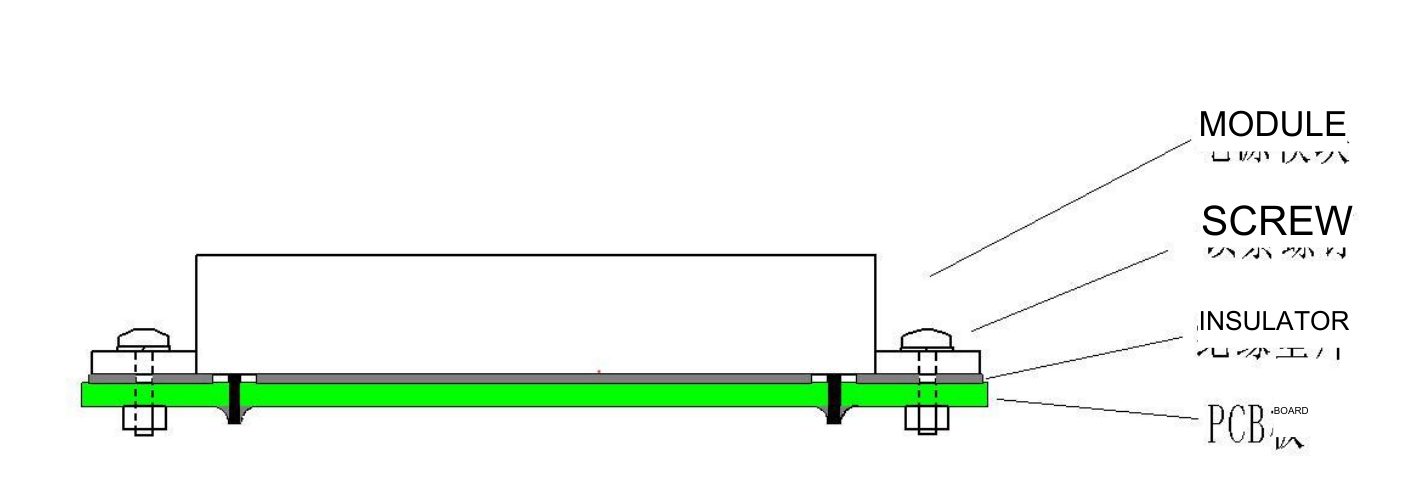

Technical figure: Module, Screw, Insulator, PCB — Technical figure · Datasheet page 10

Technical Data — QDHF

Characteristic	Test temperature	Min.	Typ.	Max.	Unit	Conditions
Input voltage range	Room, High, Low	15	28	50	V	15V to 50V input-voltage series, see the product selection table
Input voltage range	Room, High, Low	9	28	36	V	9V to 36V input-voltage series, see the product selection table
Input voltage range	Room, High, Low	16	28	40	V	16V to 40V input-voltage series, see the product selection table
Input surge voltage	Room	—	—	80	V	15V to 50V input-voltage series, Vt=1s, full load
Input surge voltage	Room	—	—	50	V	9V to 36V, 16V to 40V input-voltage series, Vt=1s, full load
Line regulation	Room, High, Low	-1	—	+1	%VO	full input-voltage range, full load, triple-output models ±2%
Load regulation	Room, High, Low	-2	—	+2	%VO	full load range, balanced dual-output loading, triple-output models ±3%
Turn-on delay a	Room	—	5	—	ms	time from power-on until output voltage reaches 10% time
Output voltage rise time a	Room	—	2	—	ms	output voltage from 10% rises to 90% time
Enable turn-on delay a	Room	—	7	—	ms	time from enable assertion until output voltage reaches 10% time
Enable logic level (positive logic)	Room	-0.3	—	0.7	V	no output, see the application guide for control methods
Enable logic level (positive logic)	Room	3.5	—	5.0	V	output enabled when open or high, see the application guide for control methods
Input undervoltage protection	Room	11.0	—	14.8	V	half load, 15V to 50V, 16V to 40V input-voltage series
Input undervoltage protection	Room	6.0	—	8.8	V	half load, 9V to 36V input-voltage series
Output overcurrent protection	Room	110	—	—	%IO	hiccup mode, automatic recovery after overcurrent removal
Output short-circuit protection	Room	—				hiccup mode, automatic recovery after removal of the short circuit, Triple-output models do not provide output short-circuit protection.
Insulation resistance	Room	100	—	—	MΩ	500Vdc, input, output, between each pair of terminals and case
Switching frequency	Room	300	—	500	kHz
Weight	Room	27	30	33	g	without flange A, B case type
Weight	Room	30	33	36	g	with flange A, B case type

Note: 1, for other package types or temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method.
