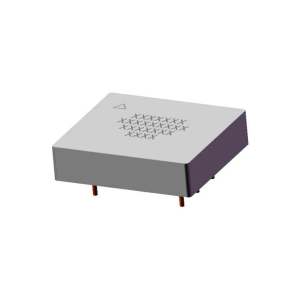

Power modules - QDB
The QDB power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 5W. Operating temperature (Tc): -55°C to 125°C. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- DC/DC isolated conversion
- Hermetically sealed steel case
- Maximum output power: 5W
- Operating temperature (Tc): -55°C to 125°C
- Storage temperature: -55°C to 125°C
Product Selection
| Model | Input voltage (V) | Output voltage (V) | Output current (A) | Efficiency (%) Typical | Capacitive load (µF) max. | Ripple (mV) Typical |
|---|---|---|---|---|---|---|
| QDB2-5S05SG | 4.6 to 9.0 | 5 | 0.4 | 81 | 220 | 30 |
| QDB4-5S05SG | 4.6 to 9.0 | 5 | 0.8 | 75 | 220 | 50 |
| QDB5-5S15SG | 4.6 to 9.0 | 15 | 0.33 | 77 | 220 | 90 |
| QDB2-5D12SG | 4.6 to 5.5 | ±12 | 0.083 | 75 | 220 | 50 |
| QDB4-18S3R3SG | 9 to 36 | 3.3 | 1.22 | 76 | 470 | 30 |
| QDB5-18S05SG | 9 to 36 | 5 | 1.0 | 78 | 470 | 40 |
| QDB5-28S05SG | 16 to 40 | 5 | 1.0 | 80 | 470 | 35 |
| QDB5-28S15SG | 16 to 40 | 15 | 0.33 | 82 | 220 | 40 |
| QDB5-28D15SG | 16 to 40 | ±15 | 0.167 | 80 | 220 | 90 |
Technical Data — QDB

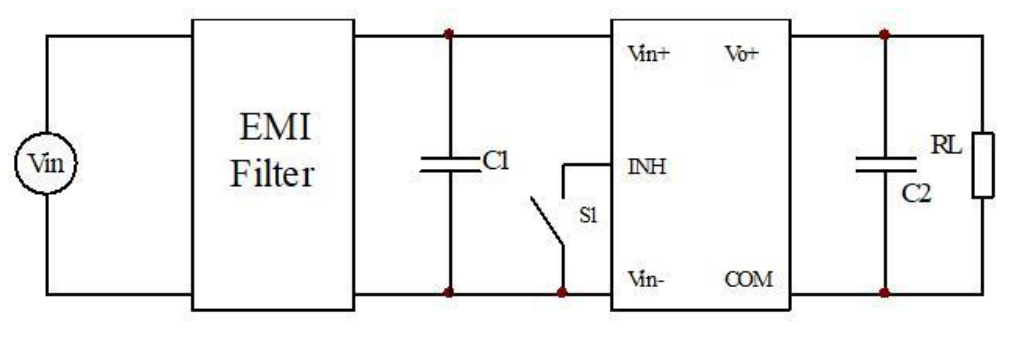

| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 4.6 | 5 | 9 | V | 4.6V to 5.5V, 4.6V to 9.0V input-voltage series, see the product selection table |
| Input voltage range | Room, High, Low | 9 | 28 | 36 | V | 9V to 36V input-voltage series, see the product selection table |
| Input voltage range | Room, High, Low | 16 | 28 | 40 | V | 16V to 40V input-voltage series, see the product selection table |
| Input surge voltage | Room | — | — | 50 | V | 9V to 36V, 16V to 40V input-voltage series, Vt=1s, full load |
| Input surge voltage | Room | — | — | 6 | V | 4.6V to 5.5V input-voltage series, Vt=1s, full load |
| Input surge voltage | Room | — | — | 10 | V | 4.6V to 9.0V input-voltage series, Vt=1s, full load |
| Line regulation | Room, High, Low | -2 | — | +2 | %VO | full input-voltage range, full load |
| Load regulation | Room, High, Low | -2 | — | +2 | %VO | full load range |
| Enable logic level (positive logic) | Room | 0 | — | 0.5 | V | no output, see the application guide for control methods |
| Enable logic level (positive logic) | Room | 5.0 | — | 12.0 | V | output enabled when open or high, see the application guide for control methods |
| Turn-on delay a | Room | — | — | 30 | ms | time from power-on until output voltage reaches 10% time |

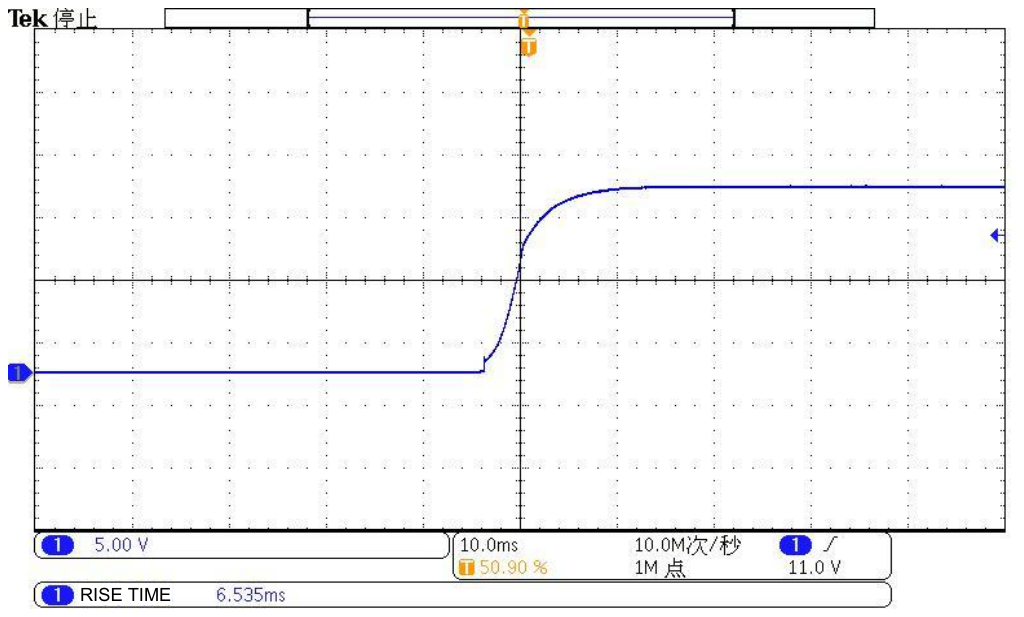

| Output voltage rise time a | Room | — | — | 20 | ms | output voltage from 10% rises to 90% time |
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input, output, between each pair of terminals and case |
| Switching frequency | Room | — | 390 | — | kHz | |
| Weight | — | 8 | 11 | 13 | g |

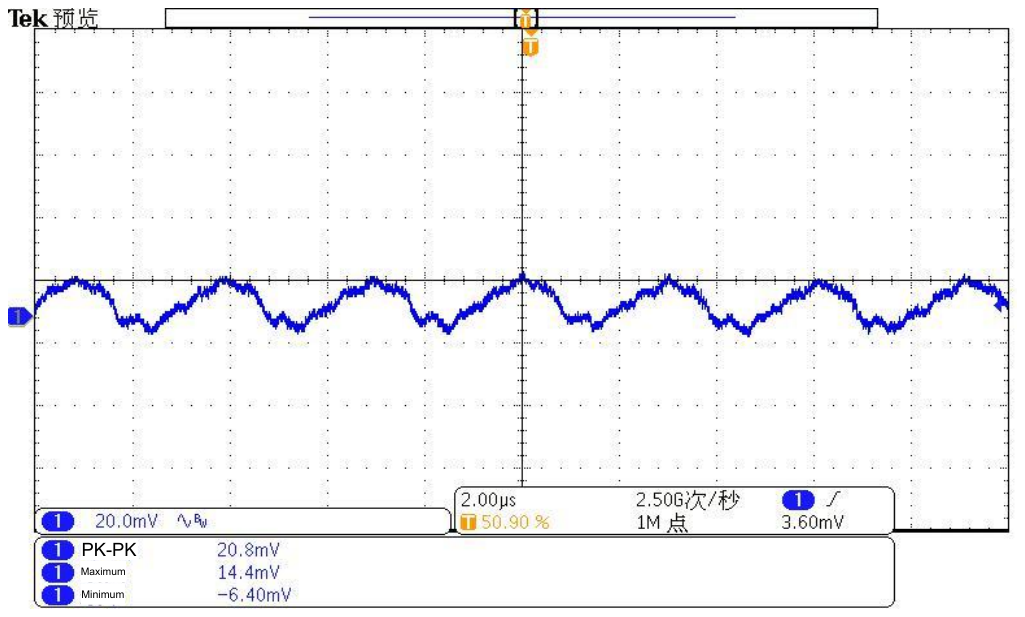

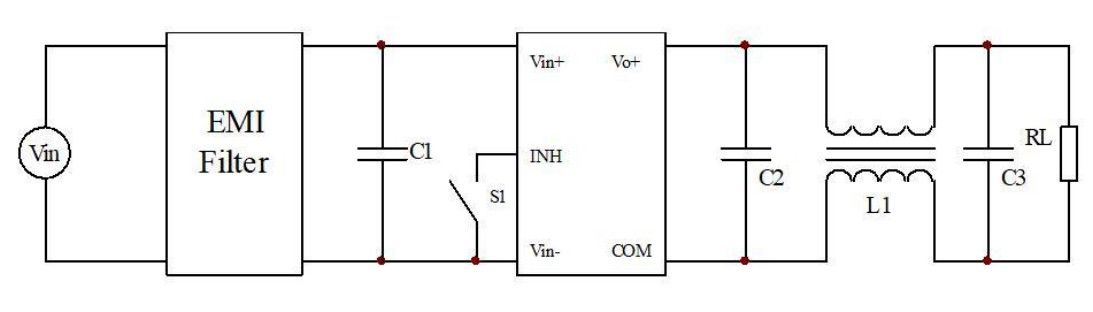

Note: 1, for other package types or temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method.

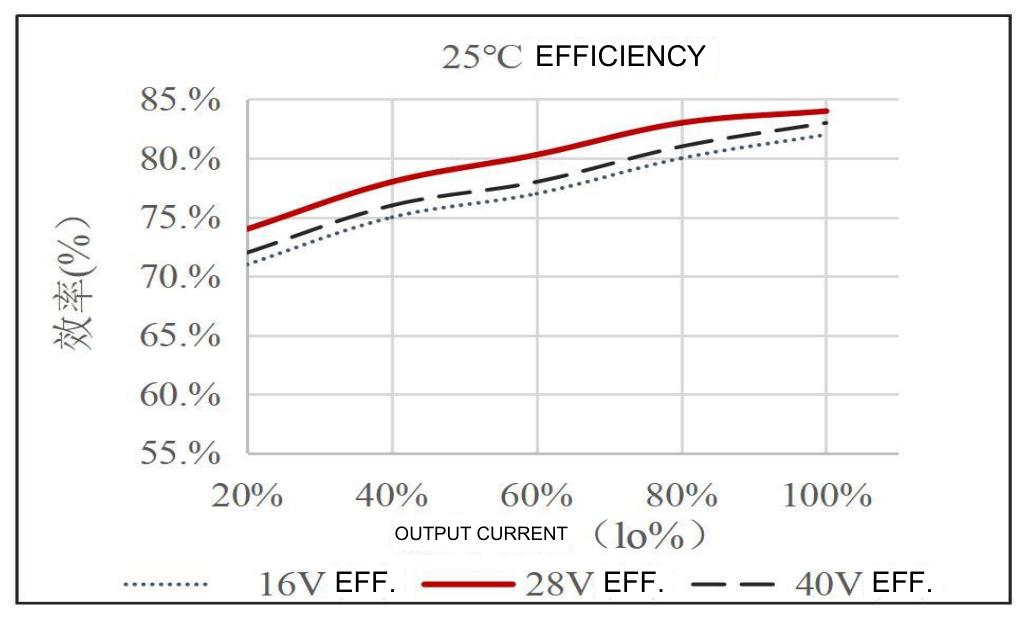

a: typical model QDB5-28S15SG parameter values, values may differ for other models, contact technical support for details;

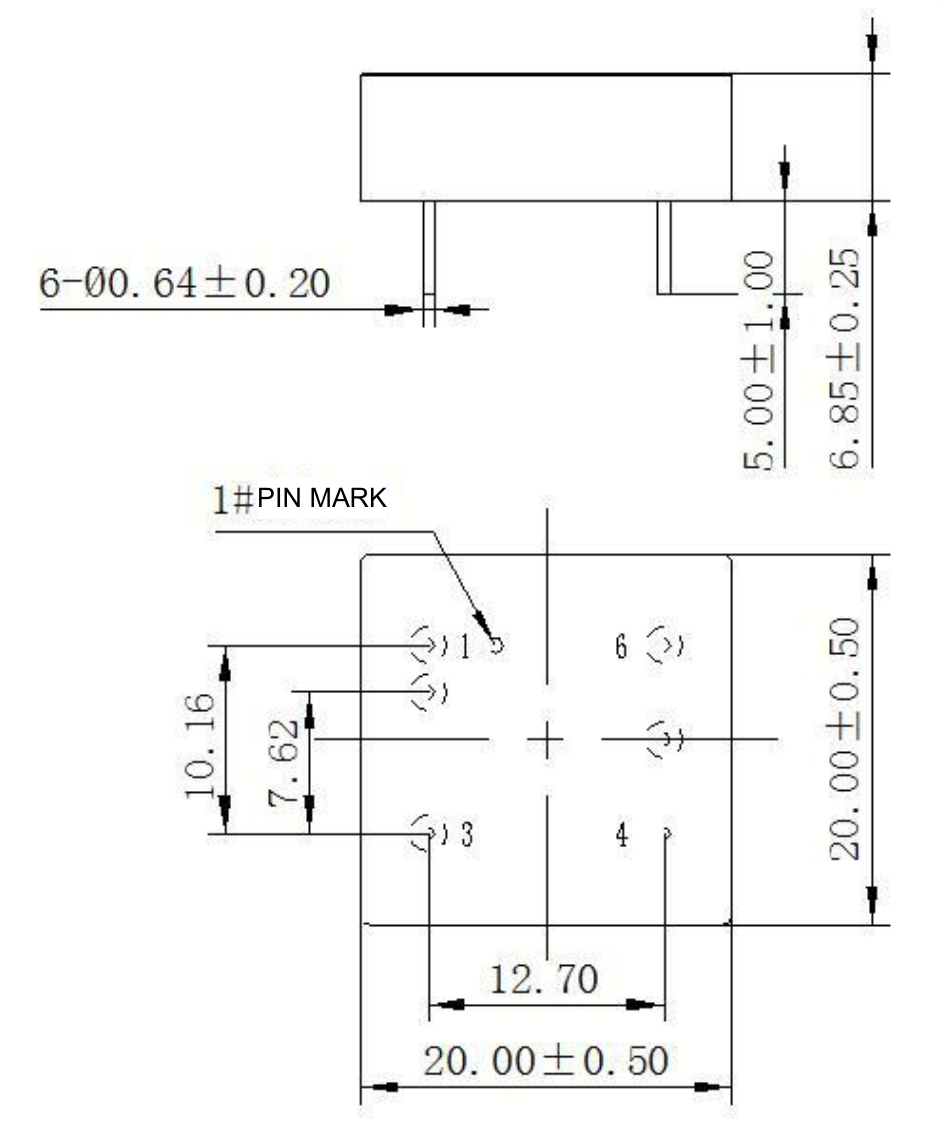

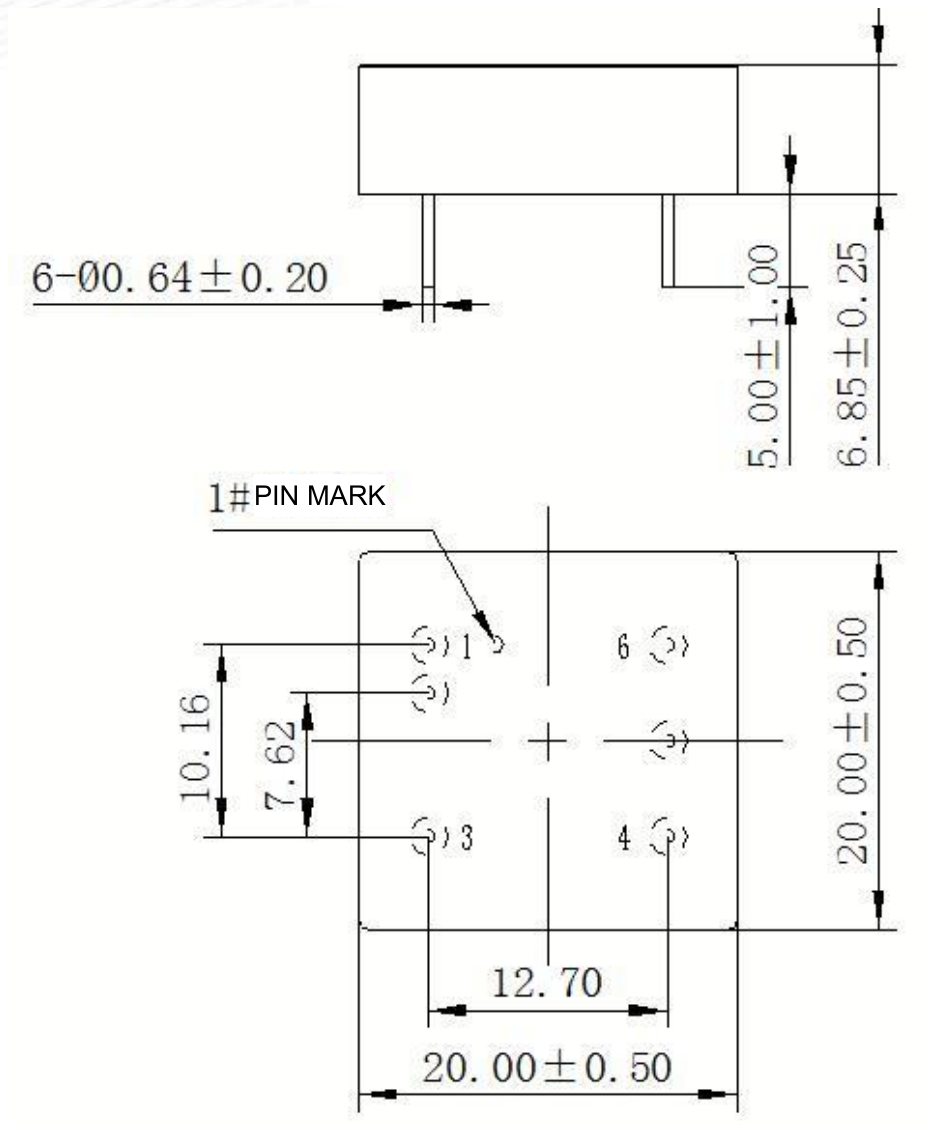

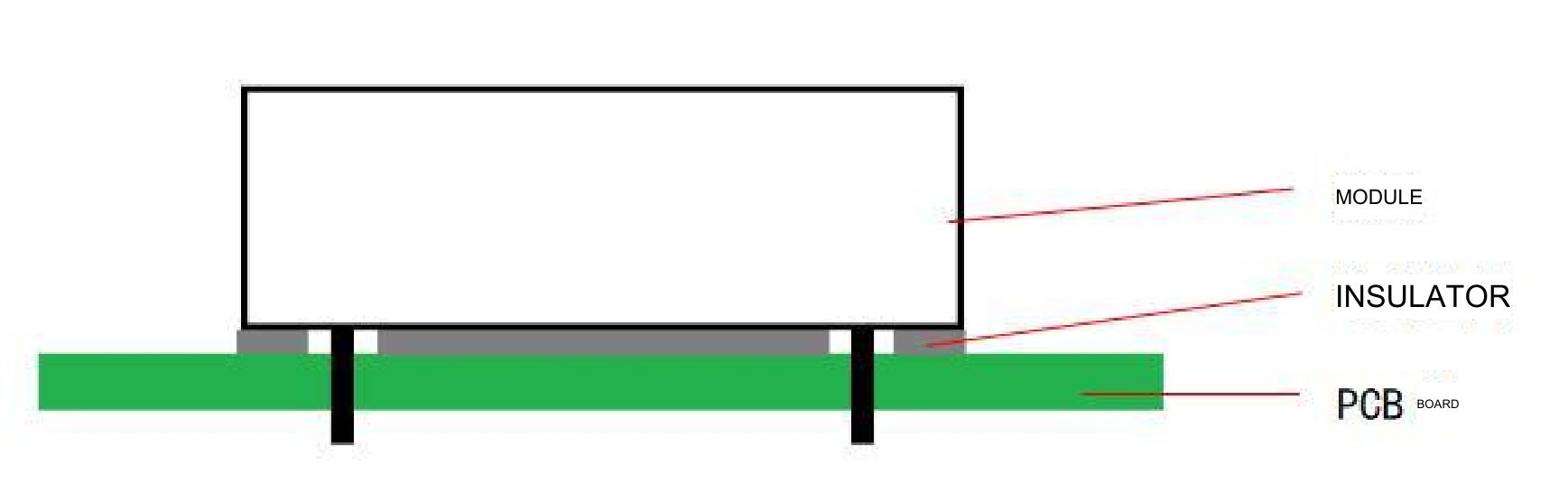

Module dimensions are shown below, for dimensions without an explicit tolerance, for dimensions specified in X.X format, the dimensional tolerance is ±0.5mm;
dimensions specified in X.XX format, the dimensional tolerance is ±0.25mm.
Outline & Mechanical Dimensions
