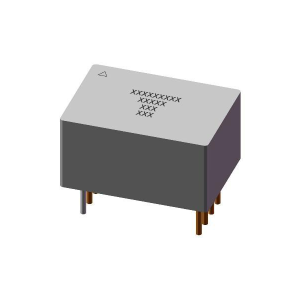

Power modules - QDA
The QDA power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 2W. Operating temperature (Tc): -55°C to 125°C. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- DC/DC isolated conversion
- Hermetically sealed steel case
- Maximum output power: 2W
- Operating temperature (Tc): -55°C to 125°C
- Storage temperature: -55°C to 125°C
Product Selection
| Model | Input voltage (V) | Output voltage (V) | Output current (A) | Efficiency (%) Typical | Capacitive load (µF) max. | Ripple (mV) Typical |
|---|---|---|---|---|---|---|
| QDA2-5S05SG | 4.5 to 5.5 | 5 | 0.40 | 72 | 470 | 30 |
| QDA2-5S15SG | 4.5 to 5.5 | 15 | 0.134 | 74 | 220 | 40 |
| QDA2-28S05SG | 16 to 40 | 5 | 0.40 | 74 | 470 | 30 |
| QDA2-28S12SG | 16 to 40 | 12 | 0.17 | 76 | 220 | 70 |
| QDA2-28S15SG | 16 to 40 | 15 | 0.133 | 76 | 220 | 70 |

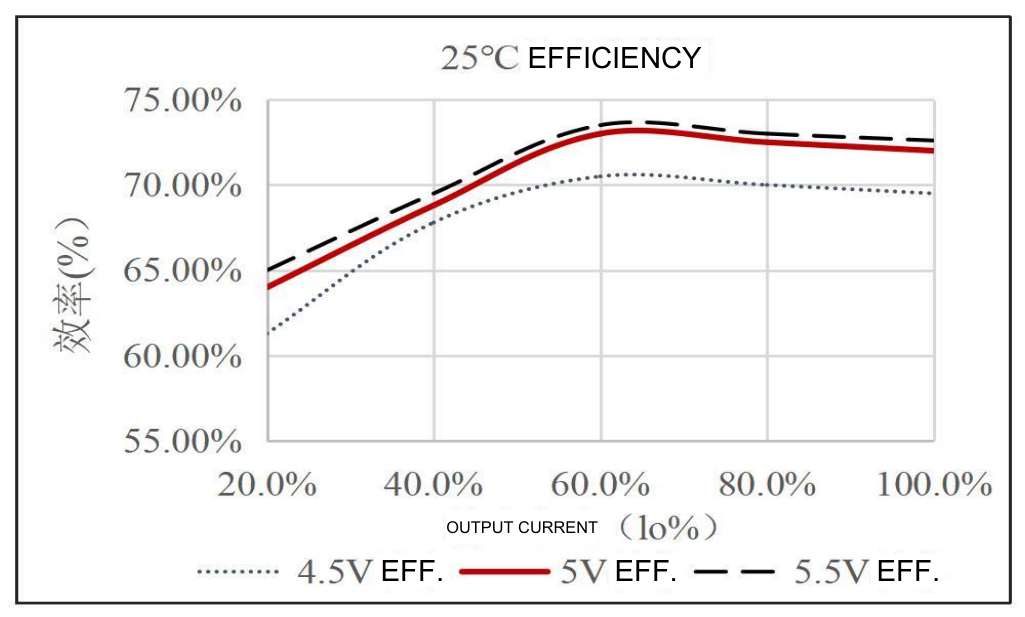

Technical Data — QDA
| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 4.5 | 5 | 5.5 | V | 4.5V to 5.5V input-voltage series, see the product selection table |
| Input voltage range | Room, High, Low | 16 | 28 | 40 | V | 16V to 40V input-voltage series, see the product selection table |
| Input surge voltage | Room | — | — | 50 | V | 16V to 40V input-voltage series, Vt=1s, full load |
| Input surge voltage | Room | — | — | 6 | V | 4.5V to 5.5V input-voltage series, Vt=1s, full load |
| Line regulation | Room, High, Low | -2 | — | +2 | %VO | full input-voltage range, full load |
| Load regulation | Room, High, Low | -2 | — | +2 | %VO | full load range |
| Turn-on delay a | Room | — | — | 30 | ms | time from power-on until output voltage reaches 10% time |

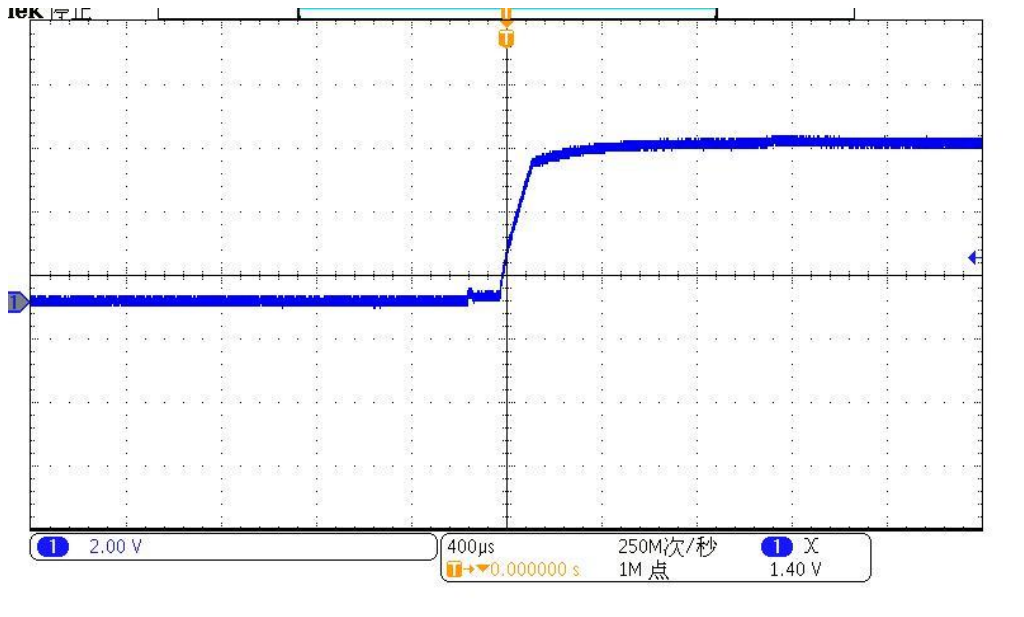

| Output voltage rise time a | Room | — | — | 20 | ms | output voltage from 10% rises to 90% time |
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input, output, between each pair of terminals and case |
| Switching frequency | Room | — | 500 | — | kHz | |
| Weight | — | 7 | 10 | 13 | g |

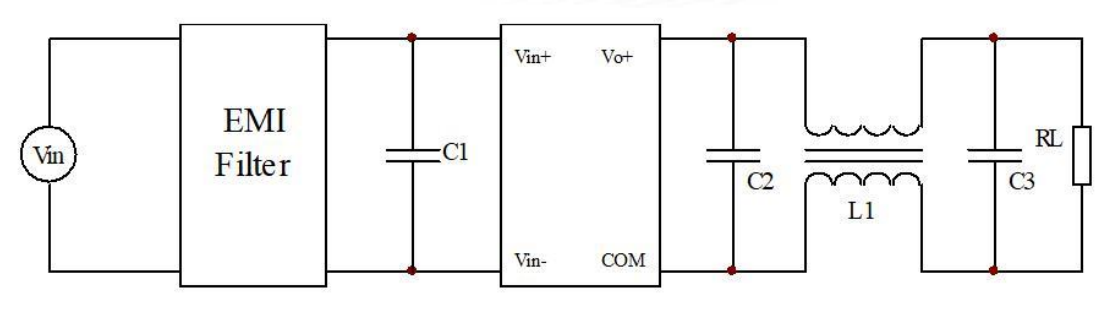

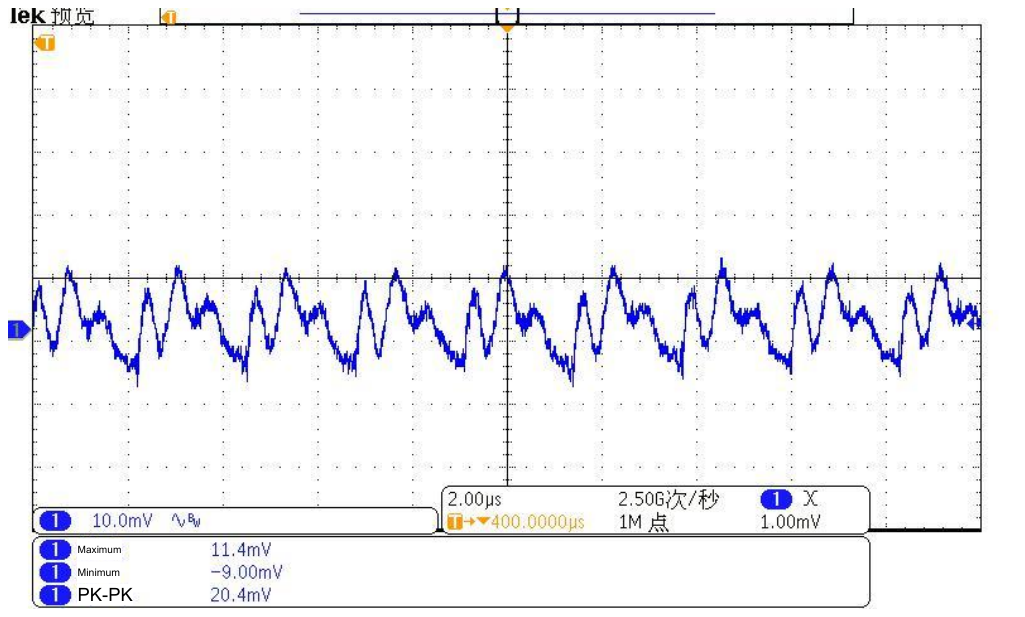

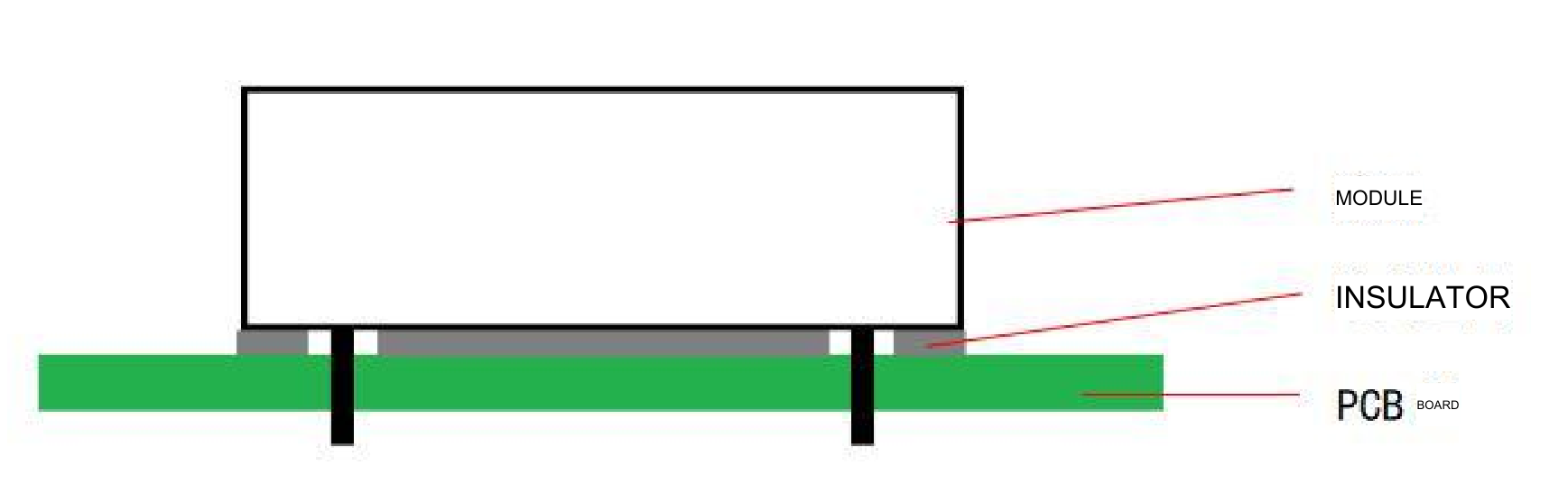

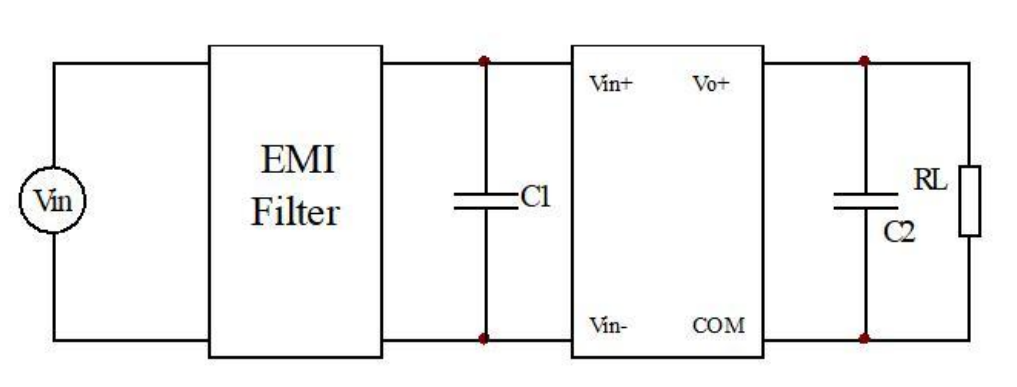

Note: 1, for other package types or temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method.
a: typical model QDA2-5S05SG parameter values, values may differ for other models, contact technical support for details;

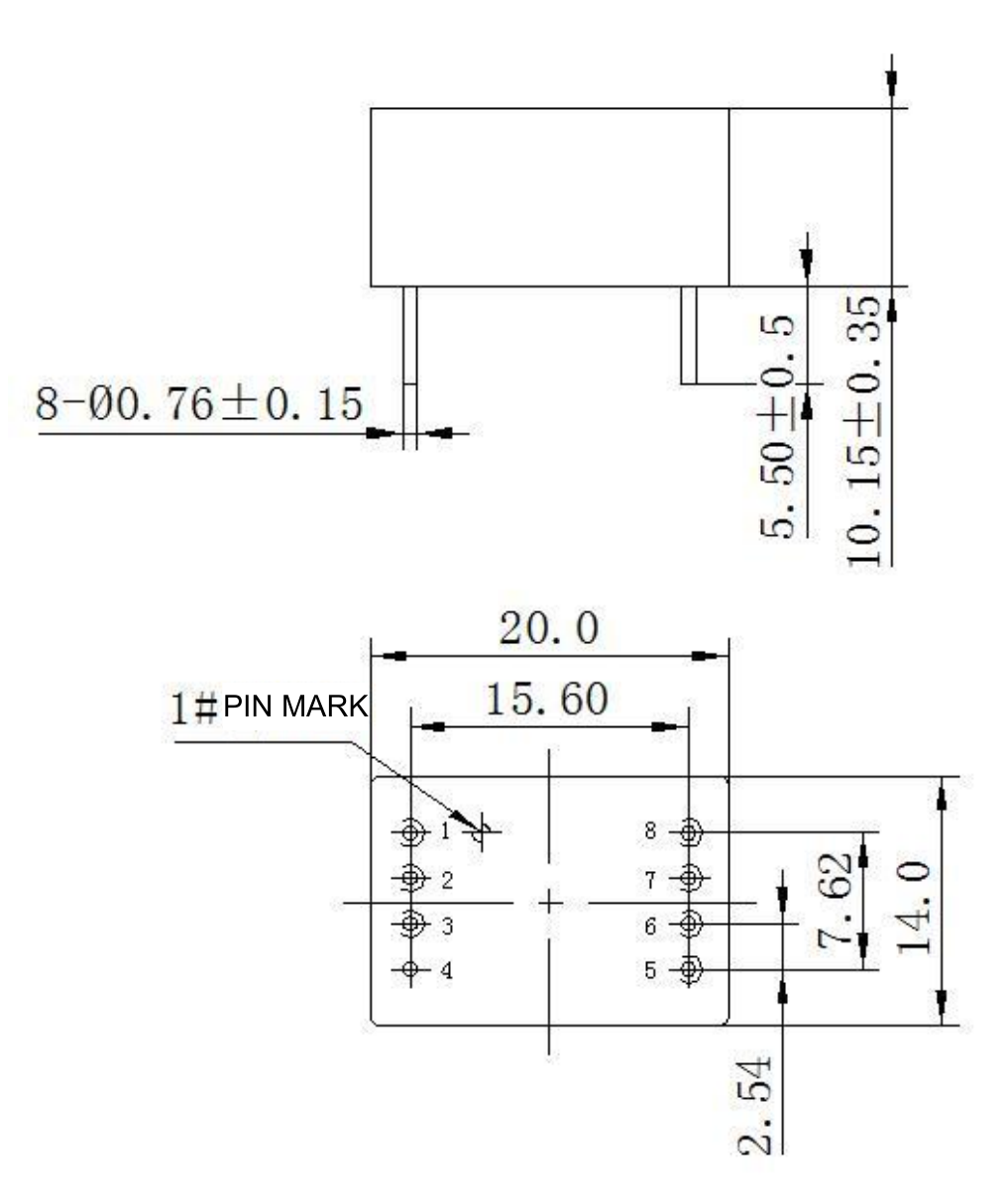

Outline & Mechanical Dimensions
