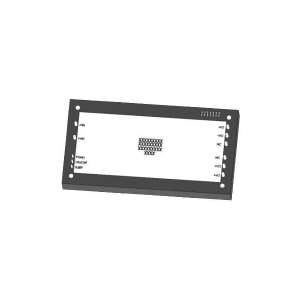

Power modules - QSF-270/540

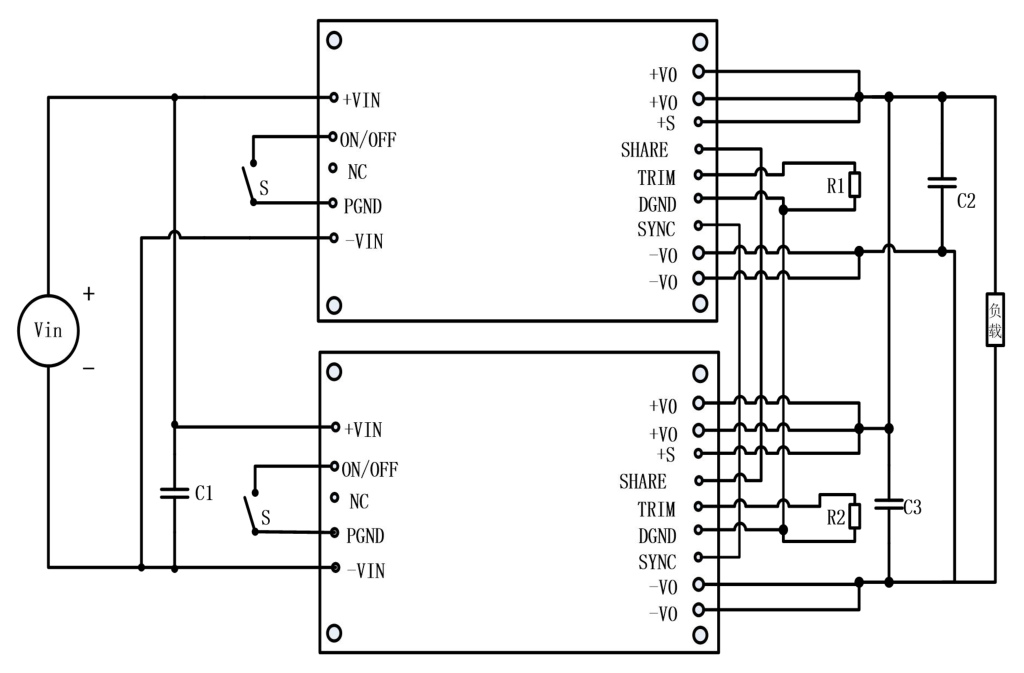

The QSF-270 / 540 power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 2000W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- DC/DC isolated conversion
- Maximum output power: 2000W
- Input undervoltage protection
- Output overvoltage, overcurrent, short circuit, Overtemperature protection
- Operating temperature (Tc): -55°C to 105°C
- Storage temperature: -55°C to 125°C
Product Selection
| Model | Input voltage (V) | Output voltage (V) | Output current (A) | Efficiency (%) half load / full load | Capacitive load (µF) max. | Ripple (mV) Typical |
|---|---|---|---|---|---|---|
| QSF1500D-270S12NNM | 180 to 425 | 12 | 125 | 94.5/94 | 10000 | 240 |
| QSF2000D-270S28NNM | 180 to 425 | 28 | 71.4 | 95/95 | 10000 | 240 |
| QSF2000D-270S48NNM* | 180 to 425 | 48 | 41.7 | 95/95 | 10000 | 300 |
| QSF1500D-540S12NNM | 350 to 800 | 12 | 125 | 94/93 | 10000 | 240 |
| QSF2000D-540S28NNM | 350 to 800 | 28 | 71.4 | 95/95 | 10000 | 240 |
| QSF2000D-540S48NNM* | 350 to 800 | 48 | 41.7 | 95/95 | 10000 | 300 |
Technical Data — QSF-270 / 540

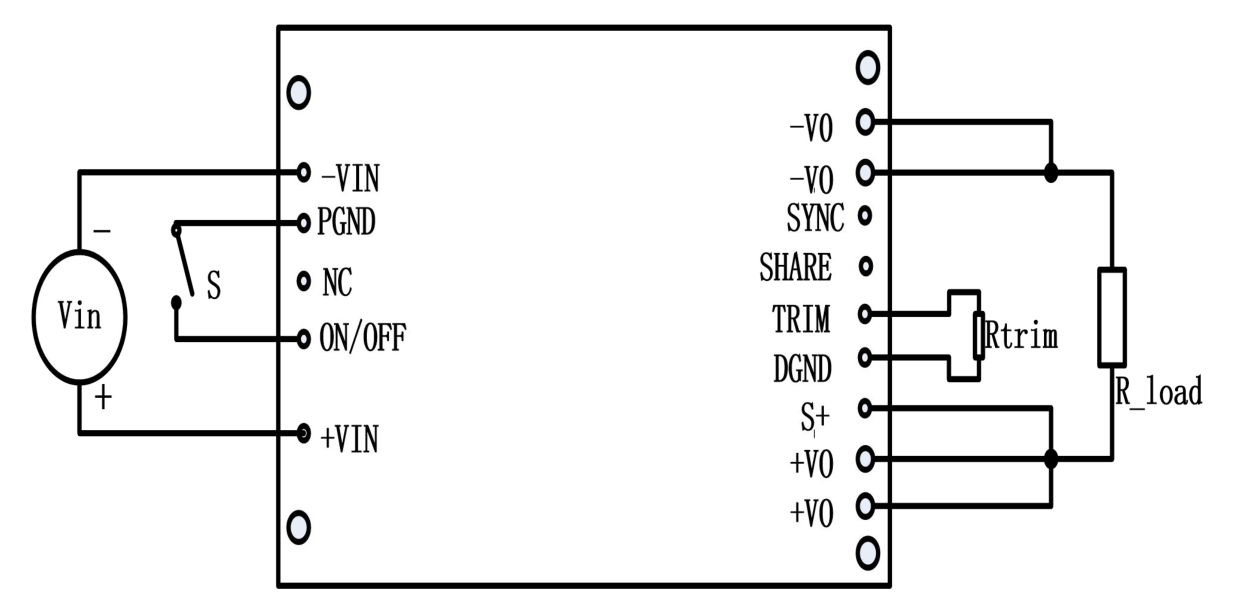

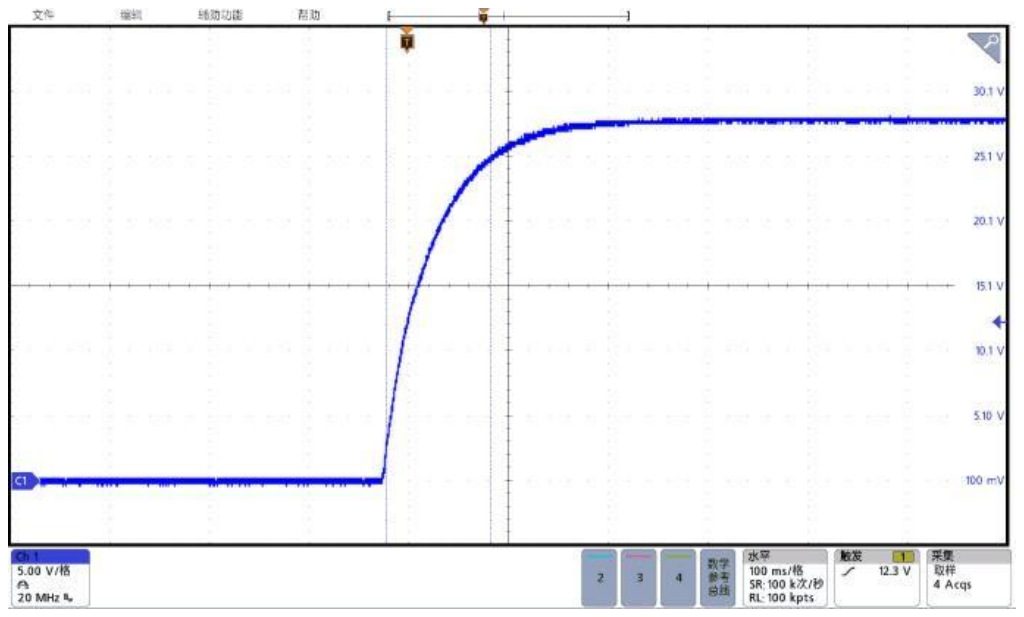

| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 180 | 270 | 425 | V | QSF-270 series, 180V to 200V due to the duty-cycle limit, output voltage varies linearly with input voltage, normal operating range: 200V to 425V |
| Input voltage range | Room, High, Low | 350 | 540 | 800 | V | QSF-540 series, 350V to 400V due to the duty-cycle limit, output voltage varies linearly with input voltage, normal operating range: 400V to 800V |
| Output voltage adjustment range | Room | 80 | — | 110 | %VO | rated input voltage, IO≤ maximum value and PO≤VO×IOmax; |
| Line regulation | Room, High, Low | -1 | — | +1 | %VO | QSF-270 series: input 200V to 425V, full load QSF-540 series: input 400V to 800V, full load |
| Load regulation | Room, High, Low | -2 | — | +2 | %VO | rated input voltage, full load range |
| Turn-on delay a | Room | — | 150 | — | ms | time from power-on until output voltage reaches 10% time |
| Output voltage rise time a | Room | — | 110 | — | ms | output voltage from 10% rises to 90% time |
| Enable turn-on delay a | Room | — | 140 | — | ms | time from enable assertion until output voltage reaches 10% time |
| Enable logic level (negative logic) | Room | 0 | — | 0.7 | V | output enabled when grounded or low, see the application guide for control methods |
| Enable logic level (negative logic) | Room | 3.5 | — | 12 | V | no output when high or open, see the application guide for control methods |
| Input undervoltage protection | Room | 155 | — | 175 | V | QSF-270 series, half load |
| Input undervoltage protection | Room | 330 | — | 345 | V | QSF-540 series, half load |
| Output overcurrent protection | Room | 105 | — | — | %IO | constant-current limiting followed by hiccup mode, automatic recovery |
| Output short-circuit protection | Room | — | — | — | — | hiccup mode, automatic recovery |
| Output overvoltage protection | Room | 110 | — | 140 | %VO | hiccup mode, automatic recovery |
| Switching frequency | Room | — | 110 | — | kHz | |
| Isolation withstand voltage | Room | - | — | no breakdown, no flashover; input to output, 3000Vdc/60s/<3.5mA | ||
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input, output, between each pair of terminals and case |
| Weight | / | — | 340 | — | g |

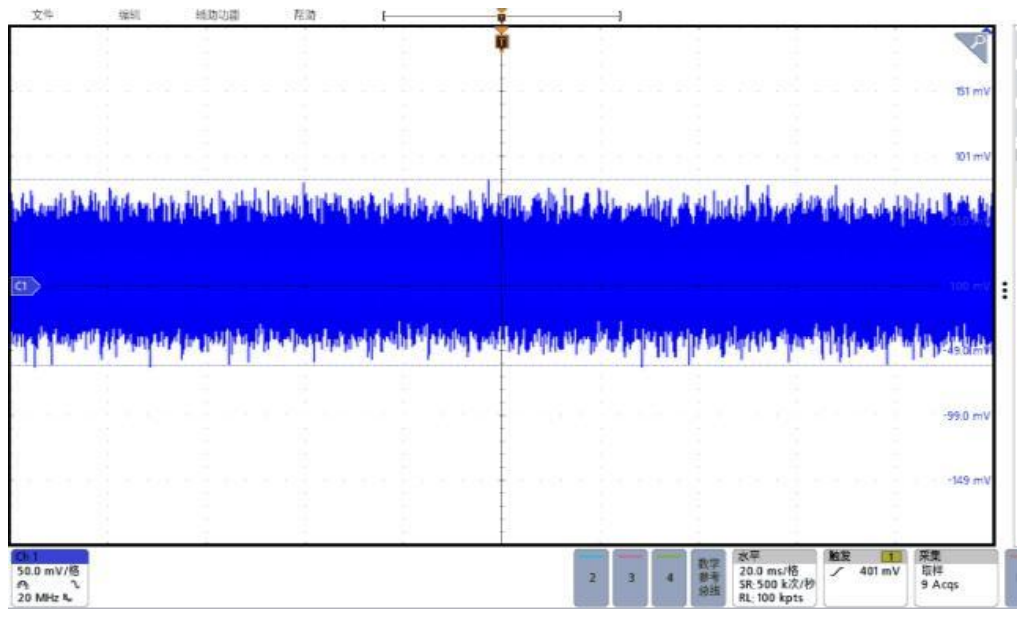

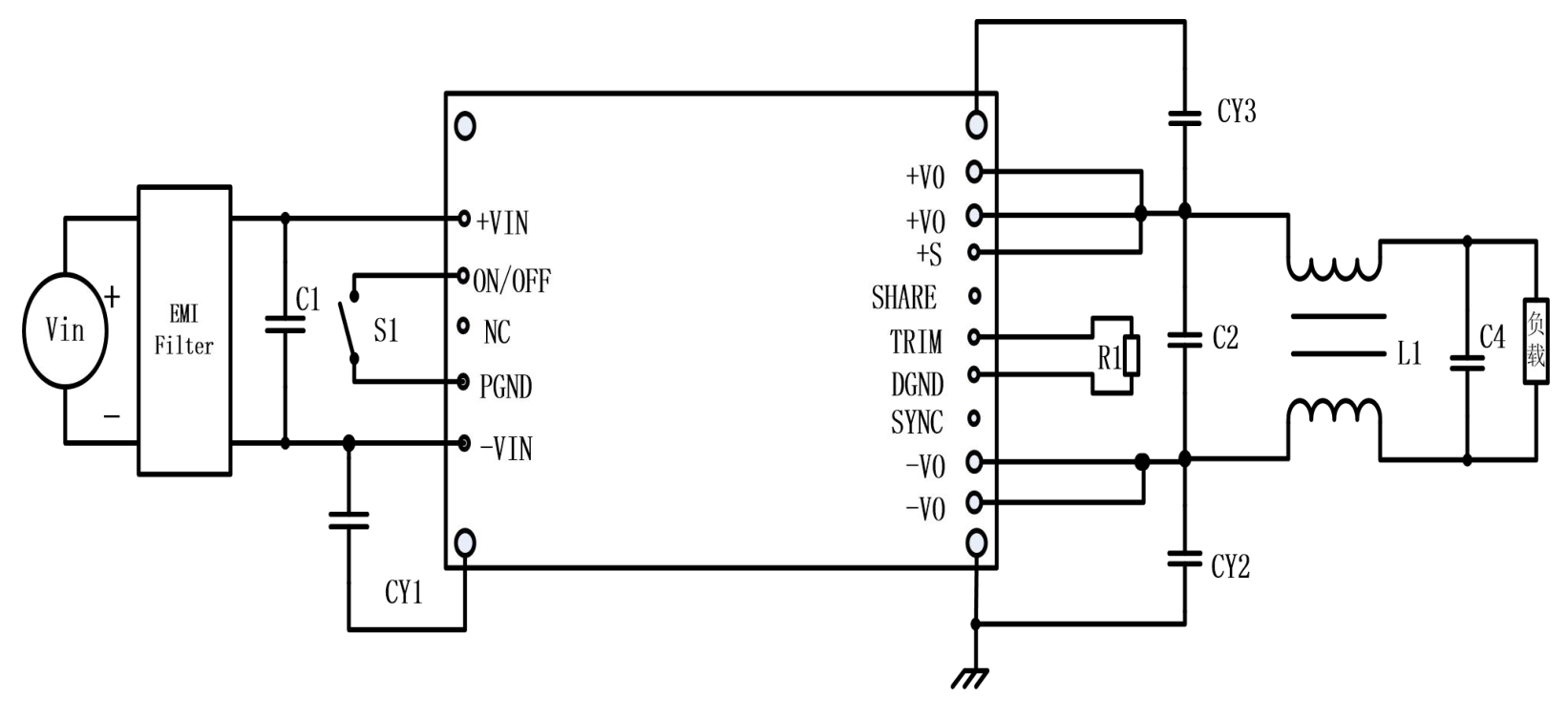

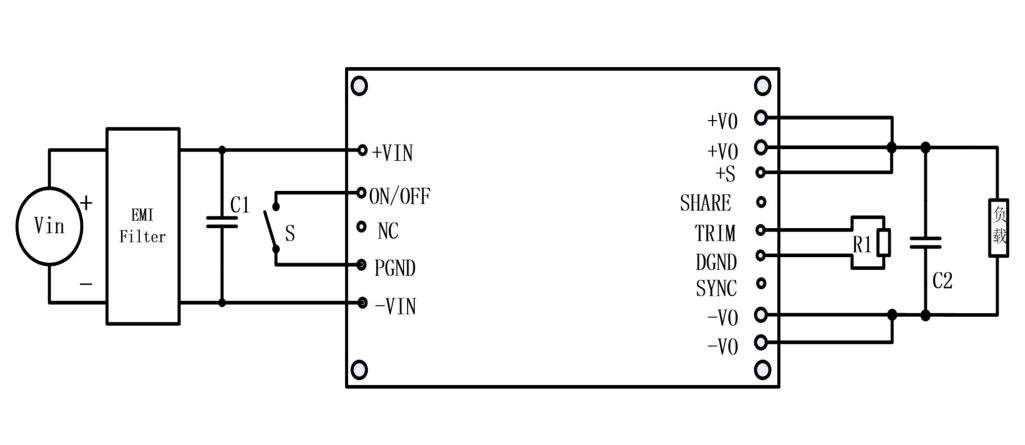

Note: 1, for other package types or temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method; 4, "*" product under development, contact technical support for details.
a: typical model QSF2000D-270S28NNM parameter values, values may differ for other models, contact technical support for details.

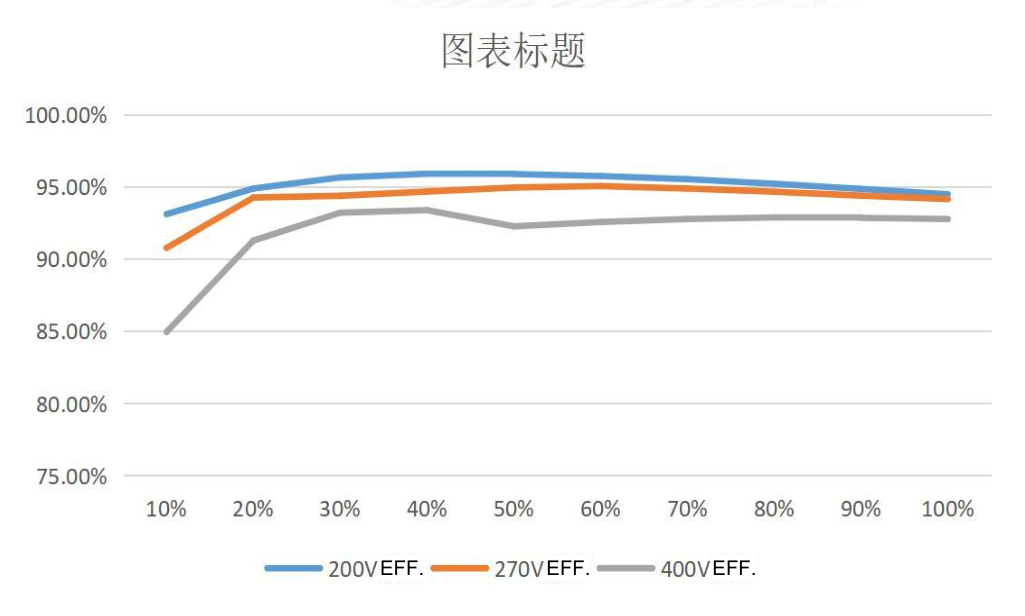

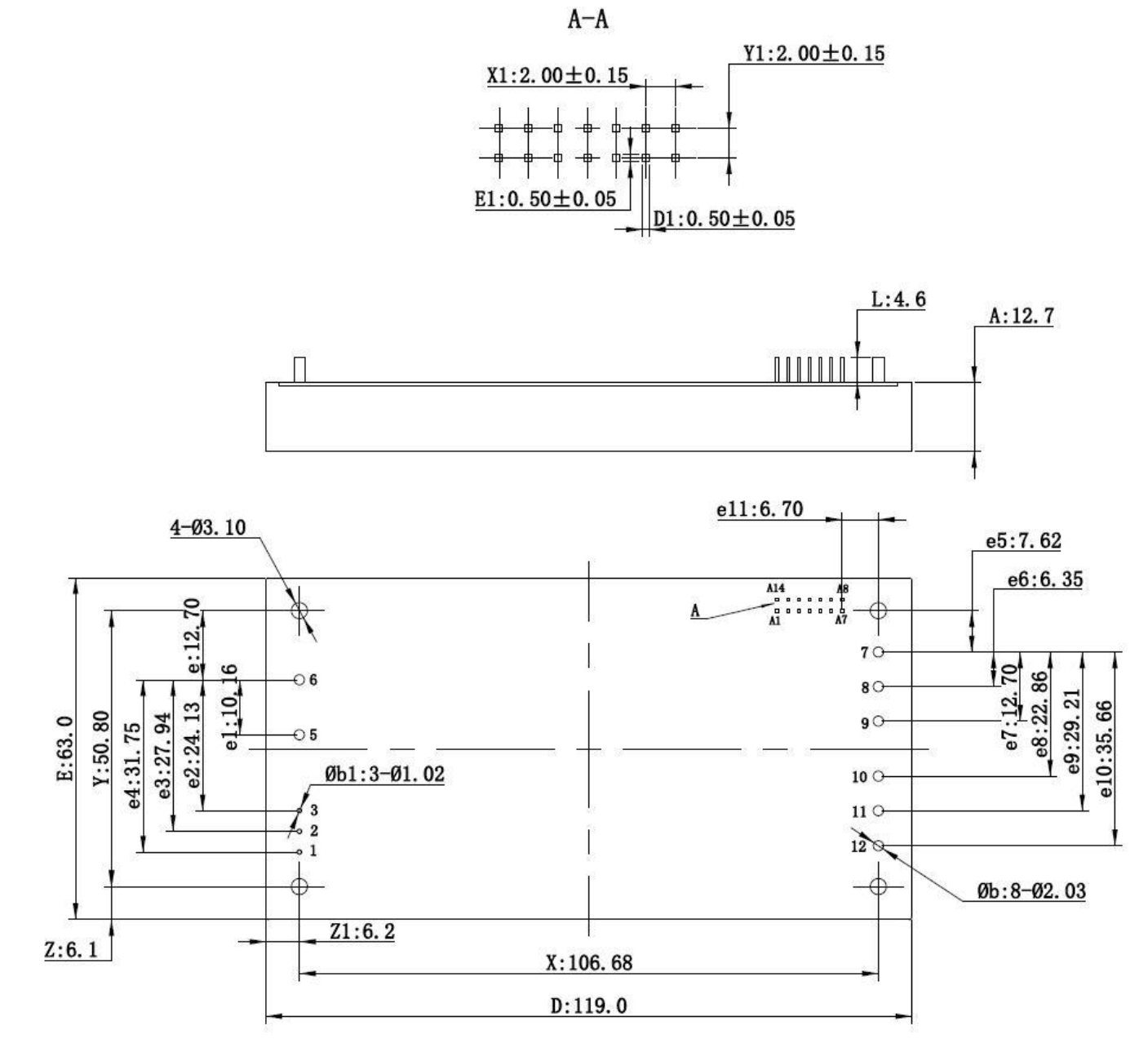

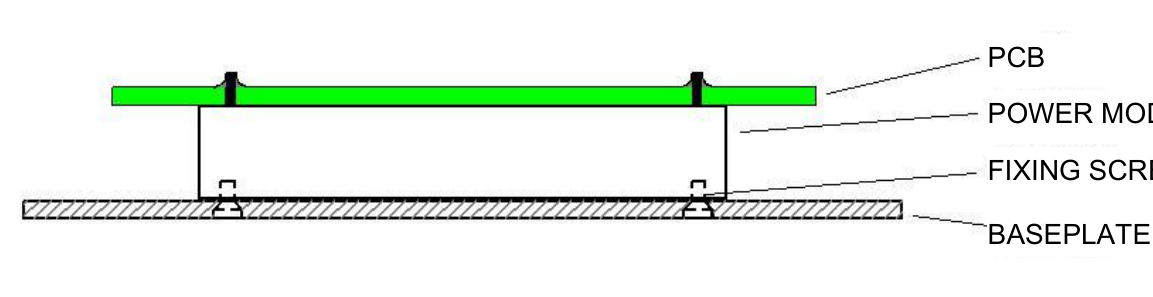

Outline & Mechanical Dimensions
