Radio Frequency Relay
$6250
Frequency DC~50GHz,
2.4 connector,
excitation voltage level 12V,
self-off,
with TTL drive,
with solder pin,
horizontal Single pole double throw (SPDT) self-locking RF relays.
- Description

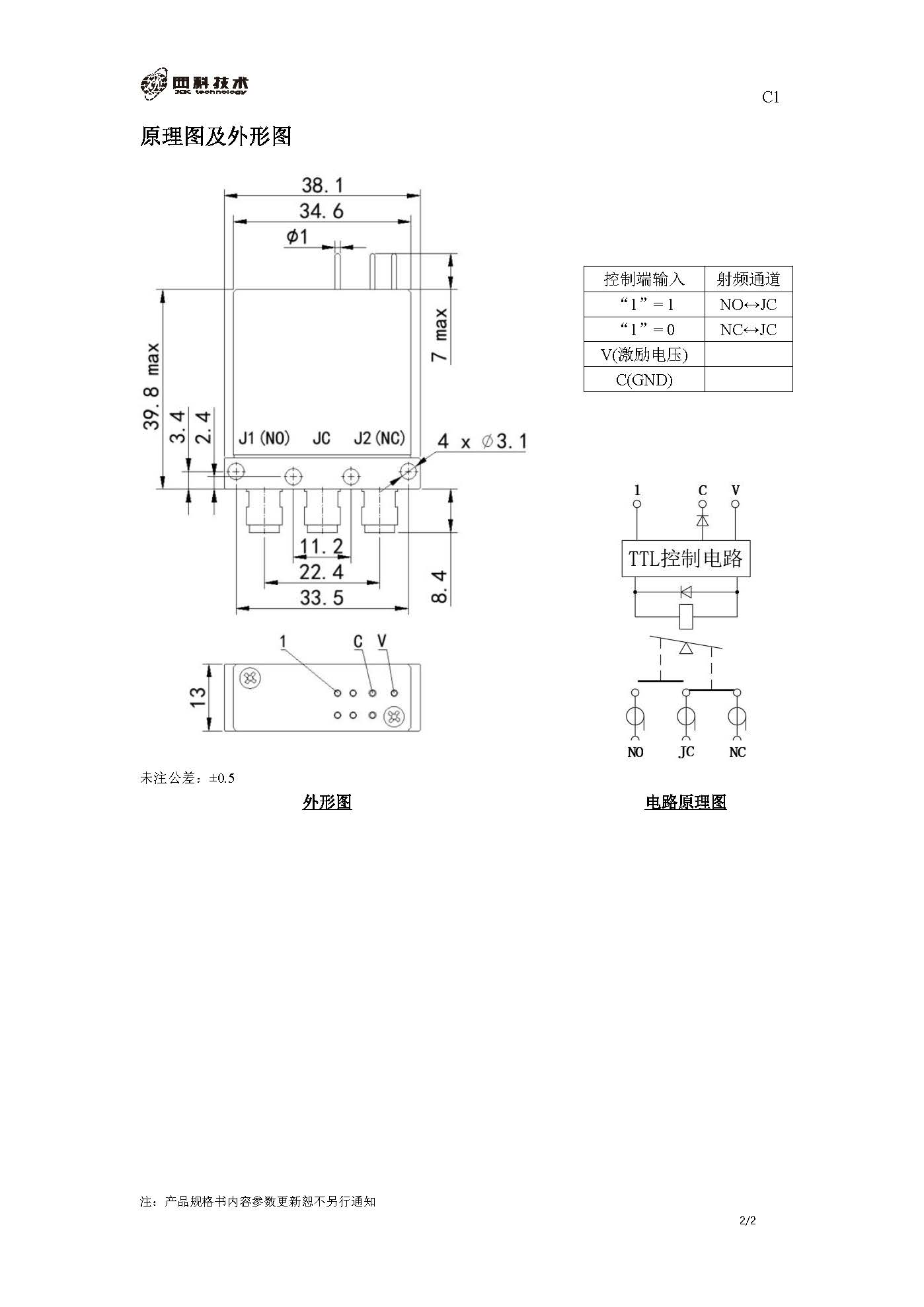

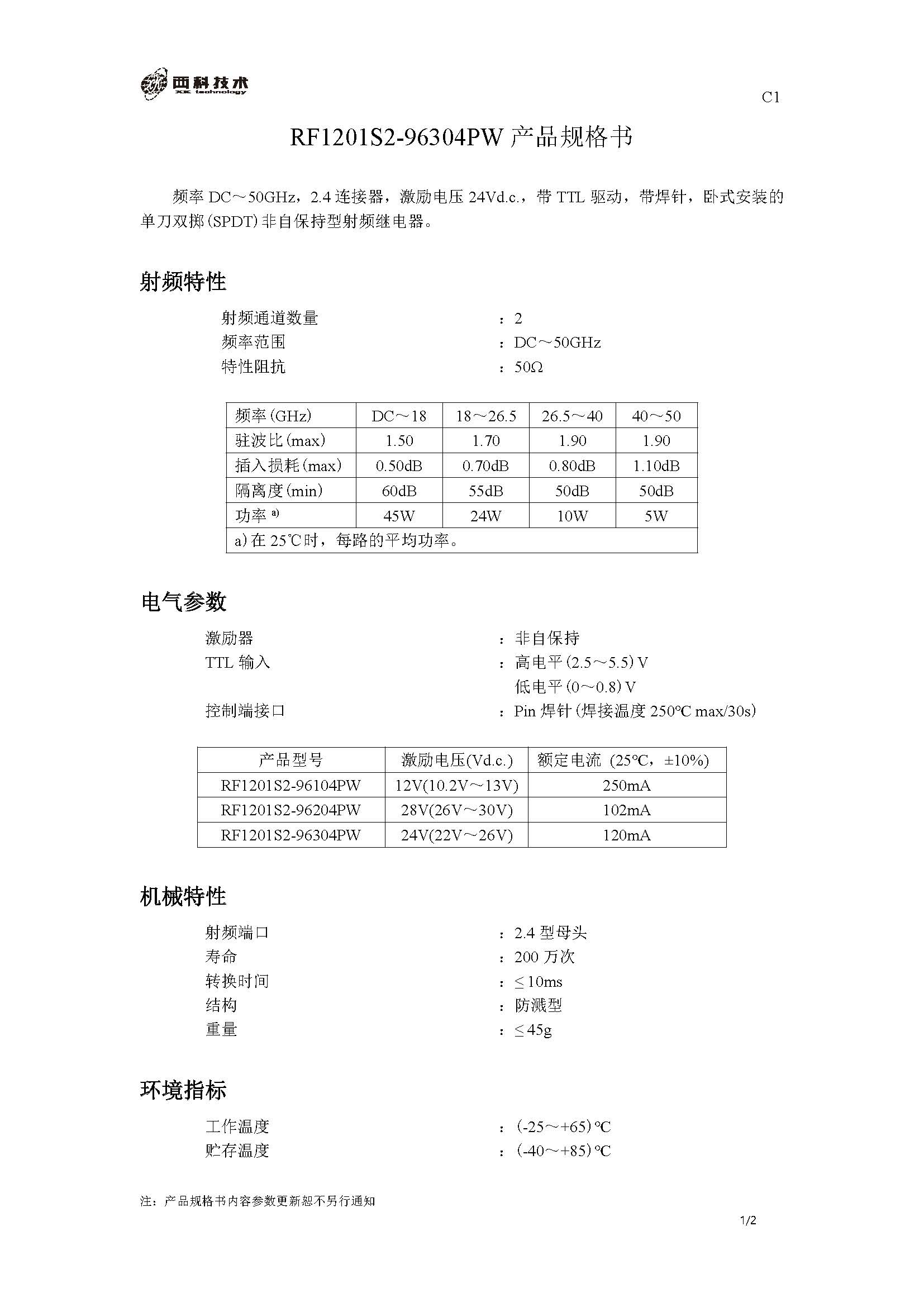

- Outline

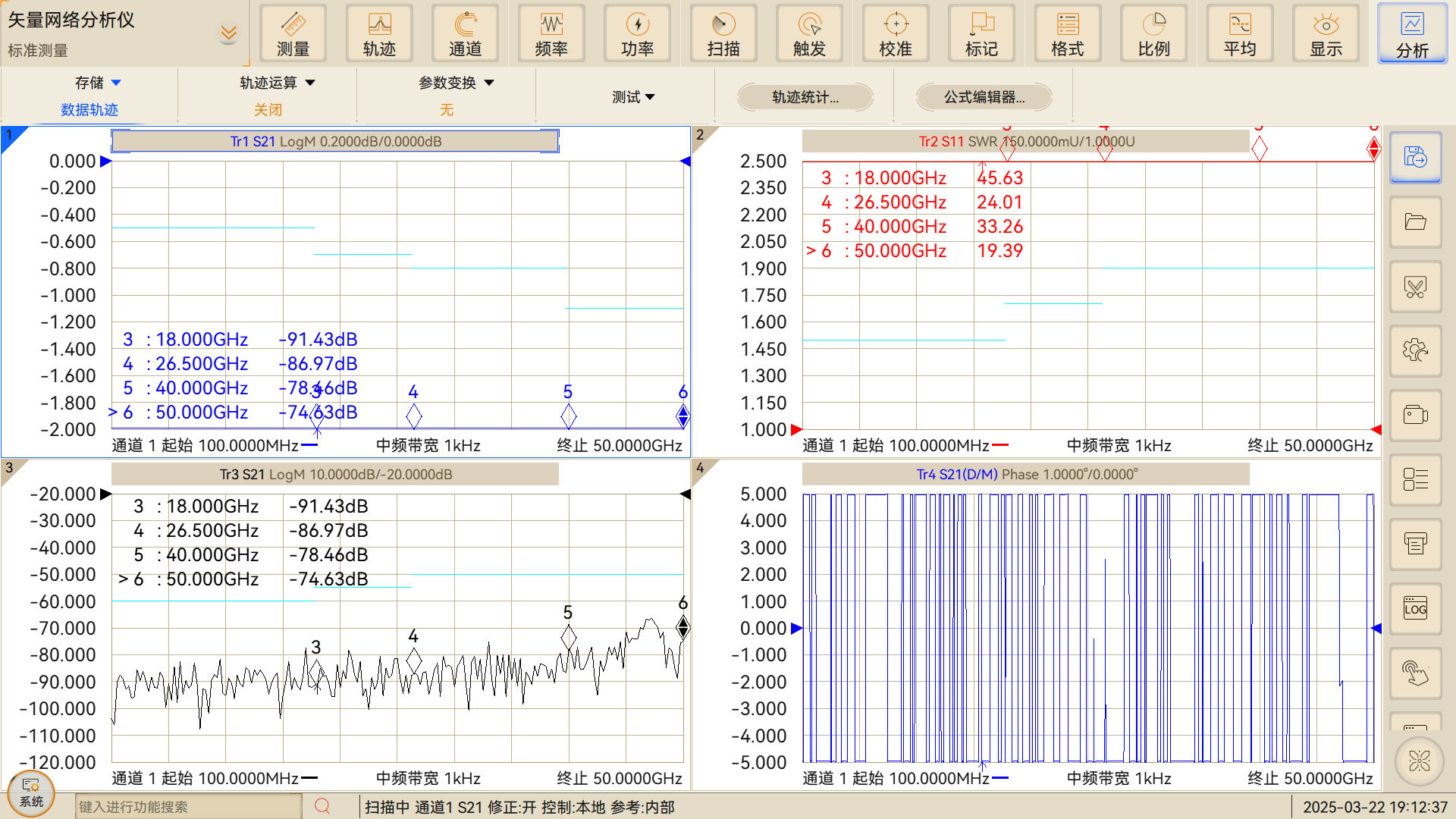

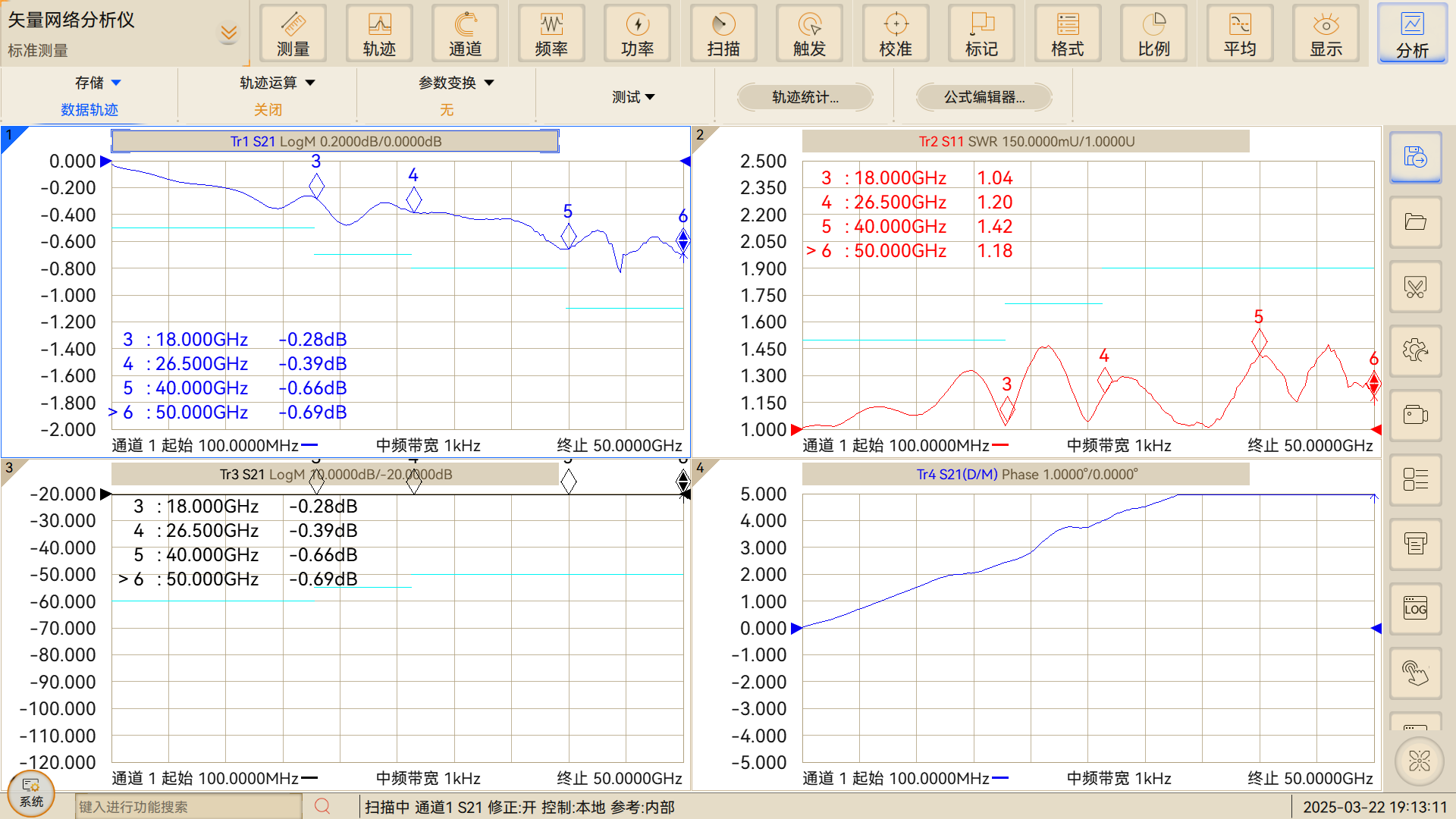

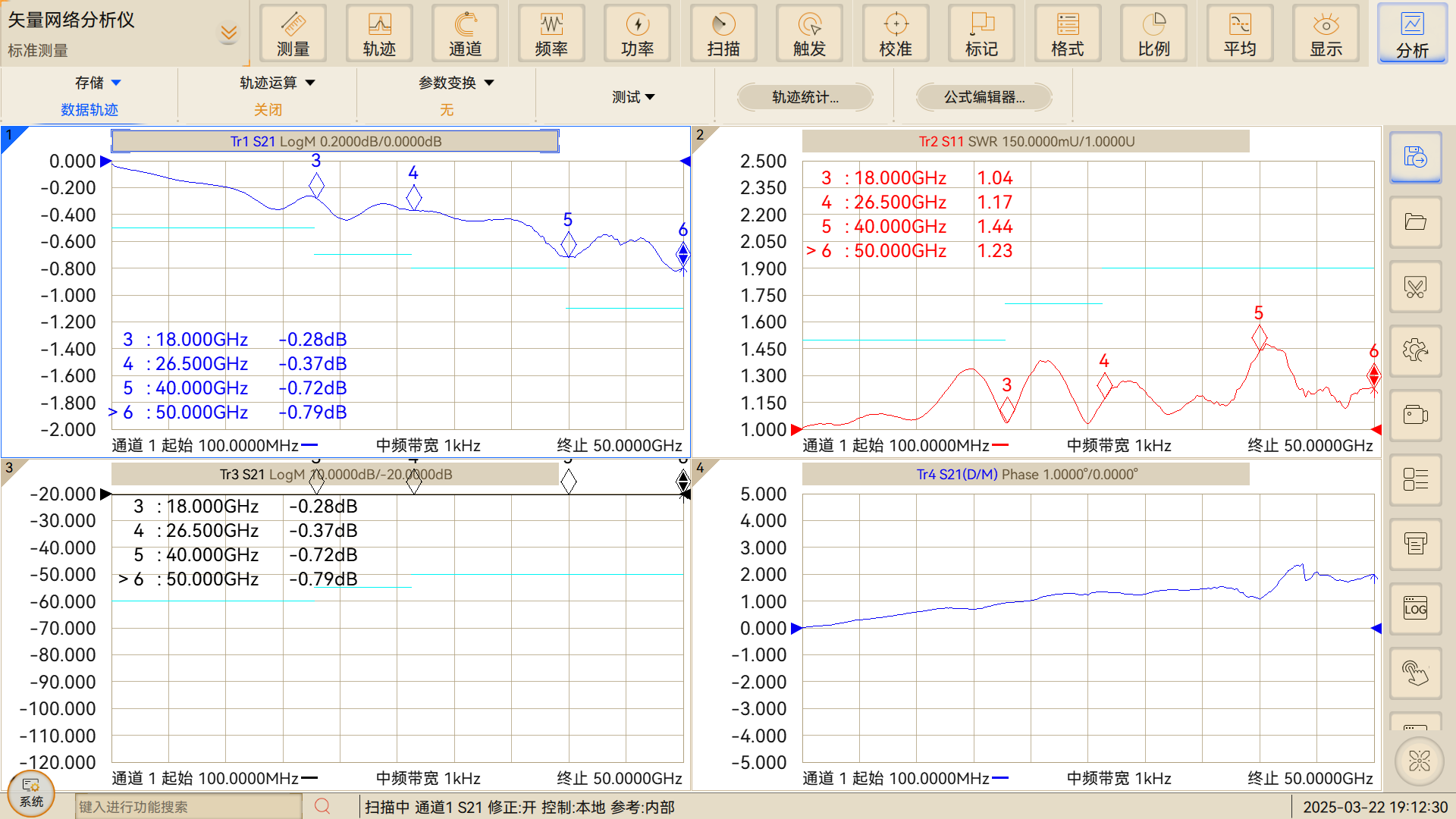

- Plot
- Additional information
- Reviews (0)
Description
Frequency DC~50GHz, 2.4 connector, excitation voltage level 12V, self-off, with TTL drive, with solder pin, horizontal Single pole double throw (SPDT) self-locking RF relays.
|
RF1202S2-96144PW |
|
|
RF relays |
|
Property |
Value |
|
VSWR |
1.90 |
|
Insertion loss |
1.10dB |
|
Isolation |
50dB |
|
Power tolerance |
5W |
|
life span |
2,000,000 times mechanical life |
Features |
|
|
Small size |
|
|
Low fever |
|
|
Low VSWR |
|
|
Low insertion loss |
|
|
High isolation |
|
|
Large power tolerance |
|
|
Long service life |
|
|
Good reproducibility |
|
Applications |
|
|
High-speed cable testing |
|
|
RF matrix switches |
|
|
Radar antenna switching |
|
Additional information
| Weight | 100 kg |
|---|---|
| Dimensions | 14.7 × 11.9 × 6.1 cm |
| 驻波比 | 1.90(50GHz) |
| 插入损耗 | 1.10dB(50GHz) |
| 隔离度 | 50dB(50GHz) |
| 功率 | 5W(50GHz) |
| 寿命 | 2000000次机械寿命 |
