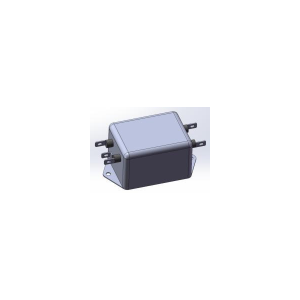

Single-Phase AC Filters

0 out of 5

The Single-Phase AC Filters power-line filter family is described by the configuration-specific ratings in the following tables. Suppresses differential-mode and common-mode noise on power lines. Operating temperature (Tc): -55°C to 105°C. Storage temperature: -55°C to 125°C. Refer to the selection table, pin assignments and application guidance for the selected configuration.

mechanical size code

Operating current (A)

Ratings apply to the selected configuration. See the datasheet for test conditions and model designation notes.

Request a Quote

Categories: Electronics, Power Modules

Add to Wishlist

Description
Technical Data
Datasheet
OUTLINE
Reviews (0)

Single-Phase AC Filters

Reduces noise-source signal amplitude
Suppresses differential-mode and common-mode noise on power lines
Operating temperature (Tc): -55°C to 105°C
Storage temperature: -55°C to 125°C

Product Selection

Model	Mechanical size code	Operating current (A)	Operating voltage (V)	Typical DC resistance (mΩ)	CM insertion loss, typ. (dB) — 500 kHz	CM insertion loss, typ. (dB) — 1 MHz	DM insertion loss, typ. (dB) — 500 kHz	DM insertion loss, typ. (dB) — 1 MHz
JDLC10F-2A-S8-M	10	8	220	210	66	68	62	66
JDLC22C-2A-S6-M	22	6	220	260	12	11	3	10
JDLC23C-2D-S3-M	23	3	220	165	75	88	60	75
JDLC23C-2D-S10-M	23	10	220	120	65	76	22	62
JDLC24C-2C-S20-M	24	20	220	90	76	83	67	69

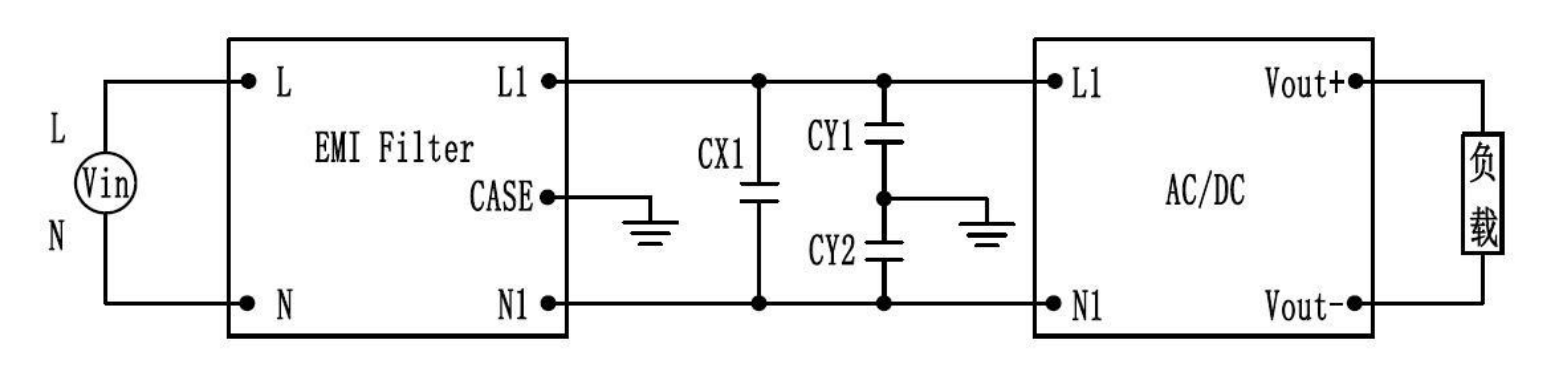

Technical figure: Load — Technical figure · Datasheet page 4

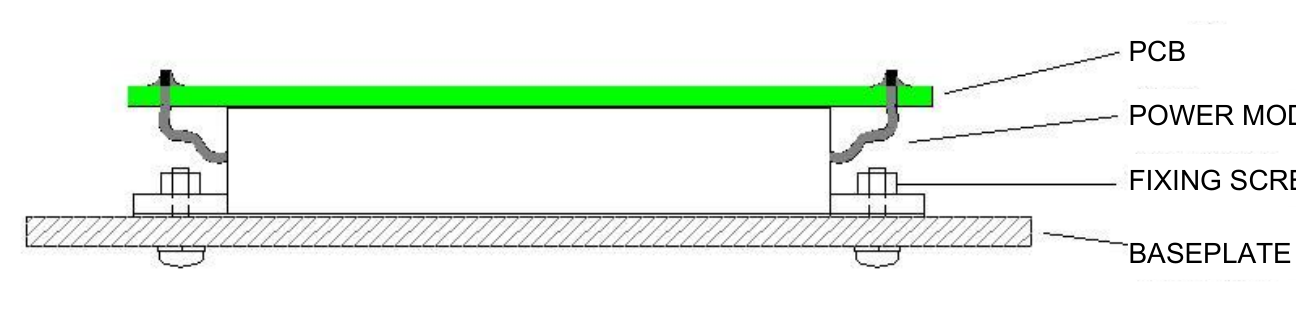

Application Guidelines — Technical figure · Datasheet page 6

Technical Data — Single Phase AC Filters

Model	Mechanical size code	Operating current (A)	Operating voltage (V)	Typical DC resistance (mΩ)	CM insertion loss, typ. (dB)		DM insertion loss, typ. (dB)
Model	mechanical size code	Operating current (A)	Operating voltage (V)	Typical DC resistance (mΩ)	500K	1M	500K	1M
JDLC10F-2A-S8-M	10	8	220	210	66	68	62	66
JDLC22C-2A-S6-M	22	6	220	260	12	11	3	10
JDLC23C-2D-S3-M	23	3	220	165	75	88	60	75
JDLC23C-2D-S10-M	23	10	220	120	65	76	22	62
JDLC24C-2C-S20-M	24	20	220	90	76	83	67	69

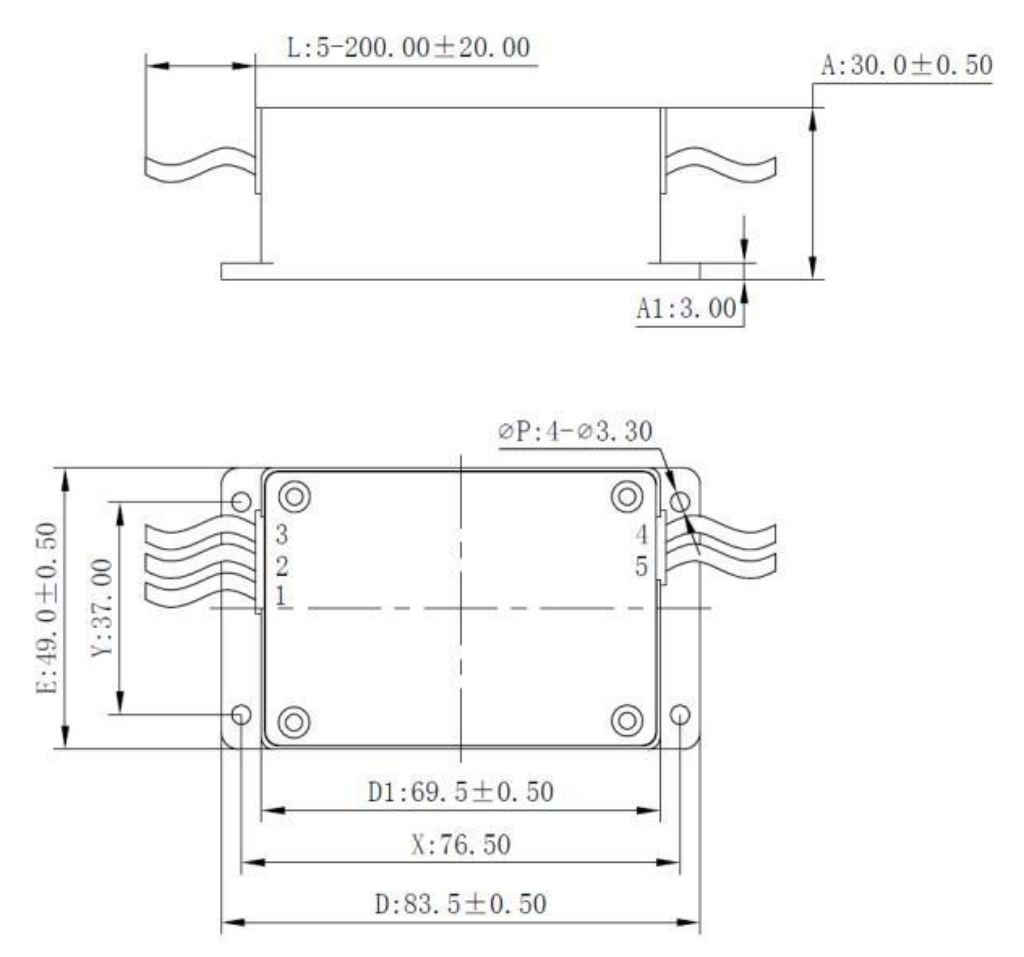

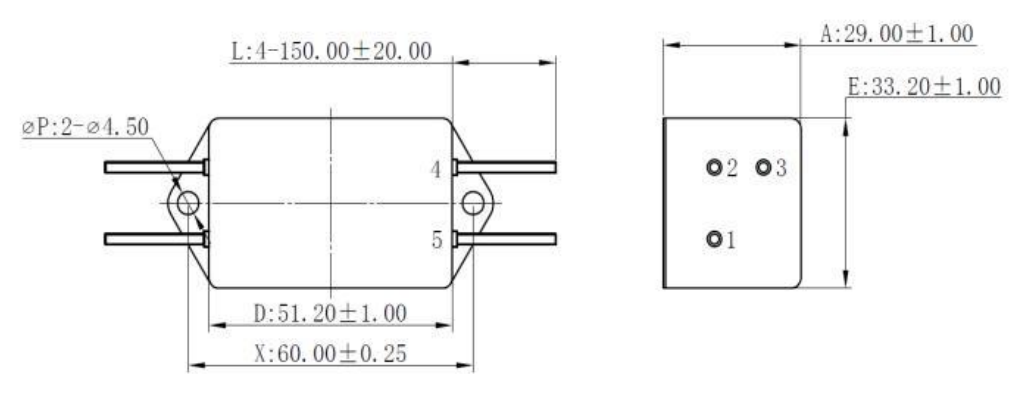

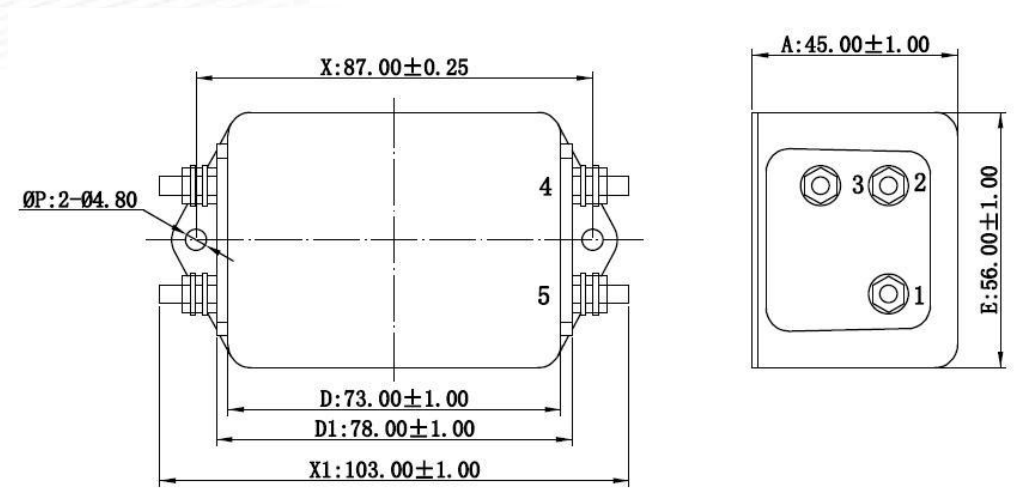

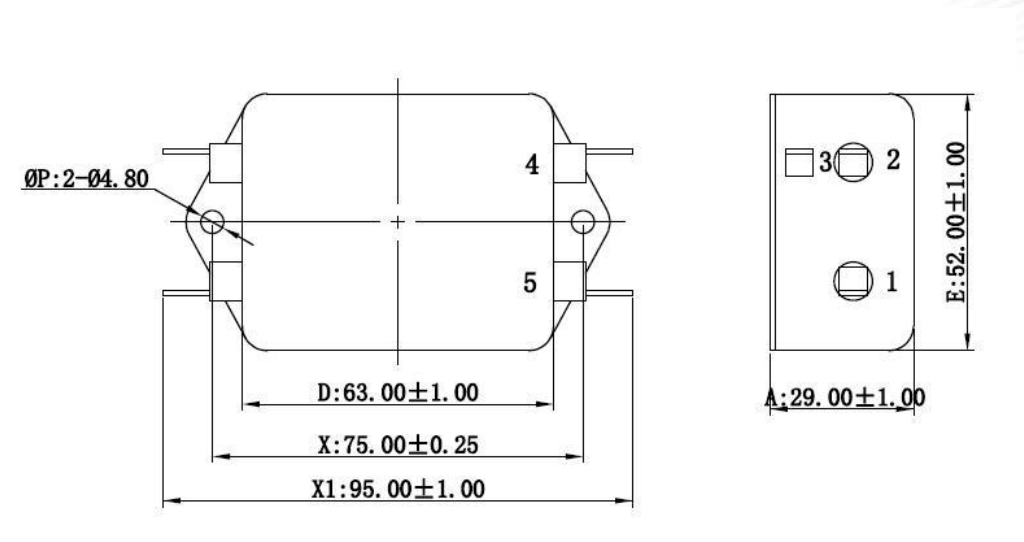

Note: electrical parameters and dimensions are for selection reference only, the detailed product specification governs the final requirements. Module dimensions are shown below, for dimensions without an explicit tolerance, for dimensions specified in X.X format, the dimensional tolerance is ±0.5mm; dimensions specified in X.XX format, the dimensional tolerance is ±0.25mm. dimensions 10 (Top view, Weight 320g) dimensions 22 (Top view, Weight 136g) 1 CX1 X capacitor, EMC tuning component, reserve this component position if space permits, package according to 0.47µF/275Vac select 2 CY1, CY2 Y capacitor, EMC tuning component, reserve this component position if space permits, package according to 4.7nF/250Vac select connect the filter at the AC/DC converter input, suppresses AC/DC converter-generated interference from being conducted out, also suppresses external interference affecting the AC/DC interference with the converter, to meet EMC test requirements. Series name Size code Circuit code - Filter type Termination type - M: M1 grade (-55°C to 105°C) J: military temperature grade (-55°C to 105°C) I: industrial temperature grade (-40°C to 85°C)
