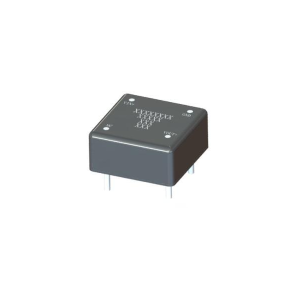

Surge suppressors - QMSR
The QMSR surge suppressor family is described by the configuration-specific ratings in the following tables. Wide input-voltage range, No additional power supply required. Maximum output current: 2A, 3A, 4.5A, 5A, 10A. Input surge-voltage suppression. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- Wide input-voltage range, No additional power supply required
- Maximum output current: 2A, 3A, 4.5A, 5A, 10A
- Input surge-voltage suppression
- Spike/surge performance conforms to GJB 181-86, GJB 181A
Product Selection
| Model | Input voltage (V) | Voltage drop (V) | Output current (A) | Overvoltage surge clamping- voltage range (V) | Undervoltage transient clampi ng-voltage range (V) | Operating temperature (T) C | Case type |
|---|---|---|---|---|---|---|---|
| QMSR-2803AM | 8 to 36 | 0.6 | 3 | 34 to 44 | — | -55 to 105 | A |
| QMSR-2810BM | 8 to 36 | 0.6 | 10 | 34 to 44 | — | -55 to 105 | B |
| QMSR-2805CM | 8 to 36 | 0.6 | 5 | 34 to 44 | — | -55 to 105 | C |
| QMSR-2802SM | 18 to 36 | 0.5 | 2 | ≤40 | ≤23 | -55 to 105 | — |
| QMSR-2805SM | 18 to 36 | 1 | 4.5 | 36 to 40 | 17 to 21 | -55 to 85 | — |
Technical Data — QMSR
| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 8 | 28 | 36 | V | 28 series, see the product selection table |
| Voltage drop | Room, High, Low | — | — | 0.6 | V | see the product selection table |
| Input surge voltage | Room | — | — | 80 | V | Vt=50ms, interval 1 minutes, total 5 operations, full load |
| Surge-clamping voltage | Room | 34 | — | 44 | V | 28 series |
| Output current | Room, High, Low | see the pro duct s electio n table | full input-voltage range | |||
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input/output to case |
| Steady-state operating-voltage range (VIN) | Room, High, Low | 18 | 28 | 36 | V | full load |
| overvoltage surge (in accordance with GJB 181-86) | Room, High, Low | — | — | 80 | V | full load, transient 50ms |
| undervoltage transient | Room, High, Low | 8 | — | — | V | full load, transient 1s |
| Interval between successive surges (in accordance with GJB 181-86, Input voltage 80Vdc/50ms) | Room, High, Low | 1 | — | — | min | full load, Overvoltage surge input |
| Number of overvoltage surges | Room, High, Low | — | — | 5 | operatio ns | full load, Overvoltage surge input |
| Undervoltage transient duration | Room, High, Low | — | — | 1 | s | full load, Undervoltage transient input |
| input - Output voltage difference ΔV | Room, High, Low | see the pro duct s electio n table | full load, outside the surge interval | |||
| Output voltage | Room, High, Low | — | VIN-Δ V | — | V | full load, Input voltage 18V to 36V |
| Output voltage | Room, High, Low | see the pro duct s electio n table | full load, input voltage during an undervoltage transient 8V to 18V | |||
| Output voltage | Room, High, Low | see the pro duct s electio n table | full load, input voltage during an overvoltage transient 36V to 80V | |||
| Output current | Room, High, Low | see the pro duct s electio n table | Input voltage 18V to 36V | |||
| Output power; QMSR-2802SM | Room, High, Low | — | — | 50 | W | Input voltage 80V/50ms |
| Output power; QMSR-2802SM | Room, High, Low | — | — | 36 | W | Input voltage 8V to 18V |
| Output power; QMSR-2805SM | Room, High, Low | — | — | 100 | W | Input voltage 80V/50ms |
| Output power; QMSR-2805SM | Room, High, Low | — | — | 80 | W | Input voltage 8V to 18V |
| Output voltage ripple | Room | — | — | 50 | mV | nominal input, 20MH bandwidth |
| Efficiency | Room | 96 | 98 | % | full load, nominal input | |
| Remote control logic a | Room, High, Low | ground to disa ble, en abled when open | positive logic, Logic reference ground COM | |||
| Start-up delay | Room | — | — | 50 | ms | |
| Isolation voltage | — | — | — | 500 | Vdc | input/output to case |
| Operating temperature (TC) | — | see the pro duct s electio n table | ||||
| Storage temperature | — | -55 | — | 125 | °C |
Note: 1, for other temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements.

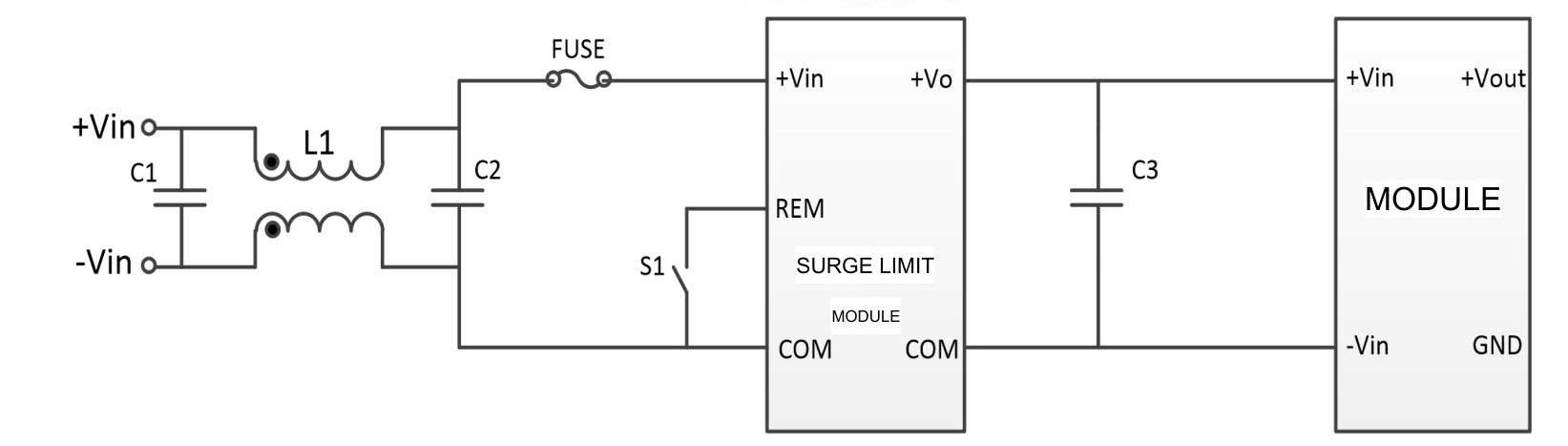

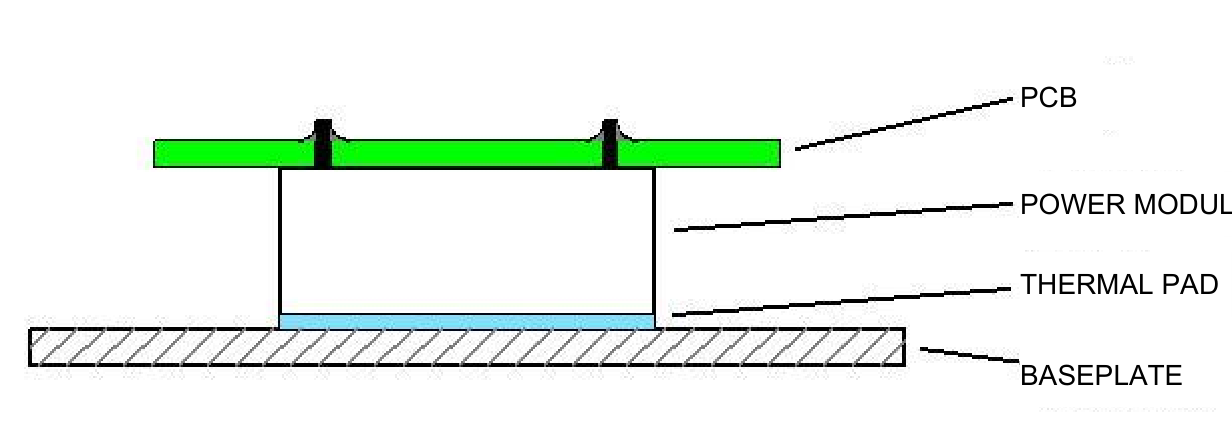

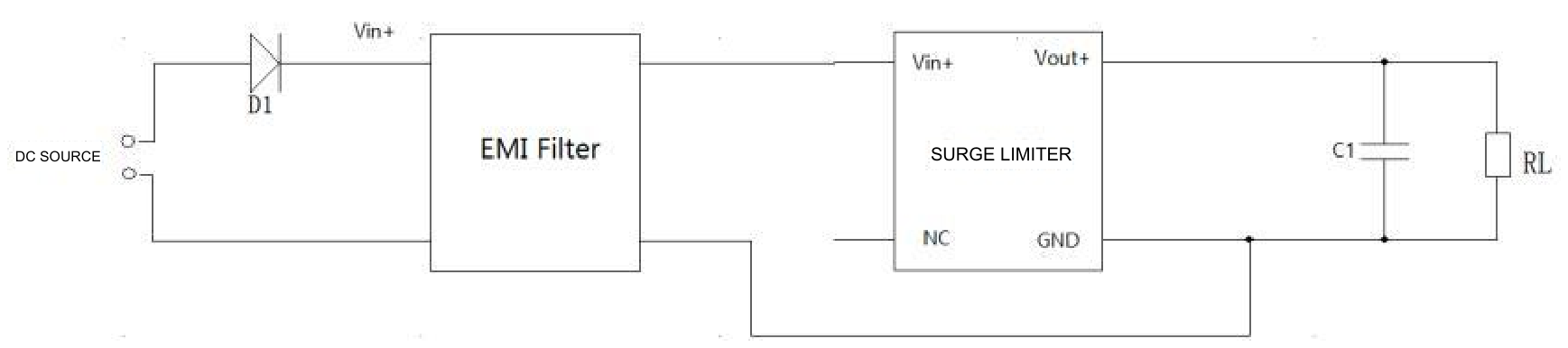

Electrical Characteristics (QMSR-2803AM, QMSR-2810BM, QMSR-2805CM)

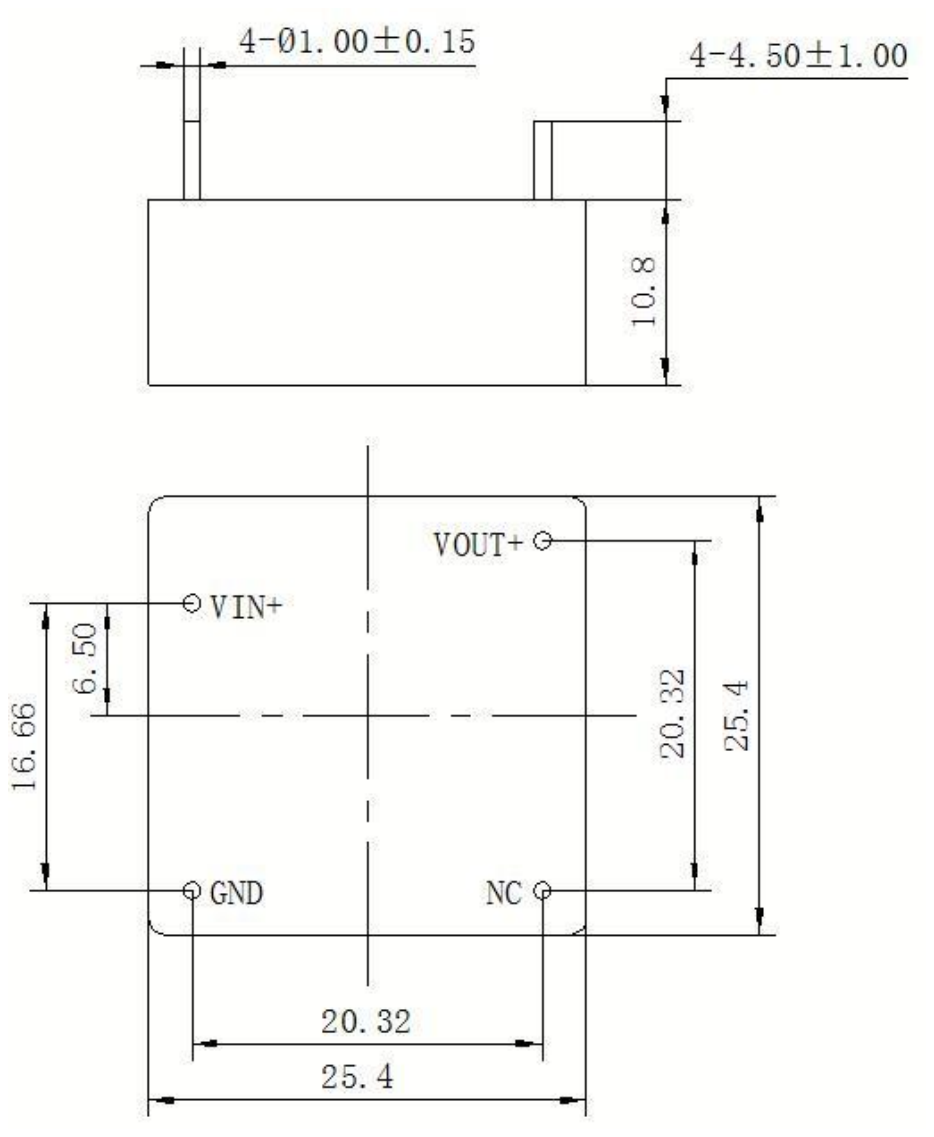

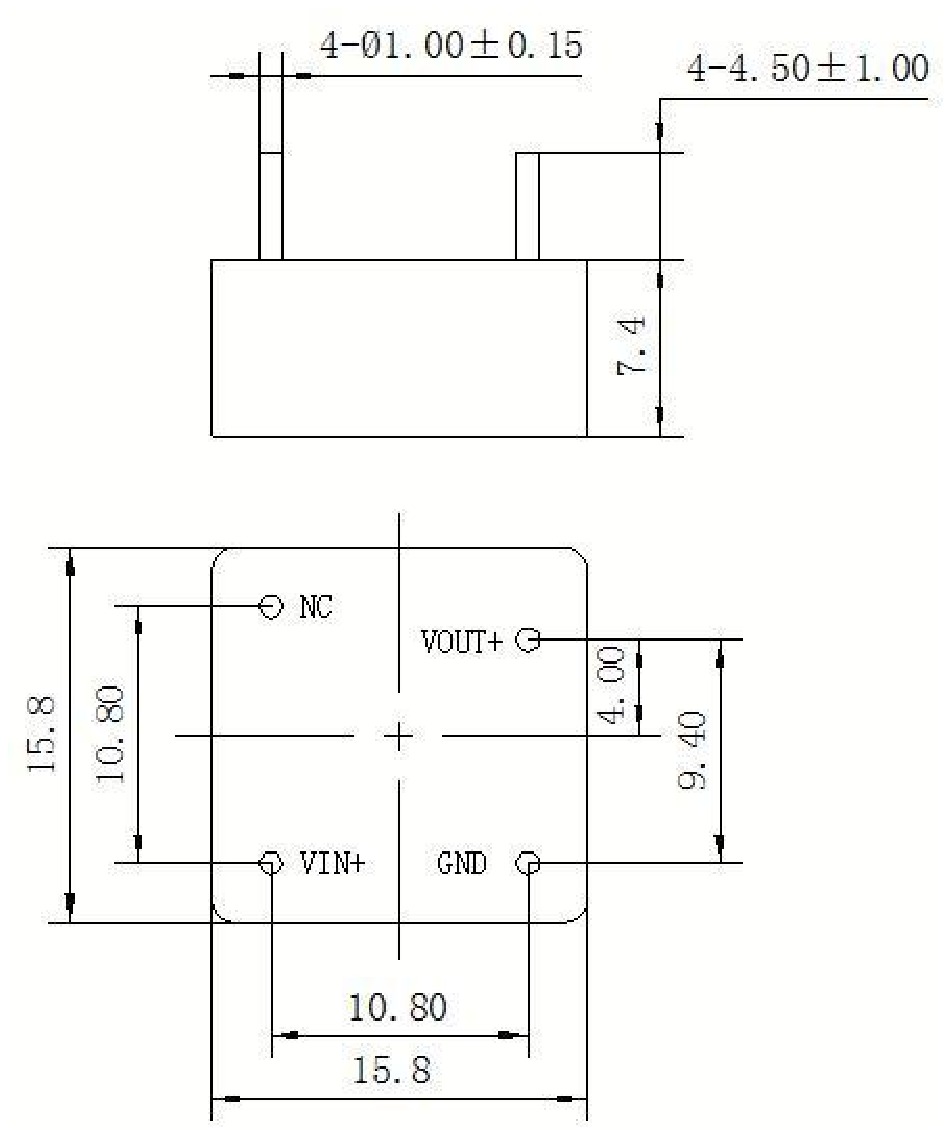

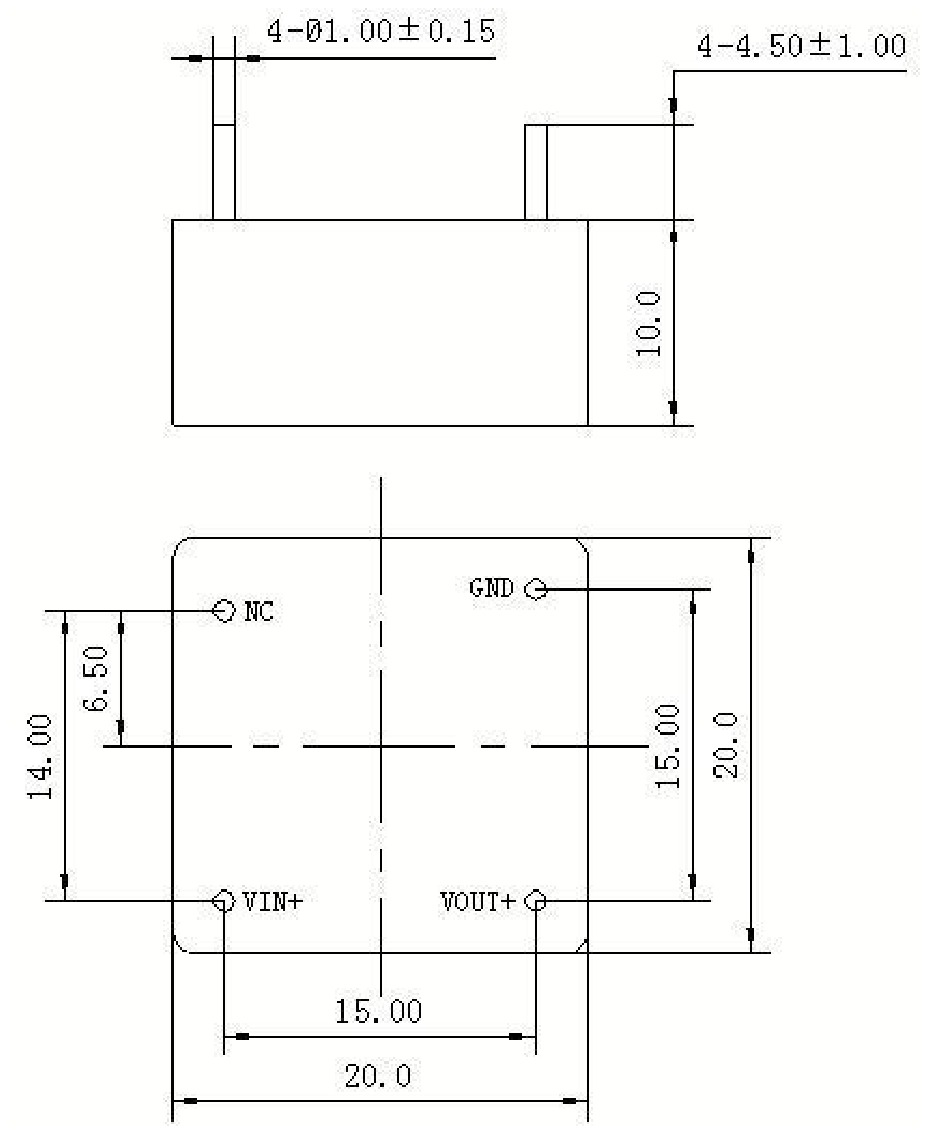

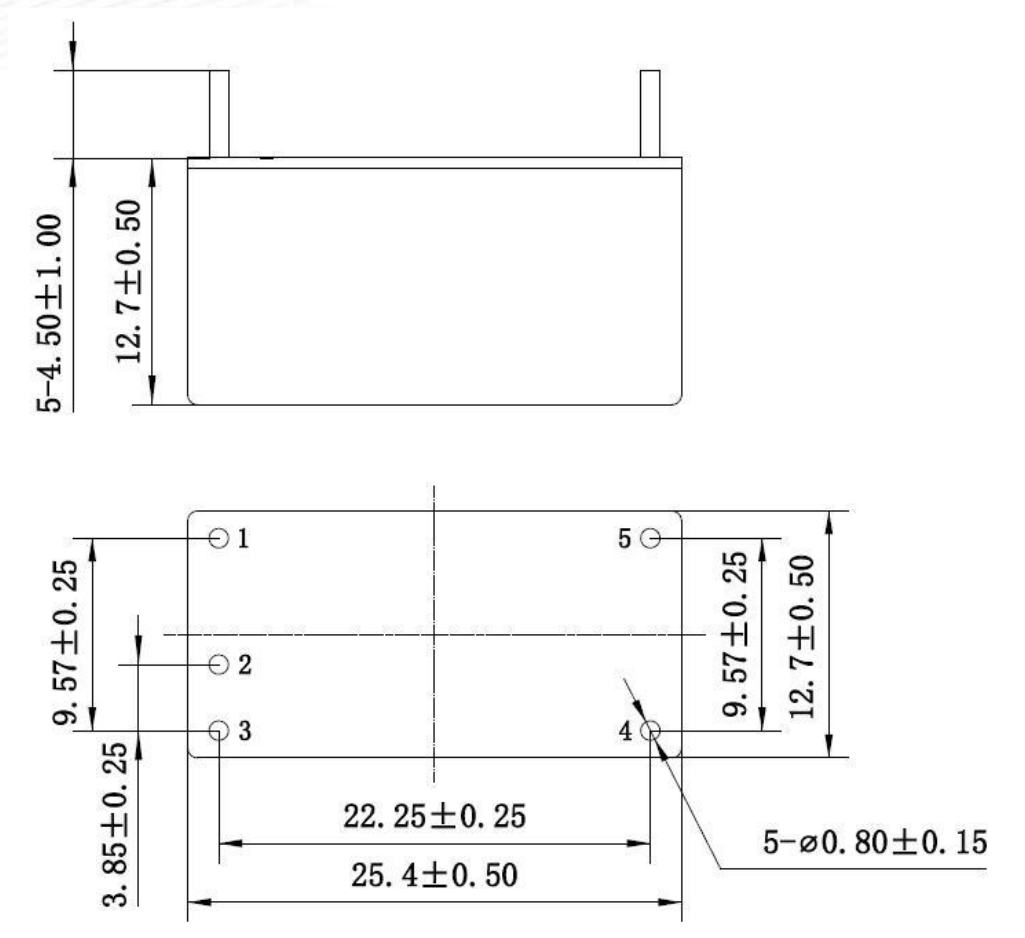

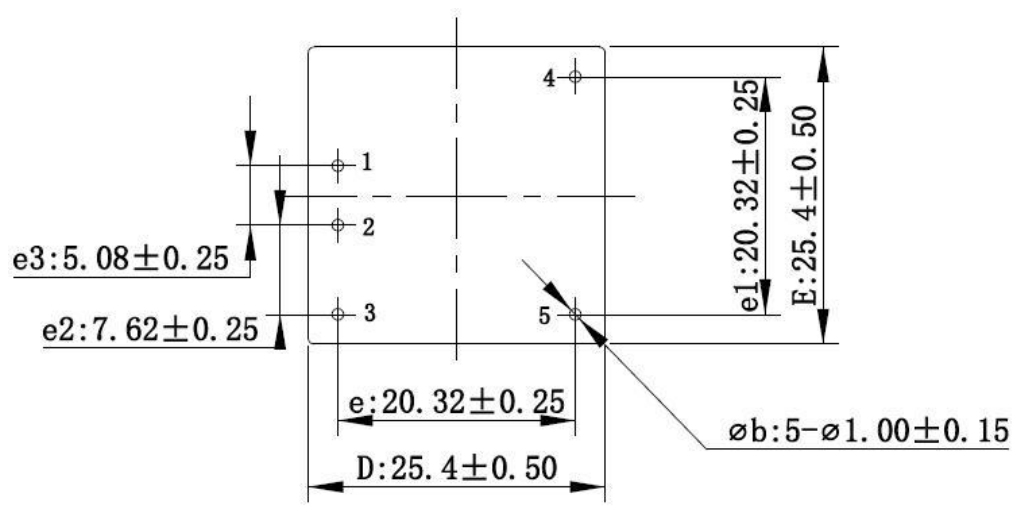

Module dimensions are shown below, for dimensions without an explicit tolerance, for dimensions specified in X.X format, the dimensional tolerance is ±0.5mm; dimensions specified in X.XX format, the dimensional tolerance is ±0.25mm.

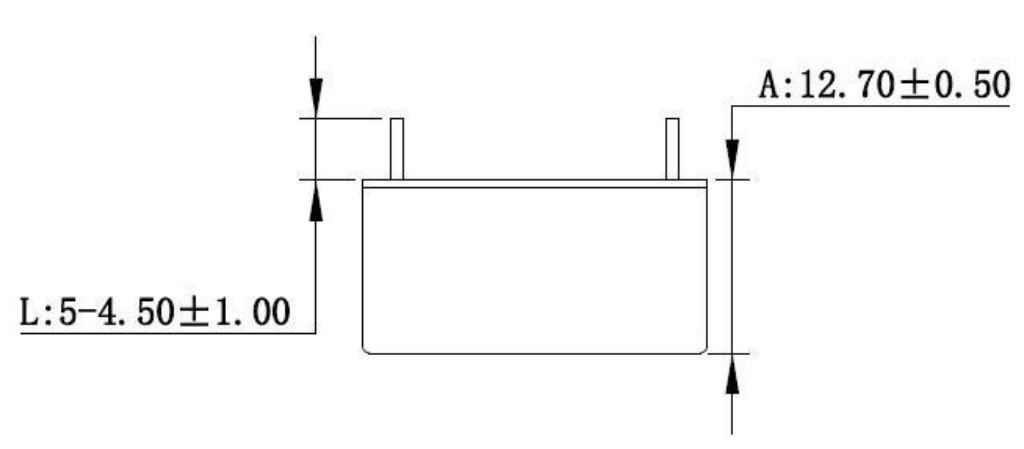

Outline & Mechanical Dimensions
