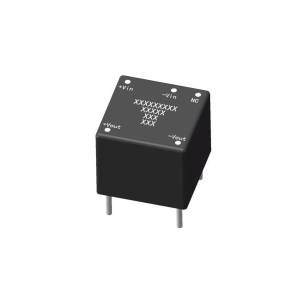

Wide-input power modules - QMR-5/18/28/W24
The QMR-5 / 18 / 28 / W24 power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 10W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- DC/DC isolated conversion
- Maximum output power: 10W
- Input undervoltage protection
- Output overcurrent, short-circuit protection
- Single- and dual-output options
- Operating temperature (Tc): -55°C to 105°C
- Storage temperature: -55°C to 125°C
Product Selection
| Model | Input voltage (V) | Output voltage (V) | Output current (A) | Efficiency (%) Typical | Capacitive load (µF) max. | Ripple (mV) Typical | Package |
|---|---|---|---|---|---|---|---|
| QMR3-5S3R3SXM | 4.5 to 9 | 3.3 | 0.91 | 74 | 470 | 30 | A |
| QMR3-5S05SXM | 4.5 to 9 | 5 | 0.6 | 77 | 220 | 40 | A |
| QMR3-5S06SXM | 4.5 to 9 | 6 | 0.5 | 77 | 220 | 50 | A |
| QMR3-5S12SXM | 4.5 to 9 | 12 | 0.25 | 82 | 100 | 60 | A |
| QMR3-5S15SXM | 4.5 to 9 | 15 | 0.2 | 82 | 100 | 70 | A |
| QMR3-5S24SXM | 4.5 to 9 | 24 | 0.125 | 82 | 100 | 40 | A |
| QMR3-5S28SXM | 4.5 to 9 | 28 | 0.11 | 82 | 100 | 40 | A |
| QMR3-5D05SXM | 4.5 to 9 | ±5 | ±0.3 | 81 | 150 | 50 | C |
| QMR3-5D12SXM | 4.5 to 9 | ±12 | ±0.125 | 82 | 47 | 50 | C |
| QMR3-5D15SXM | 4.5 to 9 | ±15 | ±0.1 | 82 | 47 | 70 | C |
| QMR5-5S3R3SXM | 4.5 to 9 | 3.3 | 1.5 | 72 | 470 | 30 | A |
| QMR5-5S05SXM | 4.5 to 9 | 5 | 1 | 77 | 220 | 40 | A |
| QMR5-5S5R5SXM | 4.5 to 9 | 5.5 | 0.91 | 79 | 220 | 50 | A |
| QMR5-5S12SXM | 4.5 to 9 | 12 | 0.42 | 82 | 100 | 60 | A |
| QMR5-18S04SPM | 9 to 36 | 4 | 1.25 | 80 | 220 | 30 | A |
| QMR5-18S05SPM | 9 to 36 | 5 | 1 | 80 | 470 | 30 | A |
| QMR5-18S5R5SPM | 9 to 36 | 5.5 | 0.9 | 80 | 470 | 30 | A |
| QMR5-18S06SPM | 9 to 36 | 6 | 0.83 | 82 | 470 | 50 | A |
| QMR5-18S09SPM | 9 to 36 | 9 | 0.56 | 82 | 470 | 40 | A |
| QMR5-18S10SPM | 9 to 36 | 10 | 0.5 | 83 | 470 | 40 | A |
| QMR5-18S12SPM | 9 to 36 | 12 | 0.42 | 83 | 220 | 40 | A |
| QMR5-18S15SPM | 9 to 36 | 15 | 0.33 | 83 | 220 | 40 | A |
| QMR5-18S20SPM | 9 to 36 | 20 | 0.25 | 83 | 220 | 40 | A |
| QMR5-18S22SPM | 9 to 36 | 22 | 0.23 | 84 | 220 | 40 | A |
| QMR5-18S24SPM | 9 to 36 | 24 | 0.21 | 84 | 100 | 40 | A |
| QMR5-18S28SPM | 9 to 36 | 28 | 0.18 | 84 | 100 | 40 | A |
| QMR5-18D05SXM | 9 to 36 | ±5 | ±0.5 | 78 | 470 | 30 | C |
| QMR5-18D09SXM | 9 to 36 | ±9 | ±0.28 | 82 | 220 | 80 | C |
| QMR5-18D12SXM | 9 to 36 | ±12 | ±0.21 | 82 | 220 | 40 | C |
| QMR5-18D15SXM | 9 to 36 | ±15 | ±0.17 | 82 | 220 | 40 | C |
| QMR5-28S3R3SPM | 16 to 40 | 3.3 | 1.5 | 75 | 470 | 30 | A |
| QMR5-28S05SPM | 16 to 40 | 5 | 1 | 82 | 470 | 30 | A |
| QMR5-28S5R5SPM | 16 to 40 | 5.5 | 0.91 | 82 | 470 | 30 | A |
| QMR5-28S06SPM | 16 to 40 | 6 | 0.83 | 83 | 470 | 50 | A |
| QMR5-28S09SPM | 16 to 40 | 9 | 0.56 | 84 | 470 | 50 | A |
| QMR5-28S10SPM | 16 to 40 | 10 | 0.5 | 84 | 470 | 40 | A |
| QMR5-28S12SPM | 16 to 40 | 12 | 0.42 | 82 | 220 | 40 | A |
| QMR5-28S15SPM | 16 to 40 | 15 | 0.33 | 82 | 220 | 40 | A |
| QMR5-28S20SPM | 16 to 40 | 20 | 0.25 | 86 | 220 | 40 | A |
| QMR5-28S22SPM | 16 to 40 | 22 | 0.23 | 86 | 220 | 40 | A |
| QMR5-28S24SPM | 16 to 40 | 24 | 0.21 | 87 | 100 | 40 | A |
| QMR5-28S28SPM | 16 to 40 | 28 | 0.18 | 85 | 100 | 40 | A |
| QMR5-28D05SXM | 16 to 40 | ±5 | ±0.5 | 82 | 470 | 30 | C |
| QMR5-28D09SXM | 16 to 40 | ±9 | ±0.28 | 84 | 220 | 80 | C |
| QMR5-28D12SXM | 16 to 40 | ±12 | ±0.21 | 82 | 220 | 40 | C |
| QMR5-28D15SXM | 16 to 40 | ±15 | ±0.17 | 82 | 220 | 40 | C |
| QMR3-W24S3R3SPM | 9 to 40 | 3.3 | 1 | 80 | 470 | 30 | A |
| QMR5-W24S05SPM | 9 to 40 | 5 | 1 | 82 | 470 | 30 | A |
| QMR5-W24S12SPM | 9 to 40 | 12 | 0.42 | 86 | 330 | 50 | A |
| QMR5-W24S15SPM | 9 to 40 | 15 | 0.33 | 85 | 220 | 50 | A |
| QMR5-W24S24SPM | 9 to 40 | 24 | 0.21 | 88 | 220 | 50 | A |
| QMR5-W24S28SPM | 9 to 40 | 28 | 0.18 | 88 | 100 | 50 | A |
| QMR10-W24S05SPM | 9 to 40 | 5 | 2 | 89 | 1000 | 50 | B |
| QMR10-W24S12SPM | 9 to 40 | 12 | 0.83 | 88 | 470 | 120 | B |
| QMR10-W24S15SPM | 9 to 40 | 15 | 0.67 | 88 | 470 | 150 | B |
| QMR10-W24S24SPM | 9 to 40 | 24 | 0.42 | 88 | 220 | 240 | B |
| QMR10-W24S28SPM | 9 to 40 | 28 | 0.36 | 88 | 220 | 280 | B |
Technical Data — QMR-5 / 18 / 28 / W24
| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 4.5 | 5 | 9 | V | 5 series, see the product selection table |
| Input voltage range | Room, High, Low | 9 | 28 | 36 | V | 18 series, see the product selection table |
| Input voltage range | Room, High, Low | 16 | 28 | 40 | V | 28 series, see the product selection table |
| Input voltage range | Room, High, Low | 9 | 24 | 40 | V | W24 series, see the product selection table |
| Input surge voltage | Room | — | — | 50 | V | 18/28/W24 series, Vt=100ms, full load |
| No-load power consumption (5 series) | Room | — | 0.15 | — | W | nominal input voltage, no output load |
| No-load power consumption (18/28/W24 series) | Room | — | 0.2 | — | W | nominal input voltage, no output load |
| Line regulation | Room, High, Low | -1 | — | +1 | %VO | full input-voltage range, full load |
| Load regulation | Room, High, Low | -1 | — | +1 | %VO | full load range, 5V and below: output voltage is ±2% balanced dual-output loading |
| Turn-on delay a | Room | — | 2 | 30 | ms | time from power-on until output voltage reaches 10% time |

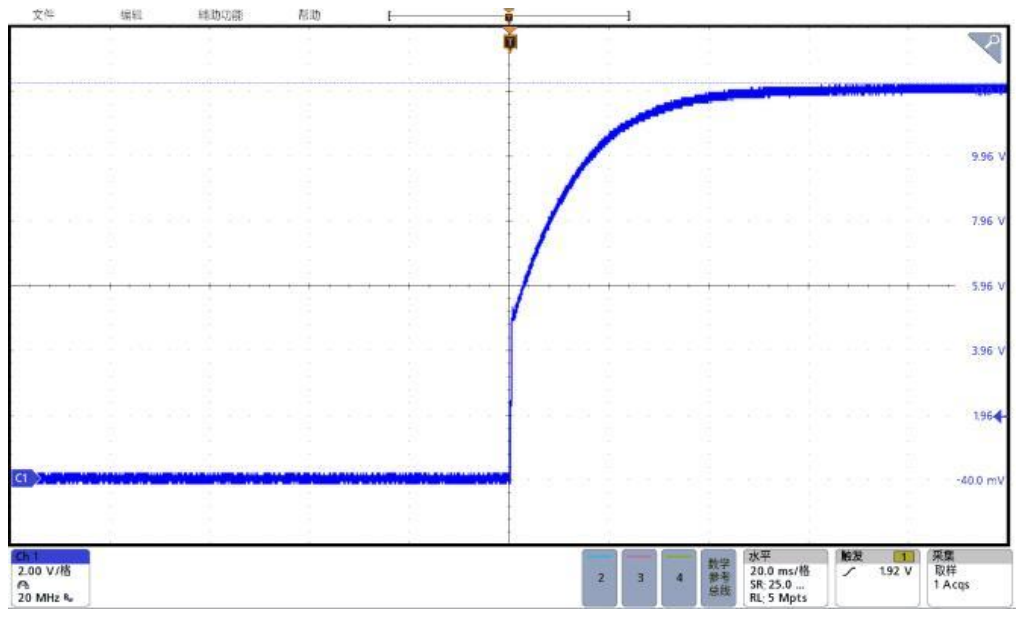

| Output voltage rise time a | Room | — | 13 | 30 | ms | output voltage from 10% rises to 90% time |
| Enable turn-on delay a | Room | — | 1.4 | 30 | ms | time from enable assertion until output voltage reaches 10% time |
| Enable logic level (positive logic) | Room | 0 | — | 0.7 | V | no output, see the application guide for control methods |
| Enable logic level (positive logic) | Room | 3.5 | — | 12 | V | output enabled when open or high, see the application guide for control methods |
| Input undervoltage protection | Room | 2.5 | — | 4.3 | V | half load, 5 series |
| Input undervoltage protection | Room | 6 | — | 8.8 | V | half load, 18/W24 series |
| Input undervoltage protection | Room | 11 | — | 15.8 | V | half load, 28 series |
| Output overcurrent protection | Room | 110 | — | — | %IO | hiccup mode, automatic recovery after fault removal (5 series uses power-reduction mode) |
| Output short-circuit protection | Room | — | — | — | — | hiccup mode, automatic recovery after fault removal (5 series uses power-reduction mode) |
| Isolation withstand voltage | Room | - | no breakdown, no flashover; input to output, 1000Vdc/60s/<3.5mA | |||
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input, output, between each pair of terminals and case |
| Switching frequency | Room, High, Low | — | 500 | — | kHz | 5 series |
| Switching frequency | Room, High, Low | — | 300 | — | kHz | 18 series /28 series |
| Switching frequency | Room, High, Low | — | 470 | — | kHz | W24 series (10W/ output 5V is 370kHz) |
| MTBF | Room | — | 2.2 | — | 106h | ensure a good ground plane (GB), 25°C |
| Weight | / | — | 5 | — | g | 5/18/28 series |
| Weight | / | — | 6 | — | g | W24 series |

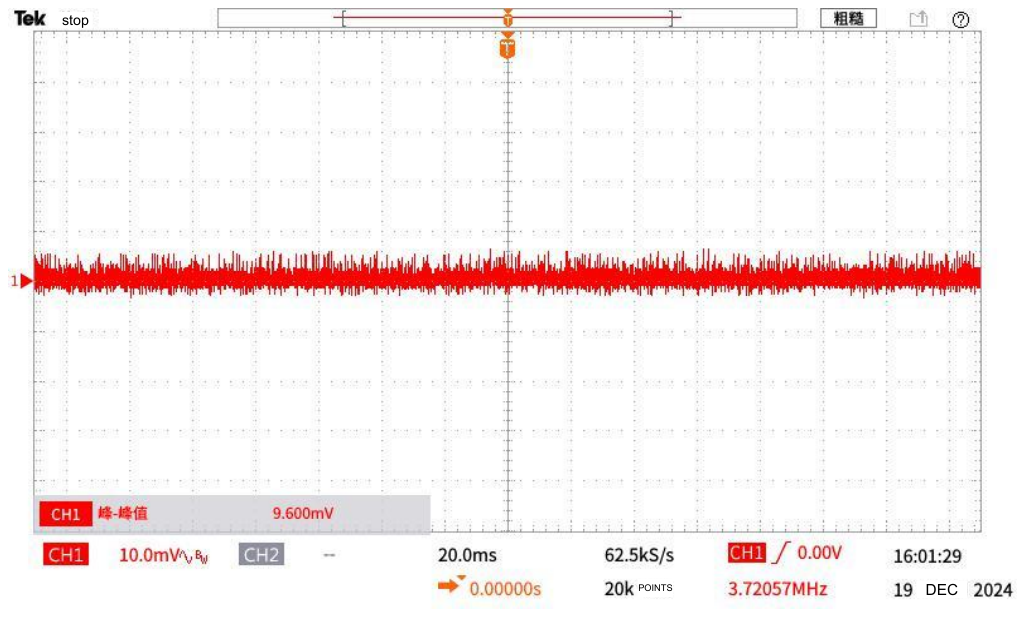

Note: 1, for other temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method.
a: typical model QMR10-W24S12SPM time, values may differ for other models, contact technical support for details.

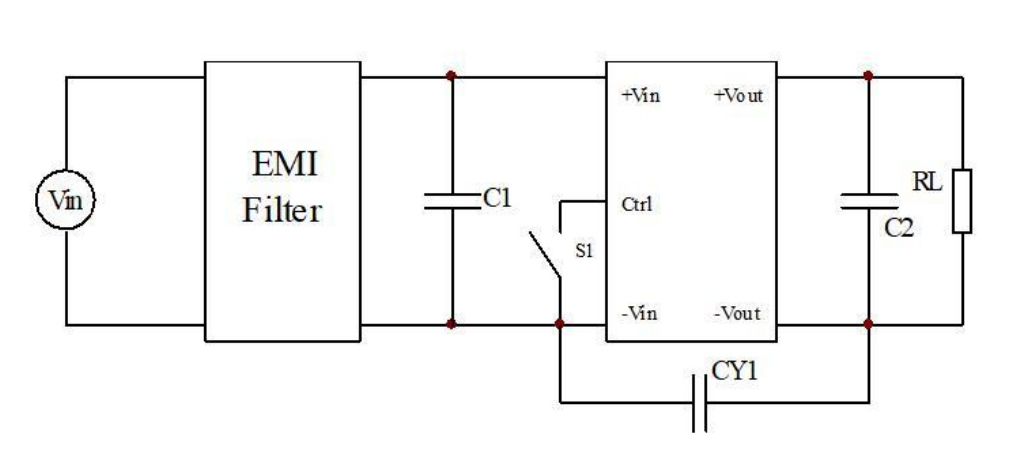

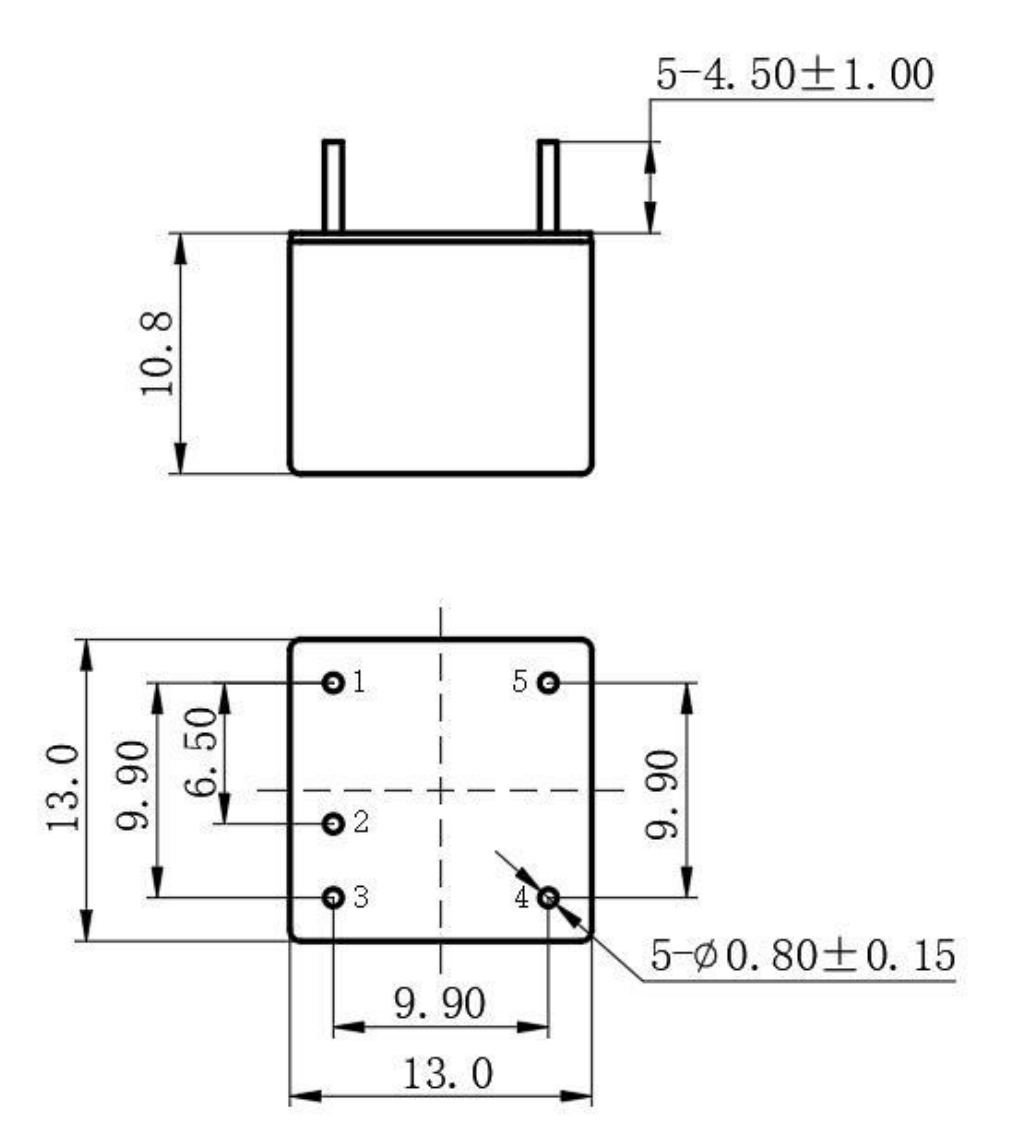

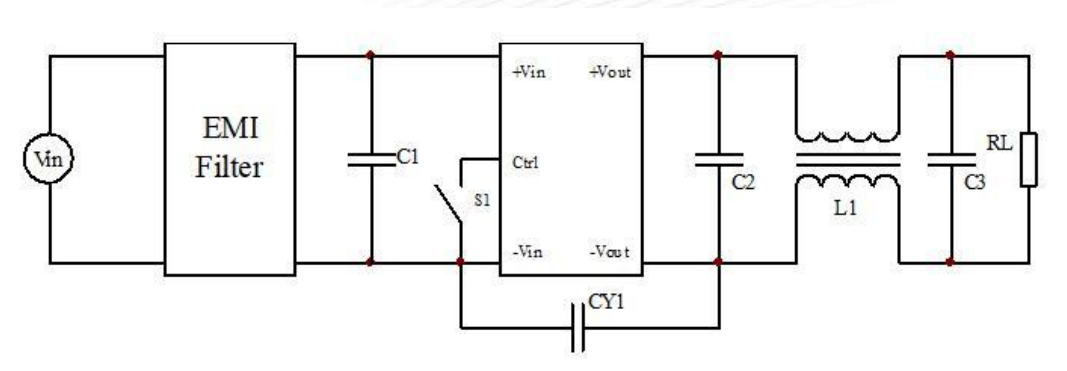

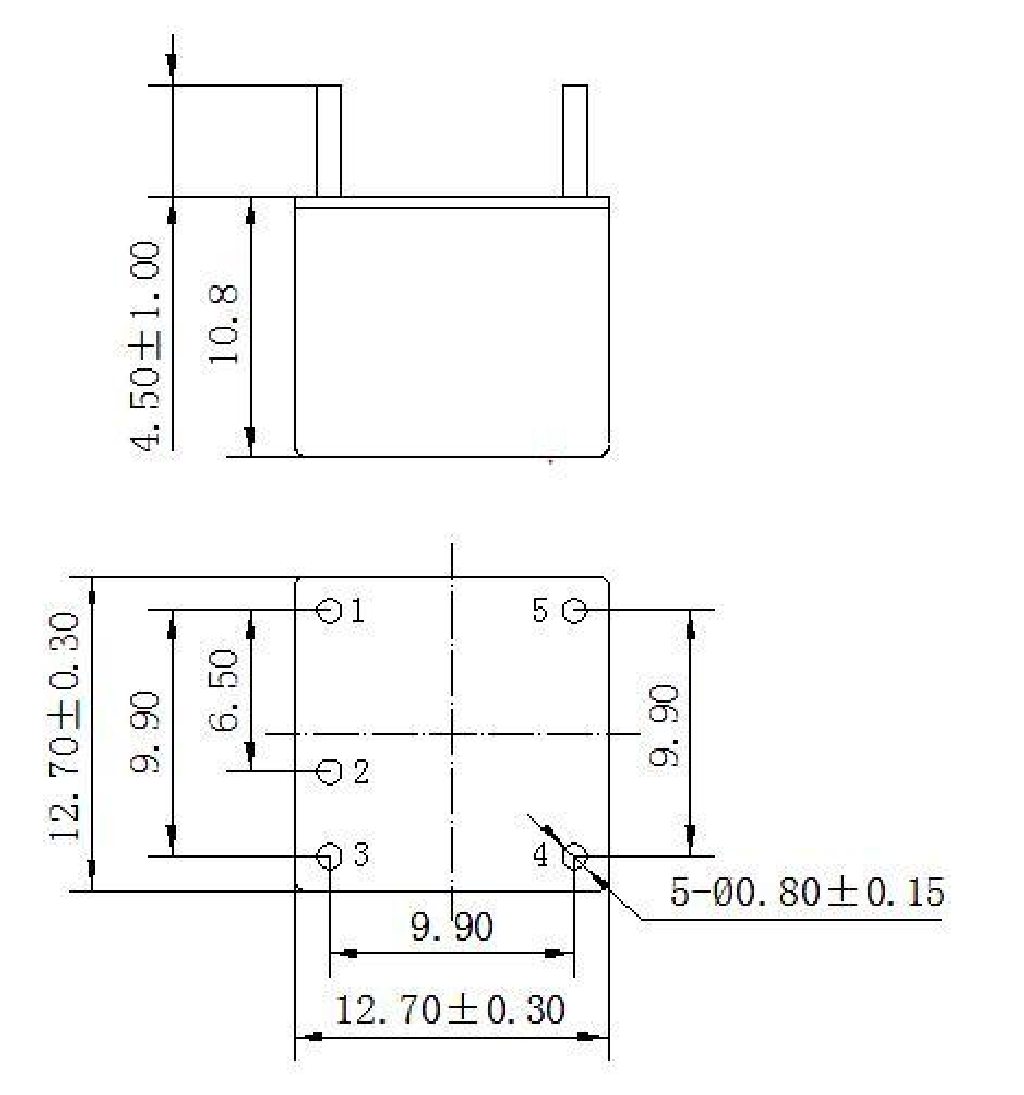

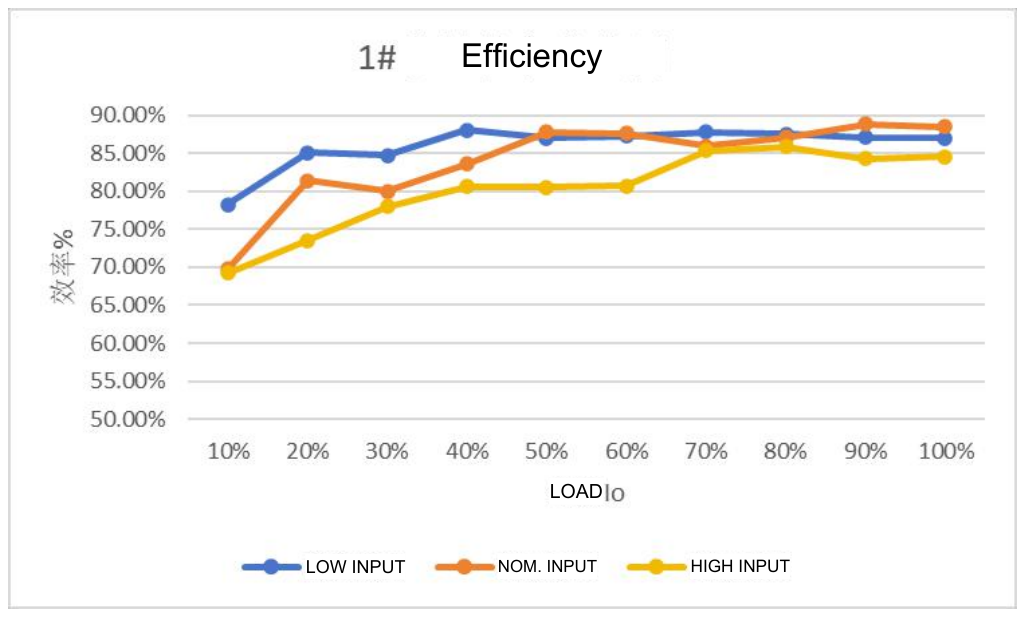

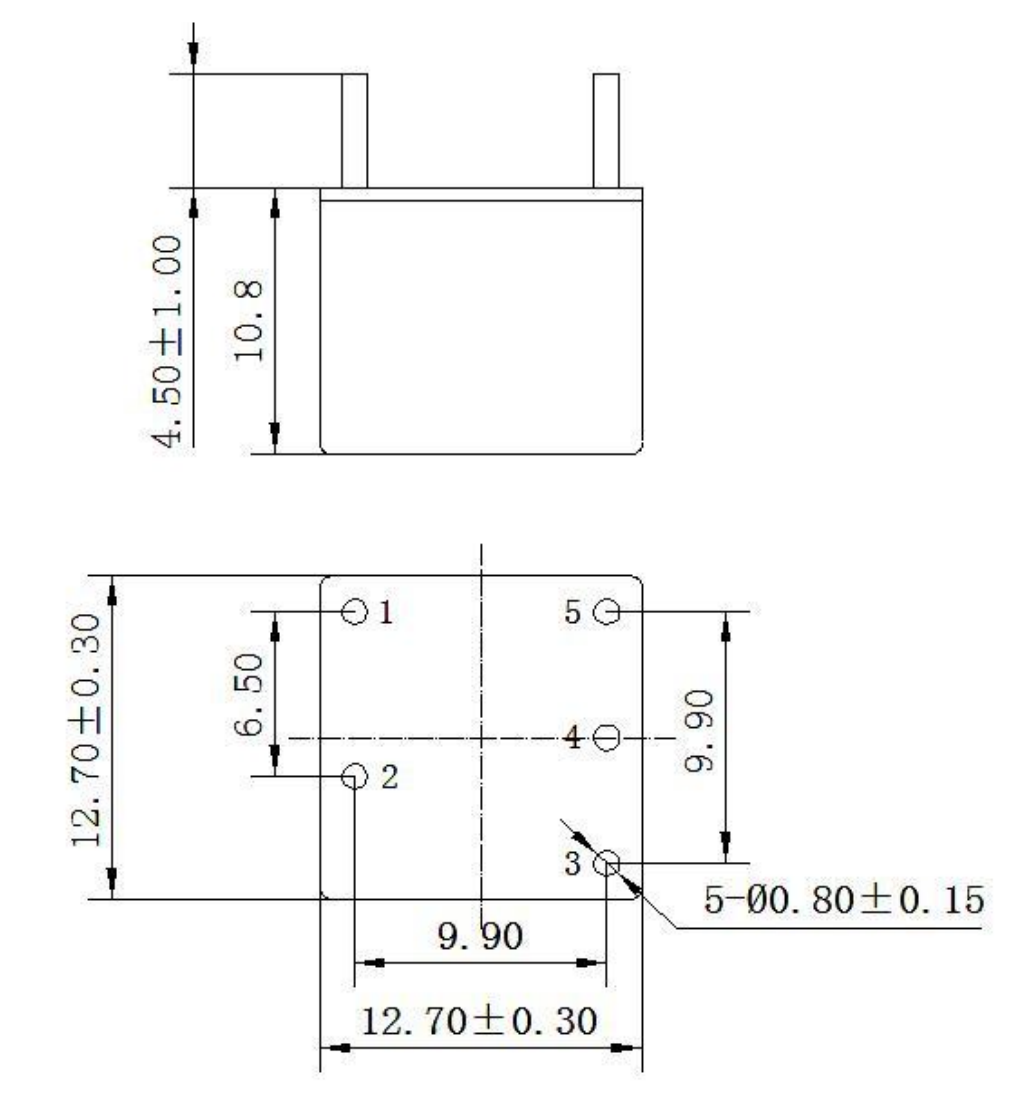

Outline & Mechanical Dimensions
