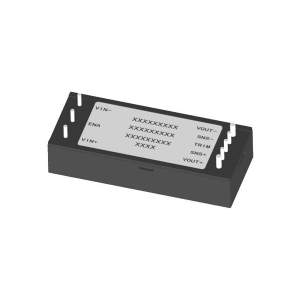

Wide-input power modules (1/8 brick) – QSE-W24/W48
The QSE-W24 / W48 power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 200W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
Input voltage (V)
Output voltage (V)
Ratings apply to the selected configuration. See the datasheet for test conditions and model designation notes.
Source markers *, a and b are footnotes, not part of the part number. See Technical Data for the corresponding notes.
Request a Quote
- Description
- Technical Data
- Datasheet
- OUTLINE
- Reviews (0)
Wide-input power modules (1/8 brick) - QSE-W24/W48
The QSE-W24 / W48 power module family is described by the configuration-specific ratings in the following tables. DC/DC isolated conversion. Maximum output power: 200W. Input undervoltage protection. Refer to the selection table, pin assignments and application guidance for the selected configuration.
- DC/DC isolated conversion
- Maximum output power: 200W
- Input undervoltage protection
- Output overvoltage, overcurrent, short circuit, Overtemperature protection
- Operating temperature (TC): -55°C to 105°C
- Storage temperature: -55°C to 125°C
Product Selection

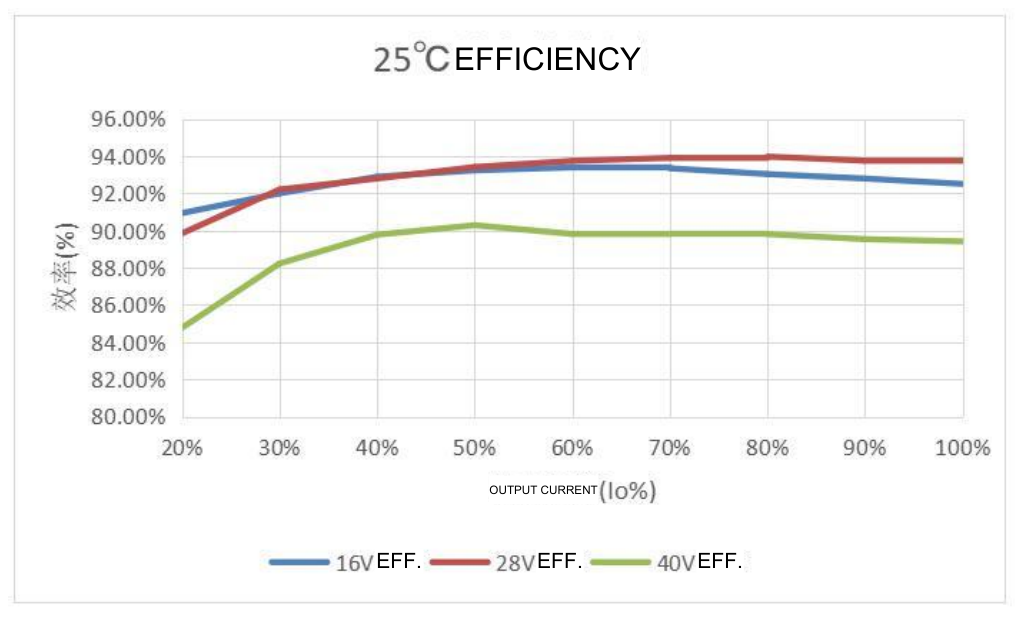

| Model | Input voltage (V) | Output voltage (V) | Output current (A) | Efficiency (%) half load / full load | Capacitive load (µF) max. | Ripple (mV) Typical |
|---|---|---|---|---|---|---|
| QSE200-W24S05NNM | 9 to 40 | 5 | 40 | 93.5/92.5 | 10000 | 50 |
| QSE200-W24S12NNM | 9 to 40 | 12 | 16.67 | 93.5/93.8 | 5000 | 50 |
| QSE200-W24S15NNM | 9 to 40 | 15 | 13.33 | 93.5/94.5 | 5000 | 60 |
| QSE200-W24S24NNM | 9 to 40 | 24 | 8.33 | 94/94.5 | 3000 | 100 |
| QSE200-W24S28NNM | 9 to 40 | 28 | 7.14 | 94.5/95 | 3000 | 100 |
| QSE200-W24S48NNM | 9 to 40 | 48 | 4.17 | 92.5/93 | 2000 | 150 |
| QSE200-W48S05NNM* | 18 to 75 | 5 | 40 | 93/92 | 10000 | 50 |
| QSE200-W48S12NNM* | 18 to 75 | 12 | 16.67 | 94/93 | 10000 | 50 |
| QSE200-W48S24NNM* | 18 to 75 | 24 | 8.33 | 94.5/93.5 | 3000 | 100 |
| QSE200-W48S28NNM* | 18 to 75 | 28 | 7.14 | 94.5/93.5 | 3000 | 100 |
Technical Data — QSE-W24 / W48

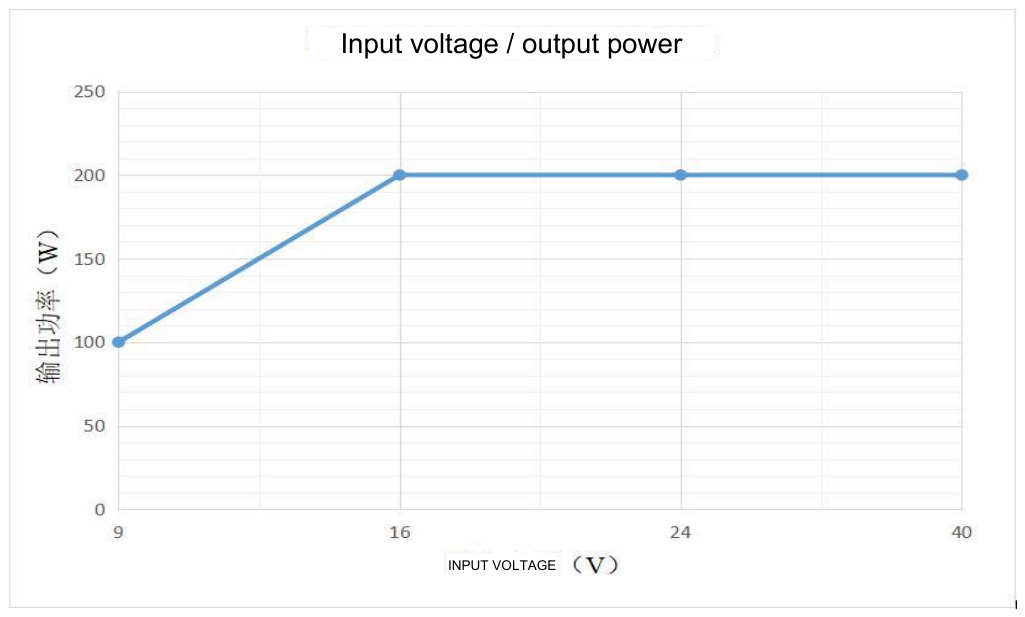

| Characteristic | Test temperature | Min. | Typ. | Max. | Unit | Conditions |
|---|---|---|---|---|---|---|
| Input voltage range | Room, High, Low | 9 | 28 | 40 | V | W24 series |
| Input voltage range | Room, High, Low | 18 | 48 | 75 | V | W48 series |
| Input surge voltage | Room | — | — | 50 | V | Vt=100ms, full load, W24 series |
| Input surge voltage | Room | — | — | 80 | V | Vt=100ms, full load, W48 series |
| No-load power consumption a | Room | — | 4 | — | W | nominal input voltage, no output load |

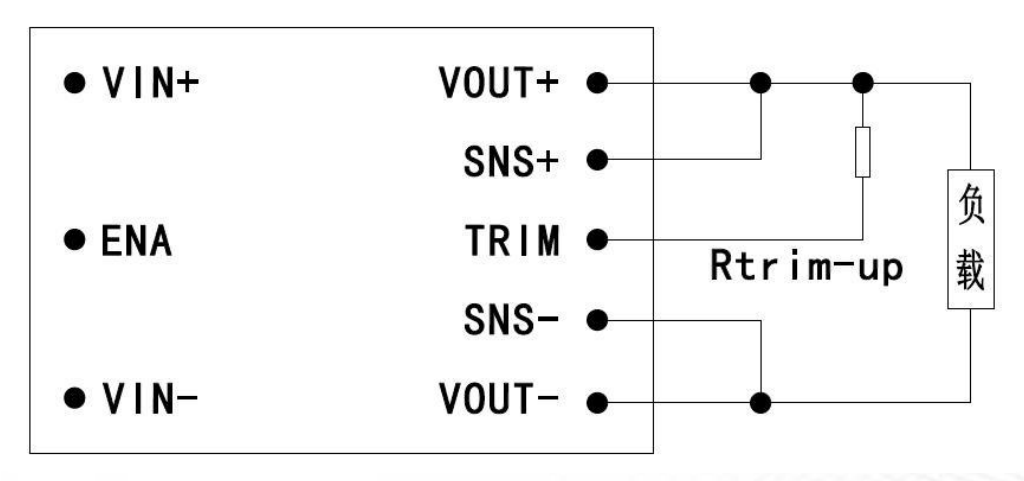

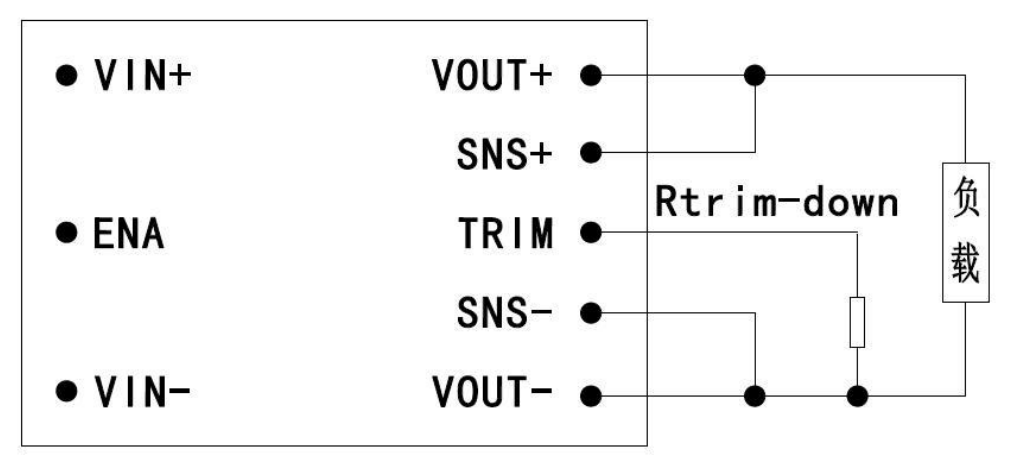

| Output voltage adjustment range | Room, High, Low | 80 | — | 110 | %VO | Io≤ maximum value and Po≤Vo×Iomax (Applicable model: QSE200-W24S05NNM, QSE200-W24S12NNMQSE200-W24S15NNM, QSE200-W24S24NNMQSE200-W24S28NNM, QSE200-W48 all models in the series) |
| Output voltage adjustment range | Room, High, Low | 90 | — | 110 | %VO | Io≤ maximum value and Po≤Vo×Iomax (Applicable model: QSE200-W24S48NNM) |
| Line regulation | Room, High, Low | -0.2 | — | +0.2 | %VO | full input-voltage range, full load |
| Load regulation | Room, High, Low | -0.5 | — | +0.5 | %VO | full load range |
| Turn-on delay a | Room | — | 60 | — | ms | time from power-on until output voltage reaches 10% time |

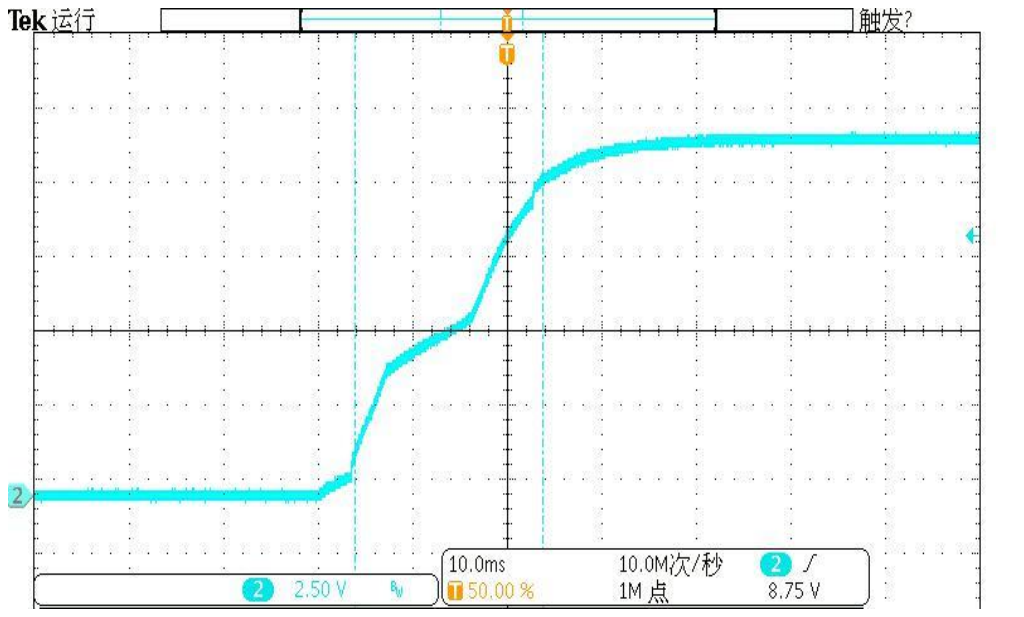

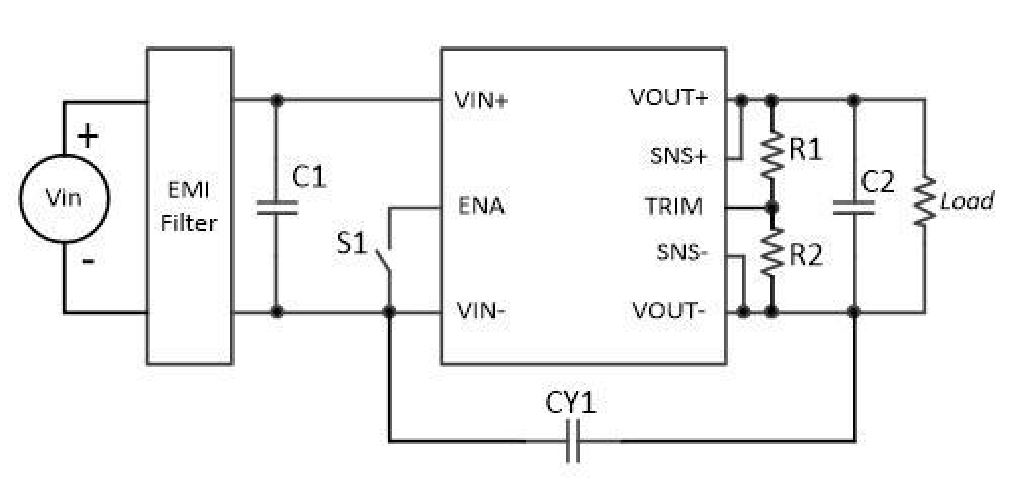

| Output voltage rise time a | Room | — | 20 | — | ms | output voltage from 10% rises to 90% time |
| ENA Turn-on delay a | Room | — | 50 | — | ms | ENA time from power-on until output voltage reaches 10% time |
| Enable logic level (negative logic) | Room | 0 | — | 0.7 | V | output enabled, see the application guide for control methods |
| Enable logic level (negative logic) | Room | 3.5 | — | 12 | V | no output when open or high, see the application guide for control methods |
| Input undervoltage protection | Room | 7.5 | — | 8.8 | V | no load, W24 series |
| Input undervoltage protection | Room | 15 | — | 17.8 | V | no load, W48 series |
| Output overcurrent protection | Room | 105 | — | — | %IO | hiccup mode, automatic recovery after overcurrent removal |
| Output short-circuit protection | Room | — | — | — | — | hiccup mode, automatic recovery after removal of the short circuit |
| Output overvoltage protection | Room | 110 | — | 140 | %VO | hiccup mode, automatic recovery |
| Isolation withstand voltage | Room | - | no breakdown, no flashover; input to output, 1500Vdc/60s/<3.5mA | |||
| Insulation resistance | Room | 100 | — | — | MΩ | 500Vdc, input, output, between each pair of terminals and case |
| Switching frequency | Room | — | 300 | — | kHz | |
| MTBF | Room | — | 1.0 | — | 106h | ensure a good ground plane (GB), 25°C |
| Weight | / | — | 58 | — | g | N case type |

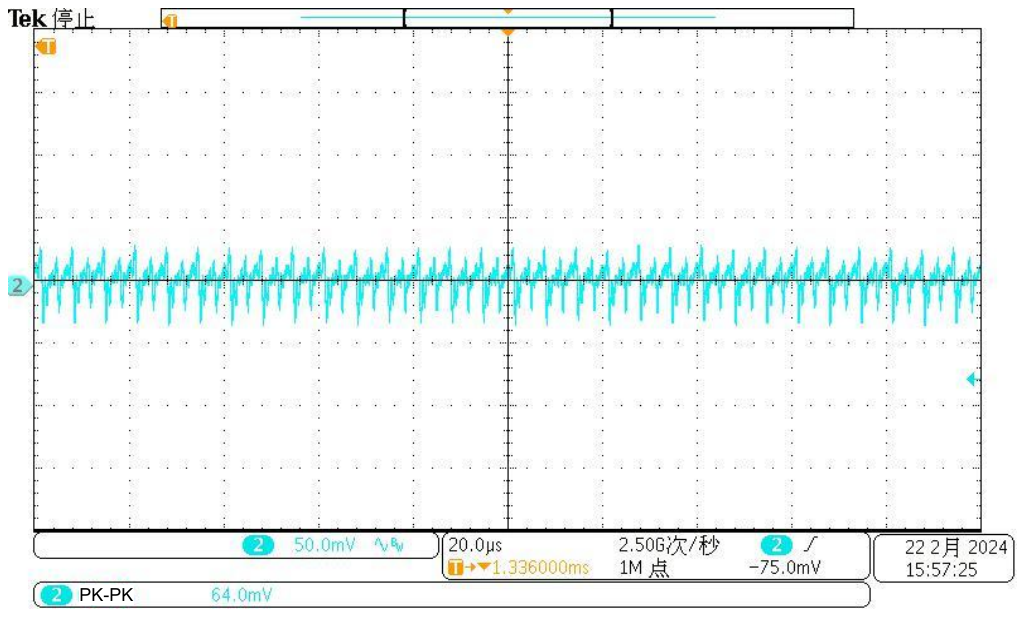

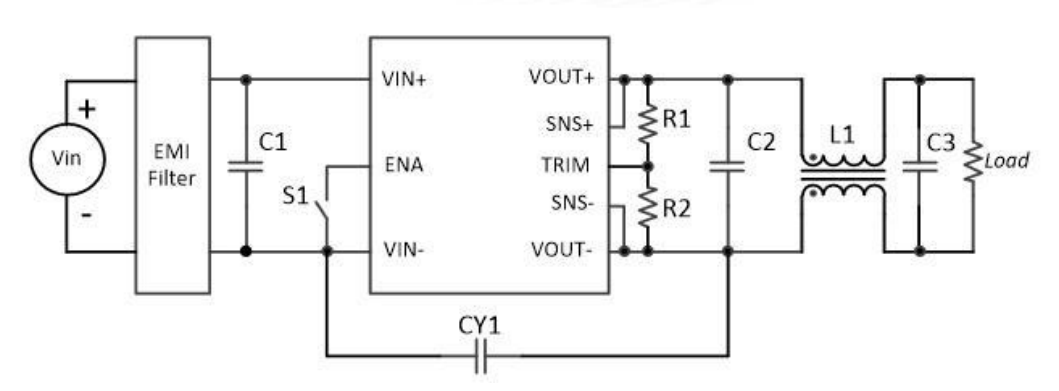

Note: 1, for other temperature-screening grades, use the corresponding model designation rules when ordering, contact technical support for details; 2, electrical data and mechanical dimensions in this manual are for product selection reference, the detailed product specification governs the final requirements; 3, see the typical application circuit for the ripple measurement method; 4, "*" product under development, contact technical support for details.
a: typical model QSE200-W24S12NNM time, values may differ for other models, contact technical support for details.

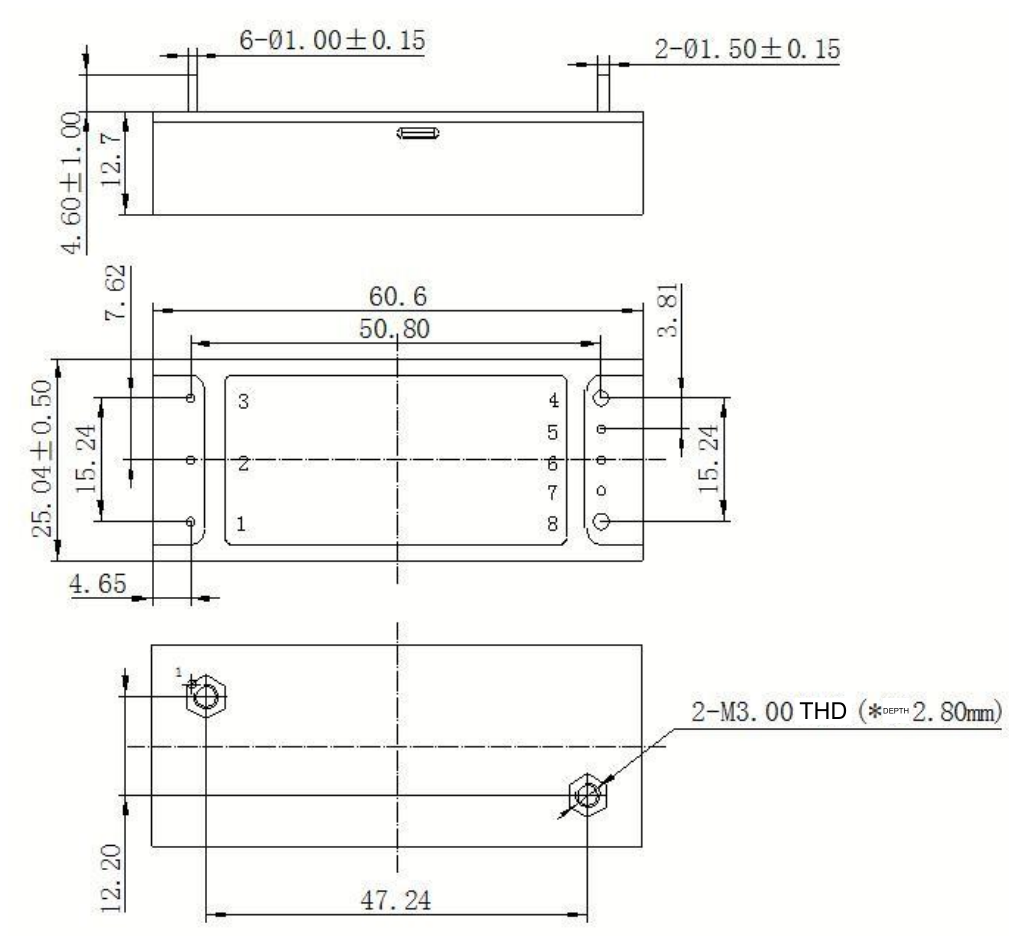

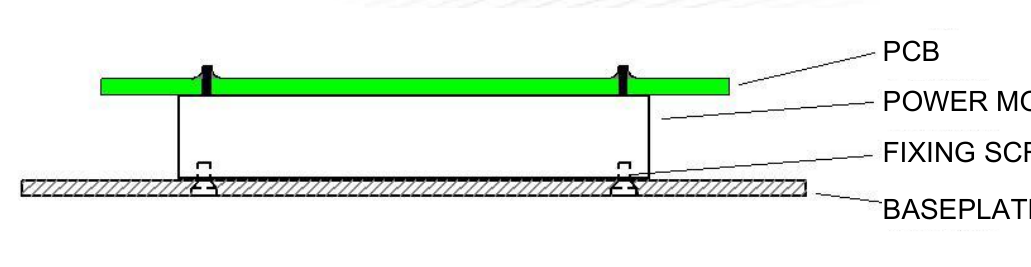

Module dimensions are shown below, for dimensions without an explicit tolerance, for dimensions specified in X.X format, the dimensional tolerance is ±0.5mm; dimensions specified in X.XX format, the dimensional tolerance is ±0.25mm.
1 VIN+ Positive input terminal 5 SNS– Negative remote-sense terminal
3 VIN- Negative input terminal 7 SNS+ Positive remote-sense terminal
Outline & Mechanical Dimensions
