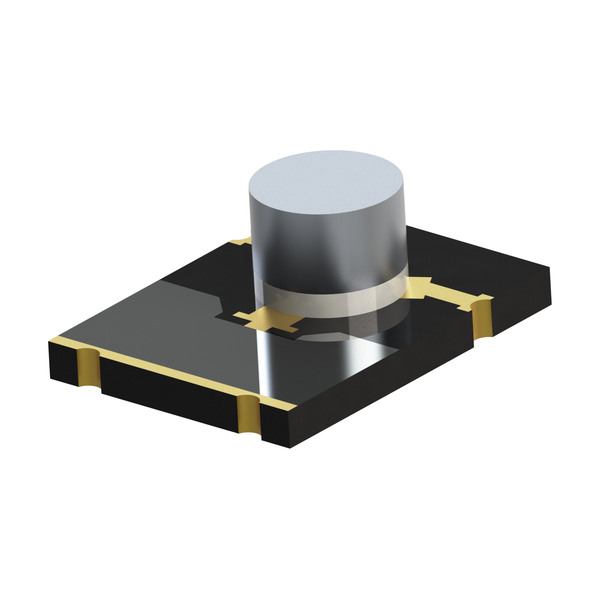

0.013 GHz to 0.015 GHz, 1.3 dB Insertion Loss, 18.0 dB Isolation, Micro-Strip Series Isolators Isolator-OG5A015-13-15
$0.00
Miniaturized and lightweight
High product consistency and high reliability
Customizable
Suitable for aviation, aerospace, radar, electronic countermeasure, microwave communication, and microwave testing fields
- Description
- Datasheet

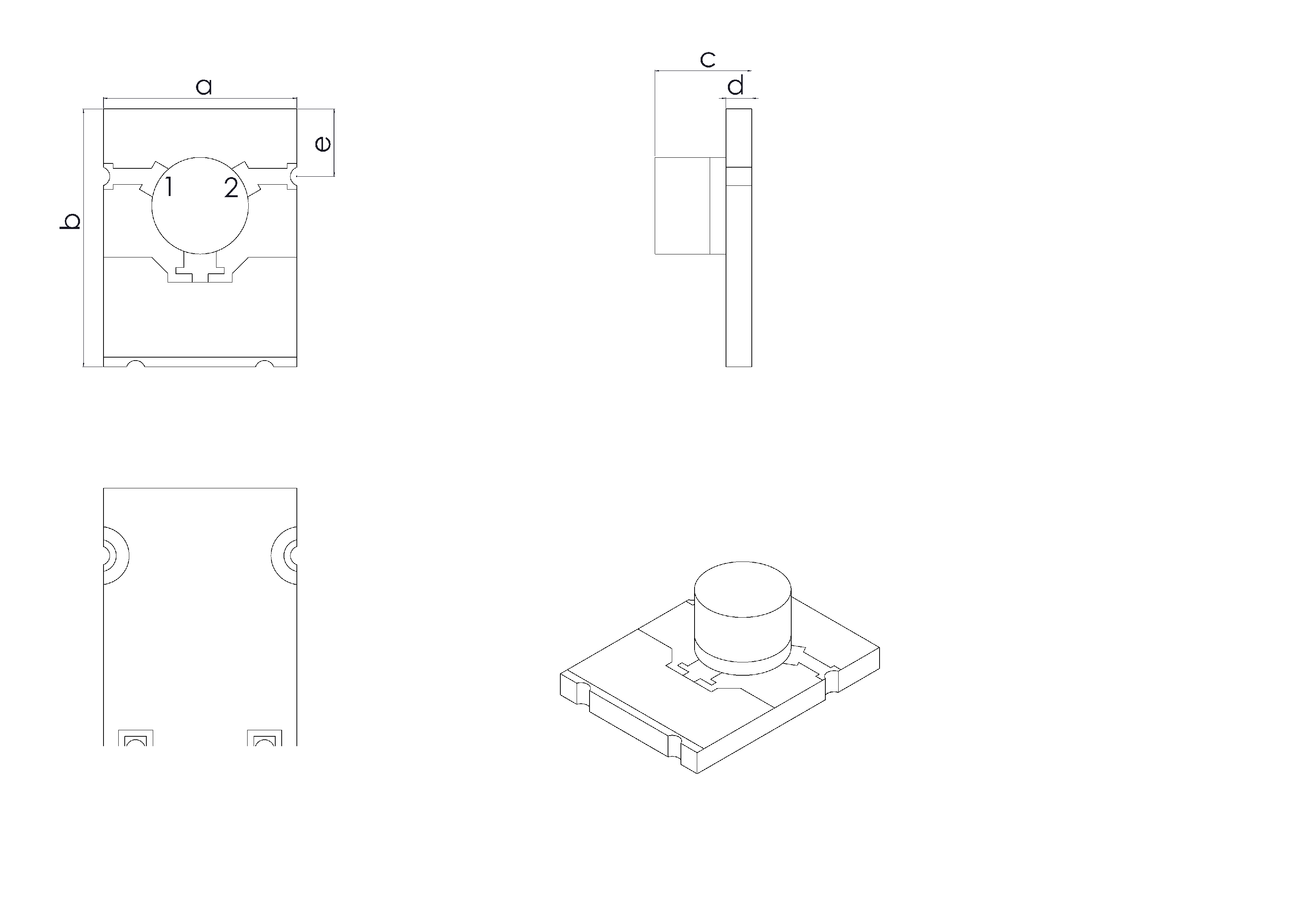

- Outline
- Reviews (0)
Description
The product named OG5A015 is high-performance microstrip surface-mount isolator that plays a role in impedance matching and decoupling in integrated circuits, while providing unidirectional transmission and signal processing functions. Its production process is straightforward and well-suited for microwave hybrid integrated circuits.
OG5A015-13-15 |
|
|
0.013 GHz to 0.015 GHz, 1.3 dB Insertion Loss, 18.0 dB Isolation, Micro-Strip Series Isolators Isolator-OG5A015-13-15 |
|
Property |
Value |
|
Frequency (MHz) |
13-15 |
|
Return Loss (dB) |
0.5 |
|
Isolation (dB) |
18 |
|
Insertion Loss (dB) |
1.3 |
|
IMD3 (dBc) |
15 |
|
Power (W) |
3 |
|
Operating Temp ( degC) |
5.0 to 7.0 |
Features |
|
|
Miniaturized and lightweight |
|
|
High product consistency and high reliability |
|
|
Customizable |
|
|
Suitable for aviation, aerospace, radar, electronic countermeasure, microwave communication, and microwave testing fields |
|
Applications |
|
|
Plays a role in impedance matching and decoupling in integrated circuits, while providing unidirectional transmission and signal processing functions. |
|
