0.081 GHz to 0.086 GHz, 0.8 dB Insertion Loss, -86.0 dB Isolation, Waveguide Series Isolator-OHTD81-86-81-86
Wide frequency range coverage: 5.5GHz to 110GHz
Available bandwidths: 10%, 20%, 30%, 40%, and octave
Peak power range: 1W to 40MW
Average power range: 1W to 100KW
Applications: Civil, military, aerospace, and space technology
Customizable specifications according to customer requirements
High performance and high reliability
- Description
- Datasheet
- Outline
- Reviews (0)
Description

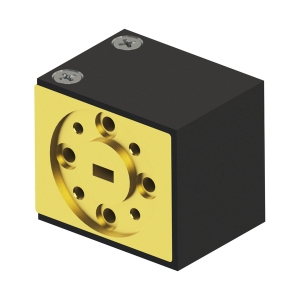

The product named OHTD81-86 is high-performance A05 waveguide isolator & circulator, offering wide frequency coverage and high reliability for applications in civil, military, and aerospace sectors.
OHTD81-86-81-86 | |
| 0.081 GHz to 0.086 GHz, 0.8 dB Insertion Loss, -86.0 dB Isolation, Waveguide Series Isolator-OHTD81-86-81-86 | |
Property | Value |
| Frequency (MHz) | 81-86 |
| Return Loss (dB) | 81 |
| Isolation (dB) | -86 |
| Insertion Loss (dB) | 0.8 |
| IMD3 (dBc) | 18 |
| Power (W) | 17 |
| Operating Temp ( degC) | 3 to 1 |
Features | |
| Wide frequency range coverage: 5.5GHz to 110GHz | |
| Available bandwidths: 10%, 20%, 30%, 40%, and octave | |
| Peak power range: 1W to 40MW | |
| Average power range: 1W to 100KW | |
| Applications: Civil, military, aerospace, and space technology | |
| Customizable specifications according to customer requirements | |
| High performance and high reliability | |
Applications | |
| Offering wide frequency coverage and high reliability for applications in civil, military, and aerospace sectors. | |
