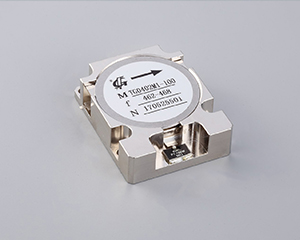

0.35 GHz to 0.55 GHz, 0.4 dB Insertion Loss, 20 dB Isolation, TAB Drop-in Series Isolator-TG0402M-100
Drop-in Series isolator with 0.35-0.55 GHz frequency range, 0.4 dB insertion loss, 20 dB isolation
- Description
- Datasheet
- Reviews (0)
Description
The TH0402M-100 is a high-performance drop-in series designed for RF and microwave applications. It operates in the frequency range of 0.35-0.55 GHz with 0.4 dB maximum insertion loss and 20 dB minimum isolation.
TH0402M-100 |
|
|
0.35 GHz to 0.55 GHz, 0.4 dB Insertion Loss, 20 dB Isolation, TAB Drop-in Series Isolator-TG0402M-100 |
|
Property |
Value |
|
Frequency (GHz) |
0.35-0.55 |
|
Bandwidth |
10% |
|
Return Loss (dB) |
|
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.4 |
|
VSWR |
1.25 |
|
IMD3 (dBc) |
|
|
Power (W) |
Connector Type |
|
Reverse Power (W) |
|
|
Peak Power |
|
|
Power note |
|
|
Connector |
|
|
Impedance(Ohm) |
50 |
|
Size |
|
|
Operating Temp (degC) |
-40 to 85 |
|
Structure |
connectorized |
Features |
|
|
Frequency Range: 0.35-0.55 GHz |
|
|
Insertion Loss: 0.4 dB Max |
|
|
Isolation: 20 dB Min |
|
|
VSWR: 1.25 Max |
|
|
Power: Connector Type W |
|
Applications |
|
|
Wireless communication, Radar systems, Test and measurement equipment |
|
