0.406 GHz to 0.45 GHz, 0.35 dB Insertion Loss, 18.0 dB Isolation, Drop-in Series Circulators OH544-406-450
Embedded Stripline Design
High Isolation (18dB)
Low Insertion Loss (0.35dB)
High Power Handling (300W)
Wide Operating Temperature Range (-40 to 85 degC)
- Description
- Datasheet

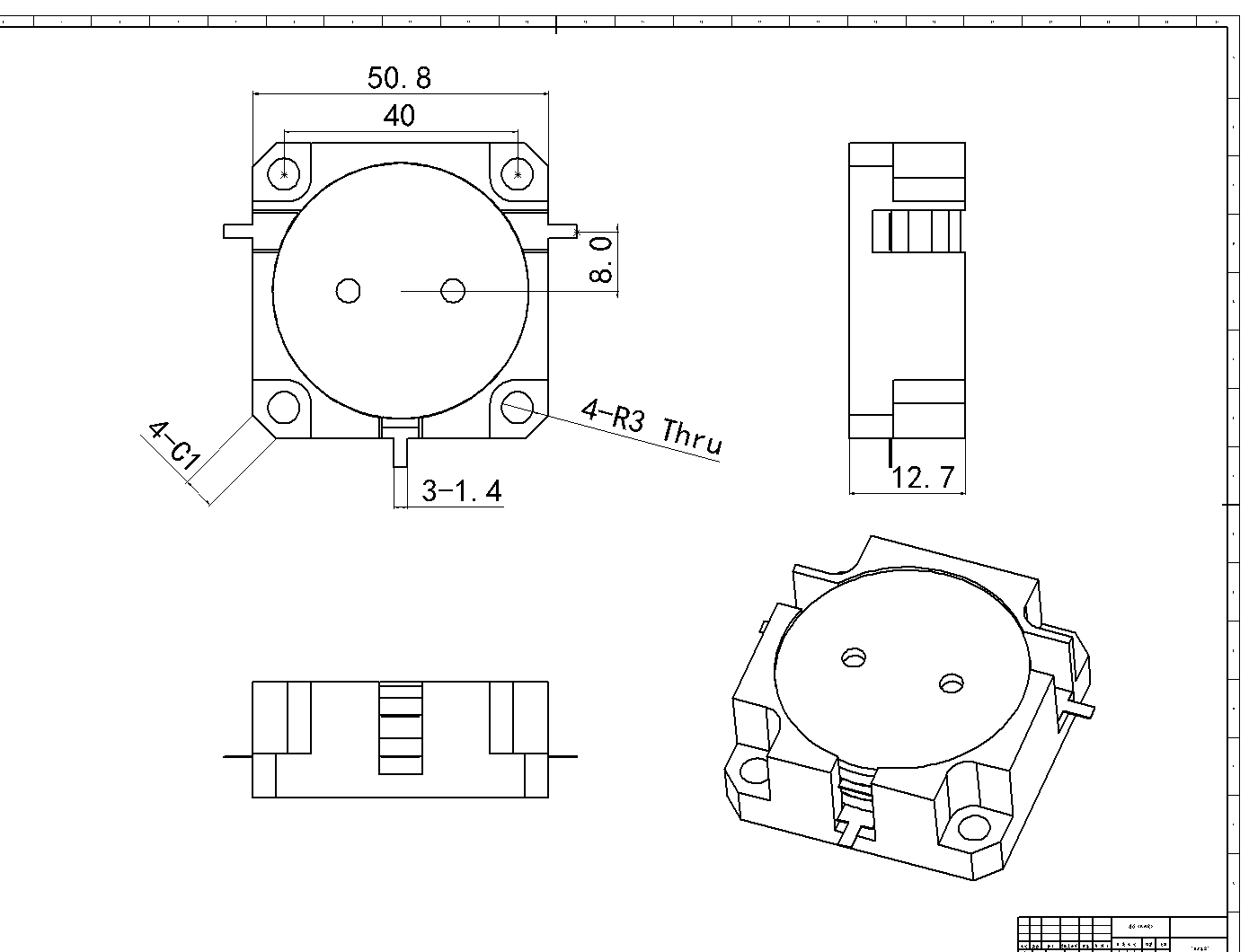

- Outline
- Reviews (0)
Description
The product named OH544-406-450 is high-performance Stripline Embedded Circulator designed for the 406-450 MHz frequency range, suitable for RF front-end applications requiring robust thermal stability and high power reliability.
OH544-406-450 | |
| 0.406 GHz to 0.45 GHz, 0.35 dB Insertion Loss, 18.0 dB Isolation, Drop-in Series Circulators OH544-406-450 | |
Property | Value |
| Frequency (MHz) | 406-450 |
| Return Loss (dB) | 18 |
| Isolation (dB) | 18 |
| Insertion Loss (dB) | 0.35 |
| IMD3 (dBc) | -65 |
| Power (W) | 300 |
| Power note | 2*50W |
| Operating Temp ( degC) | -40 to 85 |
Features | |
| Embedded Stripline Design | |
| High Isolation (18dB) | |
| Low Insertion Loss (0.35dB) | |
| High Power Handling (300W) | |
| Wide Operating Temperature Range (-40 to 85 degC) | |
Applications | |
| Designed for telecommunications applications, featuring robust performance and reliable signal isolation. | |
