0.42 GHz to 0.47 GHz, 0.3 dB Insertion Loss, 21.0 dB Isolation, Drop-in Series Circulators OH542-420-470
Stripline Embedded Circulator
High Isolation
Low Insertion Loss
Stable Performance over Temperature
High Power Handling Capability
- Description
- Datasheet

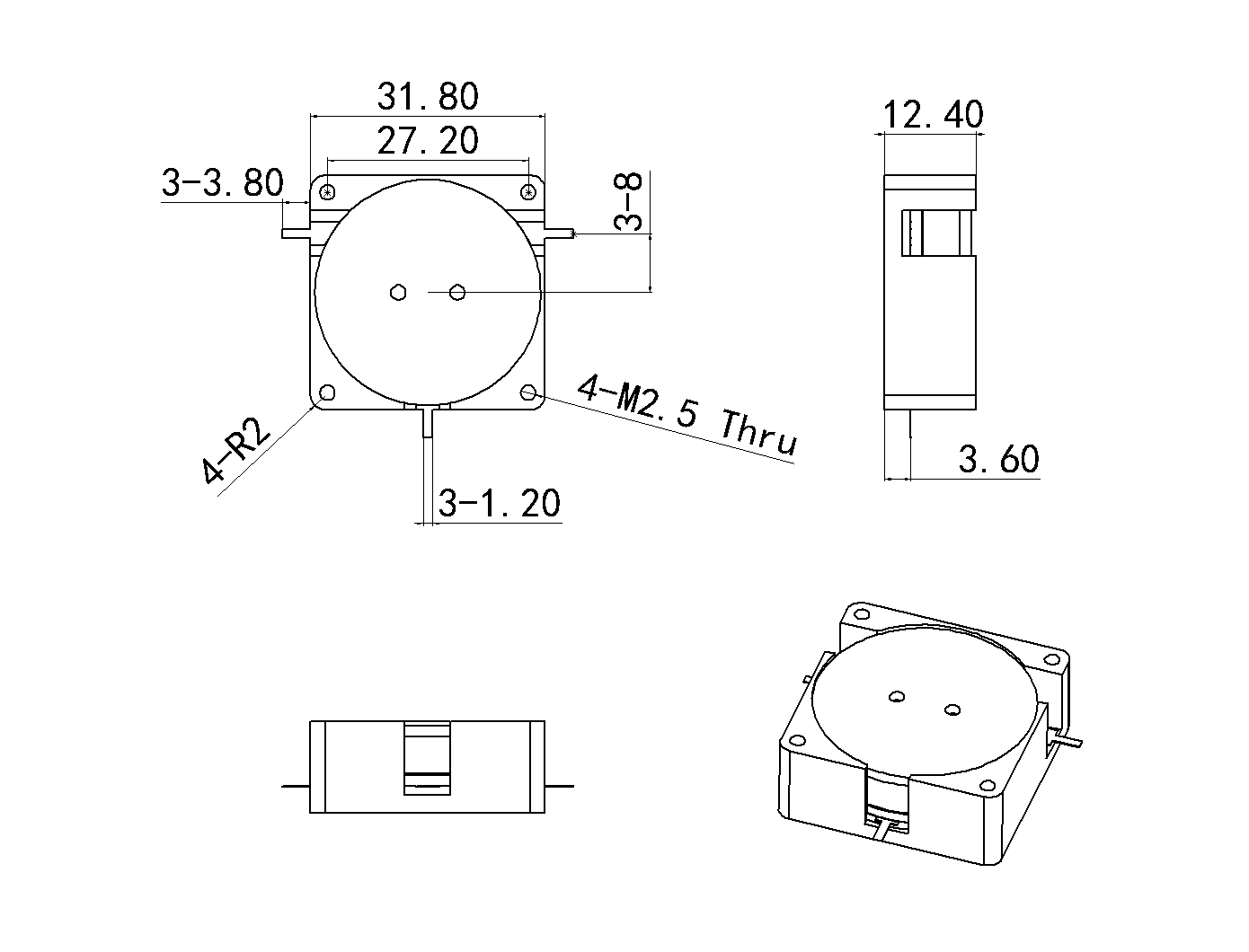

- Outline
- Reviews (0)
Description
The product named OH542-420-470 is high-performance stripline embedded circulator designed for telecommunications applications, offering excellent isolation and low insertion loss across its operating frequency range.
OH542-420-470 | |
| 0.42 GHz to 0.47 GHz, 0.3 dB Insertion Loss, 21.0 dB Isolation, Drop-in Series Circulators OH542-420-470 | |
Property | Value |
| Frequency (MHz) | 420-470 |
| Return Loss (dB) | 21 |
| Isolation (dB) | 21 |
| Insertion Loss (dB) | 0.3 |
| IMD3 (dBc) | -65 |
| Power (W) | 300 |
| Power note | 2*50W |
| Operating Temp ( degC) | -40 to 105 |
Features | |
| Stripline Embedded Circulator | |
| High Isolation | |
| Low Insertion Loss | |
| Stable Performance over Temperature | |
| High Power Handling Capability | |
Applications | |
| Designed for telecommunications applications, featuring robust performance and reliable signal isolation. | |
