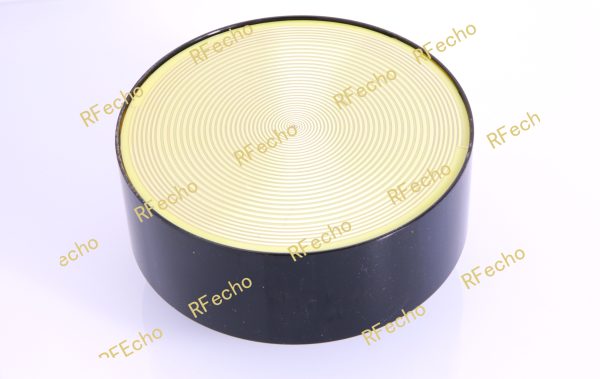

0.5 GHz to 2 GHz Cavity Backed Spiral Antenna OBS-520

-15%

0.5 GHz to 2 GHz Cavity Backed Spiral Antenna OBS-520

0 out of 5

$4,435 $3,770

The OBS-520 is a compact, moderate gain, moderate VSWR, circularly-polarized cavity-backed spiral antenna designed to transmit and receive in the frequency band of 0.5 GHz to 2.0 GHz. The antenna exhibits an excellent impedance match and radiation pattern.

It is capable of receiving both linearly polarized signals and a circularly polarized signal.The linear gain (dBil) is about 3 dB lower than the circular gain (dBic).
The antenna has the advantages of a low profile, a planar aperture, no phase center offset, near constant beam width across the frequency band, normally symmetrical radiation beamwidth,extreme flexibility for carrying, and light weight.

The seadvant ages render the antenna a very good candidate for electronic-warfare,direction-finding, telemetry and surveillance systems, as well as flush-mounted airborne applications. The antenna can be used as a broadband feed for reflector antennas.

The antenna’s outermost dimensions are a diameter of 68mm and height of 50mm.

Description

SPEC

Cavity Backed Spiral Antenna

0.5GHz to 2GHz

OBS-520

The OBS-520 is a compact, moderate gain, moderate VSWR, circularly-polarized cavity-backed spiral antenna designed to transmit and receive in the frequency band of 0.5 GHz to 2.0 GHz.  The antenna exhibits an excellent impedance match and radiation pattern.

It is capable of receiving both linearly polarized signals and a circularly polarized signal. The linear gain (dBil) is about 3 dB lower than the circular gain (dBic).

The antenna has the advantages of a low profile, a planar aperture, no phase center offset, near constant beam width across the frequency band, normally symmetrical radiation bandwidth, extreme flexibility for carrying, and light weight.

The seadvant ages render the antenna a very good candidate for electronic-warfare, direction-finding, telemetry and surveillance systems, as well as flush-mounted airborne applications.  The antenna can be used as a broadband feed for reflector antennas.

The antenna’s outermost dimensions are a diameter of 68mm and height of 50mm.



Applications

Satellite communications
Personal mobile communications
Electronic Warfare, Direction Finding, Telemetry and Surveillance Systems

Embedded Airborne Applications





Features

Very convenient to carry

Wide frequency band

Light Weight

small volume

Easy package

Main lobe width

With circular polarization, wide beam width



Part No.

OBS-520

Frequency*

Nominal Gain3 dB

VSWR

Pattern

3 dB Bandwidth

10 dB Bandwidth

Input Impedance

Input Connector

0.5GHz-2.0GHz

3.6 Typ~6.1Typ

2.5?1Maximum2.0:1 Typical

Directional Bean

65°Minimum?Typical

120° Typical

50 Ohms Nominal

N-female







PDF

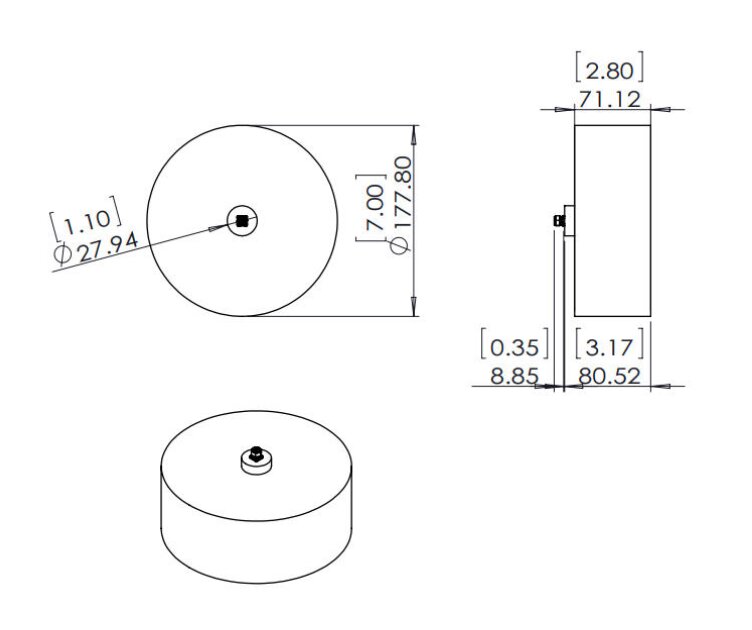

Outline

OBS 520 outline 0.5 GHz to 2 GHz Cavity Backed Spiral Antenna OBS-520

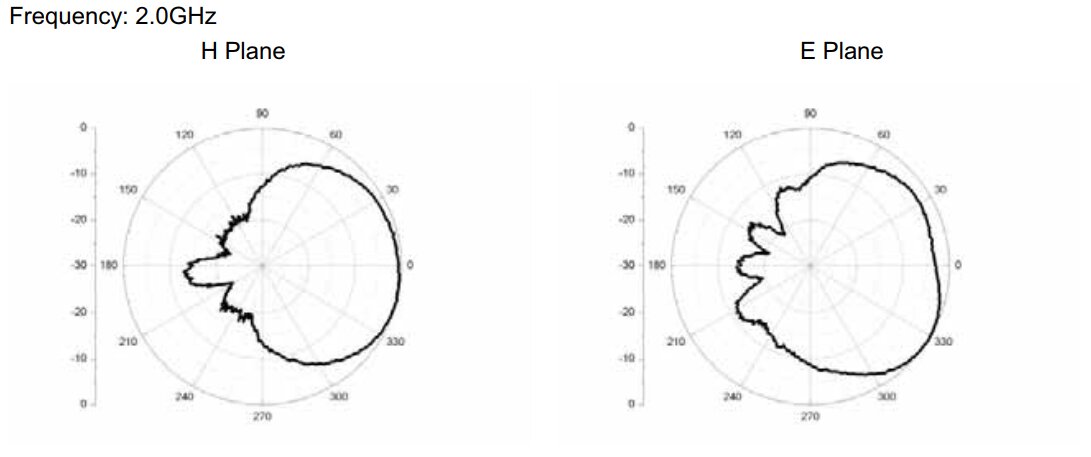

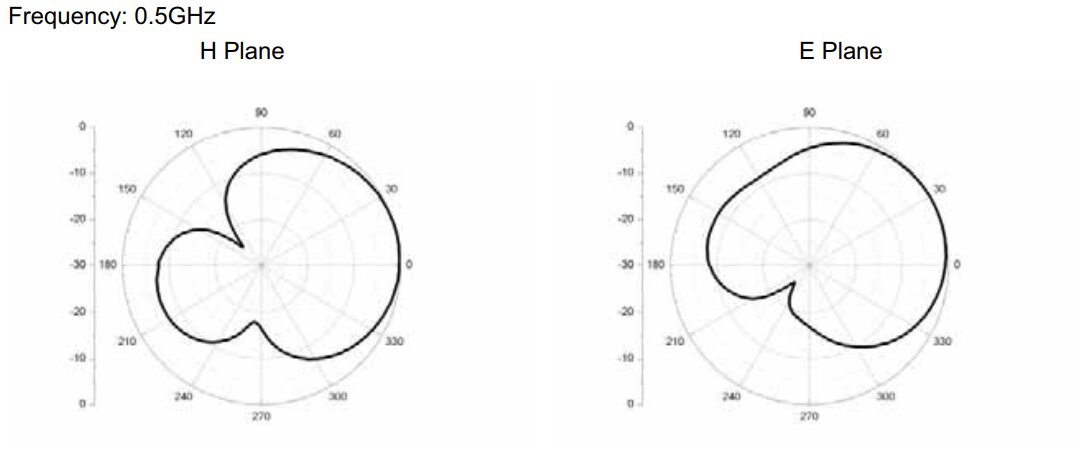

Plot

OBS 520 plot1 0.5 GHz to 2 GHz Cavity Backed Spiral Antenna OBS-520OBS 520 plot2 0.5 GHz to 2 GHz Cavity Backed Spiral Antenna OBS-520

Additional information

Min. Frequency (GHz)

0.5

Max. Frequency (GHz)

2

Gain (dBi)

3.6 Typ~6.1Typ

VSWR

2.5:1

Impedance (Ω)

Connection Type

Polarization
