0.617 GHz to 0.728 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, Drop-in Series Isolator-OHYG511C-617-728
$0.00
High isolation
Low insertion loss
High power handling
Wide operating temperature range
Excellent IMD3 performance
- Description
- Datasheet

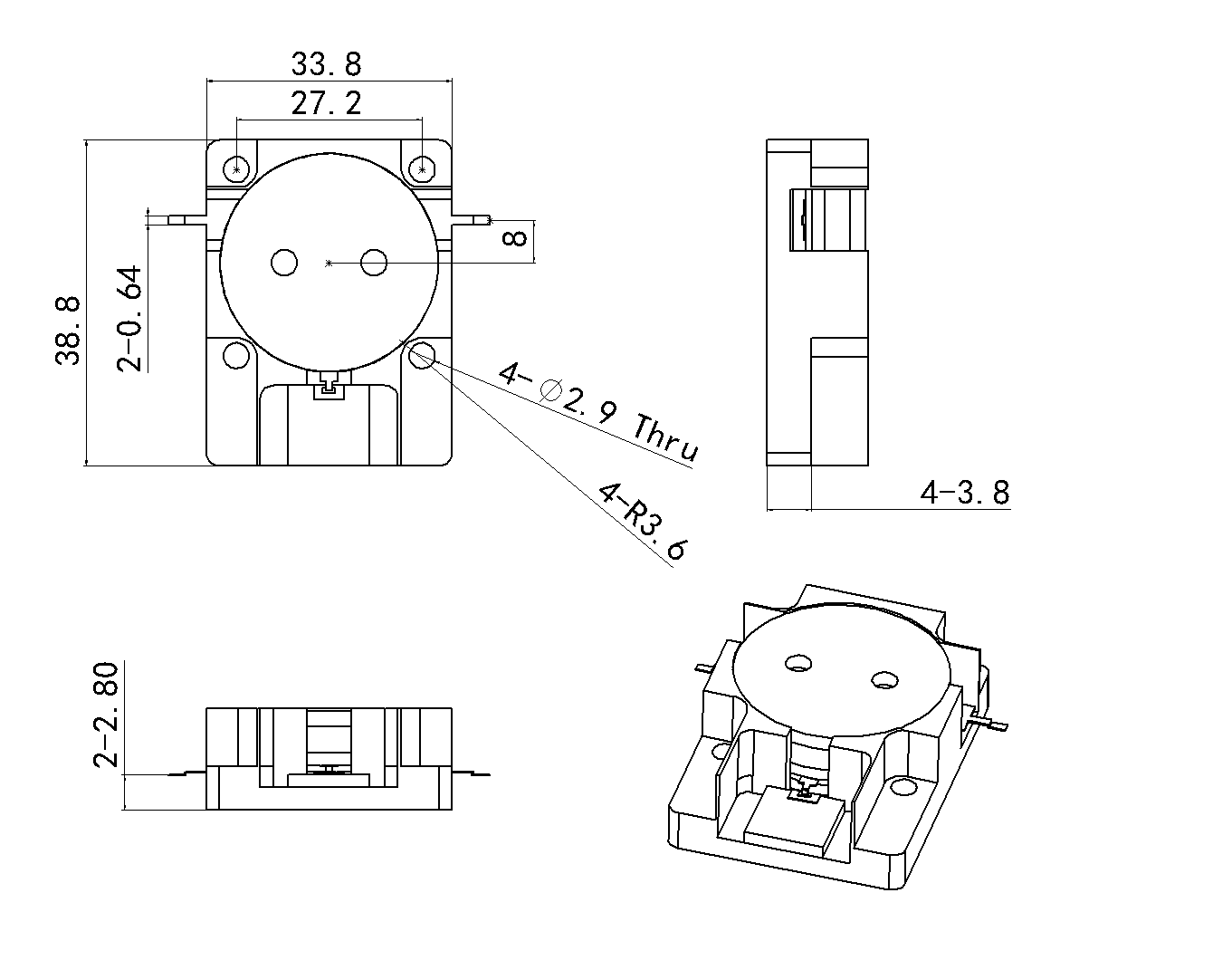

- Outline
- Reviews (0)
Description

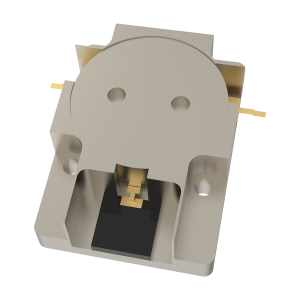

The product named OHYG511C-617-728 is high-performance embedded isolator designed for stripline applications, offering high isolation and low insertion loss across its operating range.
OHYG511C-617-728 |
|
|
0.617 GHz to 0.728 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, Drop-in Series Isolator-OHYG511C-617-728 |
|
Property |
Value |
|
Frequency (MHz) |
617-728 |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
2 |
|
Operating Temp ( degC) |
-40 to 120 |
Features |
|
|
High isolation |
|
|
Low insertion loss |
|
|
High power handling |
|
|
Wide operating temperature range |
|
|
Excellent IMD3 performance |
|
Applications |
|
|
Designed for reliable signal isolation in communication systems. |
|
