0.758 GHz to 0.803 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, Drop-in Series Isolator-OHYG505M-758-803
$0.00
Embedded Stripline Isolator
Low Insertion Loss
High Isolation
Wide Operating Temperature Range
High Forward/Reverse Power Handling
- Description
- Datasheet

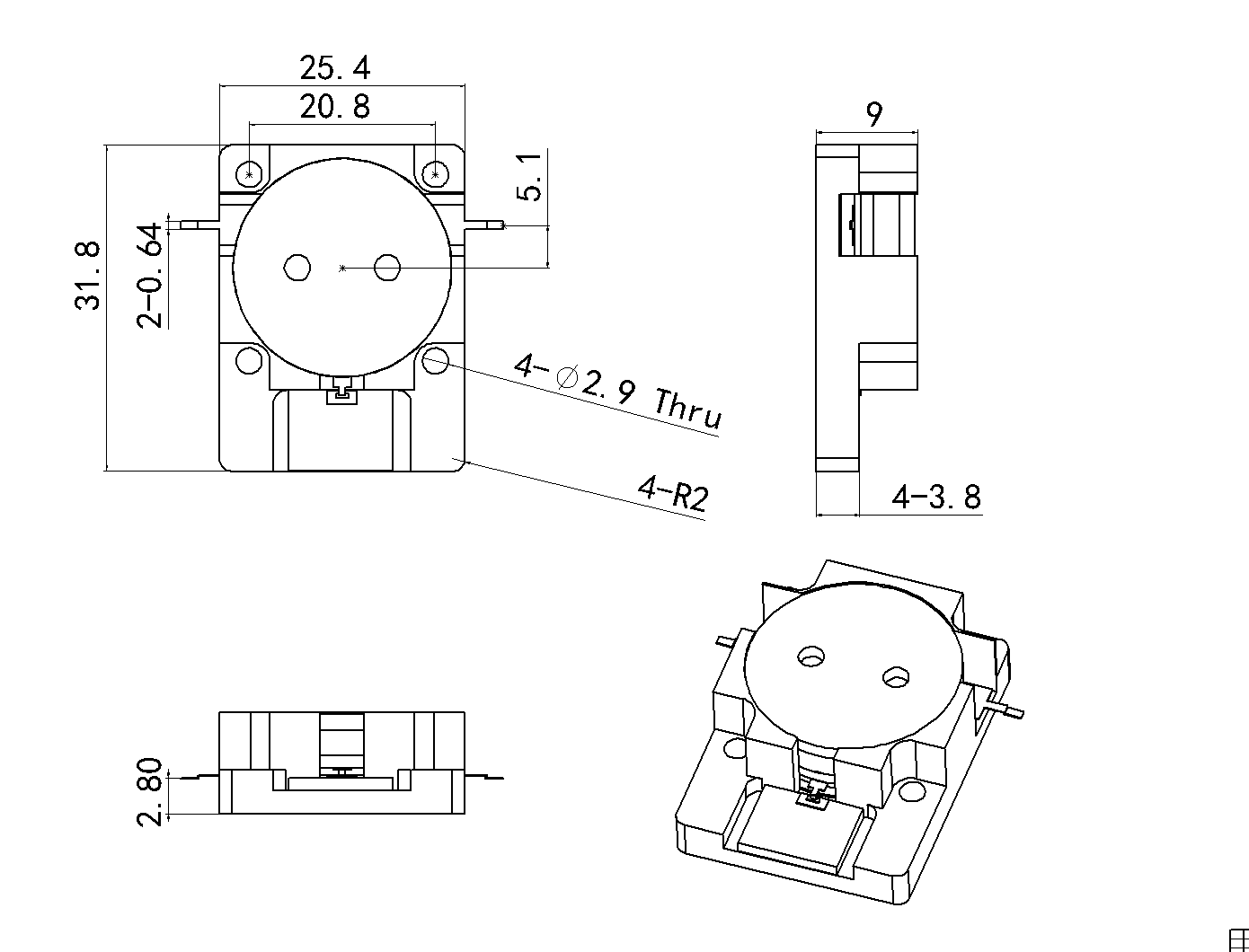

- Outline
- Reviews (0)
Description

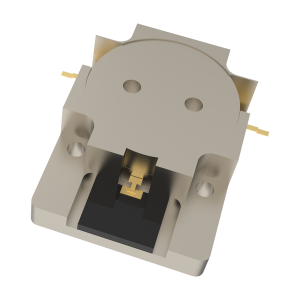

The product named OHYG505M-758-803 is high-performance embedded isolator designed for stripline applications, offering excellent isolation and low insertion loss across the 758-803 MHz frequency range.
OHYG505M-758-803 |
|
|
0.758 GHz to 0.803 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, Drop-in Series Isolator-OHYG505M-758-803 |
|
Property |
Value |
|
Frequency (MHz) |
758-803 |
|
Return Loss (dB) |
22 |
|
Isolation (dB) |
22 |
|
Insertion Loss (dB) |
0.25 |
|
IMD3 (dBc) |
-68 |
|
Power (W) |
2 |
|
Operating Temp ( degC) |
-40 to 120 |
Features |
|
|
Embedded Stripline Isolator |
|
|
Low Insertion Loss |
|
|
High Isolation |
|
|
Wide Operating Temperature Range |
|
|
High Forward/Reverse Power Handling |
|
Applications |
|
|
Designed for reliable signal isolation in communication systems. |
|
