0.758 GHz to 0.96 GHz, 0.3 dB Insertion Loss, 19.0 dB Isolation, SMD Series Circulators Isolator-OHYH101P-758-960
$0.00
Stripline configuration
Surface mount design
High isolation
Low insertion loss
Wide frequency range coverage
- Description
- Reviews (0)
Description
The product named OHYH101P is high-performance stripline surface mount circulator designed for telecommunication applications, offering high isolation and low insertion loss across its operating bandwidth.
OHYH101P-758-960 |
|
|
0.758 GHz to 0.96 GHz, 0.3 dB Insertion Loss, 19.0 dB Isolation, SMD Series Circulators Isolator-OHYH101P-758-960 |
|
Property |
Value |
|
Frequency (MHz) |
758-960 |
|
Return Loss (dB) |
19 |
|
Isolation (dB) |
19 |
|
Insertion Loss (dB) |
0.3 |
|
IMD3 (dBc) |
-60 |
|
Power (W) |
250 |
|
Power note |
2*50W |
|

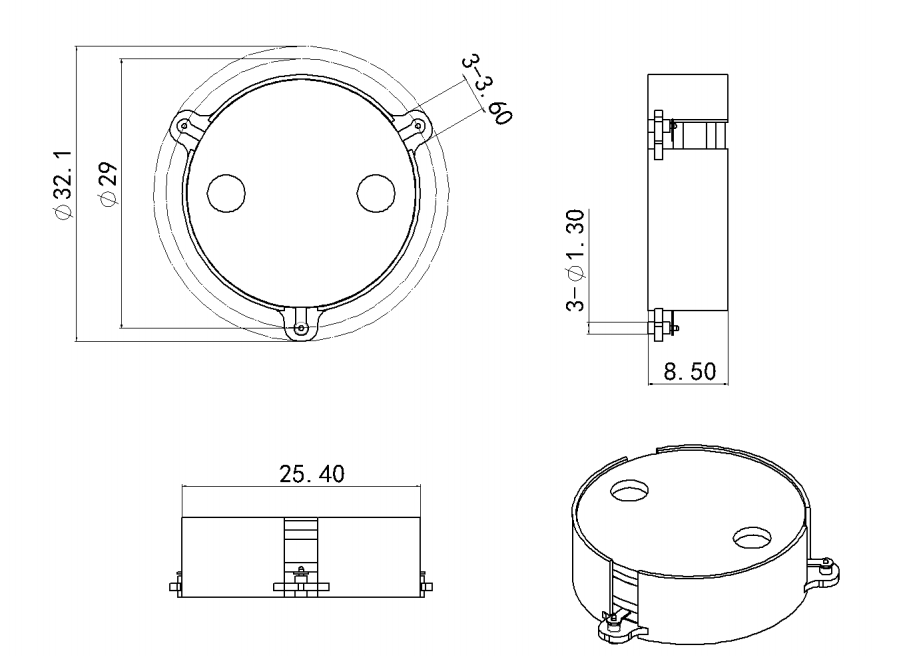

Size |
25.4mm |
|
Operating Temp ( degC) |
-40 to 125 |
Features |
|
|
Stripline configuration |
|
|
Surface mount design |
|
|
High isolation |
|
|
Low insertion loss |
|
|
Wide frequency range coverage |
|
Applications |
|
|
Designed for robust performance in communication systems. |
|
