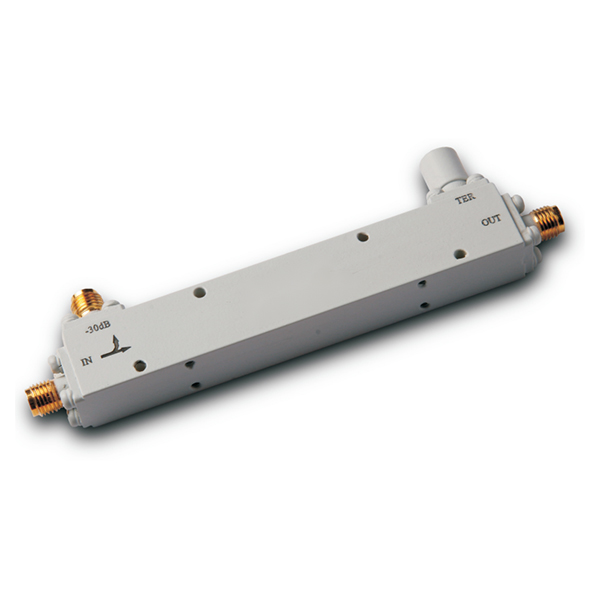

0.8-2.5GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler
Frequency Range: 0.8-2.5 GHz
Insertion Loss: 0.4 dB
Coupling: 30±1 dB
VSWR: 1.2
Directivity: 20 dB
Connector: SMA-K
Power Handling: 50W
Stripline structure
High directivity and low insertion loss
- Description
- Datasheet

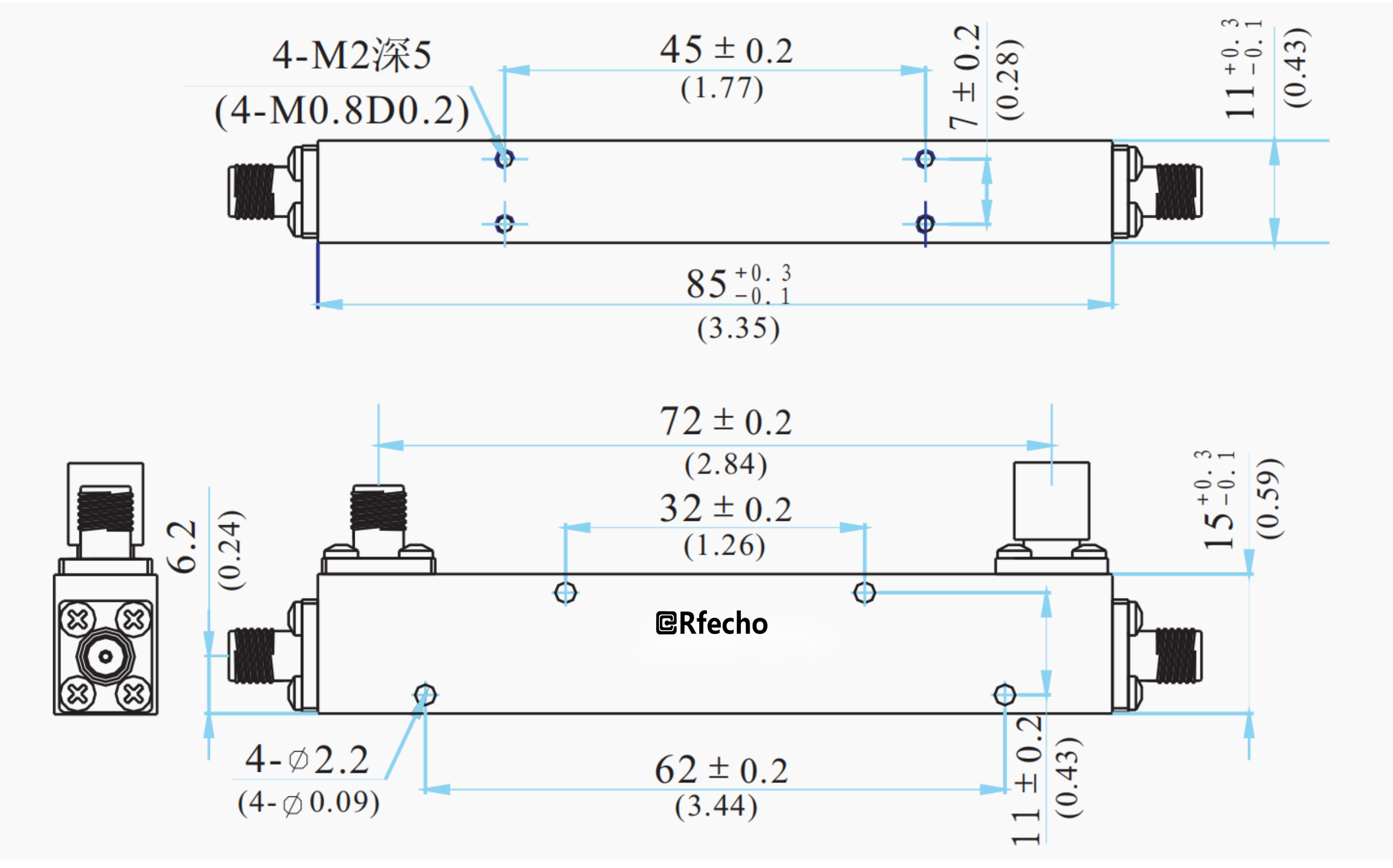

- Outline
- Reviews (0)
Description
The OCP -A1 series of directional couplers covers the0.5-18GHz frequency band. Utilizing SMA connectors anda stripline circuit structure, these devices feature low insertion loss, high directivity, substantial power handling capa-bilities, and built-in termination for convenient usage. TheOPD-A1201 broadband directional coupler is primarily designed for applications in electronic warfare, radar, commu-nications, navigation, and testing/measurement, facilitatingsignal sampling, monitoring, and unequal power distribution.This series is a standardized product line, with custom designs available to meet specific user requirements.
OCP-A1201-30 | |
| 0.8-2.5GHz 0.4dB OCP-A1 Series General Purpose Directional Coupler | |
Property | Value |
| Frequency Range | 0.8-2.5GHz |
| Insertion Loss | 0.4dB |
| Coupling | 30±1dB |
| Power Handling | 50W |
| Connector | SMA-K |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| VSWR | 1.2 |
| Directivity | 20dB |
| Frequency Sensitivity | ±0.70dB |
| Structure | Stripline structure |
| Compliance | Compliant with GJB-1509-1992 test standards |
Features | |
| Frequency Range: 0.8-2.5 GHz | |
| Insertion Loss: 0.4 dB | |
| Coupling: 30±1 dB | |
| VSWR: 1.2 | |
| Directivity: 20 dB | |
| Connector: SMA-K | |
| Power Handling: 50W | |
| Stripline structure | |
| High directivity and low insertion loss | |
Applications | |
| Radar, Communications, Satellite Communications, Navigation, Test & Measurement | |
Reviews
There are no reviews yet.
