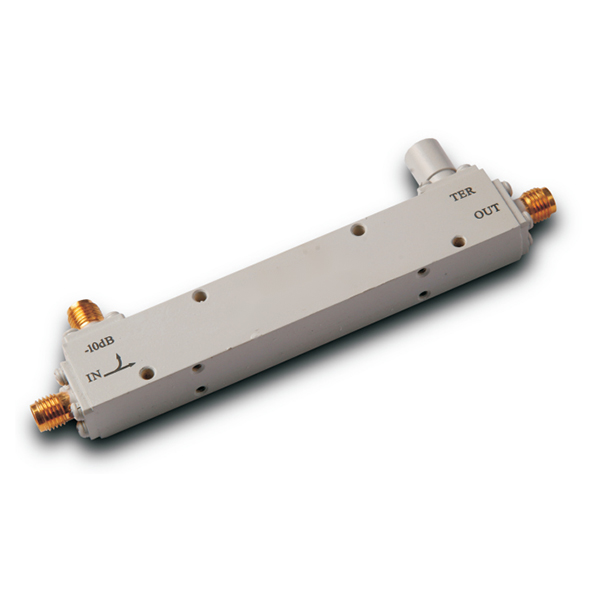

0.8-2.5GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler
Frequency Range: 0.8-2.5GHz
SMA Connectors
Low Insertion Loss
High Directivity
High Power Handling (50W)
Built-in Load
Meets GJB-1509-1992 Environmental Standards
- Description
- Datasheet

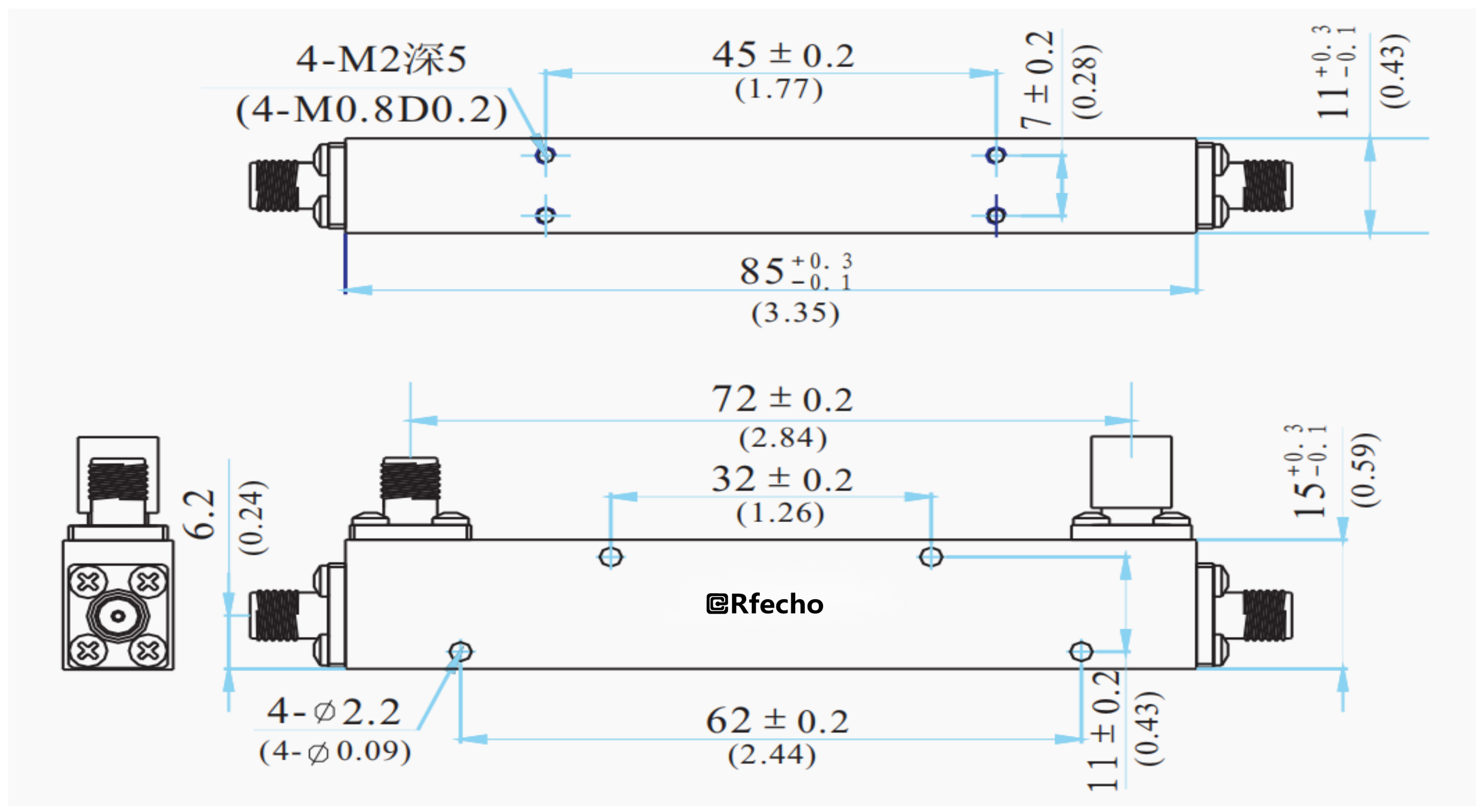

- Outline
- Reviews (0)
Description
The OCP -A1 series of directional couplers covers the0.5-18GHz frequency band. Using SMA connectors and amicrostrip line structure, these devices feature low insertionloss, high directivity, large power handling capacity, and abuilt-in load for ease of use. The OPD-A1201 broadband directional coupler is primarily used in electronic countermea-sures, radar, communications, navigation, and other fieldsfor signal sampling, monitoring, and unequal power distribution/combining. Various coupling degrees are available.
OCP-A1201-10 | |
| 0.8-2.5GHz 0.5dB OCP-A1 Series General Purpose Directional Coupler | |
Property | Value |
| Frequency Range | 0.8-2.5GHz |
| Insertion Loss | 0.5dB |
| Coupling | 10±1dB |
| Power Handling | 50W |
| Connector | SMA |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| VSWR | 1.2 |
| Directivity | 20dB |
| Frequency Sensitivity | ±0.7dB |
| Structure | Stripline structure |
| Compliance | Compliant with GJB-1509-1992 test items and requirements |
Features | |
| Frequency Range: 0.8-2.5GHz | |
| SMA Connectors | |
| Low Insertion Loss | |
| High Directivity | |
| High Power Handling (50W) | |
| Built-in Load | |
| Meets GJB-1509-1992 Environmental Standards | |
Applications | |
| Radar, Communications, Satellite Communications, Navigation, Test & Measurement | |
