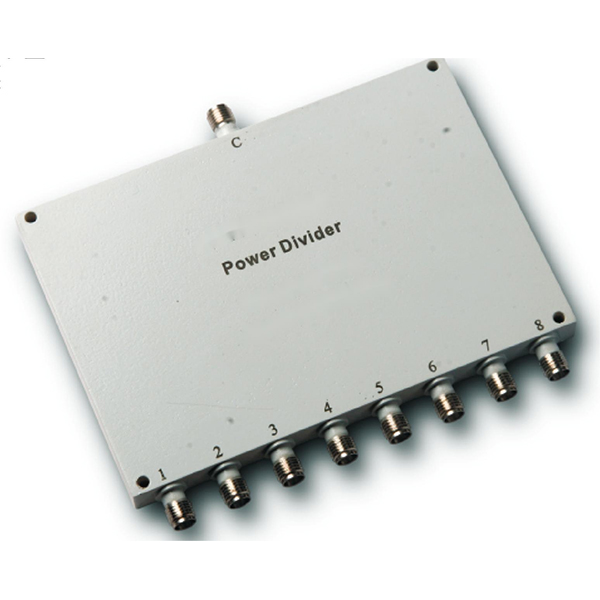

0.8-2.5GHz Insertion Loss 1.20dB SMA Connector 0° Power Divider
SMA connector 0 degree power divider
Full series covers 0.5-18GHz
Small size, low loss, low VSWR, high isolation
Batch production control ensures high consistency
Capable of meeting large-scale delivery requirements
Used for 8-way microwave signal distribution and synthesis
Standardized product, customizable based on user needs
- Description
- Datasheet

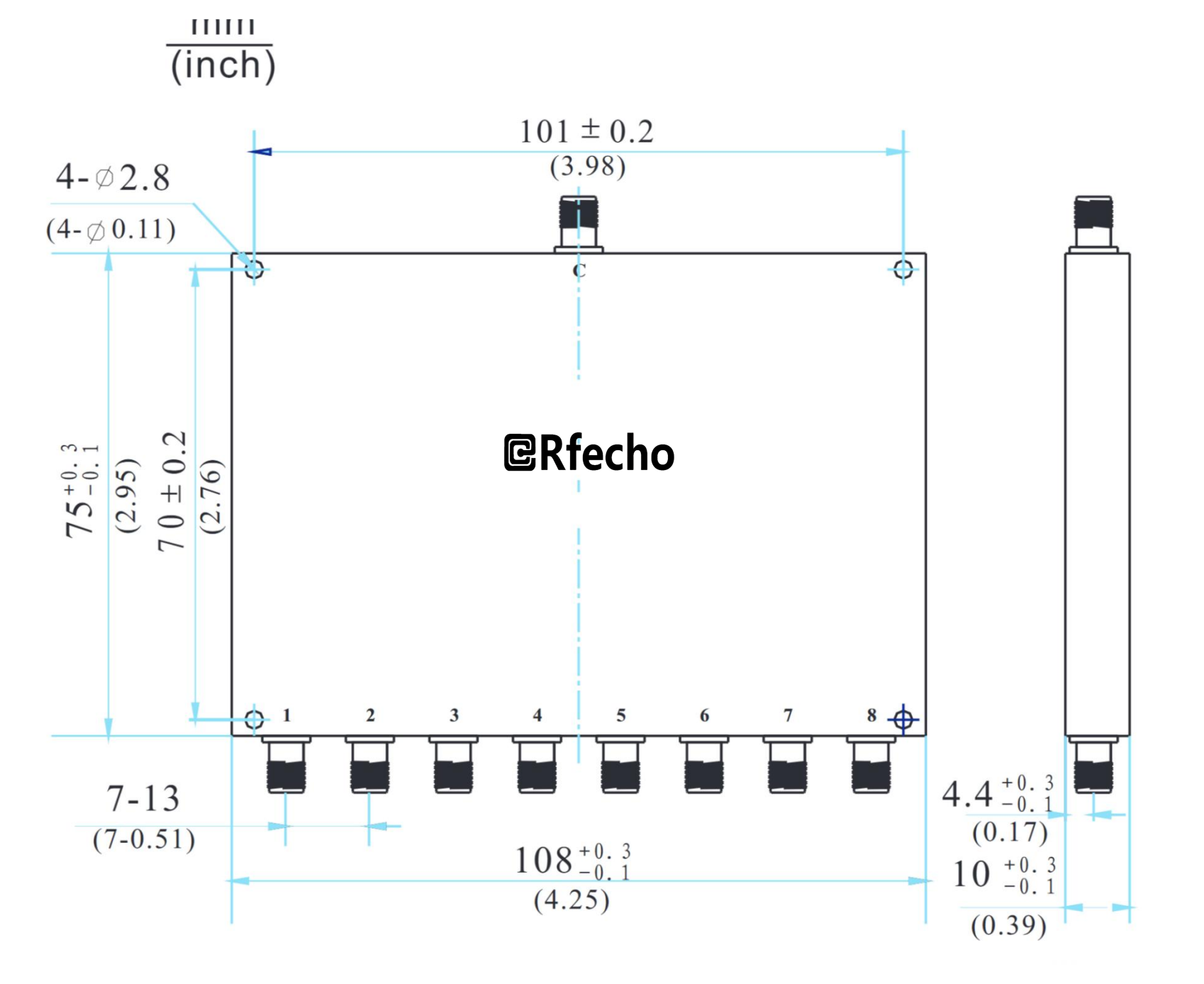

- Outline
- Reviews (0)
Description
The A-series power divider is an SMA connector 0-degreepower divider, with the full series covering 0.5-18GHz. It features small size, low insertion loss, low standing wave ratio(VSWR), and high isolation. This series employs batch production control methods, resulting in high product consisten-cy and the ability to meet large-volume delivery demands.The OPD-A0821 is primarily used in communication, electronic warfare, radar, navigation, testing, and measurementsystems for the distribution and combination of 8-way microwave signals.
OPD-A0821 |
|
|
0.8-2.5GHz Insertion Loss 1.20dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
0.8-2.5GHz |
|
Insertion Loss |
1.20dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.50dB |
|
Phase Balance |
±8° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.4 |
|
Output VSWR |
1.25 |
|
Compliance |
Meets ‘GJB-1426-92’ test items and requirements |
Features |
|
|
SMA connector 0 degree power divider |
|
|
Full series covers 0.5-18GHz |
|
|
Small size, low loss, low VSWR, high isolation |
|
|
Batch production control ensures high consistency |
|
|
Capable of meeting large-scale delivery requirements |
|
|
Used for 8-way microwave signal distribution and synthesis |
|
|
Standardized product, customizable based on user needs |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
