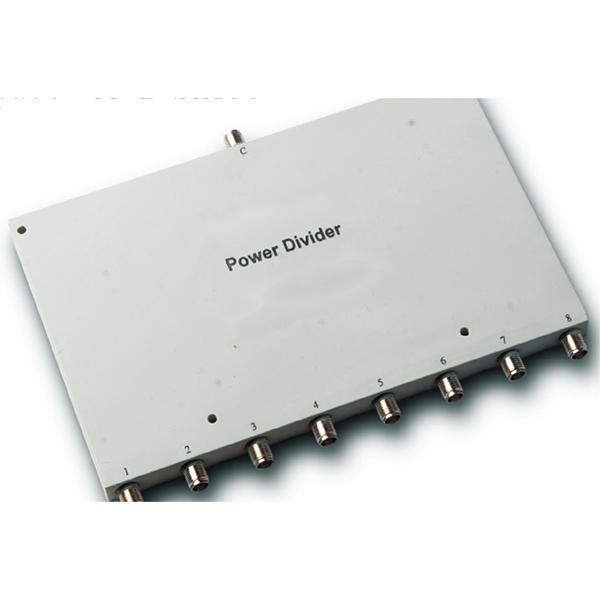

2-18GHz Insertion Loss 3.50dB SMA Connector 0° Power Divider
SMA connectors
0-degree power divider
Covers 0.5-18GHz frequency range
Small size
Low loss
Low VSWR
High isolation
High mass production consistency
- Description
- Datasheet

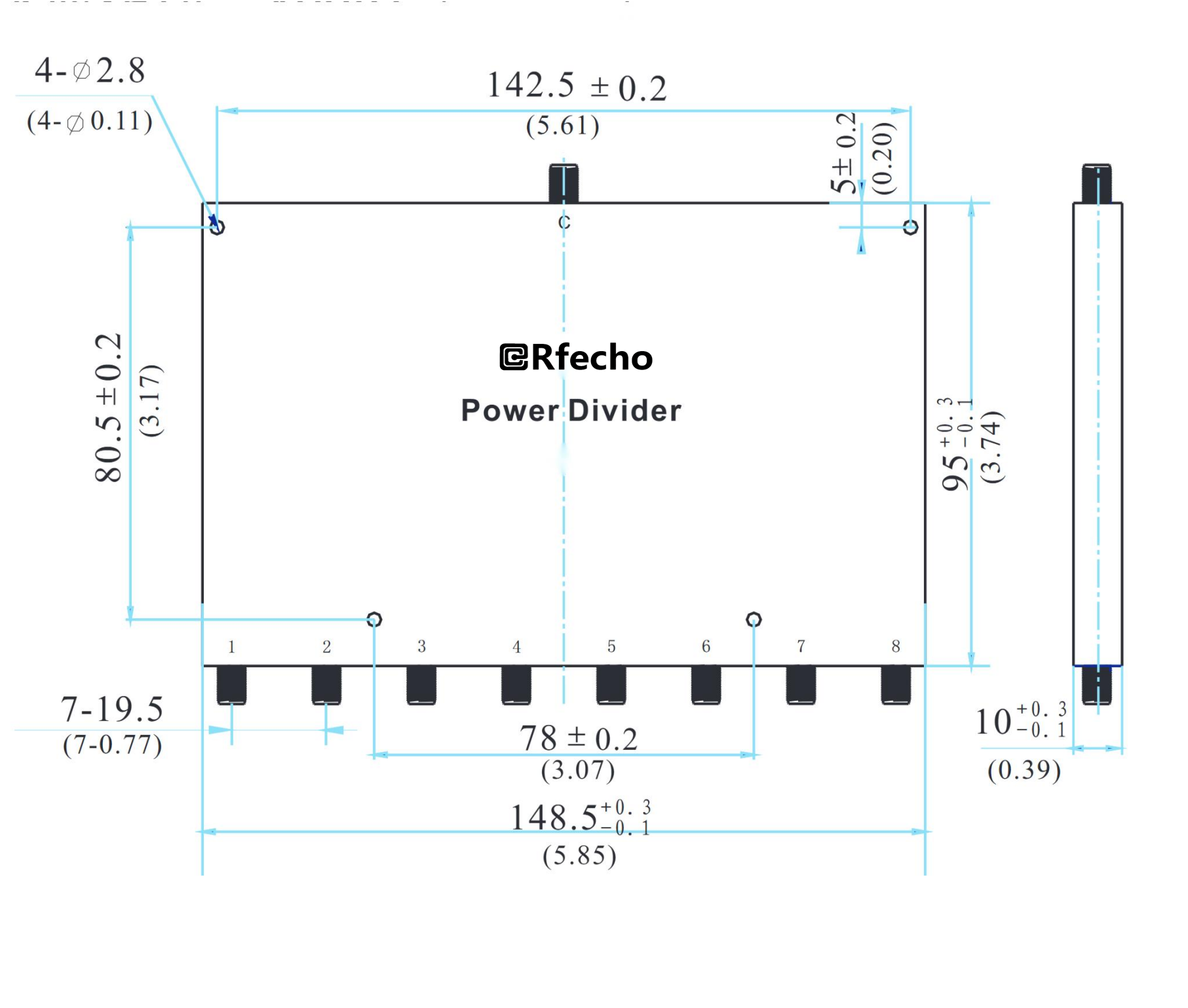

- Outline
- Reviews (0)
Description
The A-series power dividers are SMA connector 0° power dividers, covering the full 0.5-18GHz range. They feature com-pact size, low loss, low standing wave, and high isolation.This series utilizes mass production control methods, ensuring high product consistency to meet large-volume user de-mands. The OPD-A0812 is mainly used in electronic countermeasures, testing, and measurement ultra-wideband sys-tems for the distribution and synthesis of 8-way microwavesignals.
OPD-A0812 | |
| 2-18GHz Insertion Loss 3.50dB SMA Connector 0° Power Divider | |
Property | Value |
| Frequency Range | 2-18GHz |
| Insertion Loss | 3.50dB |
| Isolation | 15dB |
| Power Handling | 30W |
| Connector | SMA-F |
| Amplitude Balance | ±0.80dB |
| Phase Balance | ±10° |
| Operating Temperature | -55~+85°C |
| Storage Temperature | -55~+100°C |
| Input VSWR | 1.85 |
| Output VSWR | 1.6 |
| Compliance | Meets ‘GJB-1426-92’ test requirements |
Features | |
| SMA connectors | |
| 0-degree power divider | |
| Covers 0.5-18GHz frequency range | |
| Small size | |
| Low loss | |
| Low VSWR | |
| High isolation | |
| High mass production consistency | |
Applications | |
| Electronic Countermeasures, Testing and Measurement | |
