OH532-850-890
Three-port drop-in circulator
850-890 MHz · 0.25 dB insertion loss · 23 dB isolation
25.4 x 25.4 x 10 mm · 250 W
- Description
- Datasheet
- Outline
- Data
- Reviews (0)
Description
Technical specifications
850-890 MHzFrequency range
0.25 dBInsertion loss
23 dBIsolation
- Frequency range
- 850-890 MHz
- Insertion loss
- 0.25 dB
- Isolation
- 23 dB
- Return loss
- 23 dB
- Power rating
- 250 W
- IMD3
- -65 dBc at 2 x 50 W
- Operating temperature
- -40 to +85 °C
- Body dimensions
- 25.4 x 25.4 x 10 mm
- Mounting holes
- 4 x Ø2.7 through; 20.8 mm pitch
- RF tabs
- 3 x 1.2 mm wide; 2.5 ±0.5 mm projection
Circulator details
OH532-850-890 · Three-port drop-in circulator · 850-890 MHz
Compact embedded stripline circulator with three flat RF solder tabs and four corner mounting ears. Rated power: 250 W. IMD3 test condition: 2 x 50 W.

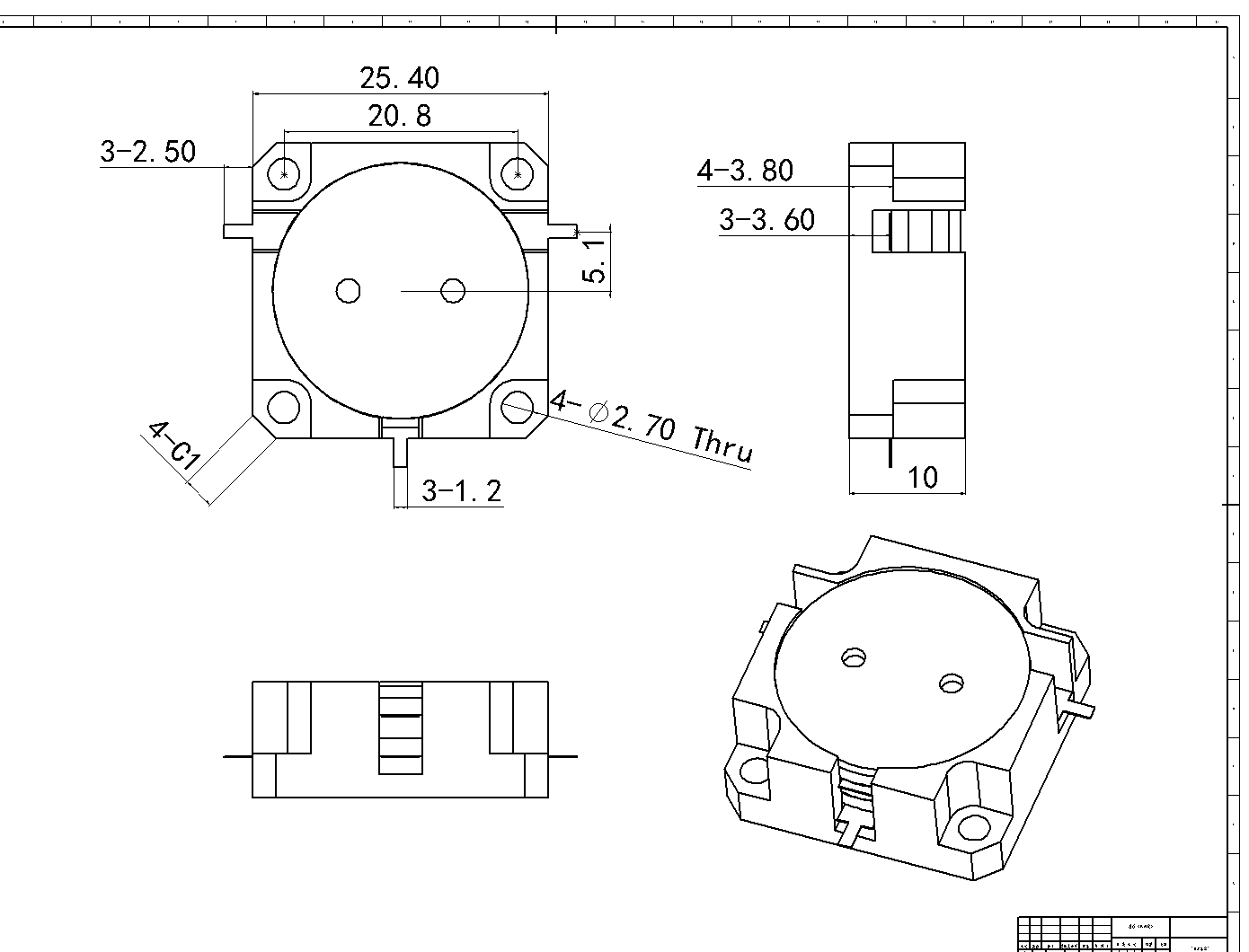

Mechanical outline

Supplier reference performance plots
Original H532 catalog reference; markers at 1805 and 2180 MHz. Original port designations are retained. These plots are not measurements at 850-890 MHz.
Product datasheet
Full specifications, mechanical dimensions and supplier reference performance plots.
