OHP-1000-10000-A:

  • Cut Off Frequency: 0.65GHz,
  • Pass Band Frequency:  1-10GHz,
  • Pass Band Insertion Loss: 1.7dB,
  • Pass Band VSWR: 2.0,
  • Rejection: ≥60 dB @ DC-0.65 GHz
SKU: OHP-1000-10000-A Categories: , Tag:

Description

RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

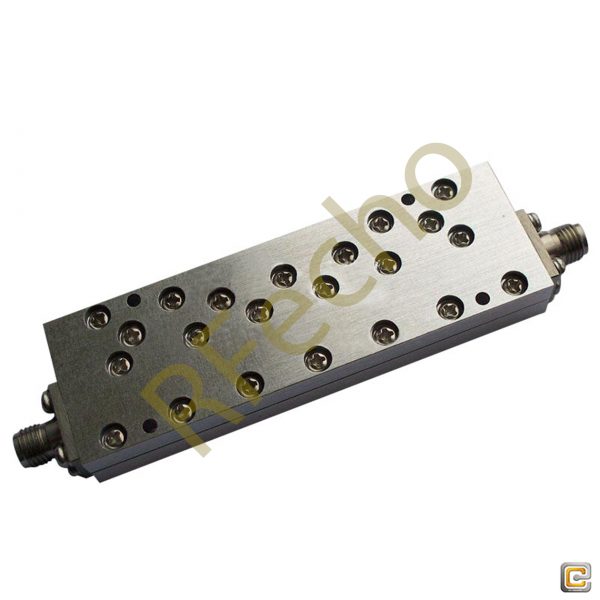

High Pass Cavity Filter – OHP-1000-10000-A:

  • Cut Off Frequency: 0.65GHz,
  • Pass Band Frequency:  1-10GHz,
  • Pass Band Insertion Loss: 1.7dB,
  • Pass Band VSWR: 2.0,
  • Rejection: ≥60 dB @ DC-0.65 GHz

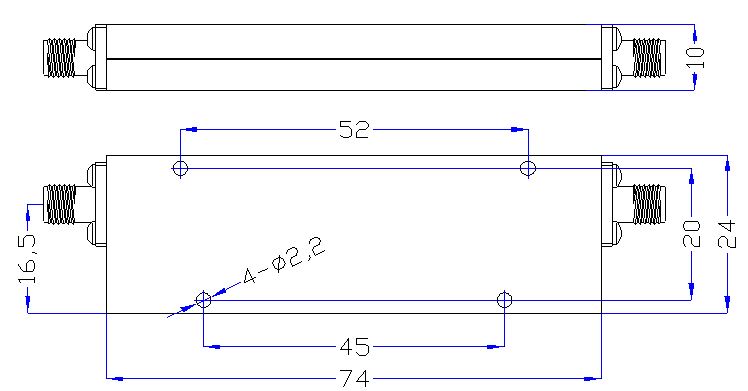

Outline

1.0 GHz to 10 GHz Rejection ≥60 dB @ DC-0.65 GHz High Pass Cavity Filter 01

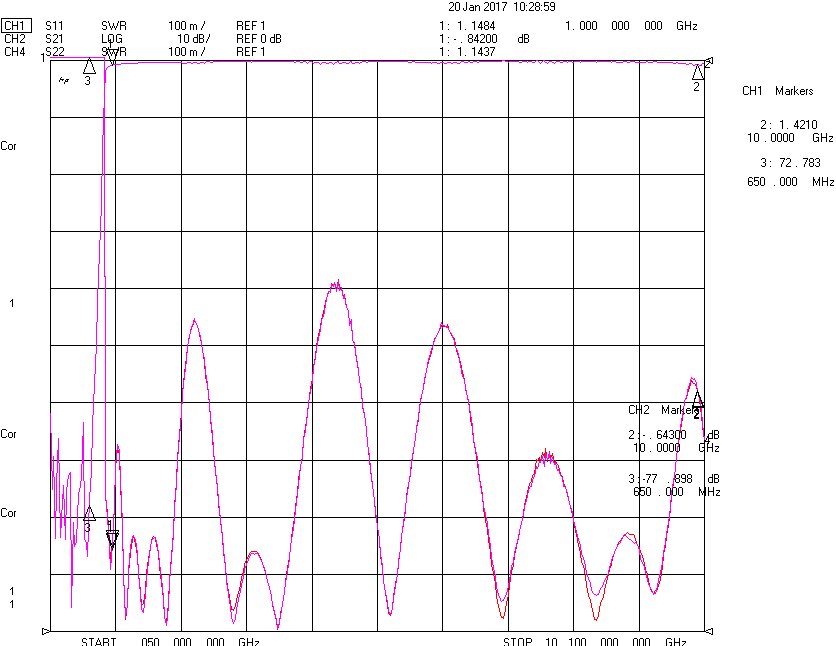

Plot

1.0 GHz to 10 GHz Rejection ≥60 dB @ DC-0.65 GHz High Pass Cavity Filter 02

PDF

Additional information

Weight 0.05 kg
Min. Pass Band Frequency (GHz)

Max. Pass Band Frequency (GHz)

Connection Type

Power Handling (W)

Insertion Loss

VSWR

≤2.0:1 (Type≤1.7:1)

Rejection

Impedance (Ω)

Surface Finish
