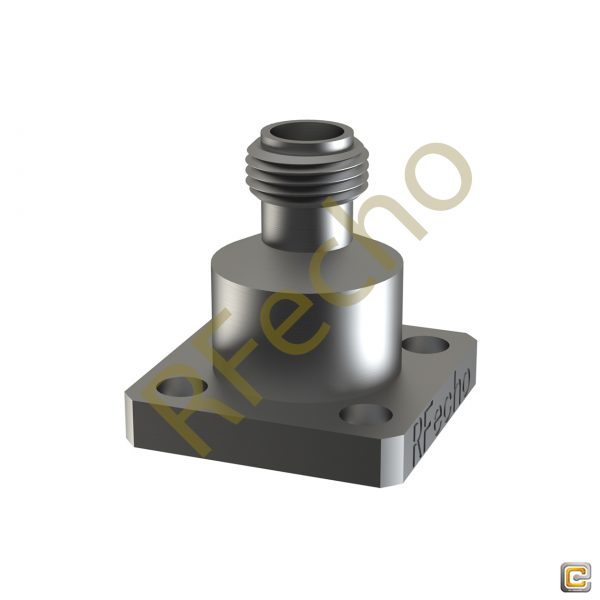

1.0mm 110 GHz, 0.009″ Accept Pin Diameter, 4 Hole 0.375″ Square Mounting Flange Female Connector

1.0mm 110 GHz, 0.009″ Accept Pin Diameter, 4 Hole 0.375″ Square Mounting Flange Female Connector

This Model D100-P09-F02 is a Female connector. 1.0mm connector is rugged and durable, featuring a 360° raised grounding ring and operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, and the industry’s lowest VSWR 1.2:1, insertion loss 0.6 dB, and RF leakage ≤ -100 dB.

1.00mm (W) Connector offer the frequency range from DC to 110 GHz, with 4 Hole0.375″ Square mounting 1.00mm (W) Connector has an accept pin diameter of 0.009″inches.

Description

SPEC

1.00mm (W) Connector

1.0mm 110 GHz, 0.009″ Accept Pin Diameter, 4 Hole 0.375″ Square Mounting Flange Female Connector

D100-P09-F02

This Model D100-P09-F02 is a Female connector. 1.0mm connector is rugged and durable, featuring a 360° raised grounding ring and operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, and the industry’s lowest VSWR 1.2:1, insertion loss 0.6 dB, and RF leakage ≤ -100 dB.

1.00mm (W) Connector offer the frequency range from DC to 110 GHz, with 4 Hole0.375″ Square mounting 1.00mm (W) Connector has an accept pin diameter of 0.009″inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

110

Flange (inch)

0.375″ Square

Mounting

4 Hole

Accept Pin Diameter (inch)

0.009″

Gender

Female

Features

Low VSWR

Free through 110 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

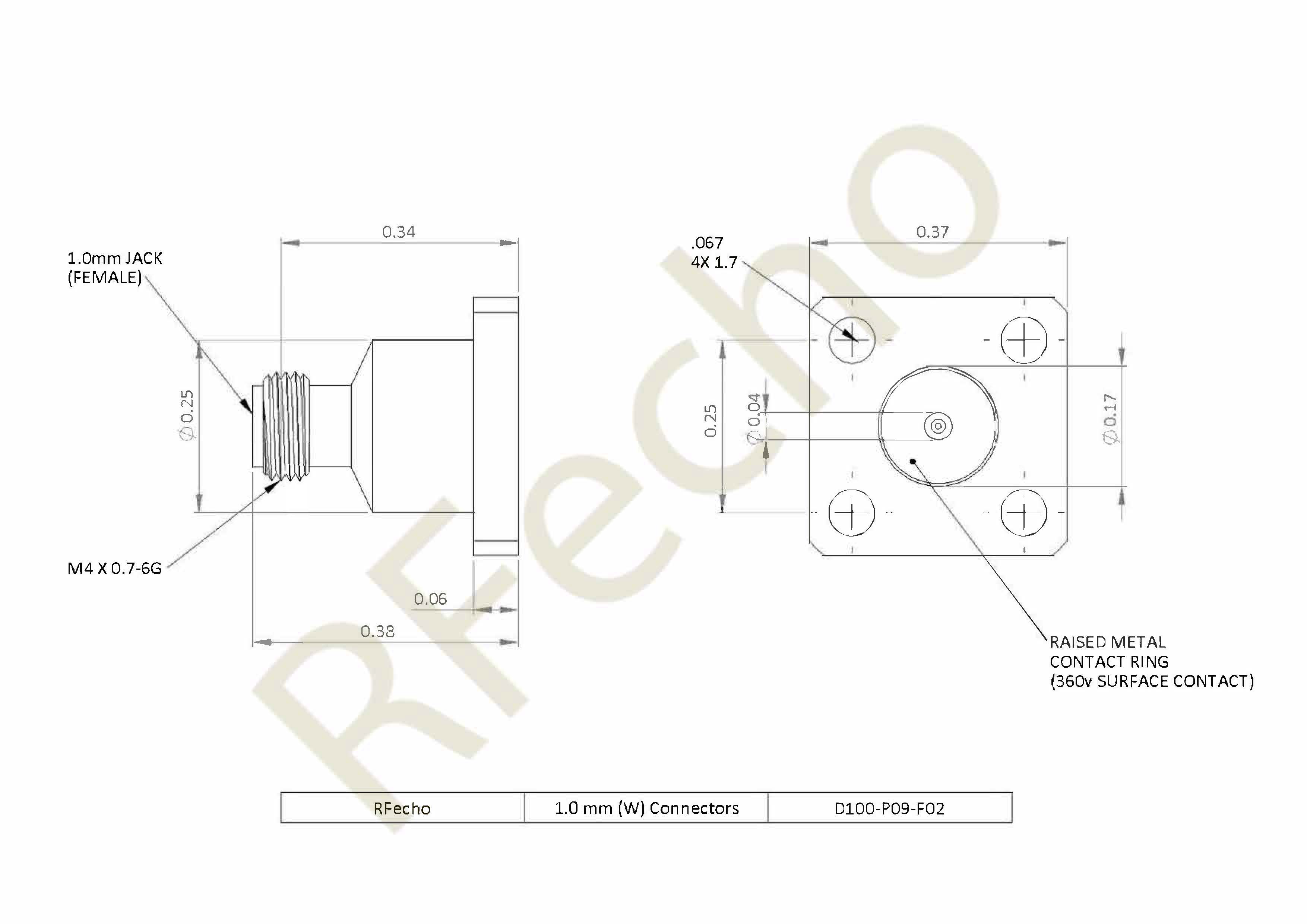

Outline

D100 P09 F02 outline 1.0mm 110 GHz, 0.009″ Accept Pin Diameter, 4 Hole 0.375″ Square Mounting Flange Female Connector

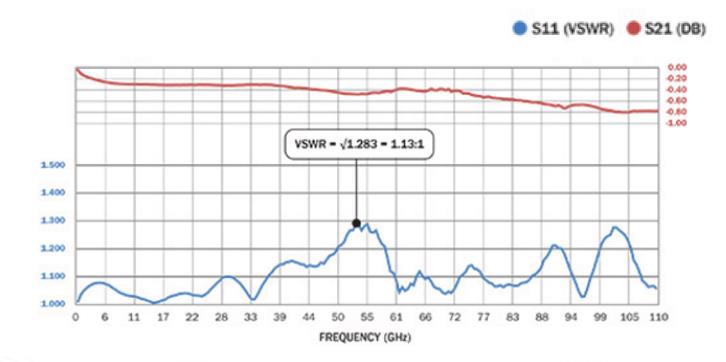

Plot

D100 P09 F02 plot1 1.0mm 110 GHz, 0.009″ Accept Pin Diameter, 4 Hole 0.375″ Square Mounting Flange Female Connector
