OH532-1452-1492

Three-port drop-in circulator

1452-1492 MHz · 0.25 dB insertion loss · 22 dB isolation

25.4 x 25.4 x 10 mm · 250 W

SKU: OH532-1452-1492 Categories: Circulators, Drop-In Series Circulators

Description

Technical specifications

1452-1492 MHzFrequency range
0.25 dBInsertion loss
22 dBIsolation
Frequency range
1452-1492 MHz
Insertion loss
0.25 dB
Isolation
22 dB
Return loss
22 dB
Power rating
250 W
IMD3
-65 dBc at 2 x 50 W
Operating temperature
-40 to +85 °C
Body dimensions
25.4 x 25.4 x 10 mm
Mounting holes
4 x Ø2.7 through; 20.8 mm pitch
RF tabs
3 x 1.2 mm wide; 2.5 ±0.5 mm projection

Circulator details

OH532-1452-1492 · Three-port drop-in circulator · 1452-1492 MHz

Compact embedded stripline circulator with three flat RF solder tabs and four corner mounting ears. Rated power: 250 W. IMD3 test condition: 2 x 50 W.

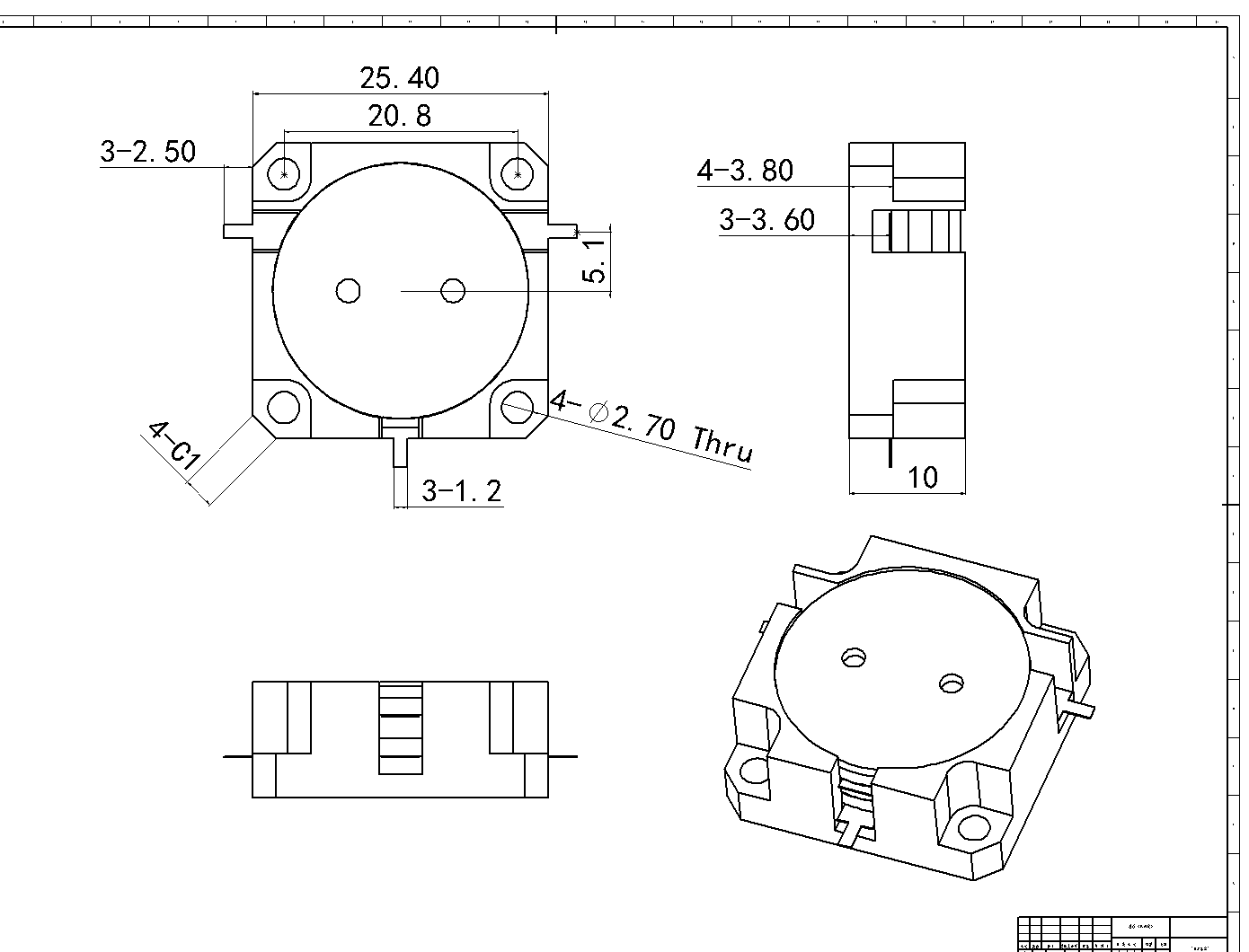

Mechanical outline

OH532-1452-1492 mechanical dimensions
Top, side, front and isometric views. Dimensions in mm.

Supplier reference performance plots

Original H532 catalog reference; markers at 1805 and 2180 MHz. Original port designations are retained. These plots are not measurements at 1452-1492 MHz.

S11

S11 original supplier reference plot

Original supplier marker data
Frequency (MHz) Magnitude (dB)
1805 -36.828
2180 -31.680

S12

S12 original supplier reference plot

Original supplier marker data
Frequency (MHz) Magnitude (dB)
1805 -0.1574
2180 -0.1782

S22

S22 original supplier reference plot

Original supplier marker data
Frequency (MHz) Magnitude (dB)
1805 -29.619
2180 -34.224

S21

S21 original supplier reference plot

Original supplier marker data
Frequency (MHz) Magnitude (dB)
1805 -31.748
2180 -31.331

Product datasheet

Full specifications, mechanical dimensions and supplier reference performance plots.

Download PDF datasheet

OH532-1452-1492-Outline
