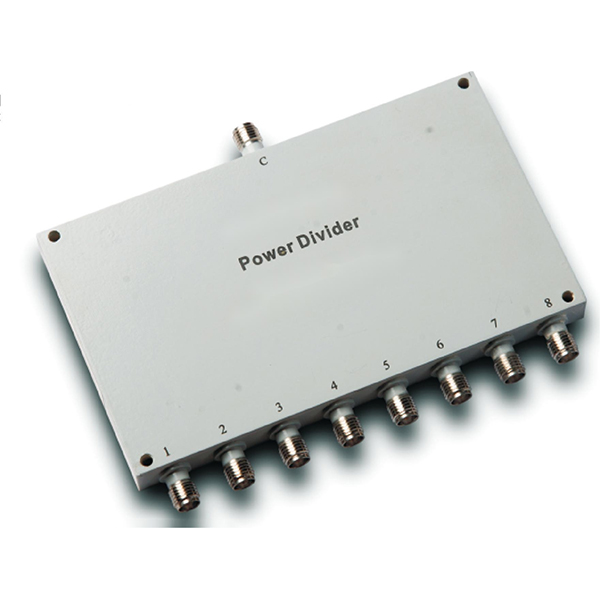

1-4GHz Insertion Loss 1.50dB SMA Connector 0° Power Divider
Frequency Range: 1-4GHz
8-Way Power Divider
SMA Connectors
Low Insertion Loss
High Isolation
Low VSWR
Small Size
High Consistency Mass Production
- Description
- Datasheet

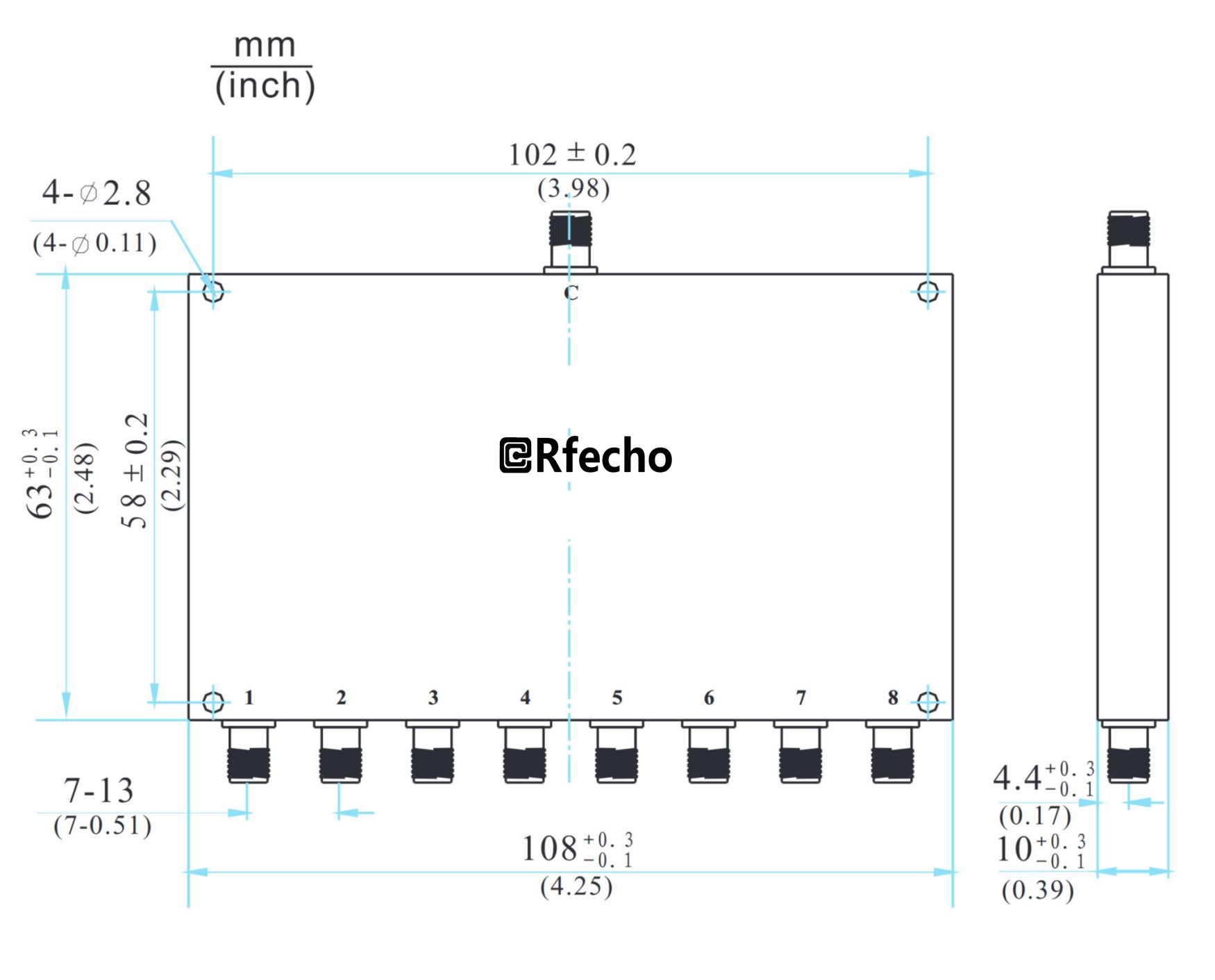

- Outline
- Reviews (0)
Description
The OPD-A series power dividers are 0° power dividers withSMA connectors, covering the full 0.5-18GHz range. Theyfeature small size, low consumption, low VSWR, and highisolation. The series utilizes mass production control measures, ensuring high product consistency capable of meet-ing large-volume delivery requirements. The OPD-A0822 isprimarily used in communication, electronic warfare, radar,navigation, and test and measurement systems for the distribution and combination of 8-way microwave signals. Thisseries consists of standardized products; custom designs areavailable based on user needs, and other catalog and military-standard products are also available.
OPD-A0822 |
|
|
1-4GHz Insertion Loss 1.50dB SMA Connector 0° Power Divider |
|
Property |
Value |
|
Frequency Range |
1-4GHz |
|
Insertion Loss |
1.50dB |
|
Isolation |
20dB |
|
Power Handling |
30W |
|
Connector |
SMA-F |
|
Amplitude Balance |
±0.40dB |
|
Phase Balance |
±4° |
|
Operating Temperature |
-55~+85°C |
|
Storage Temperature |
-55~+100°C |
|
Input VSWR |
1.4 |
|
Output VSWR |
1.3 |
|
Compliance |
Meets ‘GJB-1426-92’ test items and requirements |
Features |
|
|
Frequency Range: 1-4GHz |
|
|
8-Way Power Divider |
|
|
SMA Connectors |
|
|
Low Insertion Loss |
|
|
High Isolation |
|
|
Low VSWR |
|
|
Small Size |
|
|
High Consistency Mass Production |
|
Applications |
|
|
Electronic Countermeasures, Testing and Measurement |
|
