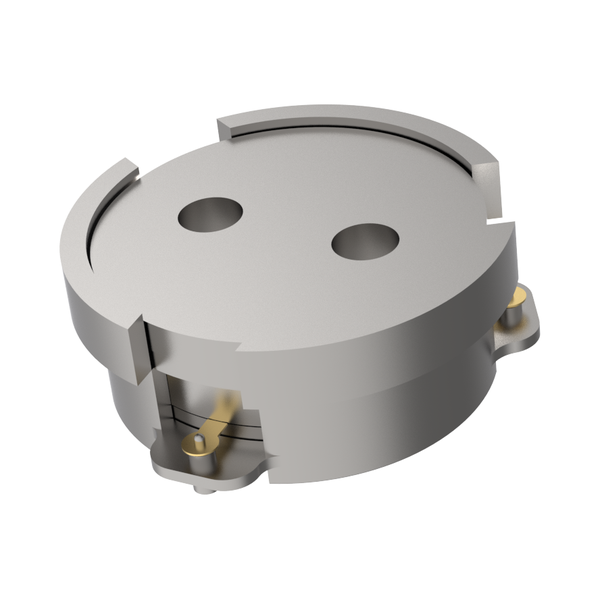

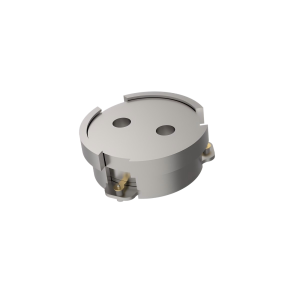

1.805 GHz to 1.88 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, SMD Series Circulators Isolator-OHYH102B-1805-1880
$0.00
Surface mount design for easy PCB integration
High isolation (22 dB)
Low insertion loss (0.25 dB)
High power handling (160W)
Wide operating temperature range (-40 degC to +120 degC)
Low IMD3 (-65 dBc @ 2*30W)
- Description
- Reviews (0)
Description
The product named OHYH102B-1805-1880 is high-performance stripline surface mount circulator designed for telecommunications and RF applications requiring high isolation and low insertion loss.
OHYH102B-1805-1880 |
|
|
1.805 GHz to 1.88 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, SMD Series Circulators Isolator-OHYH102B-1805-1880 |
|
Property |
Value |
|
Frequency (MHz) |
1805-1880 |
|
Return Loss (dB) |
22 |
|
Isolation (dB) |
22 |
|
Insertion Loss (dB) |
0.25 |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
160 |
|
Power note |
2*30W |
|
Operating Temp ( degC) |
-40 to 120 |
Features |
|
|
Surface mount design for easy PCB integration |
|
|
High isolation (22 dB) |
|
|
Low insertion loss (0.25 dB) |
|
|
High power handling (160W) |
|
|
Wide operating temperature range (-40 degC to +120 degC) |
|
|
Low IMD3 (-65 dBc @ 2*30W) |
|
Applications |
|
|
Designed for robust performance in communication systems. |
|
