1.805 GHz to 1.88 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, SMD Series Isolators Isolator-OHYG101B-1805-1880
Low Insertion Loss
High Isolation
High Power Handling
Compact Surface Mount Package
Wide Operating Temperature Range
- Description
- Datasheet

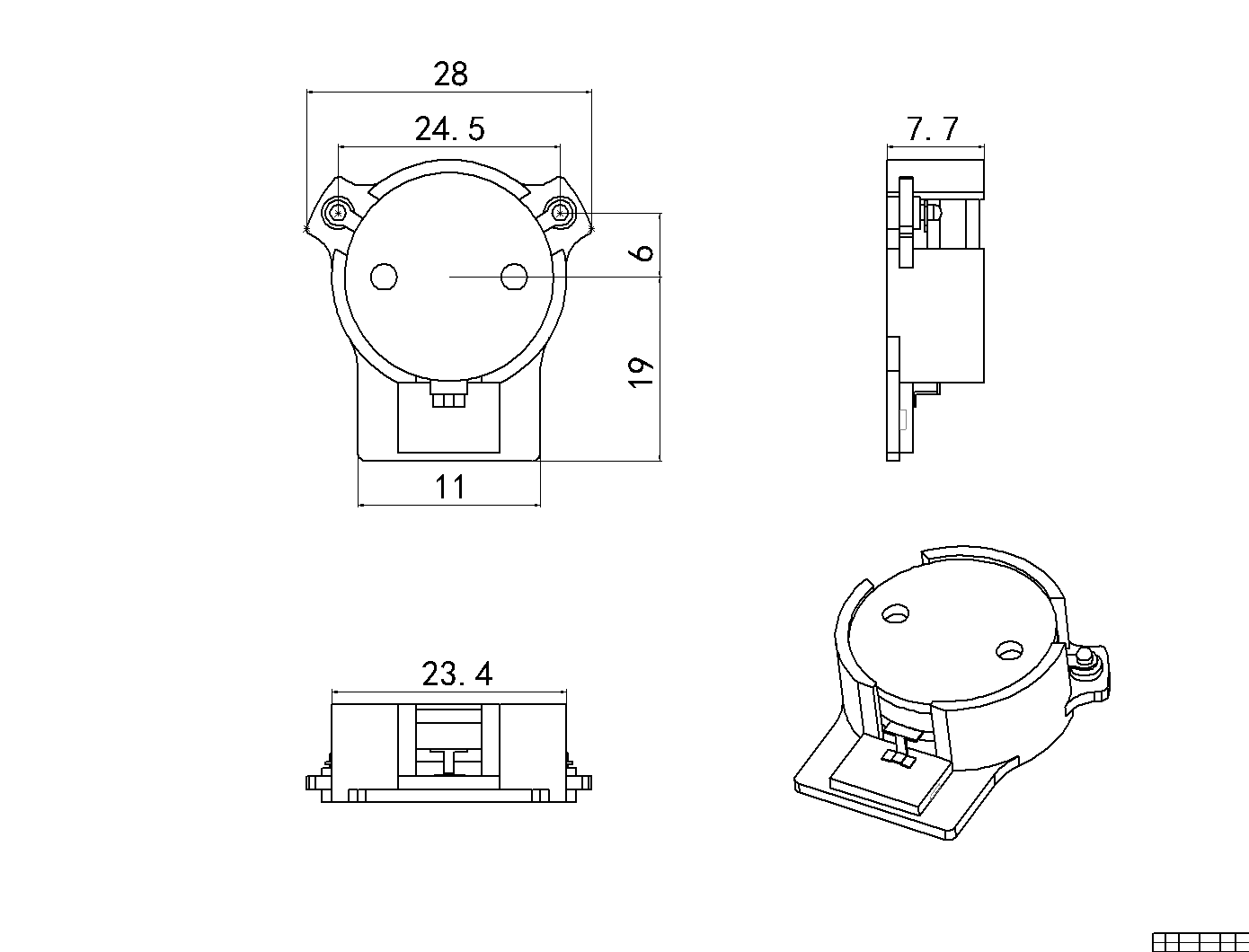

- Outline
- Reviews (0)
Description

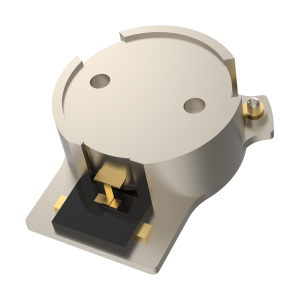

The product named OHYG101B is high-performance stripline surface-mounted isolator designed for robust operation in telecommunication systems. It features excellent isolation, low insertion loss, and high power handling capabilities over various frequency bands.
OHYG101B-1805-1880 | |
| 1.805 GHz to 1.88 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, SMD Series Isolators Isolator-OHYG101B-1805-1880 | |
Property | Value |
| Frequency (MHz) | 1805-1880 |
| Return Loss (dB) | 22 |
| Isolation (dB) | 22 |
| Insertion Loss (dB) | 0.25 |
| IMD3 (dBc) | -72 |
| Power (W) | 2 |
| Power note | 2*50W |
| Operating Temp ( degC) | -40 to 120 |
Features | |
| Low Insertion Loss | |
| High Isolation | |
| High Power Handling | |
| Compact Surface Mount Package | |
| Wide Operating Temperature Range | |
Applications | |
| Designed for wireless infrastructure applications, offering low insertion loss and high isolation. | |
