1.805 GHz to 1.88 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, SMD Series Isolators Isolator-OHYG103B-1805-1880
$0.00
Surface-mounted design for compact PCB integration
Low insertion loss of 0.25dB for signal integrity
High isolation and return loss of 22dB
Robust power handling up to 100W forward power
Superior IMD3 performance of -65 dBc
Wide operating temperature range from -40 to +105 degrees Celsius
- Description
- Datasheet

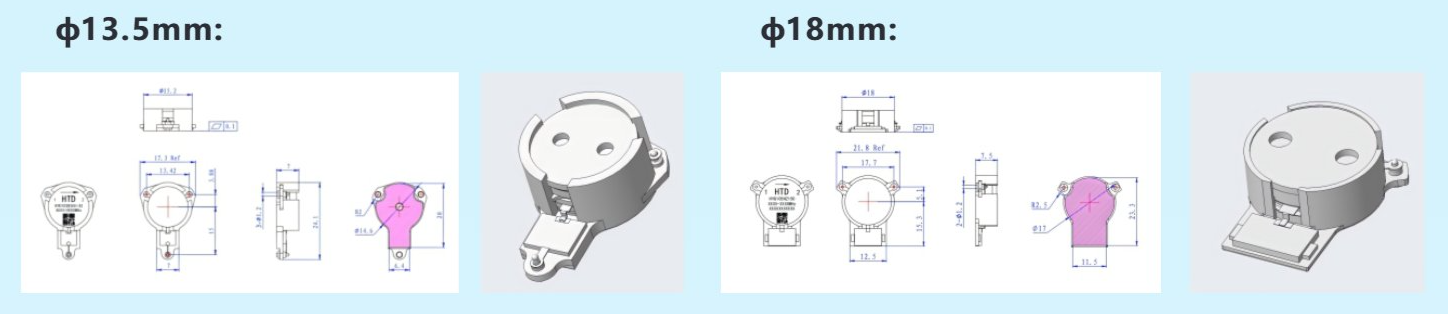

- Outline
- Reviews (0)
Description

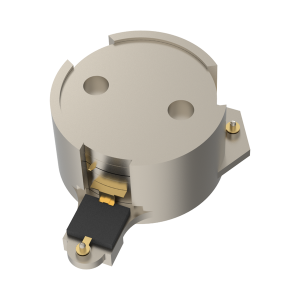

The product named OHYG103B-1805-1880 is high-performance stripline surface-mounted isolator designed for robust signal control in telecommunication systems.
OHYG103B-1805-1880 |
|
|
1.805 GHz to 1.88 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, SMD Series Isolators Isolator-OHYG103B-1805-1880 |
|
Property |
Value |
|
Frequency (MHz) |
1805-1880 |
|
Return Loss (dB) |
22 |
|
Isolation (dB) |
22 |
|
Insertion Loss (dB) |
0.25 |
|
IMD3 (dBc) |
-65 |
|
Power (W) |
2 |
|
Operating Temp ( degC) |
20 to 100 |
Features |
|
|
Surface-mounted design for compact PCB integration |
|
|
Low insertion loss of 0.25dB for signal integrity |
|
|
High isolation and return loss of 22dB |
|
|
Robust power handling up to 100W forward power |
|
|
Superior IMD3 performance of -65 dBc |
|
|
Wide operating temperature range from -40 to +105 degrees Celsius |
|
Applications |
|
|
Designed for wireless infrastructure applications, offering low insertion loss and high isolation. |
|
